Vertical Machining Center Series
This VMC is suitable for mechanical processing and mold making.And it can adapt to the processing requirement fromrough machining, to finish, machining t can also finish many working procedures like miling ,driling,tappingboring ,etc.
Vertical Machining Center Series
Model: VMC650
Maximum Spindle Speed: 8000 rpm
Dimensions: 2400 x 2000 x 2550 mm
Weight: 3600 kg
Maximum Power: 5.5 kW
Spindle Taper: BT40
X/Y/Z Axis Travel: 650/500/500 mm
Model: VMC850
Maximum Spindle Speed: 8000 rpm
Dimensions: 2570*2280*2800 mm
Weight: 5200 kg
Maximum power: 7.5 kW
Spindle Taper: BT40
X/Y/Z Axis Travel: 800/500/500 mm

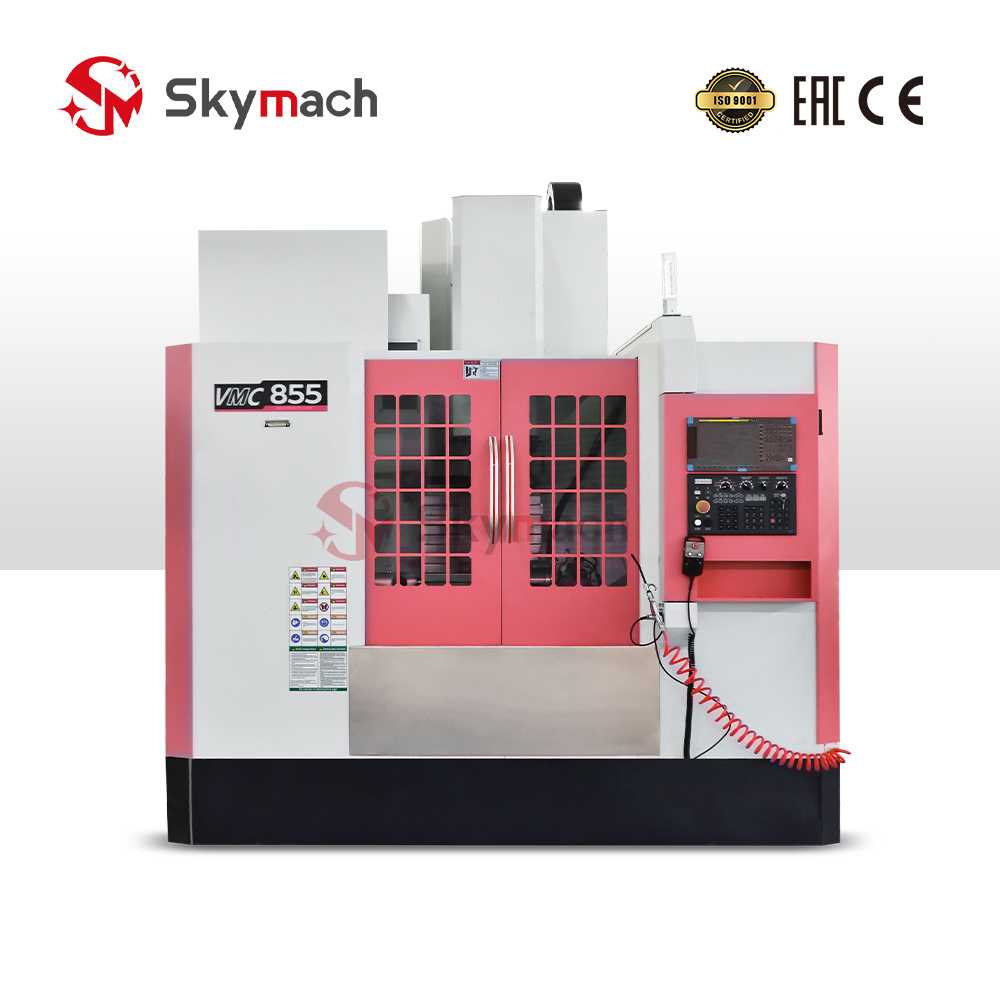

Model: VMC855
Maximum Spindle Speed: 8000 rpm
Dimensions: 2570*2280*2800 mm
Weight: 5500 kg
Maximum Power: 7.5 kW
Spindle Taper: BT40
X/Y/Z Axis Travel: 800/550/550 mm
Model: VMC1160
Maximum Spindle Speed: 8000 rpm
Dimensions: 3130*2500*2800 mm
Weight: 6200 kg
Maximum Power: 11 kW
Spindle Taper: BT40
X/Y/Z Axis Travel: 1100/600/600 mm
Model: VMC1160H
Maximum Spindle Speed: 8000 rpm
Dimensions: 3130*2450*2800 mm
Weight: 6800 kg
Maximum Power: 11/15 kW
Spindle Taper: BT40
X/Y/Z Axis Travel: 1100/600/600 mm
Model: VMC1270
Maximum Spindle Speed: 8000 rpm
Dimensions: 3400 x 2900 x 3000 mm
Weight: 8000 kg
Maximum Power: 11/15 kW
Spindle Taper: BT40
X/Y/Z Axis Travel: 1200/700/700 mm
Model: VMC1275
Maximum Spindle Speed: 8000 rpm
Dimensions: 3200 x 2280 x 3000 mm
Weight: 7500 kg
Maximum Power: 15/18.5 kW
Spindle Taper: BT40
X/Y/Z Axis Travel: 1200/750/600 mm
Model: VMC1370
Maximum Spindle Speed: 8000 rpm
Dimensions: 3870 x 2900 x 3000 mm
Weight: 8000 kg
Maximum Power: 15/18.5 kW
Spindle Taper: BT40
X/Y/Z Axis Travel: 1300/700/700 mm
Model: VMC1580
Maximum Spindle Speed: 6000 rpm
Dimensions: 4300 x 3200 x 3100 mm
Weight: 12,000 kg
Maximum Power: 15/18.5 kW
Spindle Taper: BT50
X/Y/Z Axis Travel: 1500/800/700 mm
Model: VMC1690
Maximum Spindle speed: 6000 rpm
Dimensions: 4500 x 3350 x 3200 mm
Weight: 13,000 kg
Maximum Power: 18.5 kW/22 kW
Spindle Taper: BT50
X/Y/Z Axis Travel: 1600/900/700 mm
Model: VMC1890
Maximum Spindle Speed: 6000 rpm
Dimensions: 5100 x 3800 x 3200 mm
Weight: 15,000 kg
Maximum Power: 18.5 kW
Spindle Taper: BT50
X/Y/Z Axis Travel: 1800/900/800 mm
Model: BR-WZ650
Maximum Spindle Speed: 15000 rpm
Workbench Size: 650mm
Weight: 7500 kg
Maximum Power: 9 kW
Spindle Taper: BT40
X/Y/Z Axis Travel: 520/500/180 mm
Submit Your Requirements: Please provide your needs in as much detail as possible, including drawings, reference pictures, and any specific ideas.
Receive Solution & Quotation: Based on your requirements and drawings, we will develop the most suitable solution and provide you with a detailed quotation within 24 hours.
Interested in receiving our complete product catalog? Simply send us your inquiry today.
FAQS
Do You Have Your Own Factory?
Yes. Our factory was established in Tengzhou in 2015 with advanced production technology. You are welcome to visit our factory at any time.
Do you provide technical support for the CNC equipment purchased?
Yes! We have 10 engineers available online 24/7 to provide technical support and guidance.
Where Do You Ship the Goods From?
Usually, shipments depart from the port of Qingdao, China, our port facility in Shanghai, or customers can arrange pickup directly from Shandong Province.
What Customization Options Can You Offer?
What Kind of Payment Methods Do You Accept?
The company supports bank T/T payments, PayPal, credit card payments, Western Union, and LC payments, along with other options.
What About After-Sales Service?
We have dedicated staff in Europe, Southeast Asia, Canada, South America, and other regions who can address your issues. They will respond to and resolve your after-sales service requests promptly.
