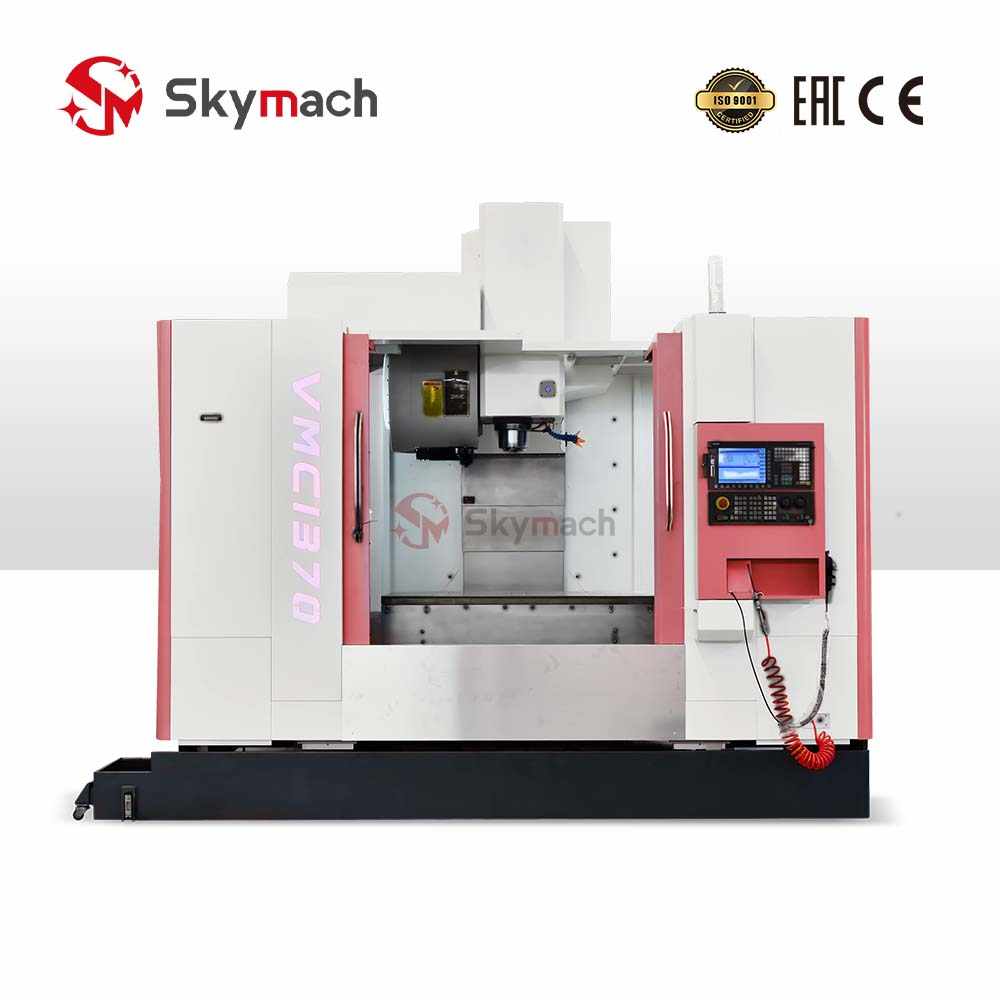

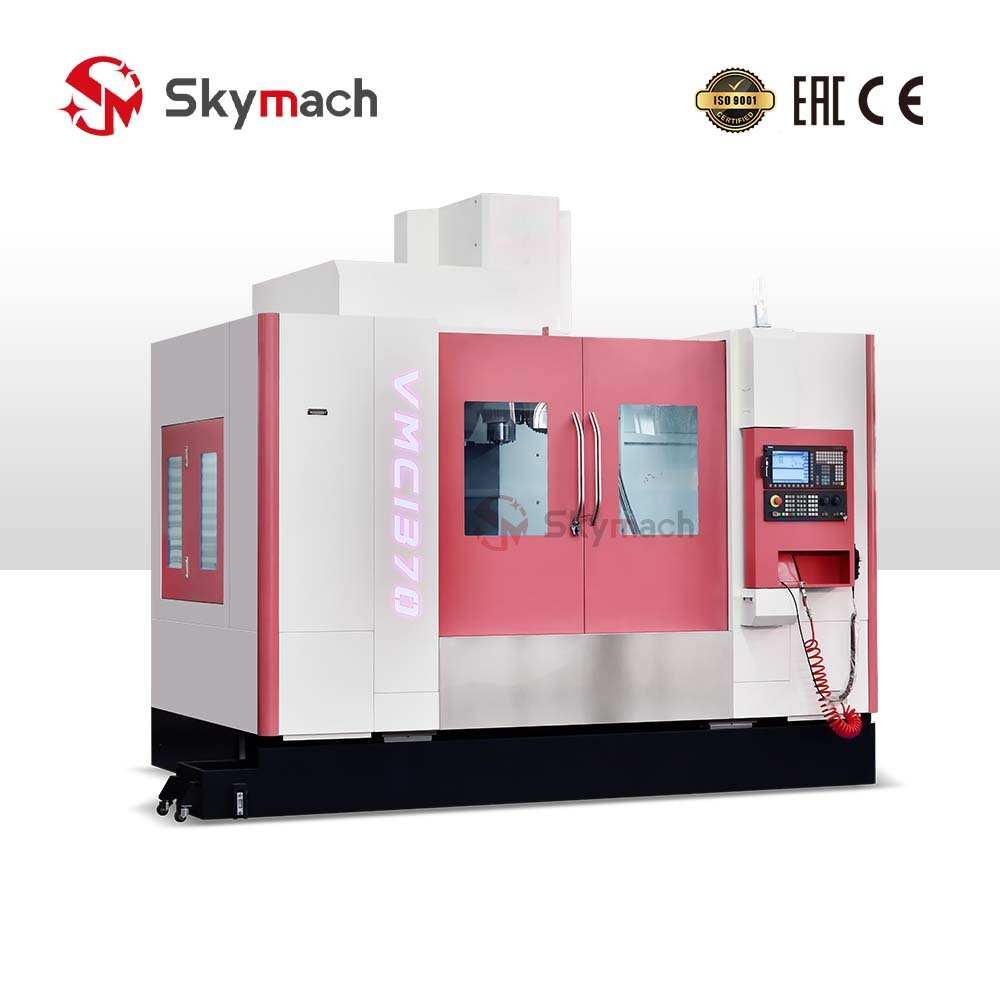

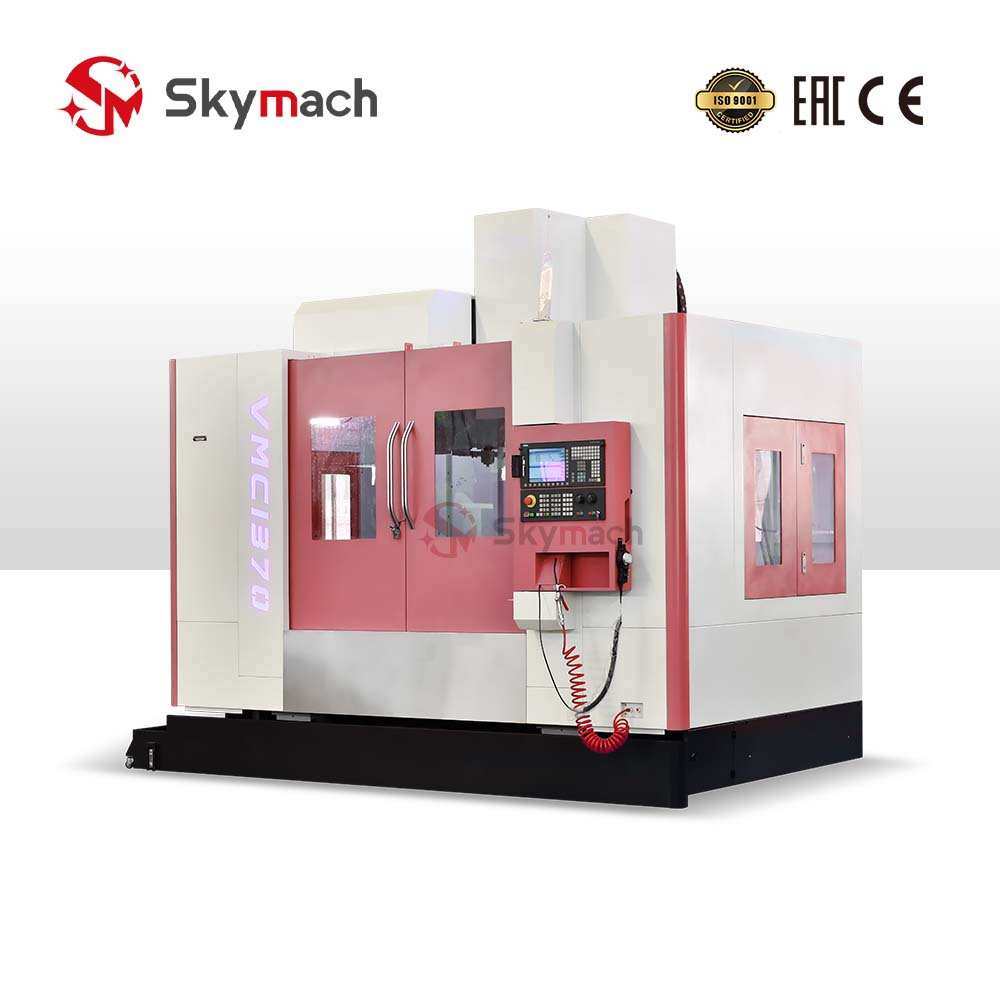

Vertical Machining Center VMC1370

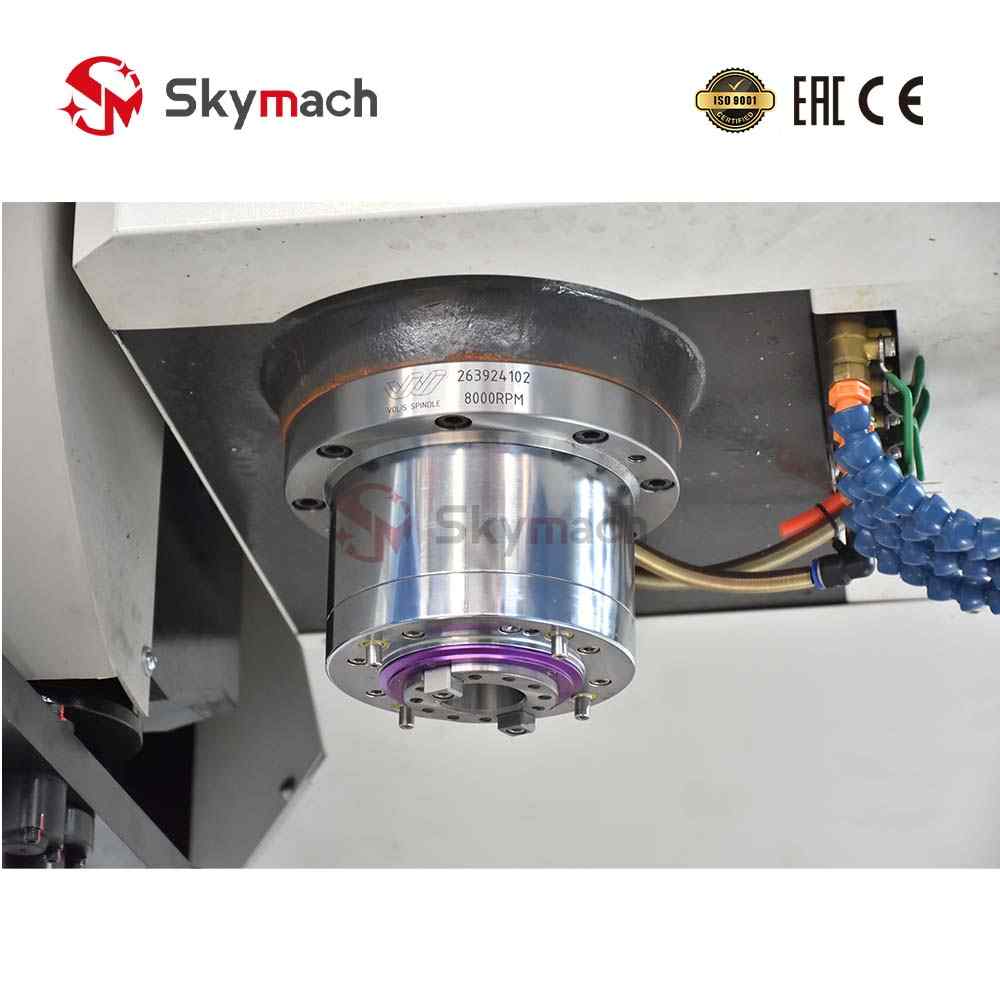

Direct drive spindle structure, low noise
Spindle speed 8000 / 10000 / 12000
Three axis guide rail adopts brand linear rolling guide.
Systems can be selected according to customer requirement

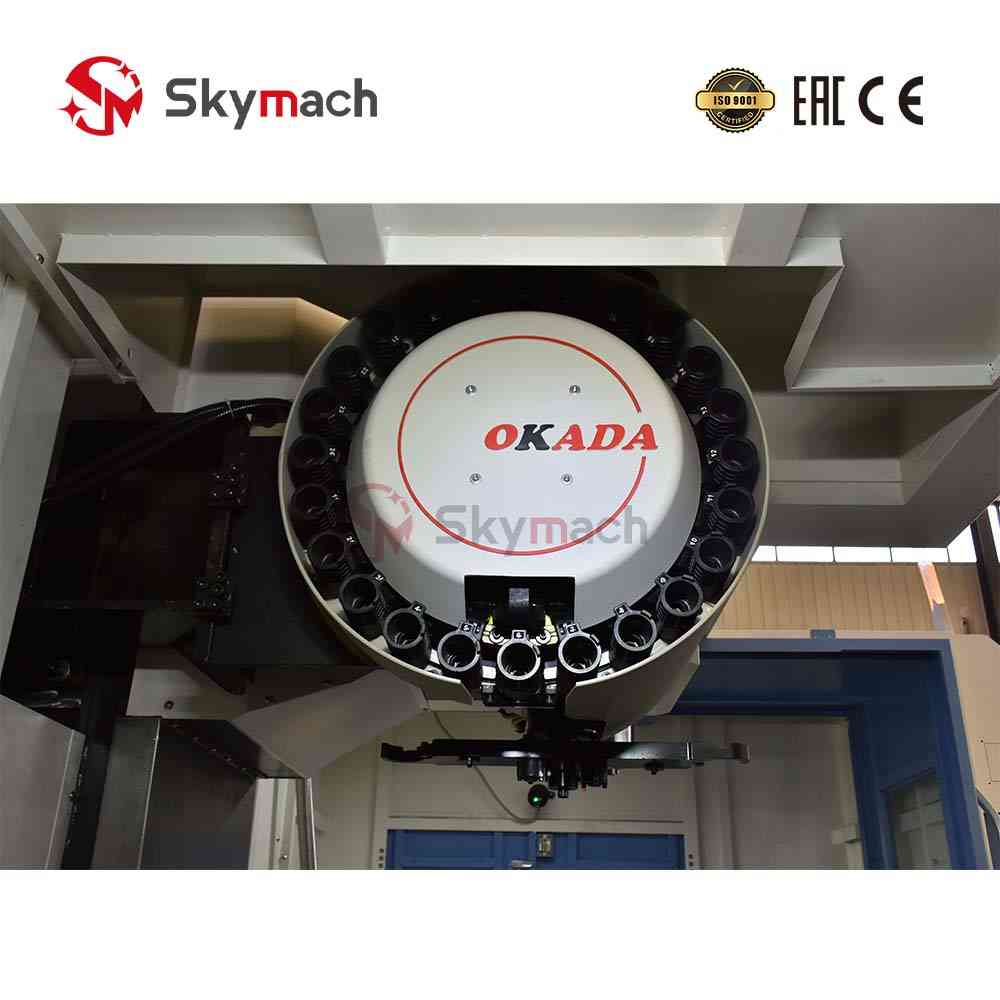

24 Disc ATC
SYSTEMCNC CONTROL
SIEMENS, KND, FANUC, MITSUBISHl, GSK and other operating
Full protection
Three-axis lubricating system
Separate hand-wheel
Machine tool lighting work light
Random technology document
Spindle cone Hole cleaning air
Electric cabinet cooling and heat exchanger
Cleaning air gun
Chip storage tank
Servo transformer
Foundation pad iron and adjusting bolt
Vertical Machining Center VMC1370
Direct drive spindle structure, low noise
Spindle speed 8000 / 10000 / 12000
Three axis guide rail adopts brand linear rolling guide.
Systems can be selected according to customer requirement
24 Disc ATC
SYSTEMCNC CONTROL
SIEMENS, KND, FANUC, MITSUBISHl, GSK and other operating
Full protection
Three-axis lubricating system
Separate hand-wheel
Machine tool lighting work light
Random technology document
Spindle cone Hole cleaning air
Electric cabinet cooling and heat exchanger
Cleaning air gun
Chip storage tank
Servo transformer
Foundation pad iron and adjusting bolt
Advantages Of Vertical Machining Center VMC1370：
- Choose ball screw, wire gauge with automatic centralized lubrication device to reduce friction resistance and stable operation.
- The three-axis feed is supported by Taiwan high precision ball screw with high precision and good bearing performance.
- Ensures the positioning accuracy and repeated positioning accuracy of the machine tool.
- P4 main shaft bearing and concentrated grease lubrication are adopted.
- It is assembled under constant temperature conditions and has passed balance correction and running test by computer. It has stable operation and long life.
- A number of brands of CNC system optional, good stability, read program speed.
- Choose brand copper core servo motor, accurate control, stable operation.
Advantages Of Vertical Machining Center VMC1370：
| X axis travel | mm | 1300 |
| Y axis travel | mm | 700 |
| Z axis travel | mm | 700 |
| Spindle nose to table surface | mm | BT40- ∮ 150: 100-800 BT50- ∮ 155; 70-770 BT50- ∮ 190: 120-820 |
| Spindle center to Column surface | mm | 773 |
| Worktable Size(X-axis direction) | mm | 1400 |
| Worktable Size(Y-axis direction) | mm | 700 |
| T slot qty-width*distance | mm | 18x5x110 |
| Spindle speed（Belt type） | rpm | 8000 |
| Main motor power | kW | 11/15 |
| Spindle taper | BT40(BT50) | |
| X/Y/Z axis rapid feed | m/min | 24/24/24 |
| Cutting rapid feed | mm/min | 1-10000 |
| Three-axis servo motor power | kW | 3 X 3 X 3.5 |
| Tools capacity | pcs | Disc Type 24 |
| Machine length | mm | 3200 |
| Machine width | mm | 2540 |
| Machine high | mm | 2600 |
| Machine weigth | kg | 8800 |
Advantages Of Vertical Machining Center VMC1370：
