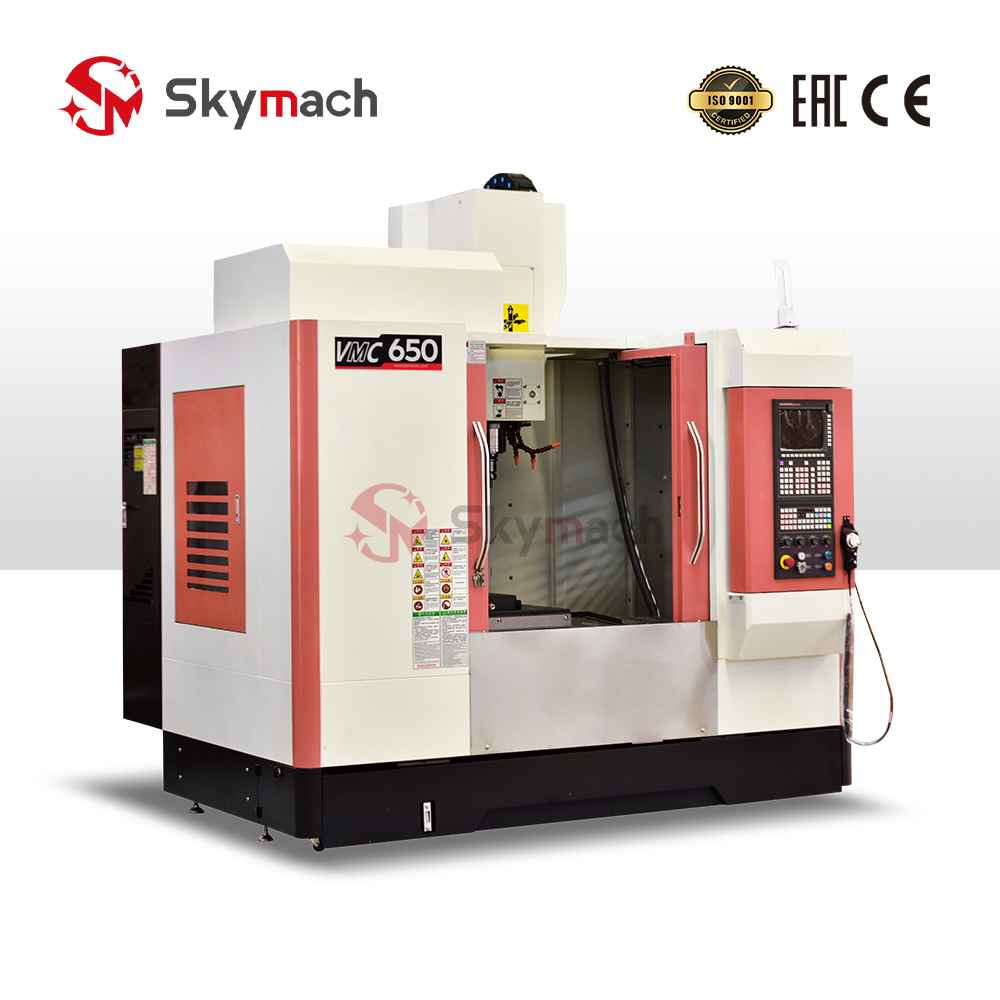

Vertical Machining Center VMC650
Table: 800x400mm
Taiwan HIWIN linear guide
Systems can be selected according to customer requirement
SYSTEMCNC CONTROL
SIEMENS, KND, FANUC, MITSUBISHl, GSK and other operating
Full protection
High hardness bed castings
24 Disc ATC
Taiwan VOLIS spindle
Spindle speed 8000 / 10000 / 12000
Three-axis lubricating system
Separate hand-wheel
Machine tool lighting work light
Random technology document
Spindle cone Hole cleaning air
Electric cabinet cooling and heat exchanger
Cleaning air gun
Chip storage tank
Servo transformer
Foundation pad iron and adjusting bolt

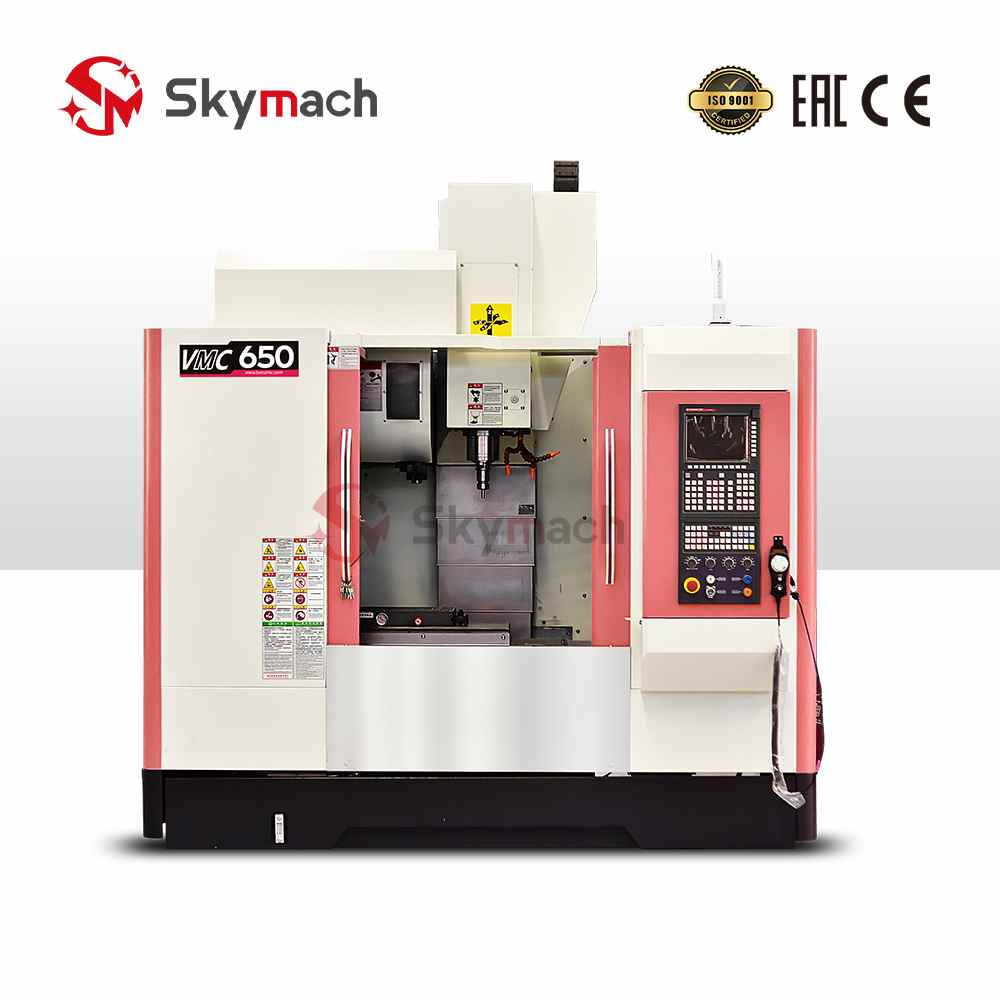

CNC Vertical Machining Center VMC650
Table: 800x400mm
Model: VMC650
Taiwan HIWIN linear guide
Systems can be selected according to customer requirement
SYSTEMCNC CONTROL
SIEMENS, KND, FANUC, MITSUBISHl, GSK and other operating
Full protection
High hardness bed castings
24 Disc ATC
Taiwan VOLIS spindle
Spindle speed 8000 / 10000 / 12000
Three-axis lubricating system
Separate hand-wheel
Machine tool lighting work light
Random technology document
Spindle cone Hole cleaning air
Electric cabinet cooling and heat exchanger
Cleaning air gun
Chip storage tank
Servo transformer
Foundation pad iron and adjusting bolt
Advantages Of CNC Vertical Machining Center:
VMC650 CNC vertical machining center is mainly used for the processing of various metal molds, with high work efficiency and small footprint, which is very suitable for the processing of small and medium-sized workpieces.
High density, twice quenching, vibration treatment.
The double layer casting structure of sliding saddle is used to strengthen the stability of the bed.
All adopt Taiwan original spindle, high speed, high rigidity, simple and compact structure.High efficiency.
Low noise, low vibration and high precision, stable processing products, optional.
Using Taiwan silver linear guide rail, linear guide rail, small clearance, large bearing capacity, high rigidity, small friction loss, small wear, long service time, suitable for high-speed operation, sensitive response.

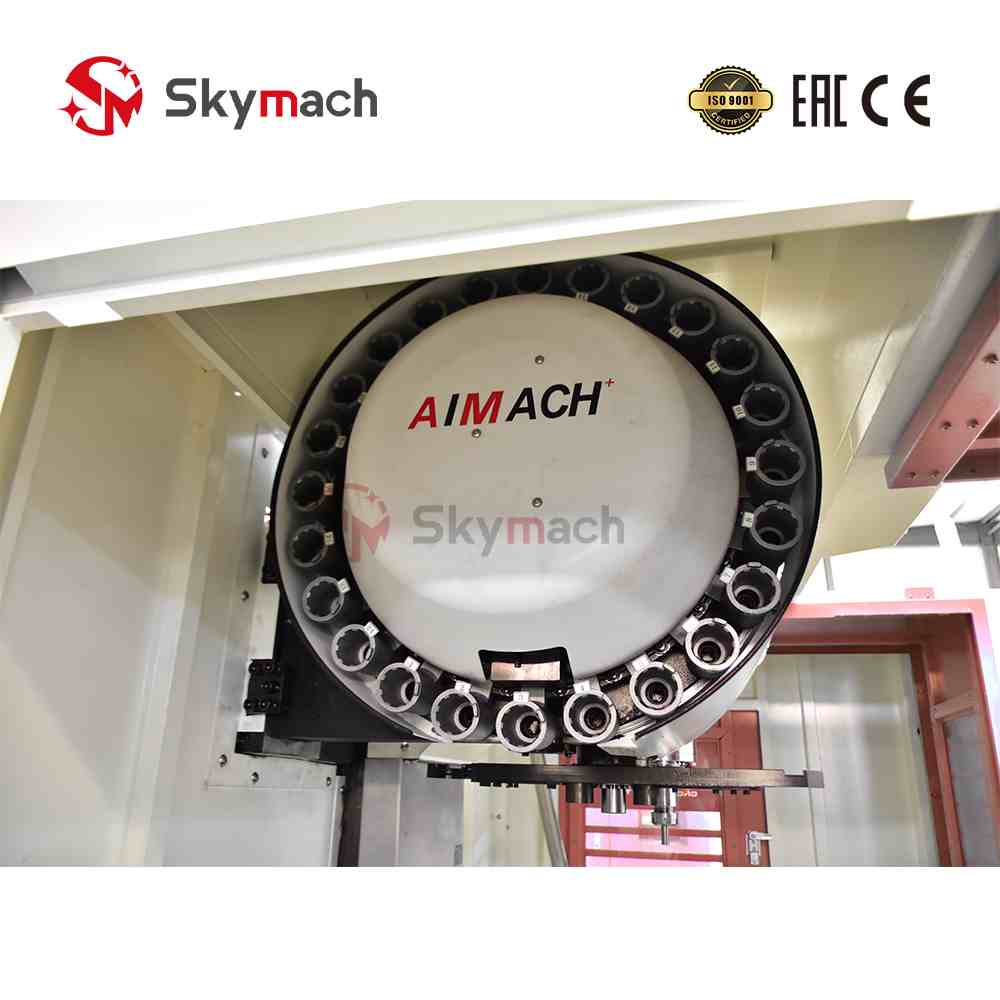

Using Taiwan brand knife library 24 disc knife library, with high precision, high efficiency, stable tool change, high processing efficiency.
Computer balance correction andrunning-in test, lengtheningservice life of the whole spindle.

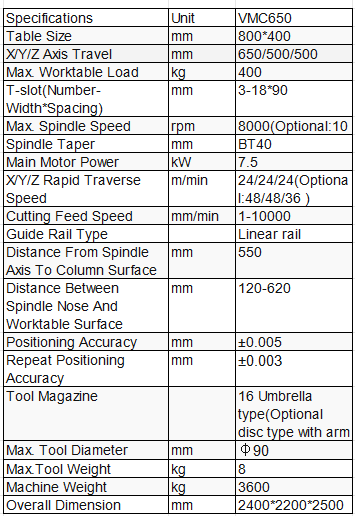

Product Main Technical Parameters:
| Specifications | Unit | VMC650 |
| Table Size | mm | 800*400 |
| X/Y/Z Axis Travel | mm | 650/500/500 |
| Max. Worktable Load | kg | 400 |
| T-slot(Number-Width*Spacing) | mm | 3-18*90 |
| Max. Spindle Speed | rpm | 8000(Optional:10000 ) |
| Spindle Taper | mm | BT40 |
| Main Motor Power | kW | 7.5 |
| X/Y/Z Rapid Traverse Speed | m/min | 24/24/24(Optional:48/48/36 ) |
| Cutting Feed Speed | mm/min | 1-10000 |
| Guide Rail Type | Linear rail | |
| Distance From Spindle Axis To Column Surface | mm | 550 |
| Distance Between Spindle Nose And Worktable Surface | mm | 120-620 |
| Positioning Accuracy | mm | ±0.005 |
| Repeat Positioning Accuracy | mm | ±0.003 |
| Tool Magazine | 16 Umbrella type | |
| (Optional disc type with arm ) | ||
| Max. Tool Diameter | mm | φ90 |
| Max.Tool Weight | kg | 8 |
| Machine Weight | kg | 3600 |
| Overall Dimension | mm | 2400*2200*2500 |
