Vertical Machining Center VMC1270
Table: 1300x700mm
Vertical frame layout
24 Disc ATC
Spindle speed: 8000 / 10000 / 12000
The spindle is stepless in its speed range
Taiwan HIWIN linear guide
Systems can be selected according to customer requirement
SYSTEMCNC CONTROL
SIEMENS, KND, FANUC, MITSUBISHl, and other operating
Full protection
Three-axis lubricating system
Separate hand-wheel
Machine tool lighting work light
Random technology document
Spindle cone Hole cleaning air
Electric cabinet cooling and heat exchanger
Cleaning air gun
Chip storage tank
Servo transformer
Foundation pad iron and adjusting bolt
Send Inquiry
Vertical Machining Center VMC1270
Table: 1300x700mm
Model: VMC1270
Vertical frame layout
24 Disc ATC
Spindle speed: 8000 / 10000 / 12000
The spindle is stepless in its speed range
Taiwan HIWIN linear guide
Systems can be selected according to customer requirement
SYSTEMCNC CONTROL
SIEMENS, KND, FANUC, MITSUBISHl, and other operating
Full protection
Three-axis lubricating system
Separate hand-wheel
Machine tool lighting work light
Random technology document
Spindle cone Hole cleaning air
Electric cabinet cooling and heat exchanger
Cleaning air gun
Chip storage tank
Servo transformer
Foundation pad iron and adjusting bolt
Send Inquiry
Advantages Of Vertical Machining Center VMC1270：
It is Resin sand casting and honeycomb structure. After multiple stress elimination processes, the new herringbone column structure is an M-shaped reinforcement.
- Double layer worktable structure can improve the rigidity and stability of machine tools.
- Combined with surface scraping to ensure lasting accuracy and stability. It can prolong the service life of the machine.
- Import a high-speed spindle protection structure with a beautiful atmosphere.
- High-precision P roller wire gauge. It ensures the machine is high speed, cutting kinetic rigidity and accuracy requirements.
- Reasonable structure design of machine tool. It has high rigidity and high stability.
- High-quality parts selection, machine tool thermal change small, high precision. A unique shield protection design can ensure the machine’s life.
- Six sliding block structures significantly increase the load capacity. It enhances the rigidity, accuracy, and durability of the machine.
Product Main Technical Parameters:
| Specification | Unit | VMC1270 |
| X/Y/Z axis travel | mm | 1200/700/600 |
| The distance from spindle nose to worktable surface | mm | 140-700mm |
| The distance from spindle center to column surface | mm | 780 |
| T-slot | mm | 3-18*125 |
| Worktable size | mm | 1300*700 |
| Worktable max. loading | kg | 1000 |
| Spindle speed | rpm | 8000 |
| Main motor | kW | 15/18.5 |
| spindle taper | BT40(Φ150)/optional BT50 | |
| Rapid traverse speed | m/min | 24/24/18 |
| Cutting feed speed | mm/min | 1-6000 |
| Positioning accuracy | mm | ±0.0075 |
| Repeat Positioning accuracy | mm | ±0.005 |
| Magazine tool capacity | pcs | 24(disc type) |
| Machine over all size | mm | 3870*2900*2580 |
| Machine weight | kg | 6000KG |

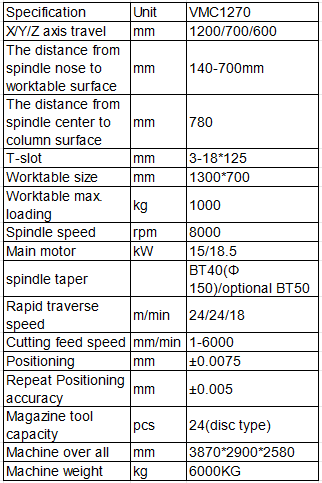

Product Main Technical Parameters:
Video Display
FAQS
Do You Have Your Own Factory?
Yes. Our factory was established in Tengzhou in 2015 with advanced production technology. You are welcome to visit our factory at any time.
Do you provide technical support for the CNC equipment purchased?
Yes! We have 10 engineers available online 24/7 to provide technical support and guidance.
Where Do You Ship the Goods From?
Usually, shipments depart from the port of Qingdao, China, our port facility in Shanghai, or customers can arrange pickup directly from Shandong Province.
What Customization Options Can You Offer?
What Kind of Payment Methods Do You Accept?
The company supports bank T/T payments, PayPal, credit card payments, Western Union, and LC payments, along with other options.
What About After-Sales Service?
We have dedicated staff in Europe, Southeast Asia, Canada, South America, and other regions who can address your issues. They will respond to and resolve your after-sales service requests promptly.
