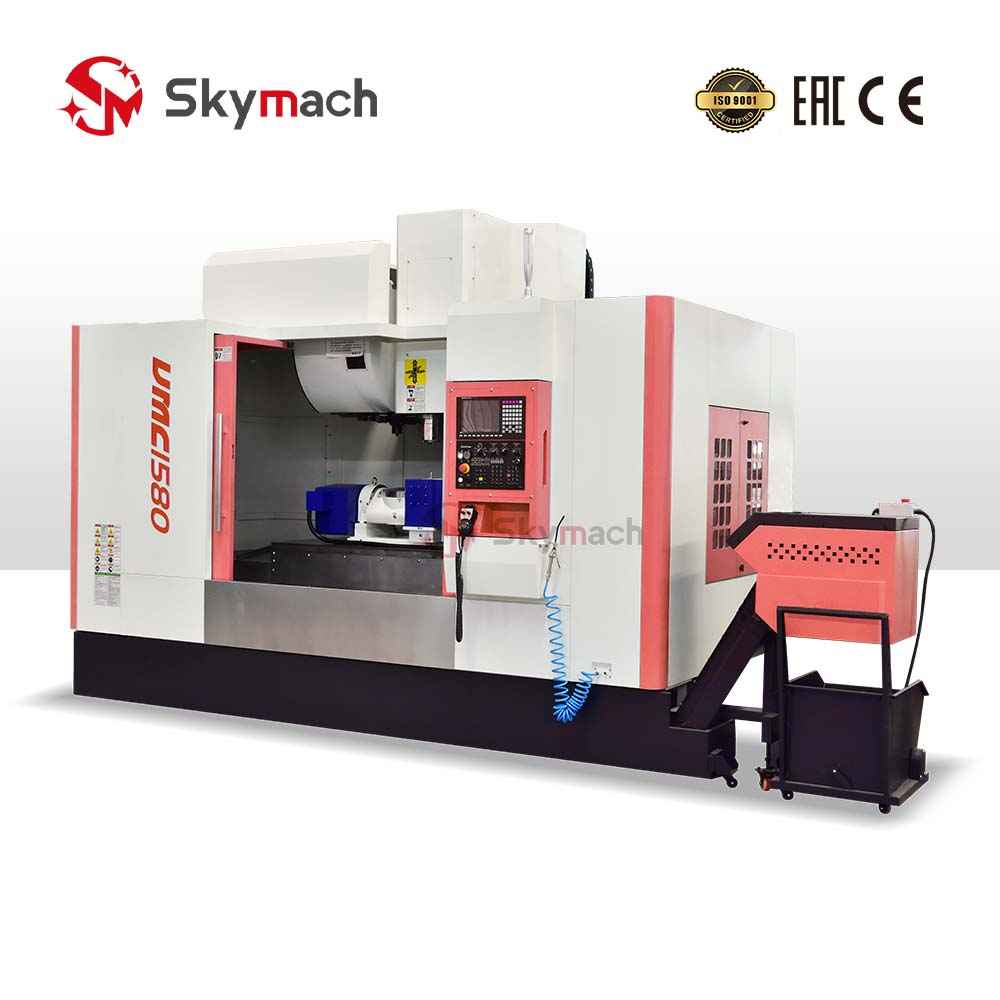

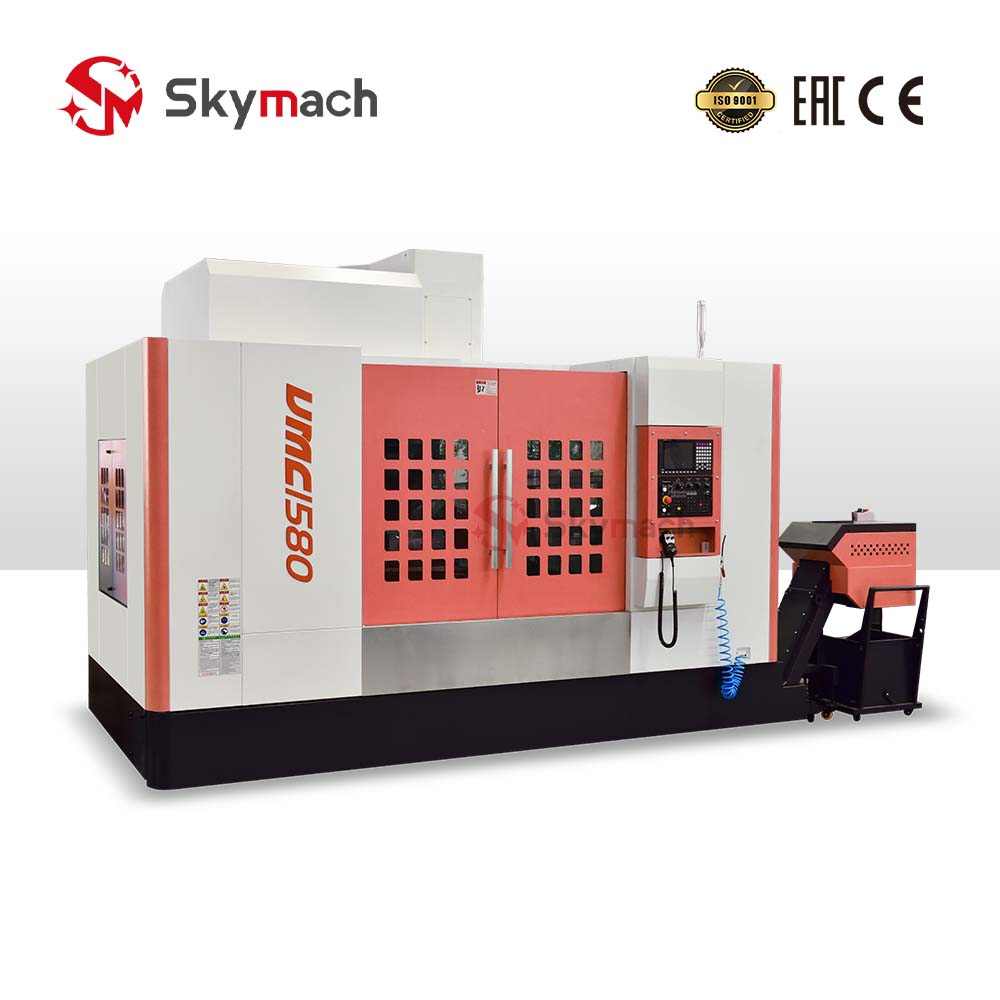

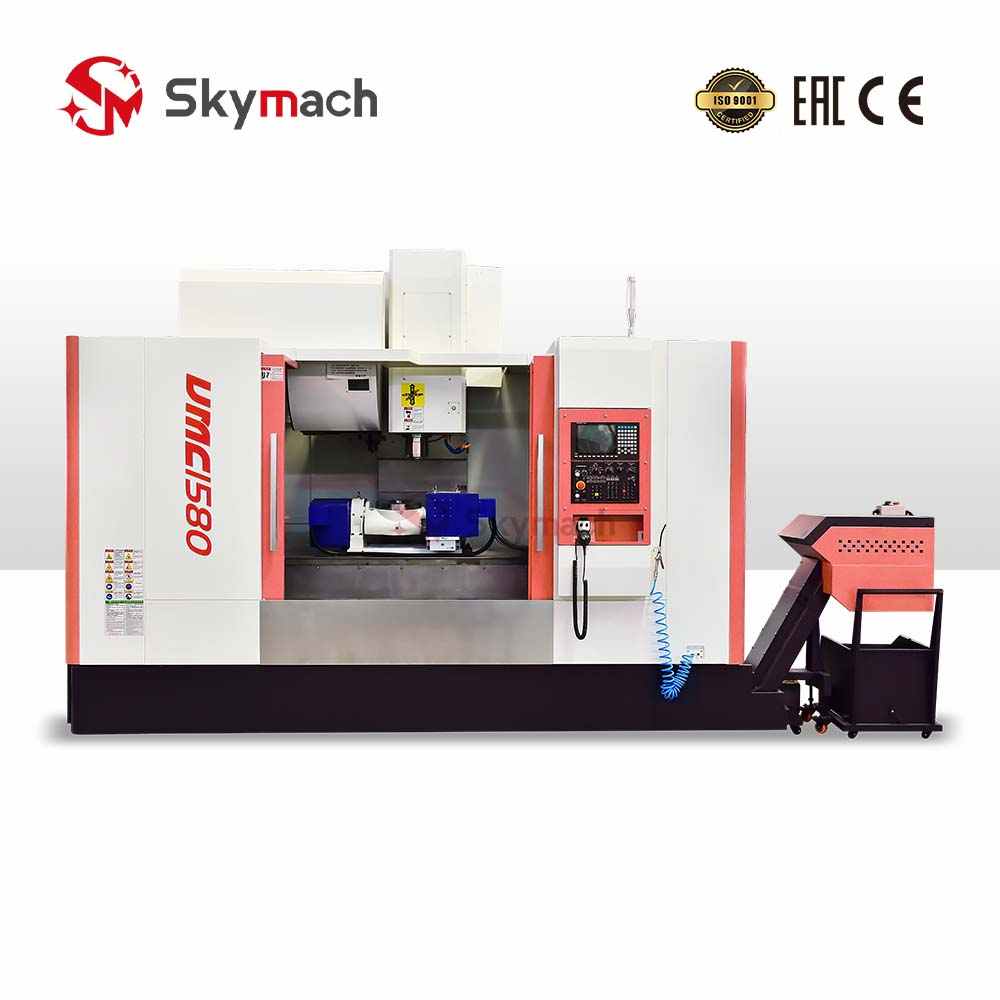

Vertical Machining Center VMC1580

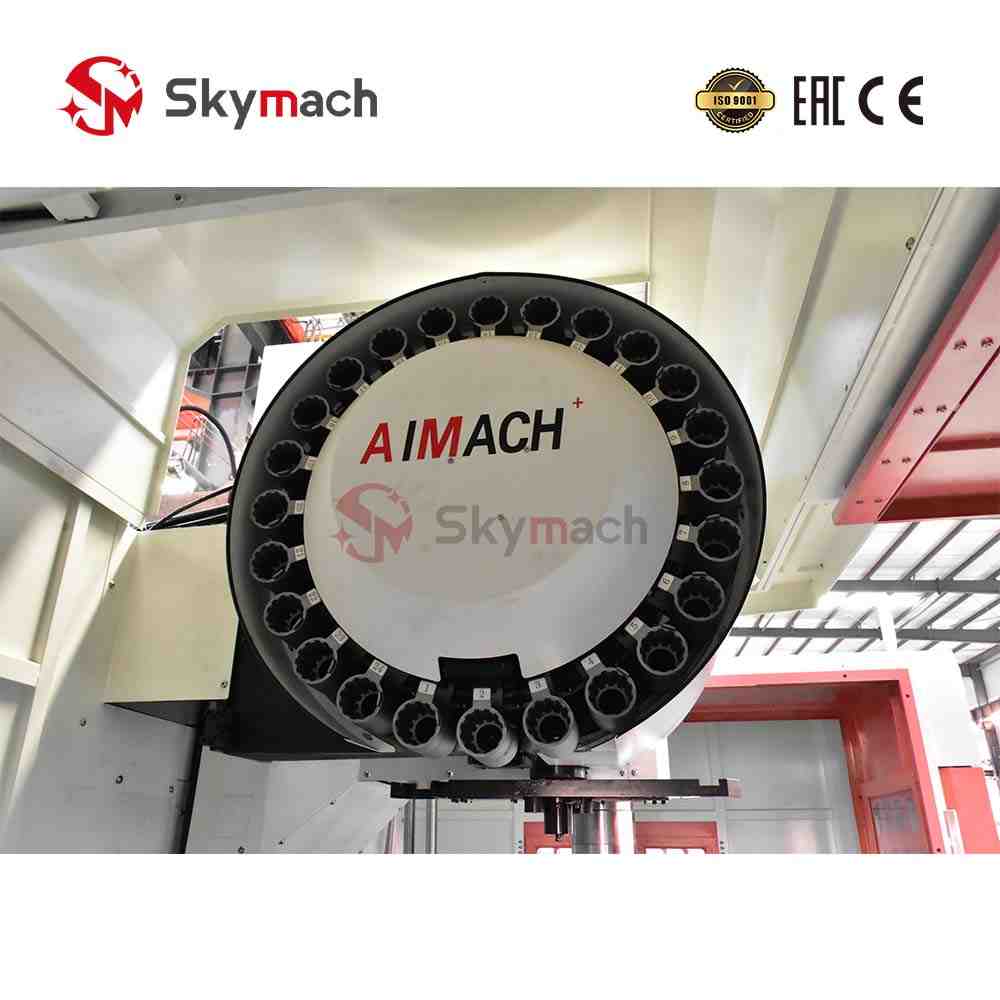

24 Disc ATC
SYSTEMCNC CONTROL
SIEMENS, KND, FANUC, Mitsubishi, GSK, and other operating
Full protection
Central automatic lubrication
Five-axis lubricating system
Separate hand-wheel
Machine tool lighting work light
Random technology document
Spindle cone Hole cleaning air
Electric cabinet cooling and heat exchanger
Cleaning air gun
Chip storage tank
Servo transformer
Foundation pad iron and adjusting bolt
Vertical Machining Center VMC1580
24 Disc ATC
SYSTEMCNC CONTROL
SIEMENS, KND, FANUC, Mitsubishi, GSK, and other operating
Full protection
Central automatic lubrication
Five-axis lubricating system
Separate hand-wheel
Machine tool lighting work light
Random technology document
Spindle cone Hole cleaning air
Electric cabinet cooling and heat exchanger
Cleaning air gun
Chip storage tank
Servo transformer
Foundation pad iron and adjusting bolt
Advantages Of Vertical Machining Center VMC1580:
- The entire vertical CNC machine center has a beautiful and elegant appearance. The overall layout of the machine is coordinated.
- Mihanna high strength castings, high rigidity, high precision, and long life.
- Guide rail, table after quenching, hardening, precision grinding.
- Guide rail with Turcite-B high wear-resistant piece. It is smooth.
- Each guide rail of the machine tool has a protective cover. It can prevent chips and coolant from entering the machine tool. The guide rail and ball screw from wear and corrosion.
- All five axes of the machine tool adopt the Taiwan Shangyin/Yintai P3 guide rail. This better guarantees the precision of the machine tool and improves the machining efficiency.
- The CNC vertical machine center can install all kinds of Angle milling heads, and manual Angle. The clamping multi-surface processing, good accuracy, and high efficiency.
Product Main Technical Parameters:
| Model | Unit | VMC1580 |
| working tale size | mm | 800x1700 |
| X/Y/Z travel | mm | 1500/800/700 |
| Distance between spindle end and table | mm | 170/840 |
| Distance between spindle center and column guide way | mm | 810 |
| Maximum weight of working table | kg | 1500 |
| table-T-slot | mm | 5-22-135 |
| X/Y/Z axis rapid feed | mm/min | 15/15/12 |
| three axis working rapid speed | mm/min | 5000 |
| X.Y.Z axis screw mandrel size | mm | 6310/6310/5010 |
| positioning accuracy | mm | ±0.001 |
| repeat positioning accuracy | mm | ±0.0075 |

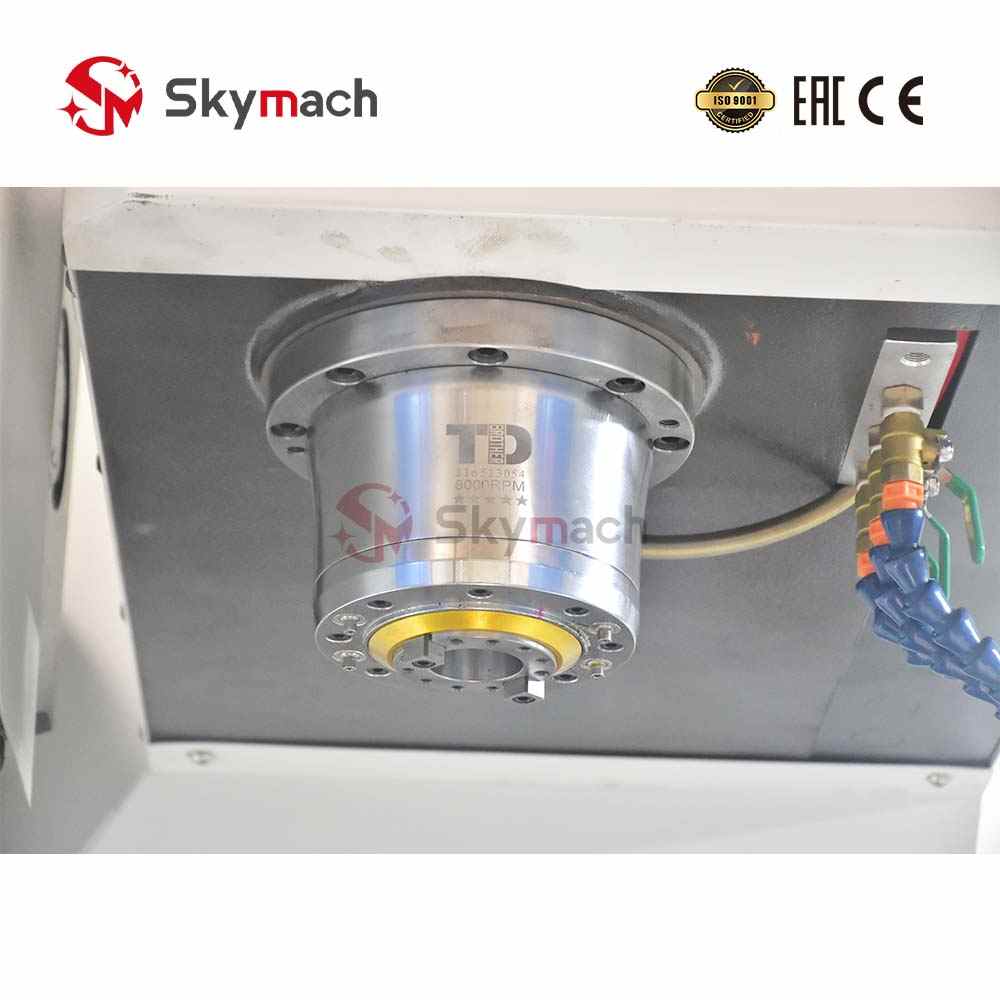

| spindle speed | rpm | 6000 |
| spindle taper | mm | BT50 |
| control system | / | MITSUBISHI-M70VA/FANUC0i-mate-MD |
| torque force of spindle motor | nm/kw | 95.5/18.5 |
| torque force of X.Y.Z motor | nm | 37.2-122 |
| pneumatic source requirement | Kg/Cm2 | 6 |
| power consumption | kva | 30 |
| machine size | mm | 4300*3200*3100 |
| machine weight | kg | 13000 |
Product Main Technical Parameters:
