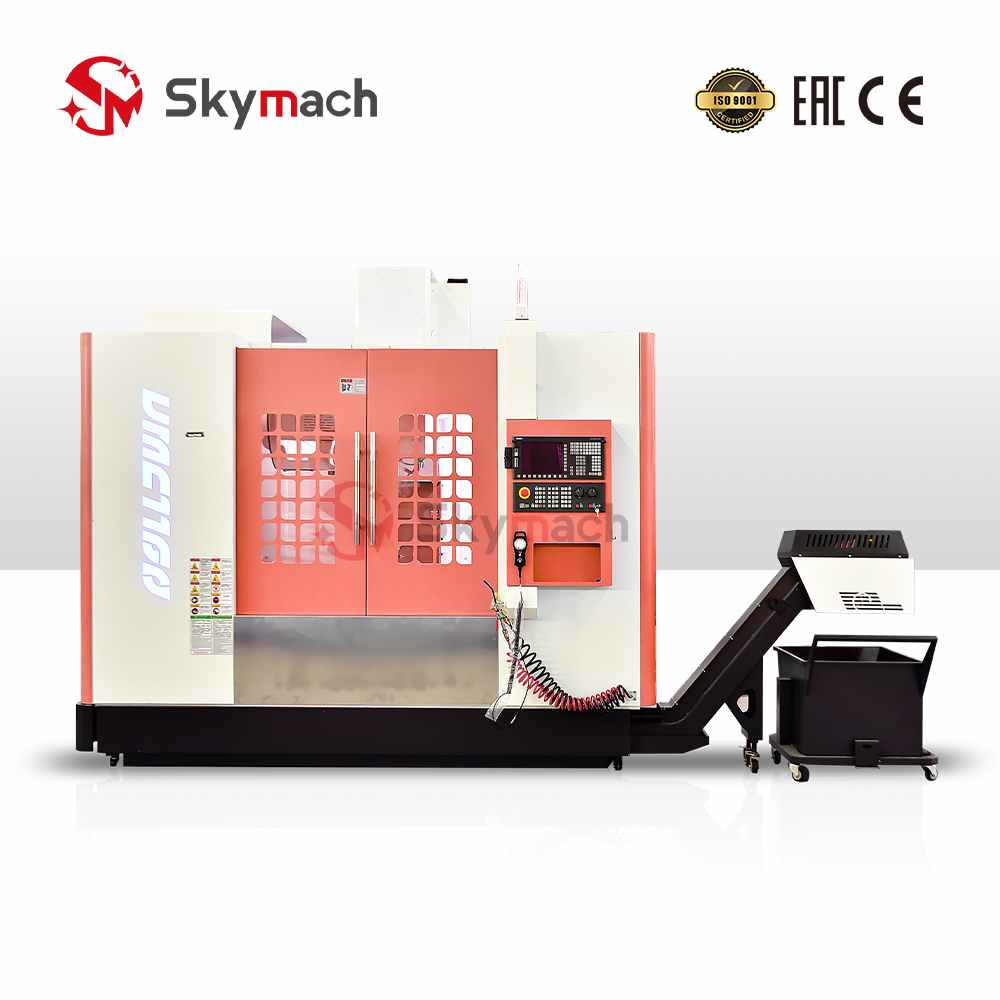

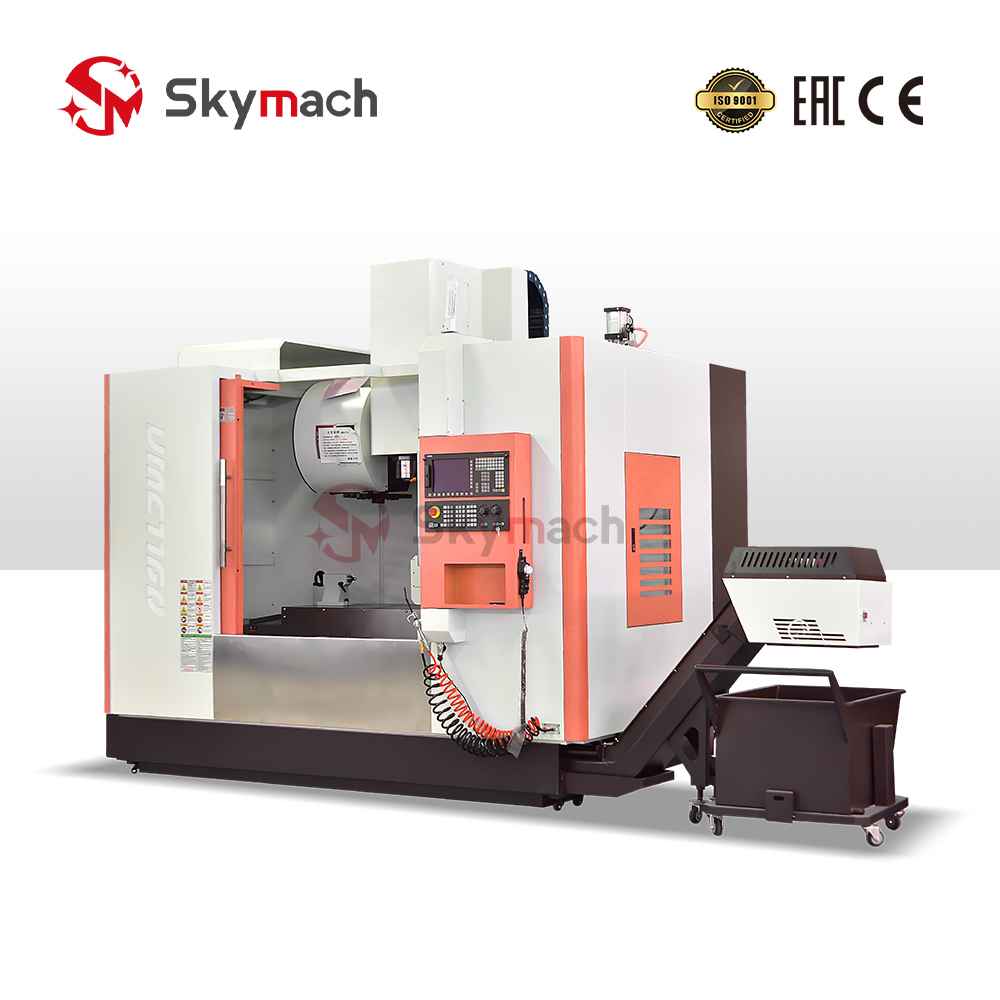

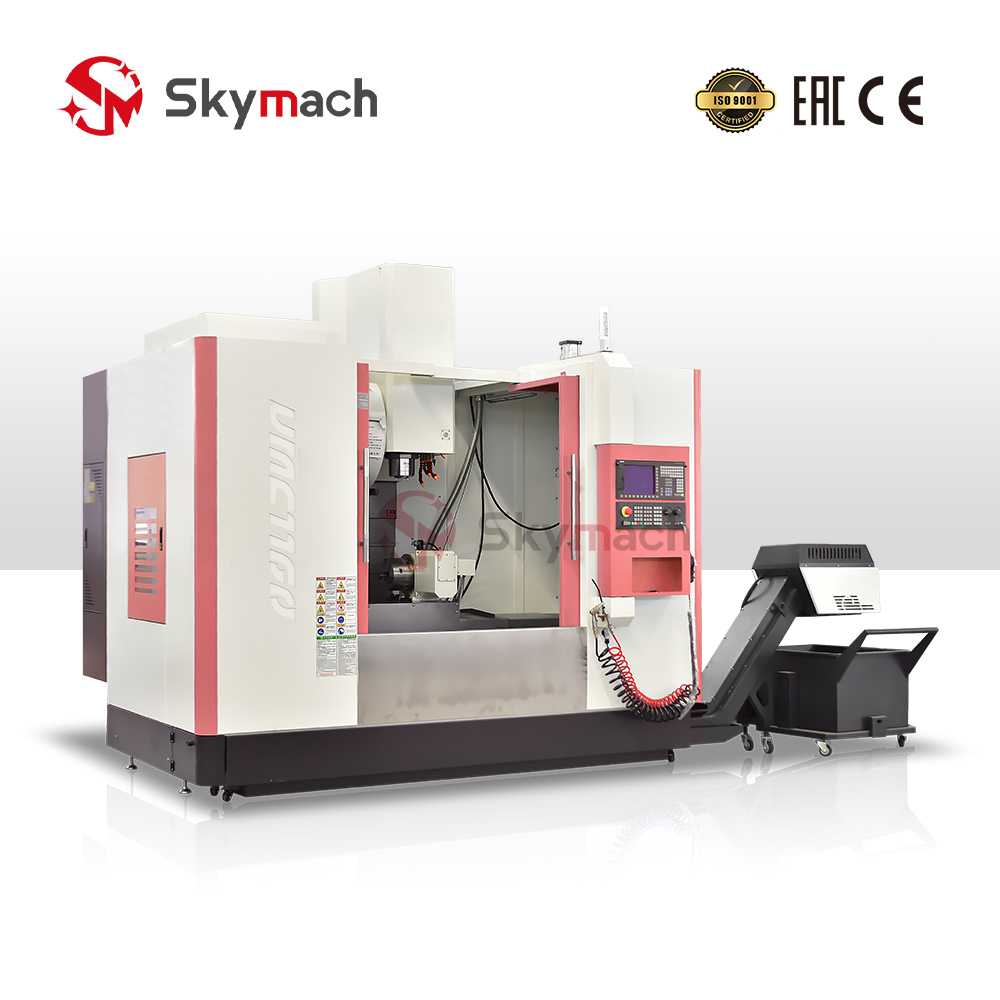

Vertical Machining Center VMC1160
Resin sand casting

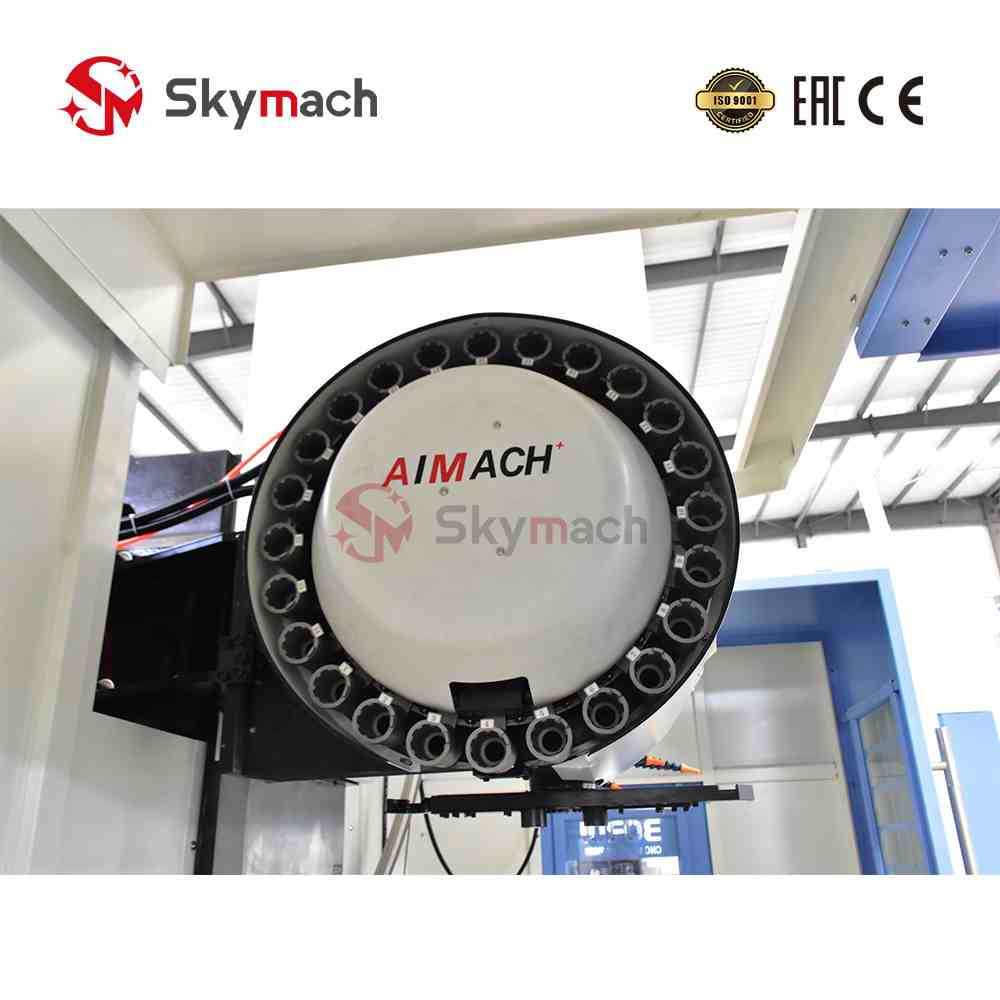

24 Disc ATC

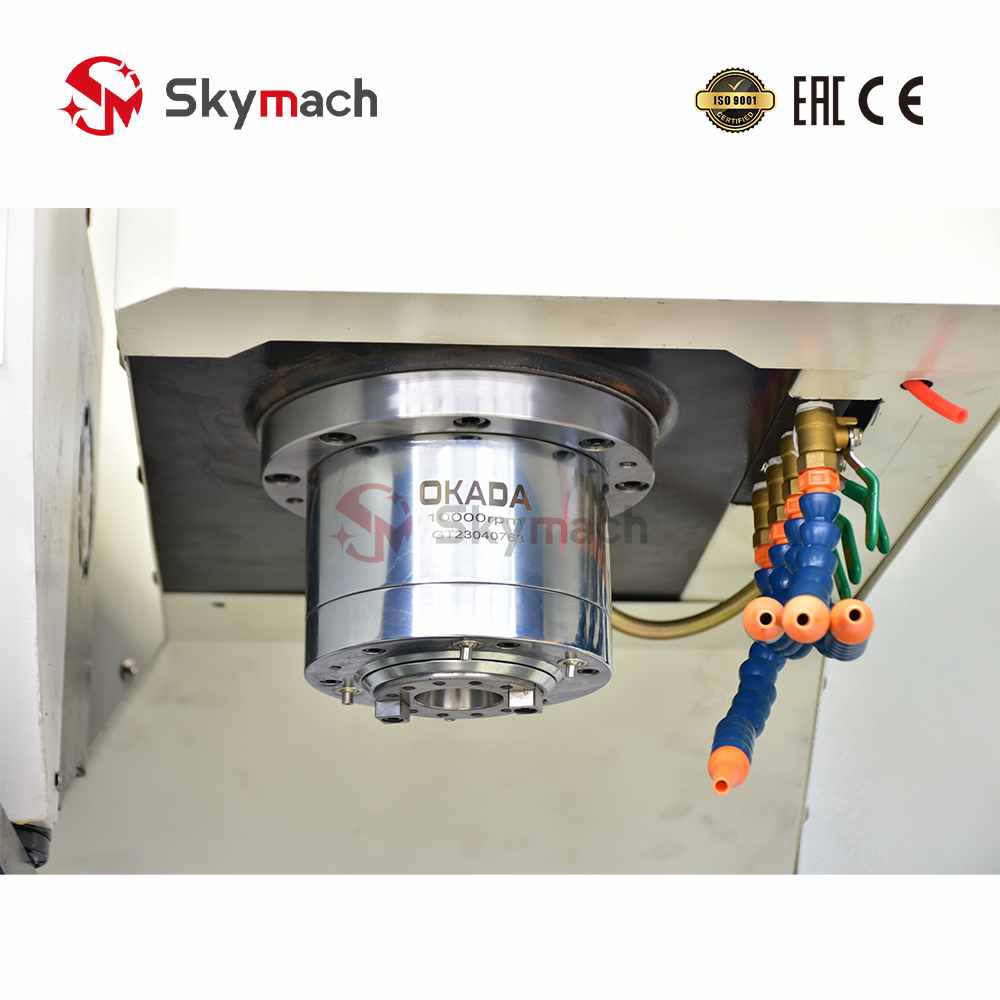

Taiwan VOLIS spindle
Taiwan HIWIN linear guide
Systems can be selected according to customer requirement
SYSTEMCNC CONTROL
SIEMENS, KND, FANUC, MITSUBISHl, GSK and other operating
Full protection
Three-axis lubricating system
Separate hand-wheel
Machine tool lighting work light
Random technology document
Spindle cone Hole cleaning air
Electric cabinet cooling and heat exchanger
Cleaning air gun
Chip storage tank
Servo transformer
Foundation pad iron and adjusting bolt
Vertical Machining Center VMC1160
Resin sand casting
24 Disc ATC
Taiwan VOLIS spindle
Taiwan HIWIN linear guide
Systems can be selected according to customer requirement
SYSTEMCNC CONTROL
SIEMENS, KND, FANUC, MITSUBISHl, GSK and other operating
Full protection
Three-axis lubricating system
Separate hand-wheel
Machine tool lighting work light
Random technology document
Spindle cone Hole cleaning air
Electric cabinet cooling and heat exchanger
Cleaning air gun
Chip storage tank
Servo transformer
Foundation pad iron and adjusting bolt
Advantages Of Vertical Machining Center VMC1160:
The VMC 1160 is a 5 axis CNC vertical machining center. In the standard configuration, it has three feed axes: x, y, and Z. They are controlled with three-axis linkage.
It can machine many complex parts in one clamping. These parts include discs, plates, shells, cams, and molds. It can do tasks like drilling, milling, boring, expanding, and reaming. It is equipped with a fourth-axis CNC dividing head or a rotary table. It can process more complex parts, such as spiral grooves on the rotary body.
Product Main Technical Parameters:
| specifications | unit | VMC1160 |
| Table size | mm | 1200x600 |
| Table maximum load | kg | 800 |
| X/Y/Z axis travel | mm | 1100x600x600 |
| Distance between spindle center and column surface | mm | 650 |
| Distance between spindle end face and worktable surface | mm | 120-720 |
| X/Y/Z rapid feed | m/min | 24/24/20 |
| Cutting feed | m/min | 1-10000 |
| Max. spindle speed | r/min | 8000 |
| Spindle taper | BT40 | |
| Spindle motor | kw | 11 |
| X/Y/Z axis servo motor | kw | 3/3/4.5 |
| X/Y/Z guide rail form | linear rail | |
| Tools type | Arm 24 | |
| Machine dimension | mm | 3540x2800x2700 |
| Machine weight | kg | 7400 |
