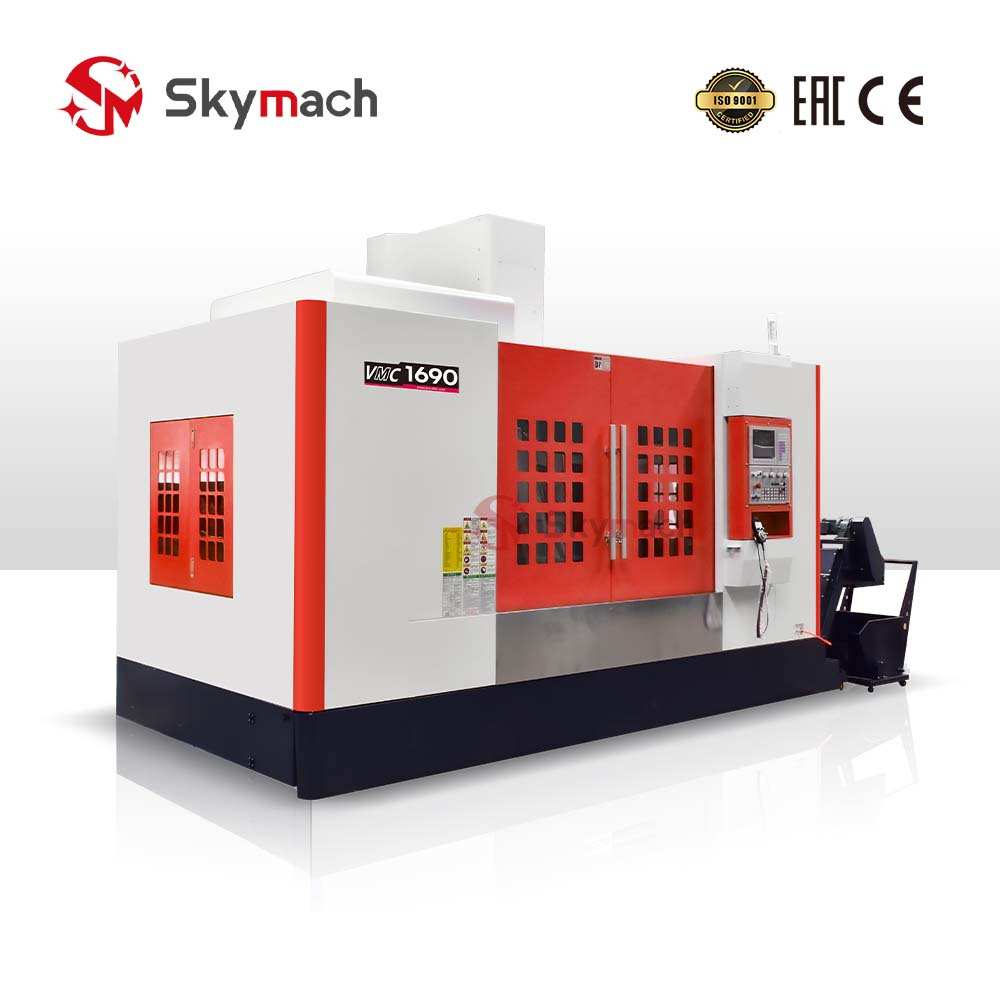

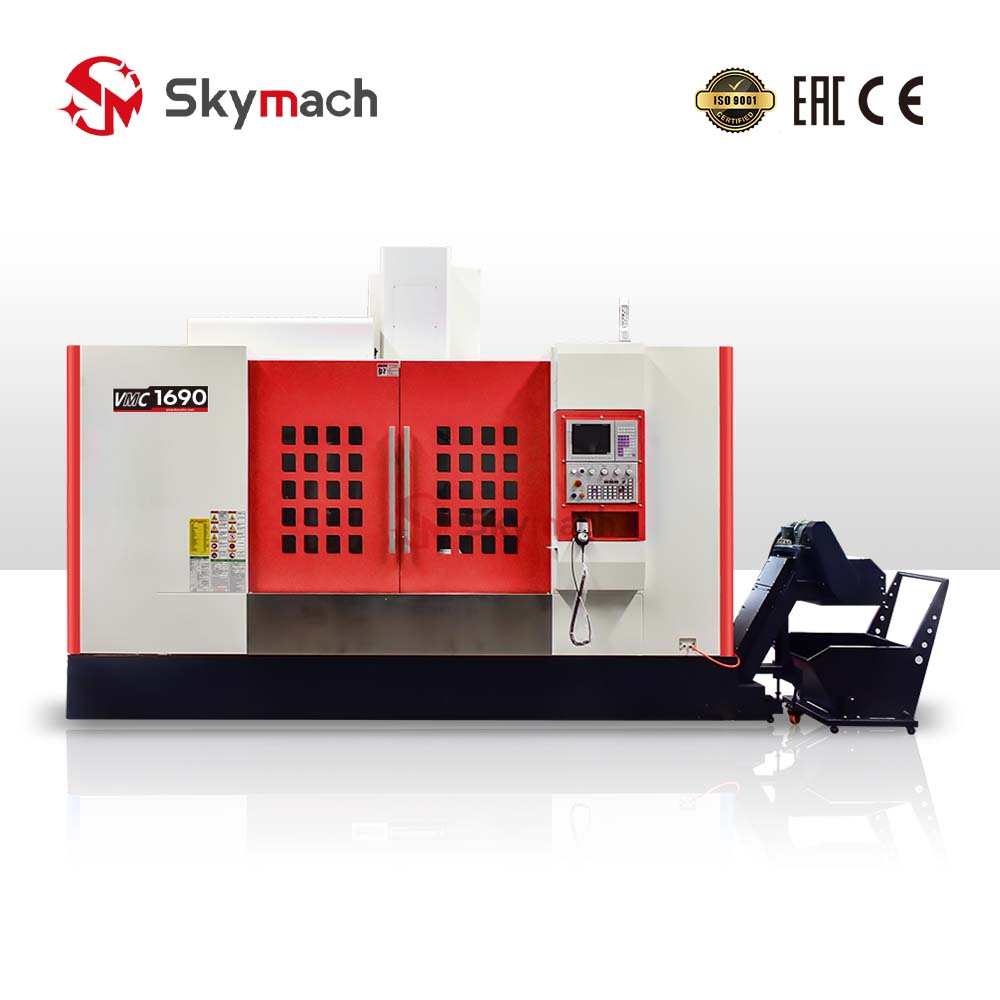

Vertical Machining Center VMC1690

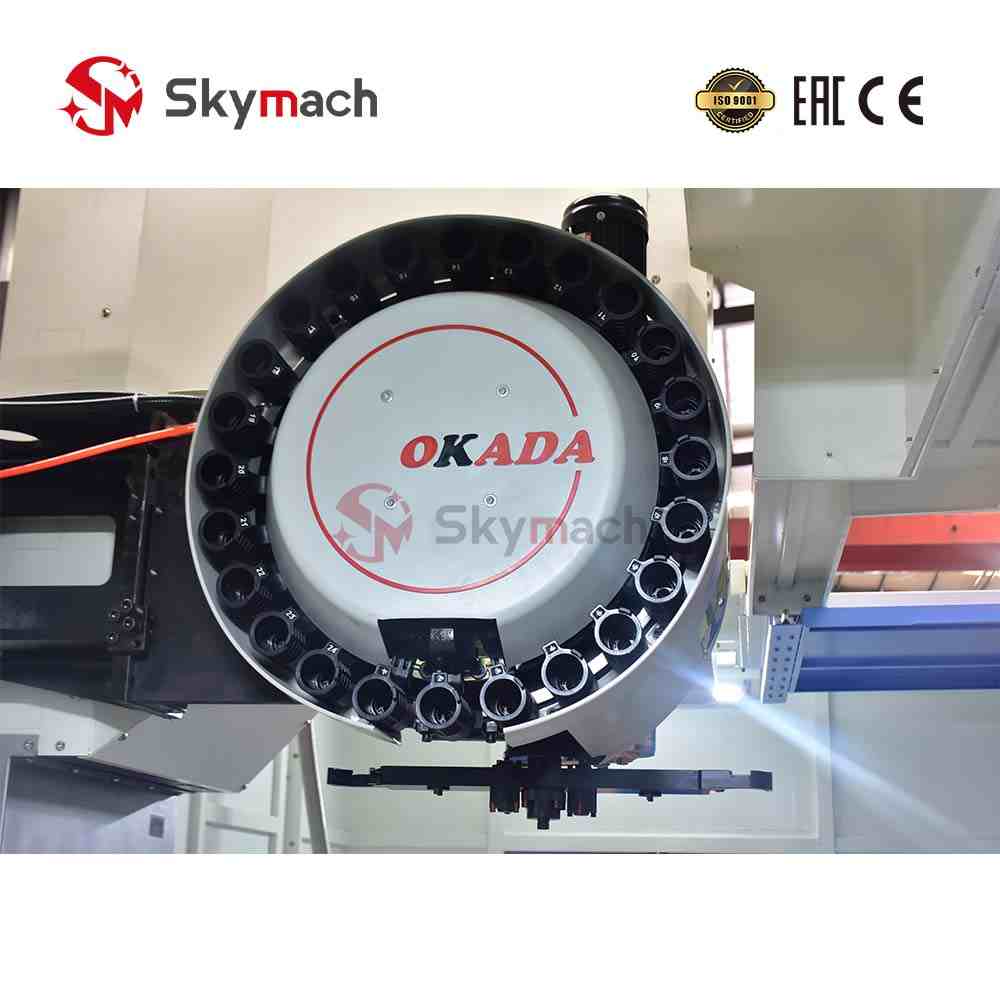

24 Disc ATC
CNC CONTROL
SIEMENS, KND, FANUC, Mitsubishi, GSK, and other operating
Full protection
Central automatic lubrication
Three-axis lubricating system
Separate hand-wheel
Machine tool lighting work light
Random technology document
Spindle cone Hole cleaning air
Electric cabinet cooling and heat exchanger
Cleaning air gun
Chip storage tank
Servo transformer
Foundation pad iron and adjusting bolt
Vertical Machining Center VMC1690
24 Disc ATC
CNC CONTROL
SIEMENS, KND, FANUC, Mitsubishi, GSK, and other operating
Full protection
Central automatic lubrication
Three-axis lubricating system
Separate hand-wheel
Machine tool lighting work light
Random technology document
Spindle cone Hole cleaning air
Electric cabinet cooling and heat exchanger
Cleaning air gun
Chip storage tank
Servo transformer
Foundation pad iron and adjusting bolt
Advantages Of Vertical Machining Center VMC1690：
- The fuselage and main components are high-strength cast iron.
- High speed, high precision, high rigidity spindle unit.
- The lubrication system lubricates each drive and reduces friction resistance.
- Centralized chip removal with available chip removal machine.
- It can be equipped with a tool store to implement automatic tool change, saving the process of tool change time.
- The base adopts the structure of casting a large water tray, which has good waterproof performance.
- The main large parts of the machine tool: base, workbench, column, bed saddle, and spindle box are made of high-quality resin sand modeling
Product Main Technical Parameters:
| Model | Unit | VMC1690 |
| working tale size | mm | 900x1800 |
| X/Y/Z travel | mm | 1600/900/700 |
| Distance between spindle end and table | mm | 170/800 |
| Distance between spindle center and column guide way | mm | 950 |
| Maximum weight of working table | kg | 1500 |
| table-T-slot | mm | 5-22-165 |
| X/Y/Z axis rapid feed | mm/min | 15/15/12 |
| three axis working rapid speed | mm/min | 5000 |
| positioning accuracy | mm | ±0.01 |
| repeat positioning accuracy | mm | ±0.0075 |
| spindle speed | rpm | 6000 |
| spindle taper | mm | BT50 |
| control system | / | MITSUBISHI-M70VA FANUC0i-mate-MD |
| main motor | kw | 18.5-22 |
| magazine tool capacity | pcs | 24 |
| machine size | mm | 4500*3350*3200 |
| machine weight | kg | 14000 |
Product Main Technical Parameters:
