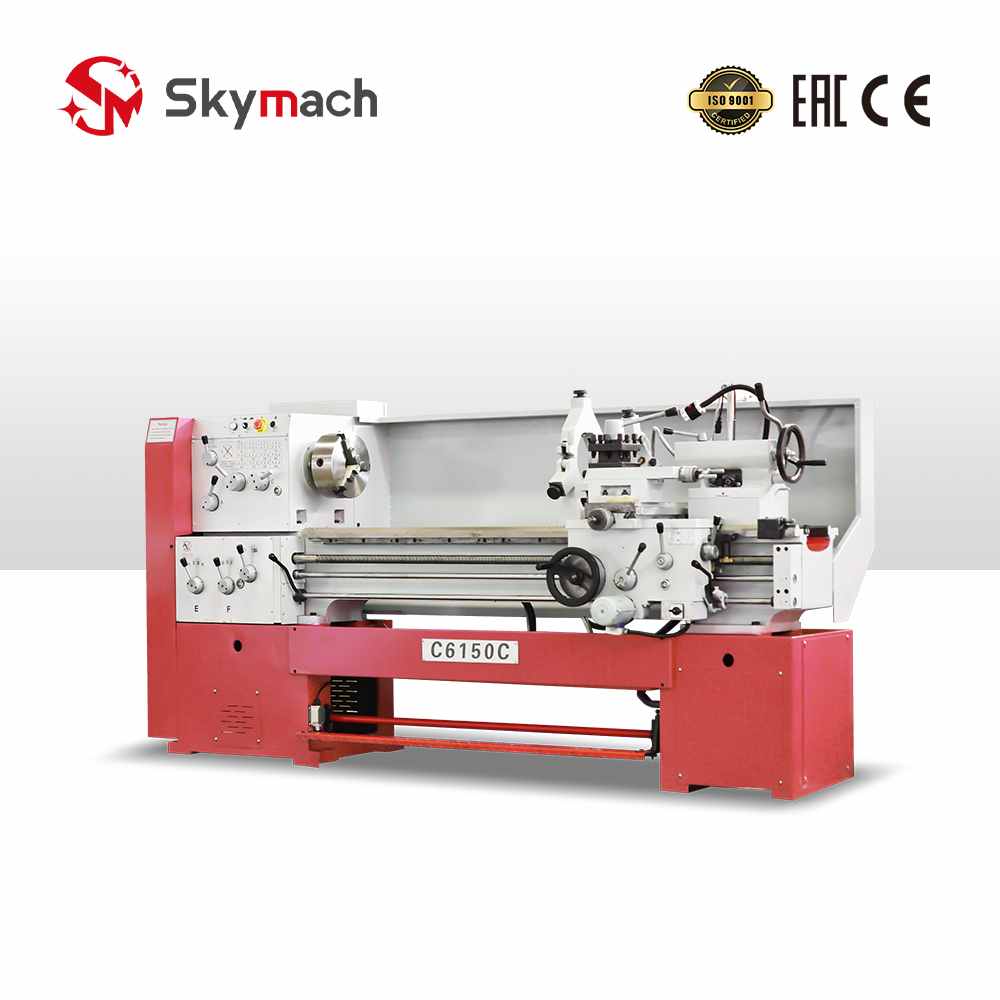

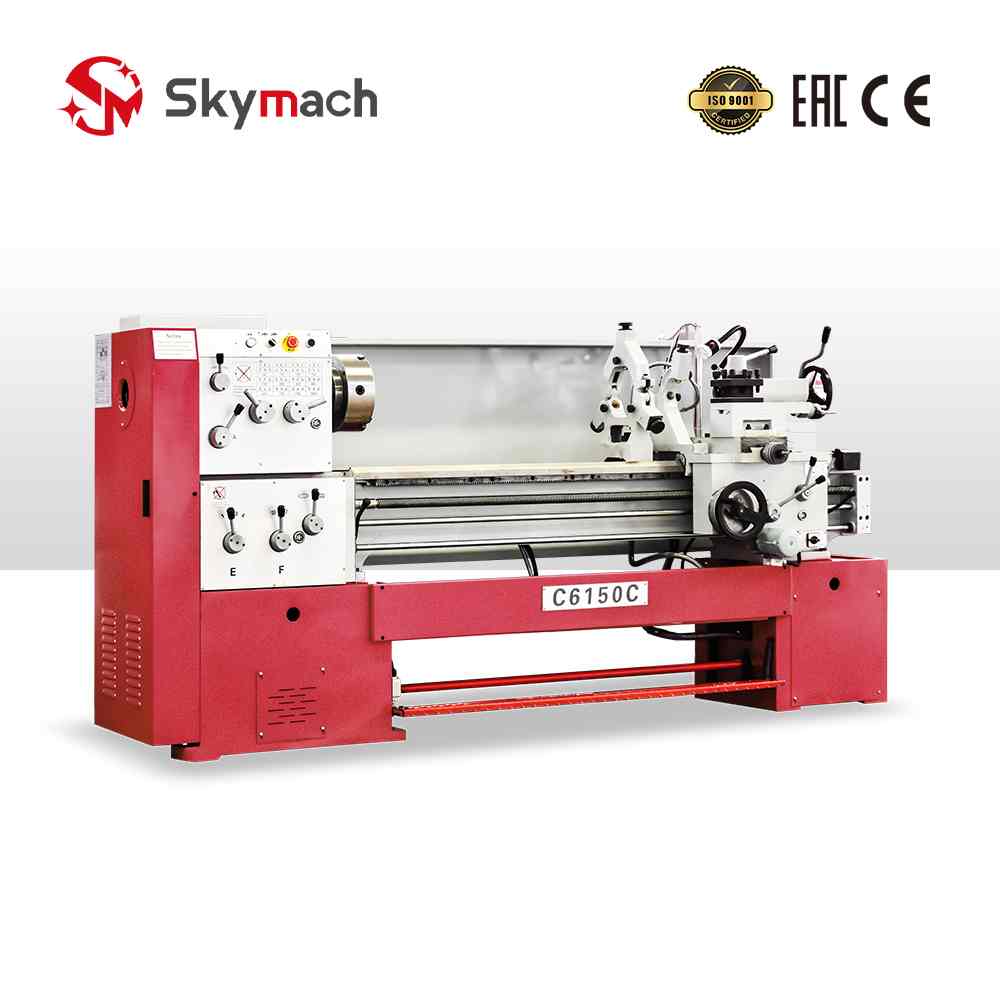

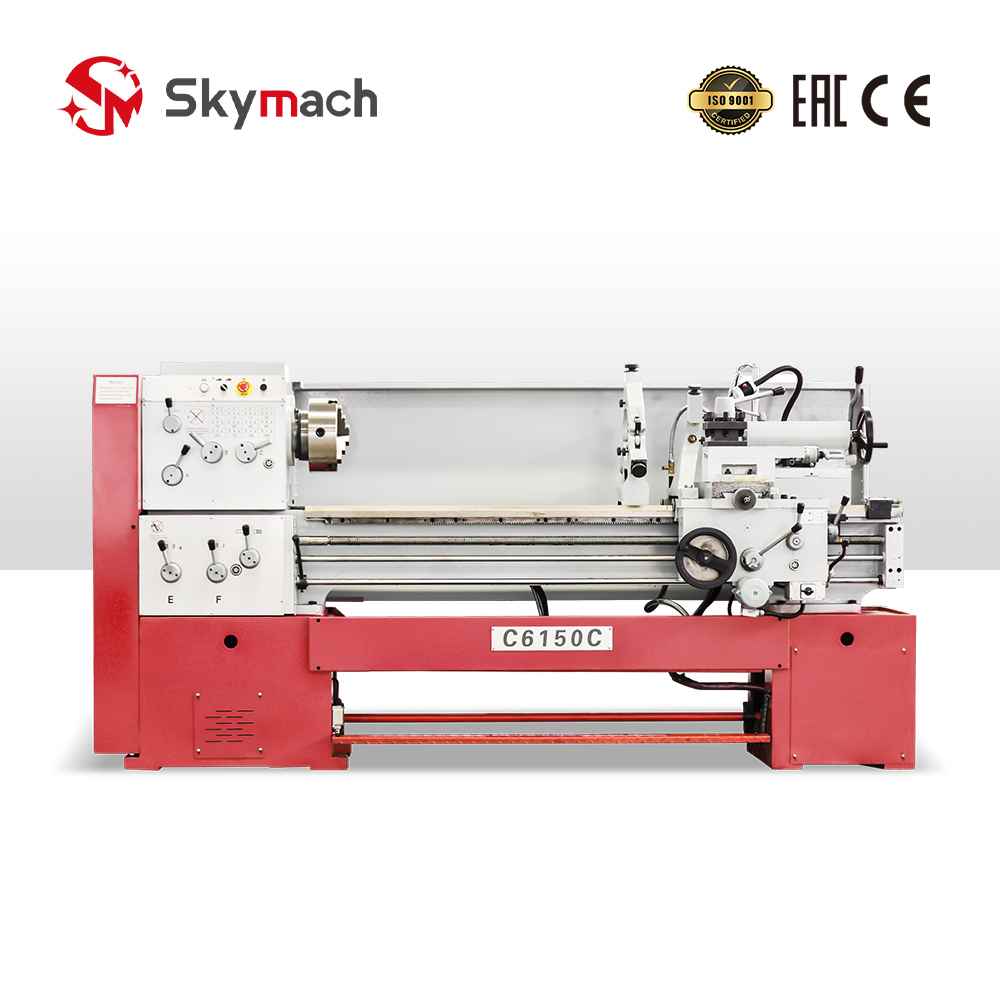

Manual Lathe C6150C
Model: C6150C
500mm large swing diameter bed
Maximum machining length 2000-3000mm (optional)
Spindle through-hole diameter 52mm (80mm optional)
Spindle speed 40-1400rpm (9-speed variable speed)
MT6 taper bore (metric 1:20 optional)
X/Z axis travel 300/2000-3000mm
Standard 20x20mm tool
Tailstock quill diameter 65mm
Travel 130mm
MT4 taper bore
Main motor power 5.5kW
Machine weight 1750-2000kg (depending on length)
External dimensions 3400-4400x1140x1650-1750mm
Manual Lathe C6150C
Model: C6150C
500mm large swing diameter bed
Maximum machining length 2000-3000mm (optional)
Spindle through-hole diameter 52mm (80mm optional)
Spindle speed 40-1400rpm (9-speed variable speed)
MT6 taper bore (metric 1:20 optional)
X/Z axis travel 300/2000-3000mm
Standard 20x20mm tool
Tailstock quill diameter 65mm
Travel 130mm
MT4 taper bore
Main motor power 5.5kW
Machine weight 1750-2000kg (depending on length)
External dimensions 3400-4400x1140x1650-1750mm
Advantages Of Manual Lathe C6150C
- Versatile Workpiece Capacity.A large 800mm swing over bed and multiple standard workpiece lengths (750mm to 3000mm) accommodate a wide range of part sizes, from small components to long shafts.A 52mm spindle bore (with an optional 80mm) allows for processing larger diameter bar stock, expanding its application scope.
- Robust Spindle and Power SystemDriven by a powerful 5.5kW main motor, the lathe provides ample torque for heavy-duty cutting and stable performance for finishing.The 9-speed selection (40-1400 rpm) offers the right speed for various materials and operations, from roughing to high-speed finishing.
- Comprehensive Threading CapabilitiesAn integrated gearbox provides a wide range of threads: 19 Metric (0.25-14mm), 28 Imperial (2-40 TPI), and 17 Module (0.25-3.5), making it exceptionally versatile for domestic and international projects.
- Precision Feed and Rigid Construction.A 200mm cross slide travel and longitudinal feed range (0.0632-4.6569 mm/rev) enable precise and flexible machining operations.
Product Main Technical Parameters:
Item Name | Unit | C6150C |
Max swing over bed | mm | 800 |
Max workpiece length | mm | 750/1000/1500/2000/3000 |
Spindle bore | – | 52mm (Opt. 80) |
Spindle taper | – | MT6 (Opt. Metric 1:20) |
Spindle speed range | rpm | 40-1400 |
Spindle speed steps | – | 9 |
Cross slide travel | mm | 200 |
Top tool post travel | mm | 95 |
Tool size | mm | 20×20 |
Longitudinal feed range | mm/r | 0.0632-4.6569 |
Cross feed range | mm/r | 0.048-2.688 |
Metric thread types | – | 19 |
Metric thread range | mm | 0.25-14 |
Inch thread types | – | 28 |
Inch thread range | TPI | 2-40 |
Module thread types | – | 17 |
Module thread range | – | 0.25-3.5 |
Main motor power | kW | 5.5 |
Coolant pump motor | kW | 0.09 |
Tailstock taper | – | MT4 |
Machine weight | kg | 1250 |
Overall dimensions (L×W×H) | mm | 2200×1140×1650 |
