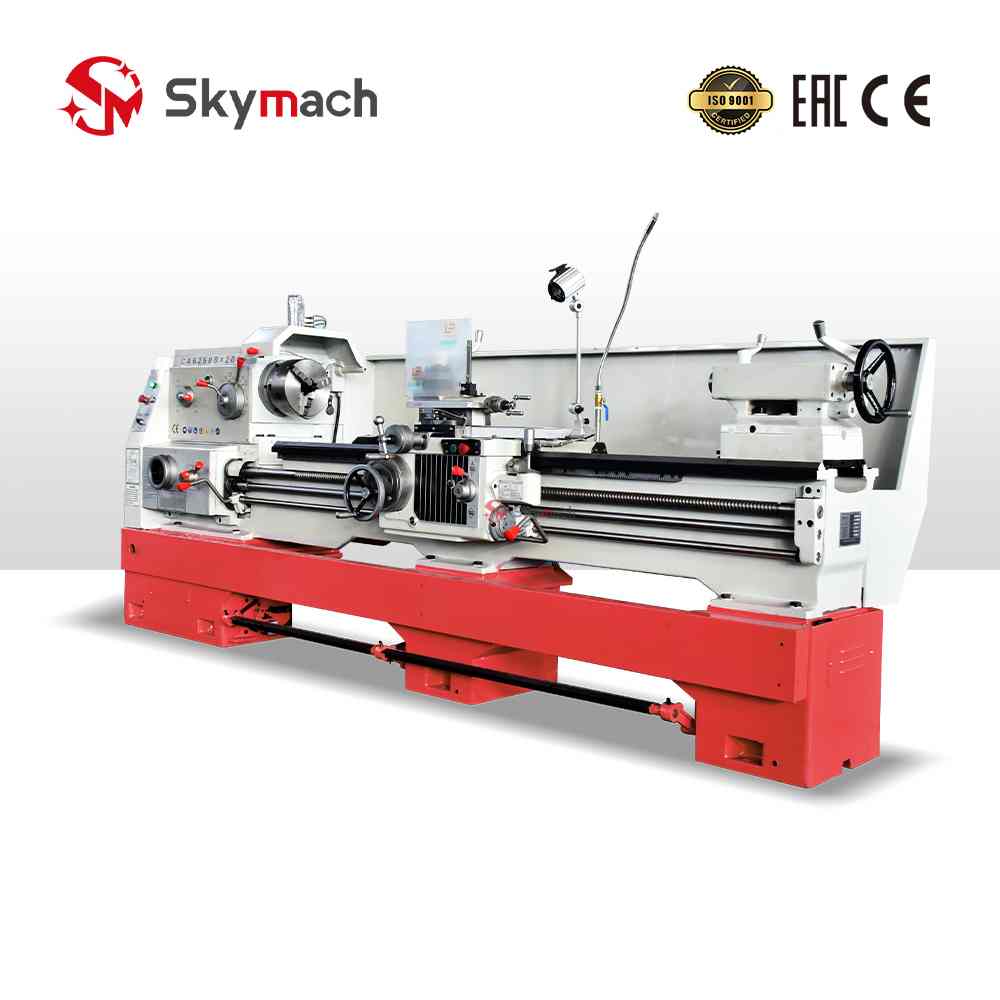

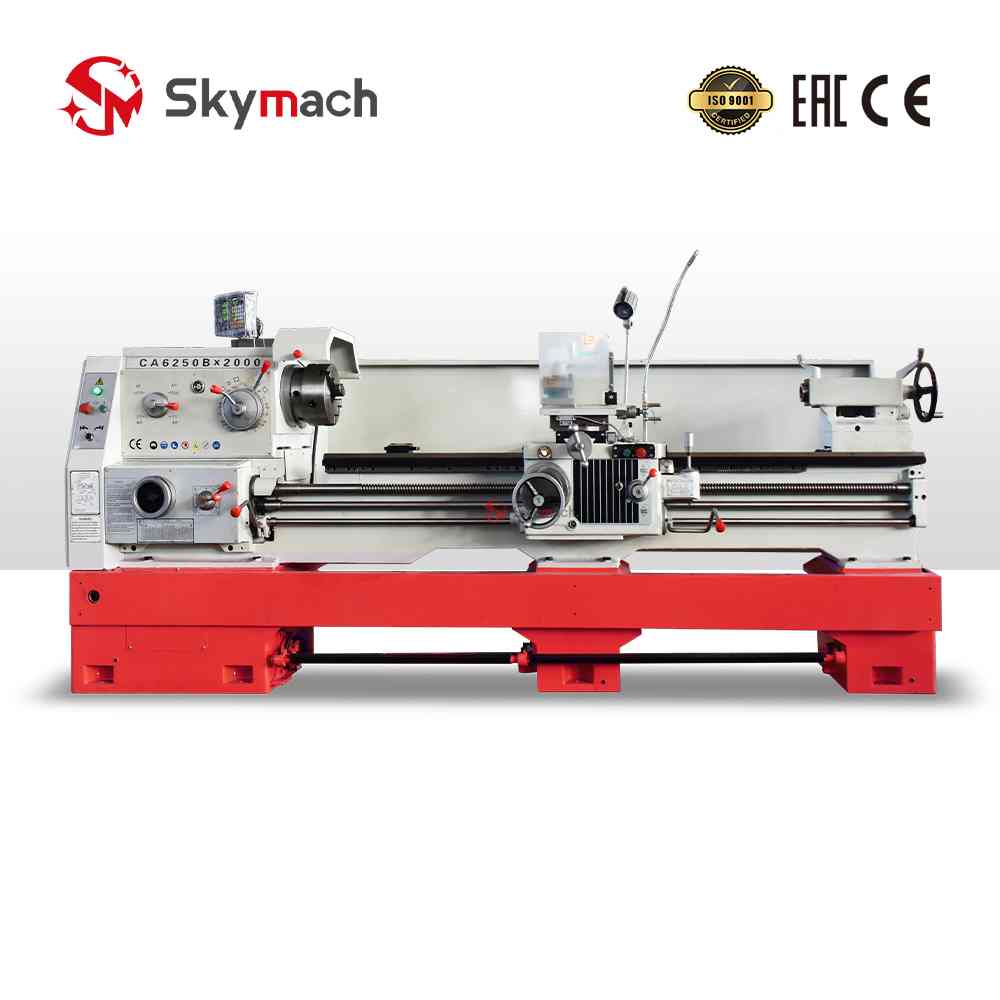

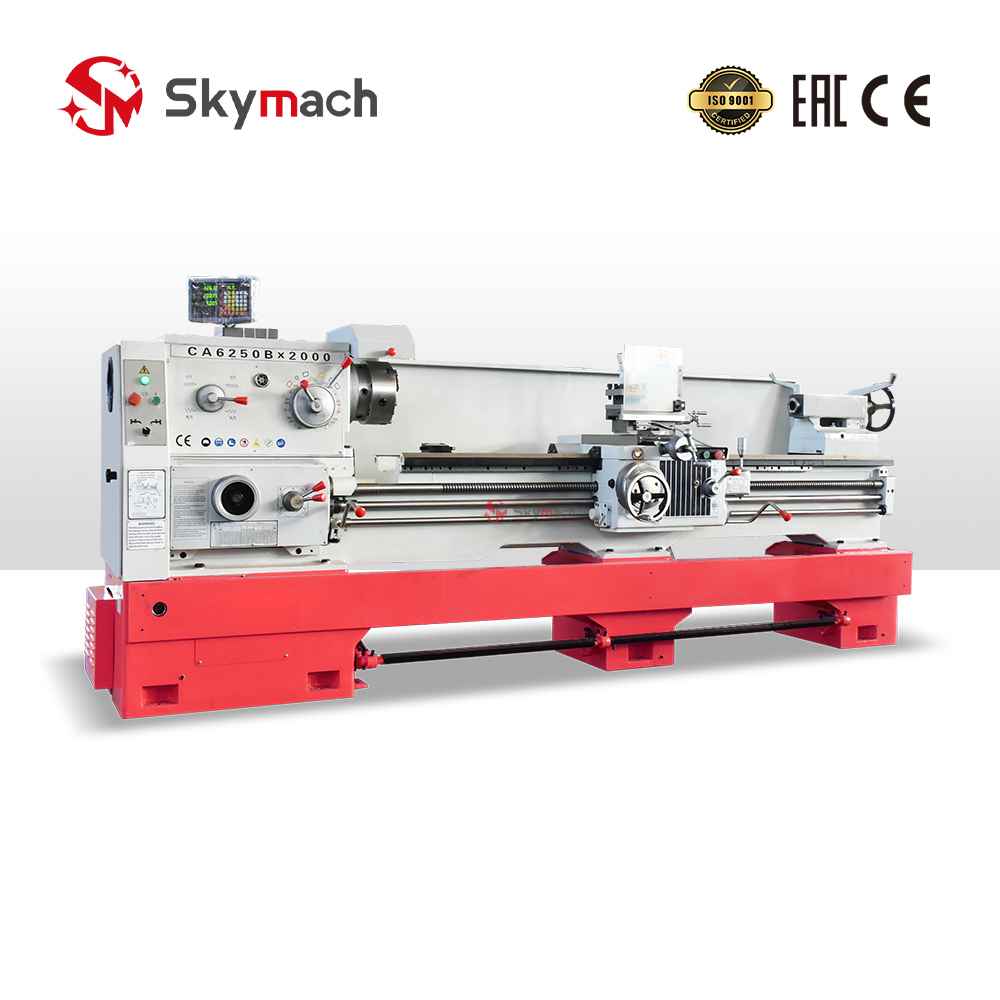

Manual Lathe CA6250B
Model: CA6250B
500mm standard swing diameter
(up to 800mm at the saddle)
Maximum machining length: 1500/2000/3000mm
Spindle through-hole diameter: 104mm
Manual four-speed transmission (30-1000rpm)
X/Z-axis travel: 360/1350-5850mm
Rapid traverse: 4000/8000mm/min
Standard four-station tool post
(six or eight stations optional)
Accepts 32x32mm tools
Tailstock quill diameter: 100mm
Travel: 250mm MT5 taper bore
Main motor power: 7/11kW
Machine weight: 11,900-16,100kg (depending on length)
External dimensions: 6,250-11,250×2,500×2,400mm
Manual Lathe CA6250B
Model: CA6250B
500mm standard swing diameter
(up to 800mm at the saddle)
Maximum machining length: 1500/2000/3000mm
Spindle through-hole diameter: 104mm
Manual four-speed transmission (30-1000rpm)
X/Z-axis travel: 360/1350-5850mm
Rapid traverse: 4000/8000mm/min
Standard four-station tool post
(six or eight stations optional)
Accepts 32x32mm tools
Tailstock quill diameter: 100mm
Travel: 250mm
MT5 taper bore
Main motor power: 7/11kW
Machine weight: 11,900-16,100kg (depending on length)
External dimensions: 6,250-11,250×2,500×2,400mm
Advantages Of Manual Lathe CA6250B
- Excellent machining range and flexibility. A 500mm bed swing diameter and a 300mm tool carriage slide swing diameter accommodate machining of medium-sized disc and shaft parts.
- Precision transmission and threading capabilities. A 24-speed mechanical speed change (10-1400rpm) covers the entire process from heavy cutting to finishing.
- Heavy-duty structure and guaranteed precision. A 400mm wide bed and a machine weight range of 1990-3400kg (depending on specification) create a highly rigid foundation.
- Productivity-optimized design. A 25×25mm standard tool square is compatible with common tooling systems, reducing tool management costs.
- Economical advantage. The mechanical transmission structure offers low maintenance costs and is suitable for long-term, continuous operation.

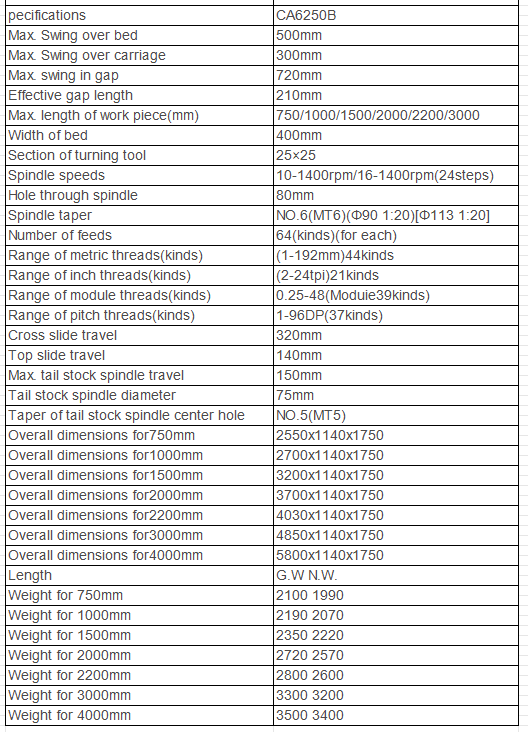

Product Main Technical Parameters:
pecifications | CA6250B | |
Max. Swing over bed | 500mm | |
Max. Swing over carriage | 300mm | |
Max. swing in gap | 720mm | |
Effective gap length | 210mm | |
Max. length of work piece(mm) | 750/1000/1500/2000/2200/3000 | |
Width of bed | 400mm | |
Section of turning tool | 25×25 | |
Spindle | Spindle speeds | 10-1400rpm/16-1400rpm(24steps) |
Hole through spindle | 80mm | |
Spindle taper | NO.6(MT6)(Φ90 1:20)[Φ113 1:20] | |
Feed | Number of feeds | 64(kinds)(for each) |
Range of metric threads(kinds) | (1-192mm)44kinds | |
Range of inch threads(kinds) | (2-24tpi)21kinds | |
Range of module threads(kinds) | 0.25-48(Moduie39kinds) | |
Range of pitch threads(kinds) | 1-96DP(37kinds) | |
Cross slide travel | 320mm | |
Top slide travel | 140mm | |

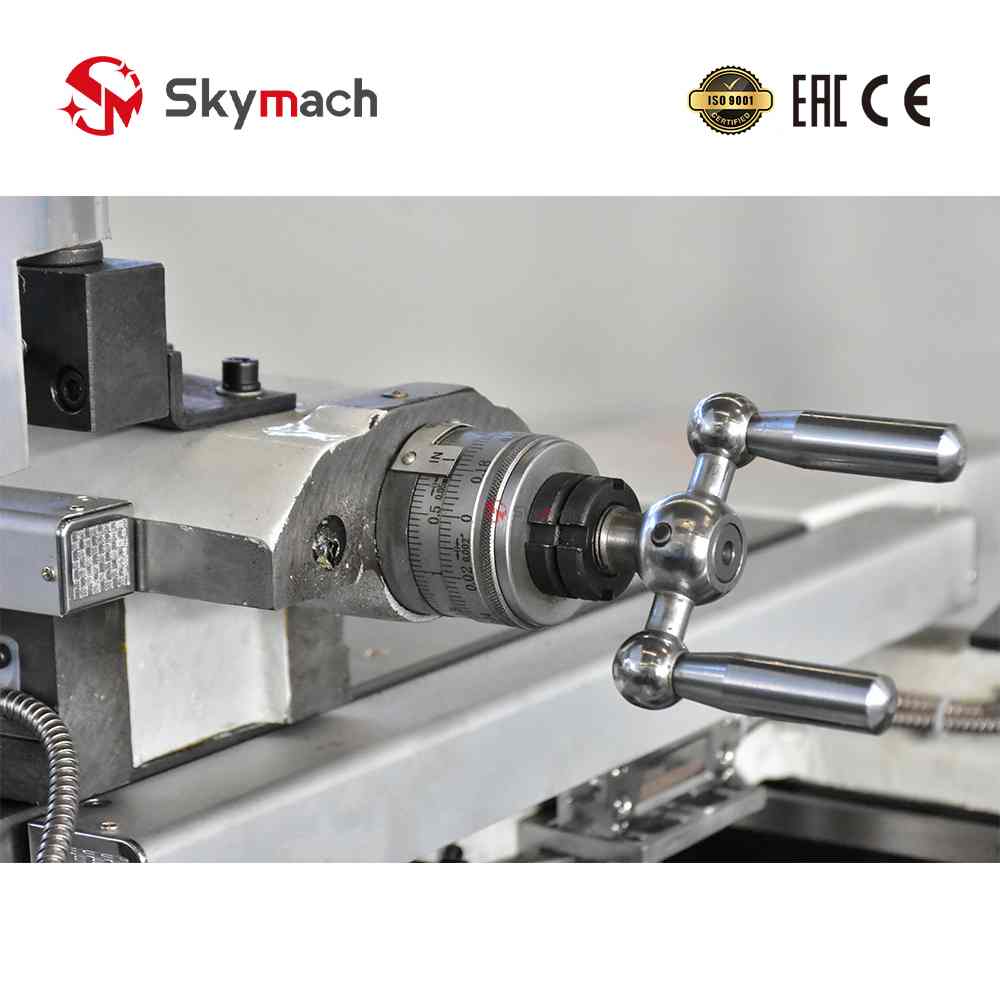

Tailstock | Max. tail stock spindle travel | 150mm |
Tail stock spindle diameter | 75mm | |
Taper of tail stock spindle center hole | NO.5(MT5) | |
Main motor | 7.5KW(10HP) | |
Packing dimensions (L*W*Hmm) | Overall dimensions for750mm | 2550x1140x1750 |
Overall dimensions for1000mm | 2700x1140x1750 | |
Overall dimensions for1500mm | 3200x1140x1750 | |
Overall dimensions for2000mm | 3700x1140x1750 | |
Overall dimensions for2200mm | 4030x1140x1750 | |
Overall dimensions for3000mm | 4850x1140x1750 | |
Overall dimensions for4000mm | 5800x1140x1750 | |
Weight (kg) | Length | G.W N.W. |
Weight for 750mm | 2100 1990 | |
Weight for 1000mm | 2190 2070 | |
Weight for 1500mm | 2350 2220 | |
Weight for 2000mm | 2720 2570 | |
Weight for 2200mm | 2800 2600 | |
Weight for 3000mm | 3300 3200 | |
Weight for 4000mm | 3500 3400 | |
Product Main Technical Parameters:
