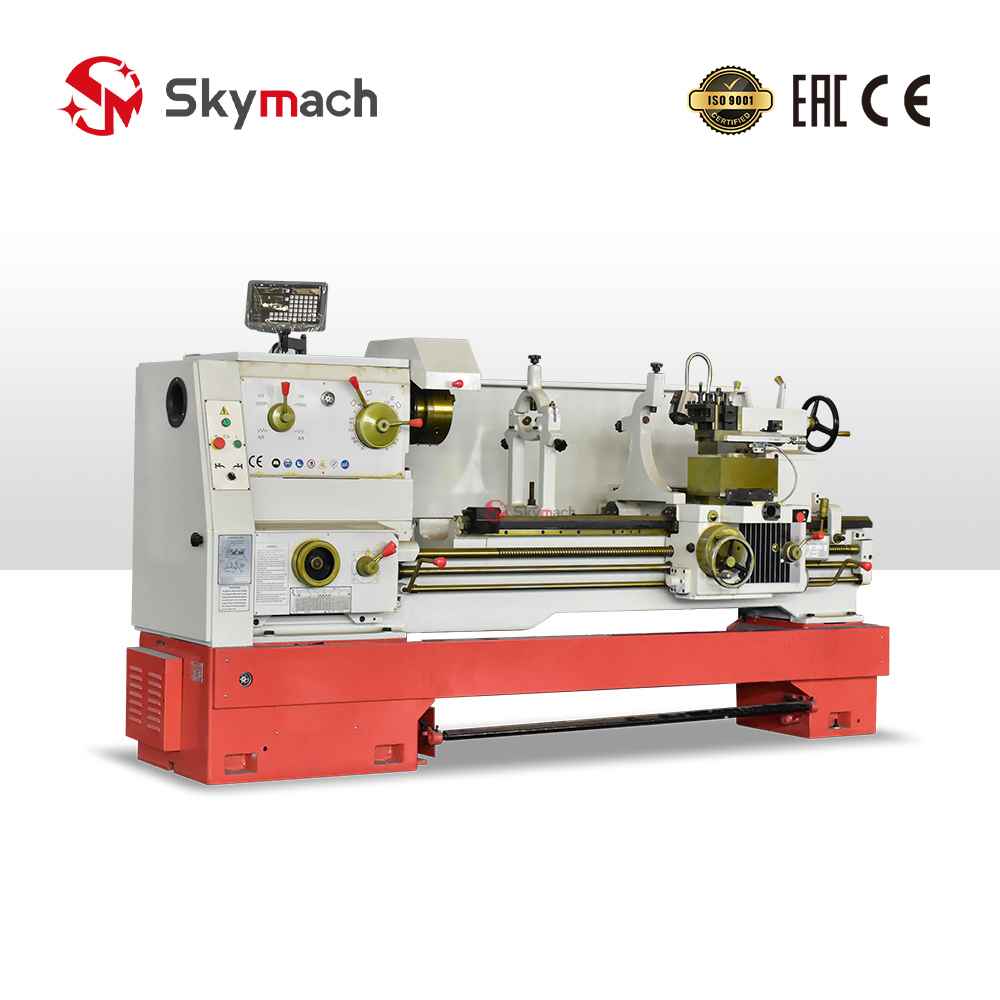

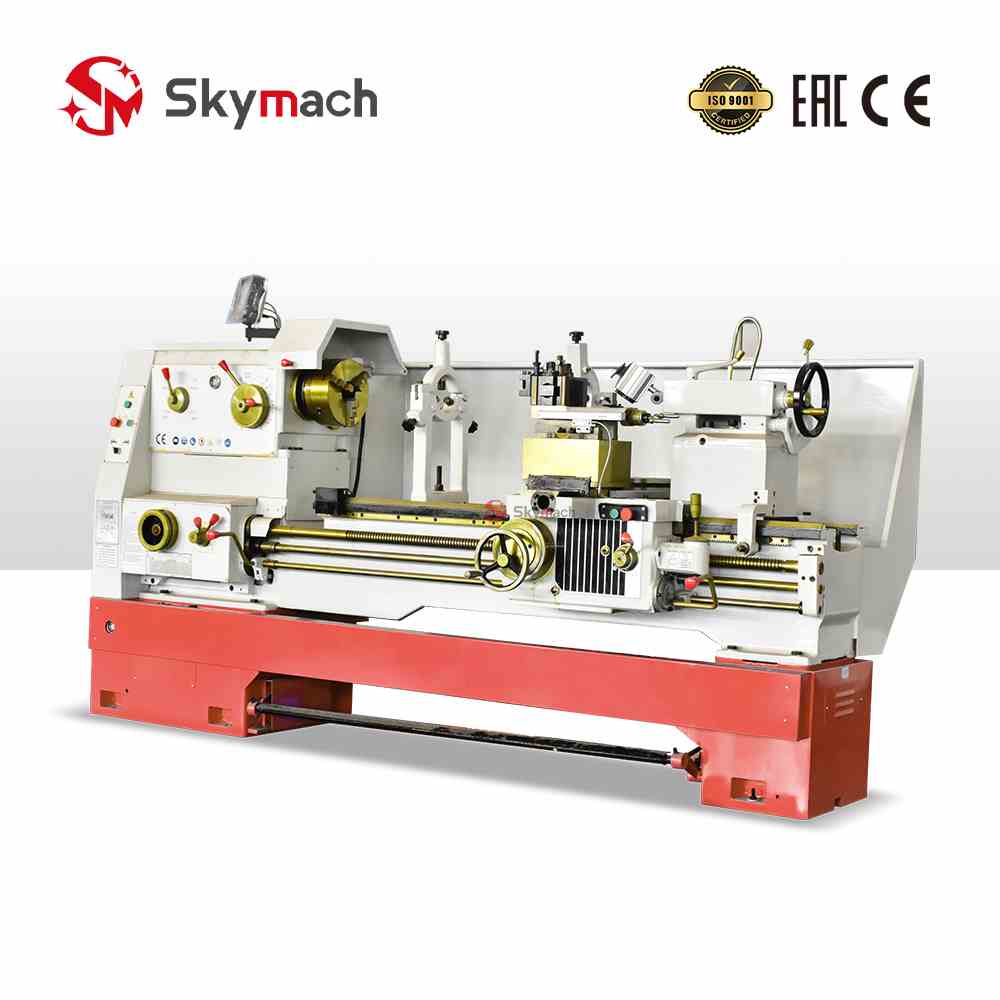

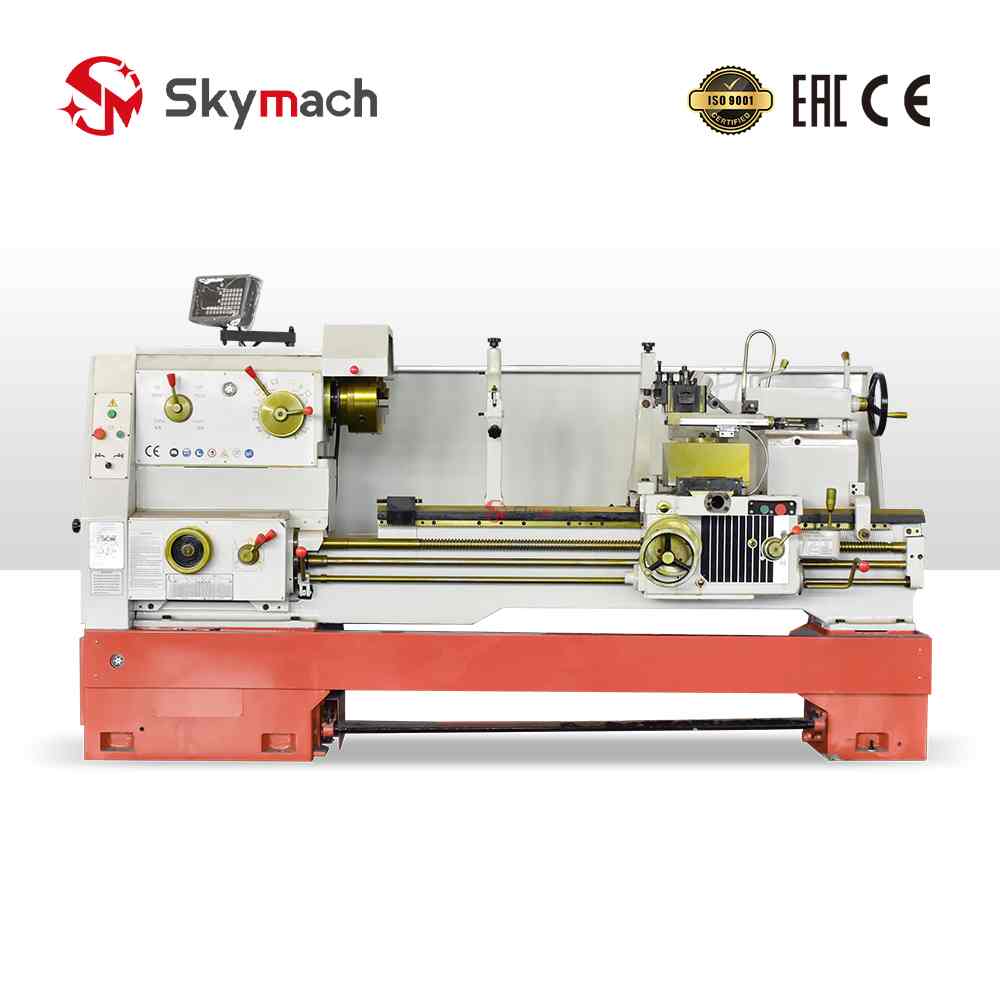

Manual Lathe CA6150
Model: CA6150
500mm large swing diameter bed
Maximum machining length 1000mm
Load capacity 1.8 tons
60mm reinforced ball guide
Spindle through-hole diameter 105mm
Maximum speed 1800rpm
X/Z axis rapid traverse speed 15/18m/min
Positioning accuracy 0.012mm
Repeatability 0.008mm
Standard 12-station servo turret
Tool change time 0.8 seconds
Suitable for disc-type parts machining
Machine weight 4.5 tons
Dimensions 3200x1800x1900mm
Standard 6-22×200 T-slots
Manual Lathe CA6150
Model: CA6150
500mm large swing diameter bed
Maximum machining length 1000mm
Load capacity 1.8 tons
60mm reinforced ball guide
Spindle through-hole diameter 105mm
Maximum speed 1800rpm
X/Z axis rapid traverse speed 15/18m/min
Positioning accuracy 0.012mm
Repeatability 0.008mm
Standard 12-station servo turret
Tool change time 0.8 seconds
Suitable for disc-type parts machining
Machine weight 4.5 tons
Dimensions 3200x1800x1900mm
Standard 6-22×200 T-slots
Advantages Of Manual Lathe CA6150：
- This series lathe has compact structure, pleasant appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention.
- Bed stockoptimization design is suitable for turning disc and shaft parts. It can process straight line, arc, metric and British threads and multi-head threads. It can also be used for turning disc and shaft parts with complex shape and high precision.
- The lathe guideway and saddle guideway adopt the hard guideway of special material. After high frequency quenching, they are super hard and wear-resistant, durable and have good processing accuracy.
- The CNC system adopts GSK system and the famous ball screw and high precision screw bearing made in China.
- The spindle with high precision spindle bearing group and precise assembly and dynamic balance test ensures high accuracy, low noise and strong rigidity of the spindle.
- Forced automatic lubrication device is used for fixed-point quantitative lubrication of lead screw and guide rail at each lubrication point. When there is abnormal condition or insufficient oil, warning signals are automatically generated.

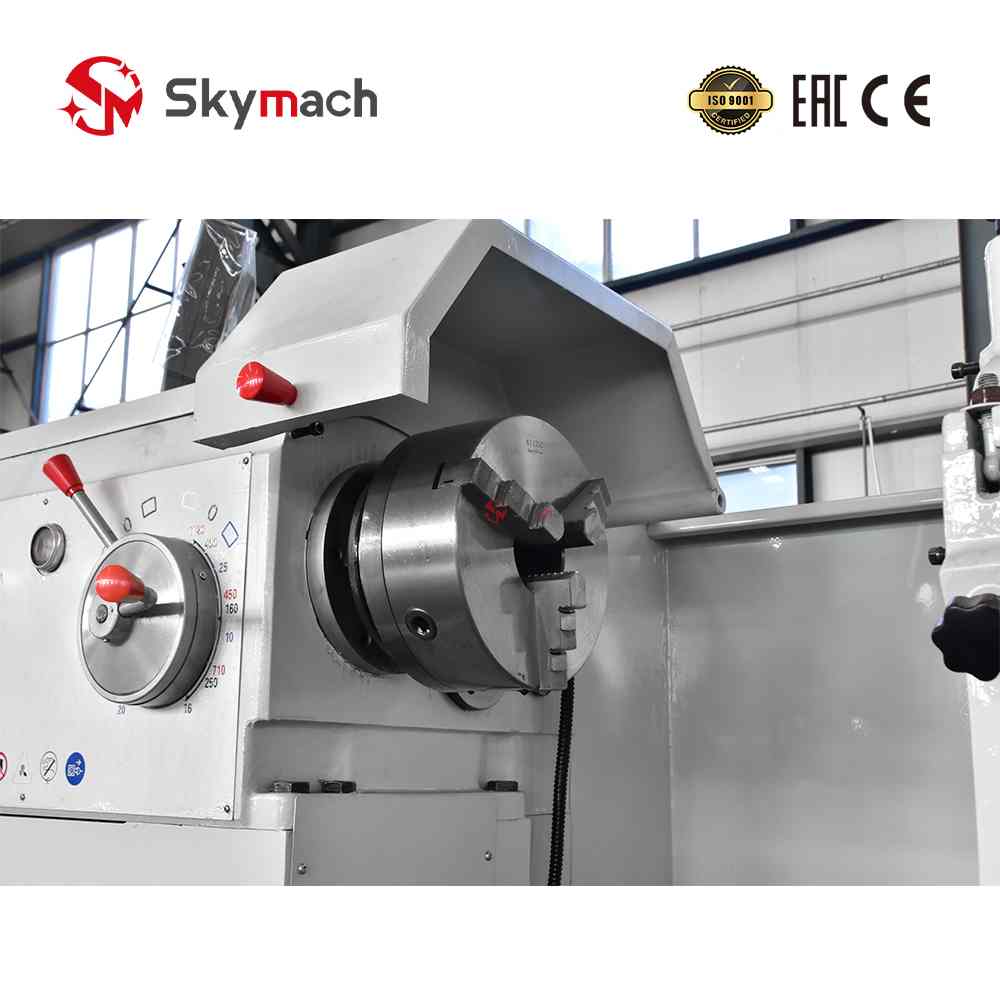

- Use famous brand manual chuck.

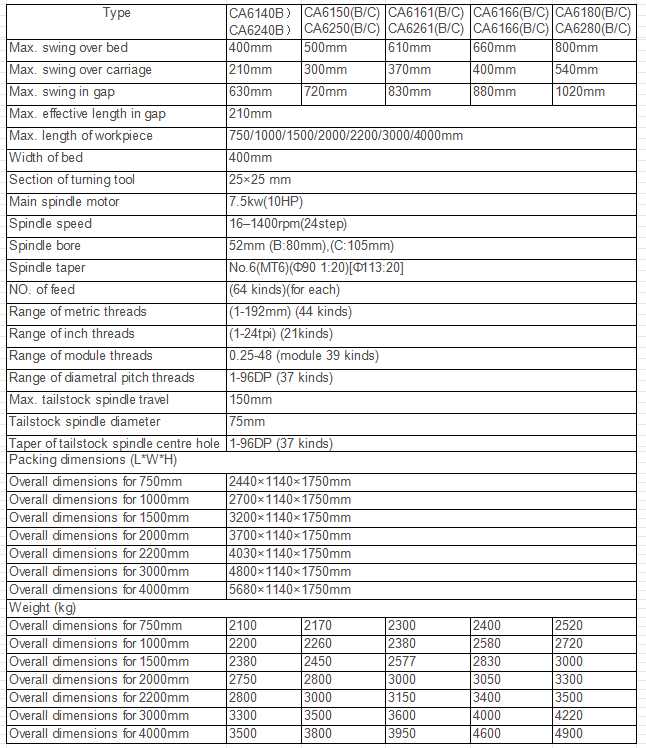

Product Main Technical Parameters:
| Type | CA6140 CA6140B | CA6150 CA6150B CA6150C | CA6161 CA6161B CA6161C | CA6166 CA6166B CA6166C | CA6180 CA6180B CA6180C |
|---|---|---|---|---|---|
| CA6240 CA6240B | CA6250 CA6250B CA6250C | CA6261 CA6261B CA6261C | CA6266 CA6266B CA6266C | CA6280 CA6280B CA6280C | |
| Max. swing over bed | 400mm | 500mm | 610mm | 660mm | 800mm |
| Max. swing over carriage | 210mm | 300mm | 370mm | 400mm | 540mm |
| Max. swing in gap (CA62 series) | 630mm | 720mm | 830mm | 880mm | 1020mm |
| Max. effective length in gap (CA62 Series) | 210mm | ||||
| Max. length of workpiece | 750/1000/1500/2000/2200/3000/4000mm | ||||
| Width of bed | 400mm | ||||
| Section of turning tool | 25×25 mm | ||||
| Main spindle motor | 7.5kw(10HP) | ||||
| Spindle | |||||
| Spindle speed | 16–1400rpm(24step) | ||||
| Spindle bore | 52mm (B:80mm),(C:105mm) | ||||
| Spindle taper | No.6(MT6)(Φ90 1:20)[Φ113:20] | ||||
| Feed | |||||
| NO. of feed | (64 kinds)(for each) | ||||
| Range of metric threads | (1-192mm) (44 kinds) | ||||
| Range of inch threads | (2-24tpi) (21kinds) | ||||
| Range of module threads | 0.25-48 (module 39 kinds) | ||||
| Range of diametral pitch threads | 1-96DP (37 kinds) | ||||
| Tailstock | |||||
| Max. tailstock spindle travel | 150mm | ||||
| Tailstock spindle diameter | 75mm | ||||
| Taper of tailstock spindle centre hole | 1-96DP (37 kinds) | ||||
| Packing dimensions (L*W*H) | |||||
| Overall dimensions for 750mm | 2550×1140×1750mm | ||||
| Overall dimensions for 1000mm | 2700×1140×1750mm | ||||
| Overall dimensions for 1500mm | 3200×1140×1750mm | ||||
| Overall dimensions for 2000mm | 3700×1140×1750mm | ||||
| Overall dimensions for 2200mm | 4030×1140×1750mm | ||||
| Overall dimensions for 3000mm | 4850×1140×1750mm | ||||
| Overall dimensions for 4000mm | 5800×1140×1750mm | ||||
| Weight (kg) | |||||
| Overall dimensions for 750mm | 2520/2400 | ||||
| Overall dimensions for 1000mm | 2720/2560 | ||||
| Overall dimensions for 1500mm | 2980/2800 | ||||
| Overall dimensions for 2000mm | 3260/3087 | ||||
| Overall dimensions for 2200mm | 3490/3287 | ||||
| Overall dimensions for 3000mm | 4200/3887 | ||||
| Overall dimensions for 4000mm | 4850/4500 | ||||
Product Main Technical Parameters:
