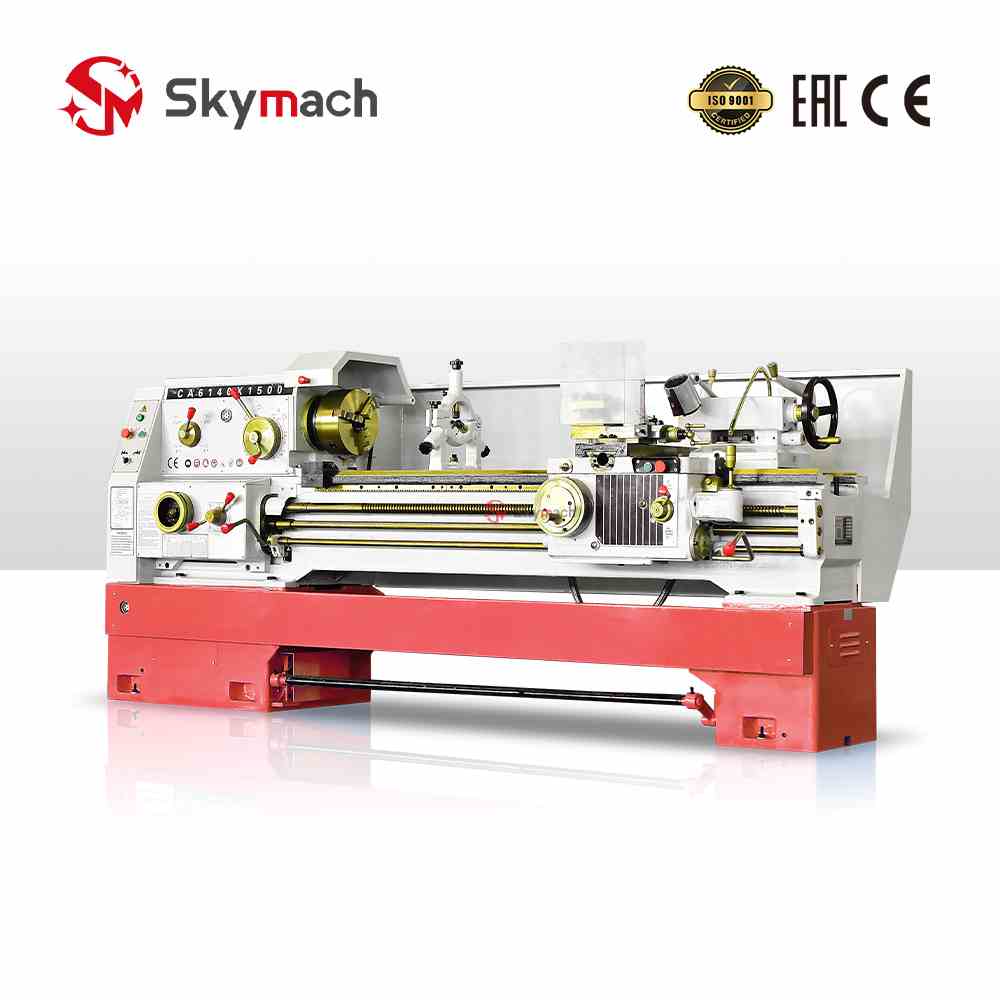

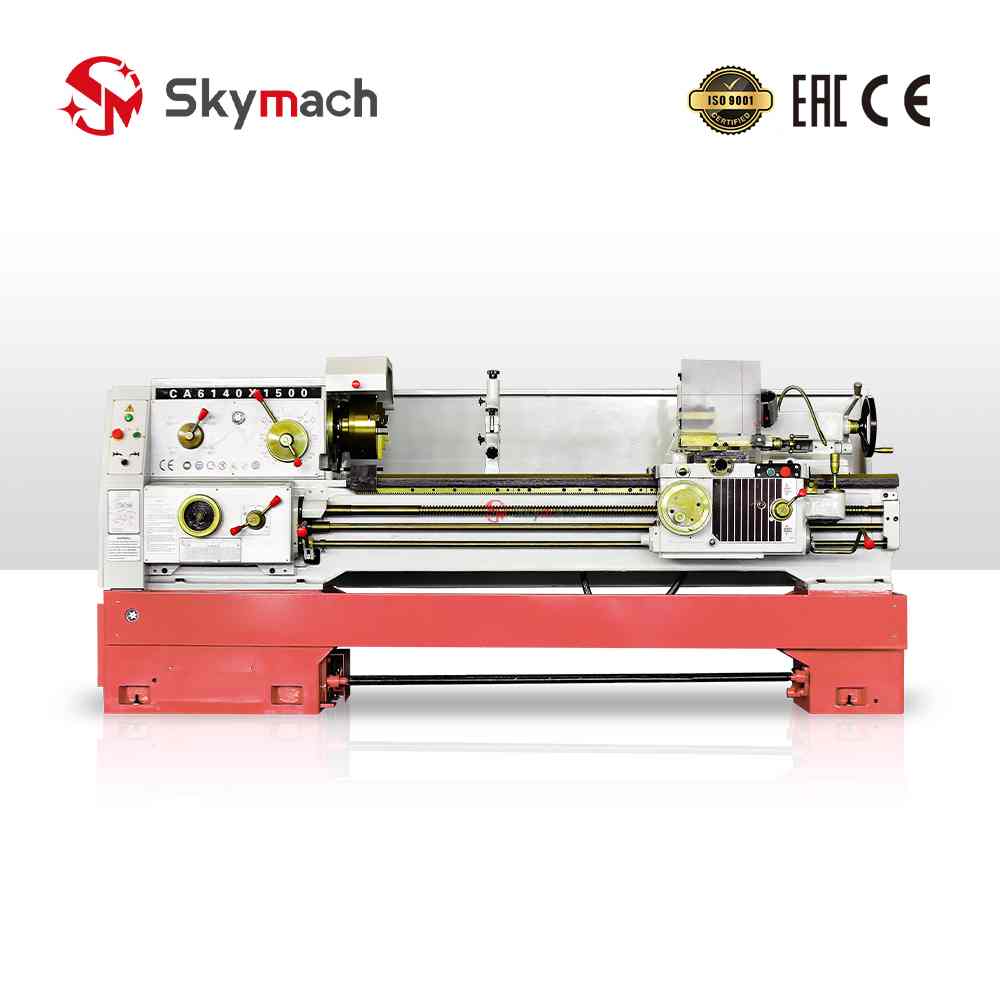

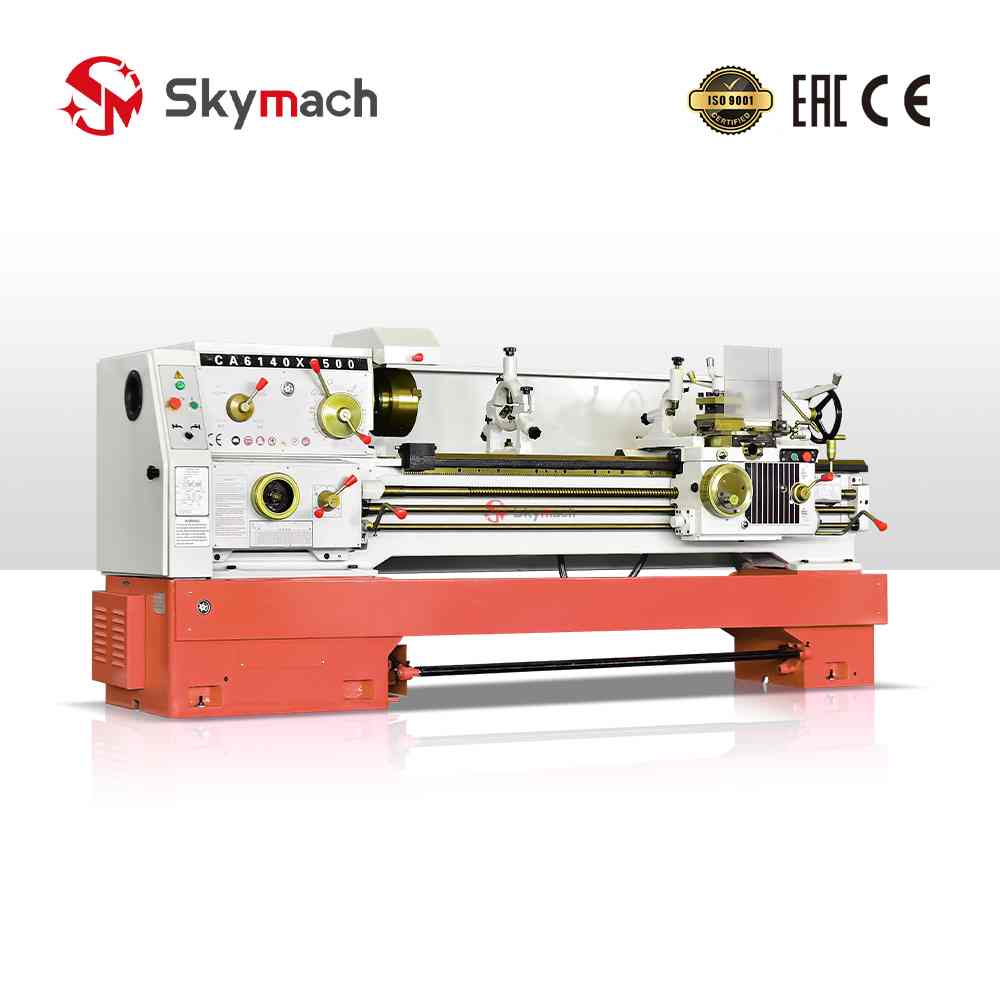

Manual Lathe CA6140
Model: CA6140
400mm swing diameter standard bed
Maximum machining length 750/1000/1500/2000mm available
Spindle through-hole diameter 52mm (80mm optional)
Spindle speed 1800rpm with continuously variable speed
MT6 taper bore and A2-6 spindle nose
X/Z axis travel 230/750-2000mm
Rapid traverse 6000/8000mm/min
Standard four-station electric tool turret
Accepts 25x25mm tools
Tailstock quill diameter 65mm, 130mm travel
MT4 taper bore
Main motor power 5.5kW
Machine weight 1700-2000kg (depending on length)
External dimensions 2200-3500x1650x1700mm
Manual Lathe CA6140
Model: CA6140
400mm swing diameter standard bed
Maximum machining length 750/1000/1500/2000mm available
Spindle through-hole diameter 52mm (80mm optional)
Spindle speed 1800rpm with continuously variable speed
MT6 taper bore and A2-6 spindle nose
X/Z axis travel 230/750-2000mm
Rapid traverse 6000/8000mm/min
Standard four-station electric tool turret
Accepts 25x25mm tools
Tailstock quill diameter 65mm, 130mm travel
MT4 taper bore
Main motor power 5.5kW
Machine weight 1700-2000kg (depending on length)
External dimensions 2200-3500x1650x1700mm
Advantages Of Manual Lathe CA6140：
- Cost-effective and excellent value for money. While offering the same main motor power (7.5kW) and core features as larger models, the CA6140 typically offers a more competitive purchase cost, making it an ideal choice for budget-conscious users.
- Full-featured to meet a wide range of needs. Powerful threading capabilities: Exactly the same as larger models in the series, it supports up to 64 feed rates and can turn four major thread types: metric, imperial, module, and pitch, covering most machining needs.
- Reliable precision and excellent rigidity. The 400mm bed width, consistent with other models in the series, ensures the stability and rigidity of the basic structure, providing a solid guarantee for machining accuracy.
Product Main Technical Parameters:
Type | CA6140（B） | CA6150(B/C) | CA6161(B/C) | CA6166(B/C) | CA6180(B/C) |
CA6240（B） | CA6250(B/C) | CA6261(B/C) | CA6266(B/C) | CA6280(B/C) | |
Max. swing over bed | 400mm | 500mm | 610mm | 660mm | 800mm |
Max. swing over carriage | 210mm | 300mm | 370mm | 400mm | 540mm |
Max. swing in gap | 630mm | 720mm | 830mm | 880mm | 1020mm |
Max. effective length in gap | 210mm | ||||
Max. length of workpiece | 750/1000/1500/2000/2200/3000/4000mm | ||||
Width of bed | 400mm | ||||
Section of turning tool | 25×25 mm | ||||
Main spindle motor | 7.5kw(10HP) | ||||
Spindle | |||||
Spindle speed | 16–1400rpm(24step) | ||||
Spindle bore | 52mm (B:80mm),(C:105mm) | ||||
Spindle taper | No.6(MT6)(Φ90 1:20)[Φ113:20] | ||||
Feed | |||||
NO. of feed | (64 kinds)(for each) | ||||
Range of metric threads | (1-192mm) (44 kinds) | ||||
Range of inch threads | (1-24tpi) (21kinds) | ||||
Range of module threads | 0.25-48 (module 39 kinds) | ||||
Range of diametral pitch threads | 1-96DP (37 kinds) | ||||
Tailstock | |||||
Max. tailstock spindle travel | 150mm | ||||
Tailstock spindle diameter | 75mm | ||||
Taper of tailstock spindle centre hole | 1-96DP (37 kinds) | ||||
Packing dimensions (L*W*H) | |||||
Overall dimensions for 750mm | 2440×1140×1750mm | ||||
Overall dimensions for 1000mm | 2700×1140×1750mm | ||||
Overall dimensions for 1500mm | 3200×1140×1750mm | ||||
Overall dimensions for 2000mm | 3700×1140×1750mm | ||||
Overall dimensions for 2200mm | 4030×1140×1750mm | ||||
Overall dimensions for 3000mm | 4800×1140×1750mm | ||||
Overall dimensions for 4000mm | 5680×1140×1750mm | ||||
Weight (kg) | |||||
Overall dimensions for 750mm | 2100 | 2170 | 2300 | 2400 | 2520 |
Overall dimensions for 1000mm | 2200 | 2260 | 2380 | 2580 | 2720 |
Overall dimensions for 1500mm | 2380 | 2450 | 2577 | 2830 | 3000 |
Overall dimensions for 2000mm | 2750 | 2800 | 3000 | 3050 | 3300 |
Overall dimensions for 2200mm | 2800 | 3000 | 3150 | 3400 | 3500 |
Overall dimensions for 3000mm | 3300 | 3500 | 3600 | 4000 | 4220 |
Overall dimensions for 4000mm | 3500 | 3800 | 3950 | 4600 | 4900 |
Product Main Technical Parameters:
