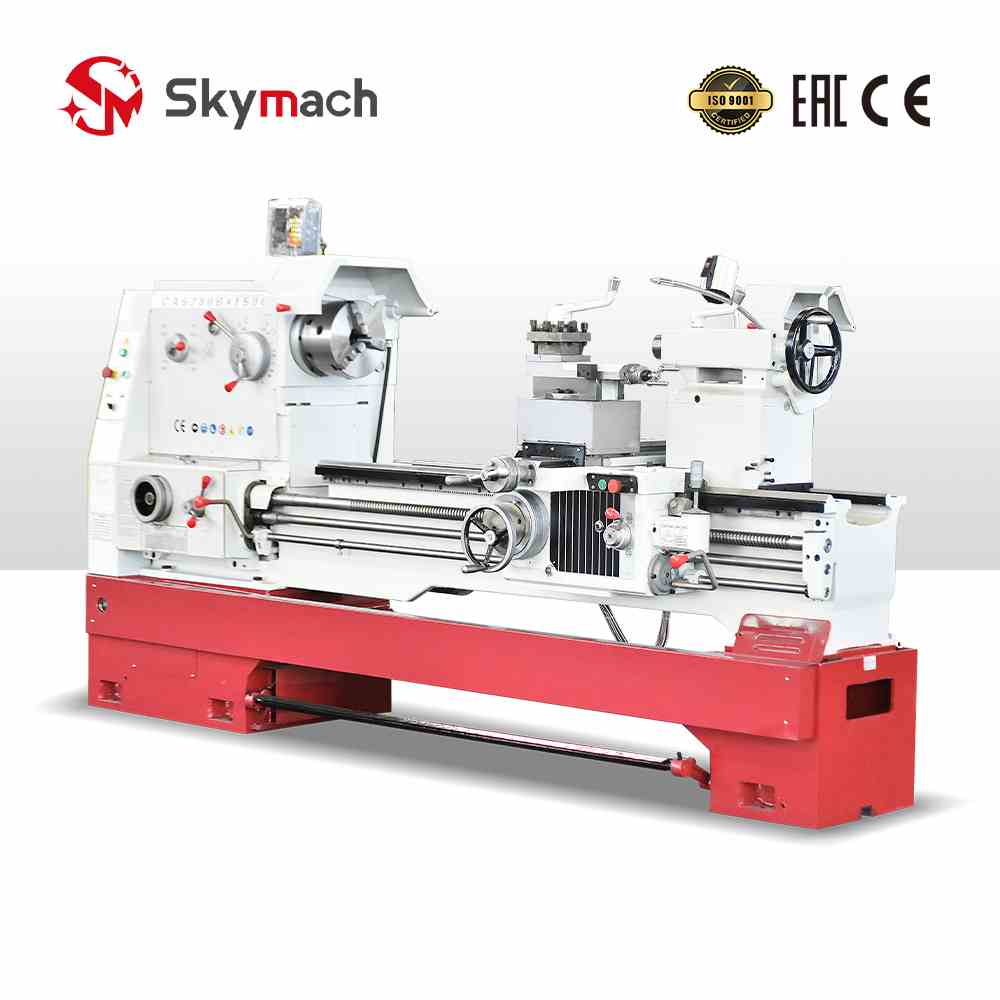

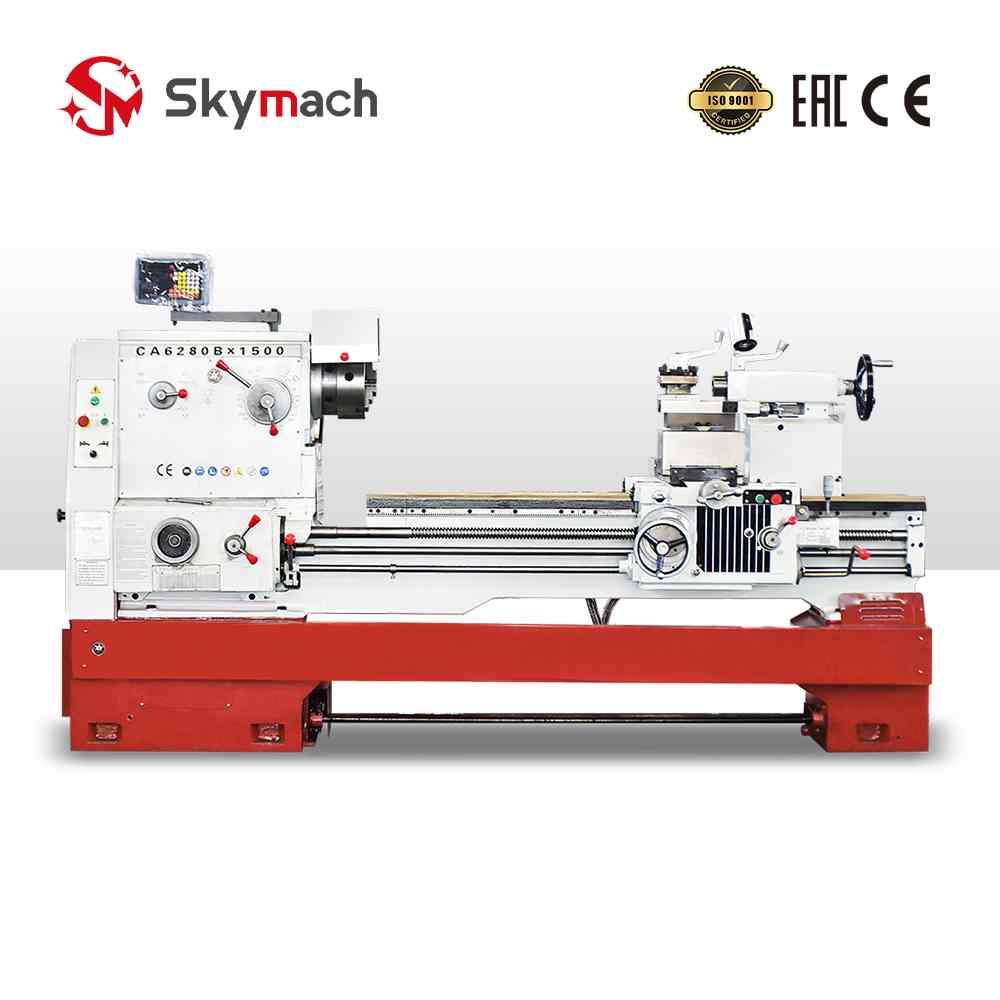

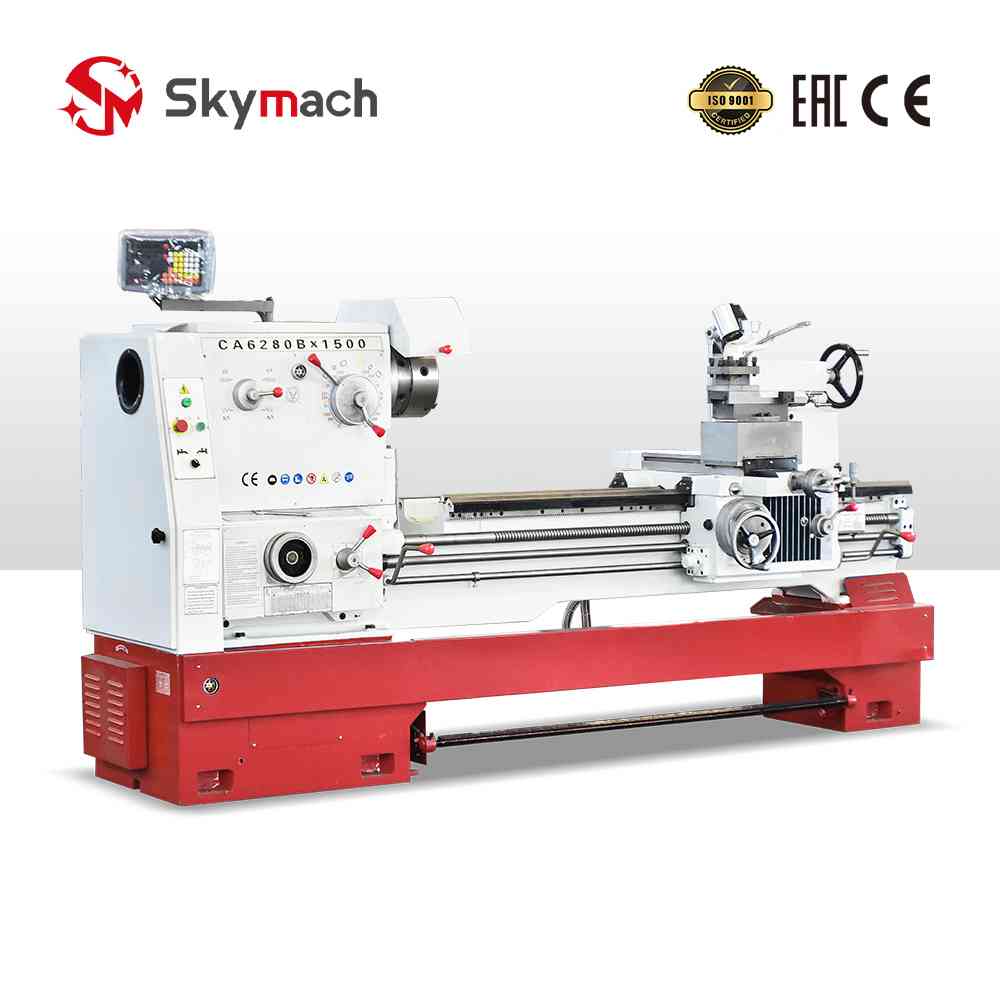

Manual Lathe CA6280B
Model:CA6280B
Large 800mm swing diameter
(up to 1250mm at the saddle)
Maximum machining length: 1500/2000/3000/4000/5000/6000mm
Spindle bore diameter options: 104/130mm
Hydraulic automatic speed shift (201,000rpm)
X/Z axis travel: 480/1350-5850mm
Rapid traverse: 4000/8000mm/min
Standard eight-position tool post, supports 40x40mm tools
Tailstock quill diameter: 125mm
Travel: 300mm, uses MT6 taper
Main motor power: 18.5kW
Machine weight: 16,100-18,600kg (depending on length)
External dimensions: 7,250-11,250×2,800×2,600mm
Manual Lathe CA6280B
Model:CA6280B
Large 800mm swing diameter
(up to 1250mm at the saddle)
Maximum machining length: 1500/2000/3000/4000/5000/6000mm
Spindle bore diameter options: 104/130mm
Hydraulic automatic speed shift (201,000rpm)
X/Z axis travel: 480/1350-5850mm
Rapid traverse: 4000/8000mm/min
Standard eight-position tool post, supports 40x40mm tools
Tailstock quill diameter: 125mm
Travel: 300mm, uses MT6 taper
Main motor power: 18.5kW
Machine weight: 16,100-18,600kg (depending on length)
External dimensions: 7,250-11,250×2,800×2,600mm
Advantages Of Manual Lathe CA6280B :
- The ultra-large machining envelope, with an 800mm bed swing diameter and a 540mm tool carriage swing diameter, is at the top of the series, easily handling heavy workpieces such as large discs, rollers, and large flanges.
- To handle heavy workpieces, the 1020mm bridge swing diameter and 210mm effective bridge length provide exceptional machining capabilities for irregularly shaped, large-diameter parts.
- 2. Excellent spindle throughput and power configuration.
- The 80mm spindle through-hole (Type B) supports large-diameter bar machining, reducing material pre-treatment steps.
- The 7.5kW main motor provides ample power reserve for cutting large workpieces, ensuring stable speeds even during heavy cutting.
- The MT6 spindle taper and Φ113 1:20 short taper ensure clamping rigidity and transmission efficiency for large workpieces.
Product Main Technical Parameters:
Specifications | CA6180 CA6180B CA6180C | CA6280 CA6280B CA6280C | |
Max. Swing over bed | 800mm | ||
Max. Swing over carriage | 540mm | ||
Max. swing in gap | — | 1020mm | |
Effective gap length | — | 210mm | |
Max. length of work piece | 750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm | ||
Width of bed | 400mm | ||
Section of turning tool | 25x25mm | ||
Spindle | Spindle speeds | 10-1400rpm/16-1400rpm（24steps） | |
Hole through spindle | 52mm. （80mm）. [105mm] | ||
Spindle taper | NO.6（MT6）（Φ90 1：20）[Φ113 1：20] | ||
Feed | Number of feeds | 64 kinds（for each） | |
Range of metric threads（kinds） | （1-192mm）44kinds | ||
Range of inch threads（kinds） | （2-24tpi）21kinds | ||
Range of module threads（kinds） | (0.25-48)Moduie39kinds | ||
Range of pitch threads（kinds） | 1-96DP（37kinds） | ||
Tailstock | Max. tail stock spindle travel | 150mm | |
Tail stock spindle diameter | 75mm | ||
Taper of tail stock spindle center hole | NO.5(MT5) | ||
Main motor | 7.5KW(10HP) | ||
Packing dimensions (L*W*Hmm) | Overall dimensions for750mm | 2550x1140x1750 | |
Overall dimensions for1000mm | 2700x1140x1750 | ||
Overall dimensions for1500mm | 3200x1140x1750 | ||
Overall dimensions for2000mm | 3700x1140x1750 | ||
Overall dimensions for2200mm | 4030x1140x1750 | ||
Overall dimensions for3000mm | 4850x1140x1750 | ||
Overall dimensions for4000mm | 5800x1140x1750 | ||
Weight (kg) | Length | G.W N.W. | |
Weight for 750mm | 2520 2400 | ||
Weight for 1000mm | 2720 2560 | ||
Weight for 1500mm | 2980 2800 | ||
Weight for 2000mm | 3260 3087 | ||
Weight for 2200mm | 3490 3287 | ||
Weight for 3000mm | 4200 3887 | ||
Weight for 4000mm | 4850 4500 | ||
Product Main Technical Parameters:
