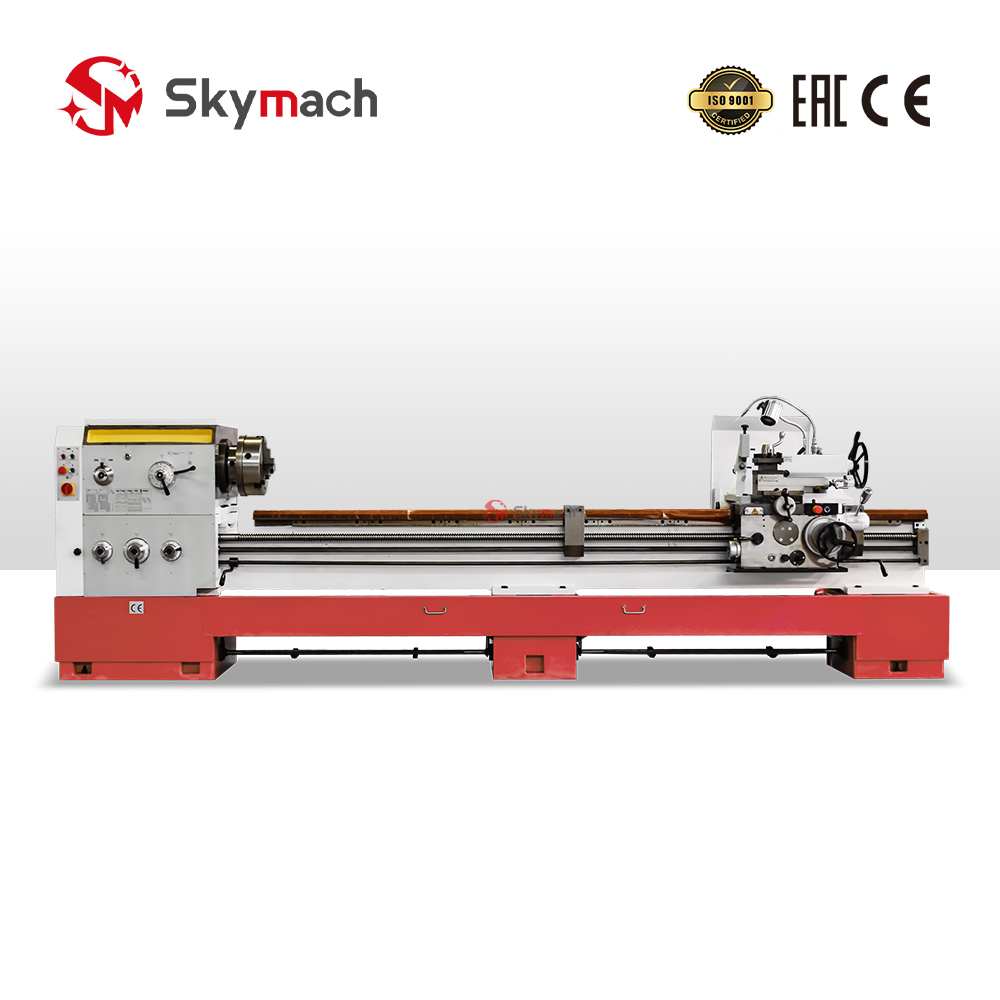

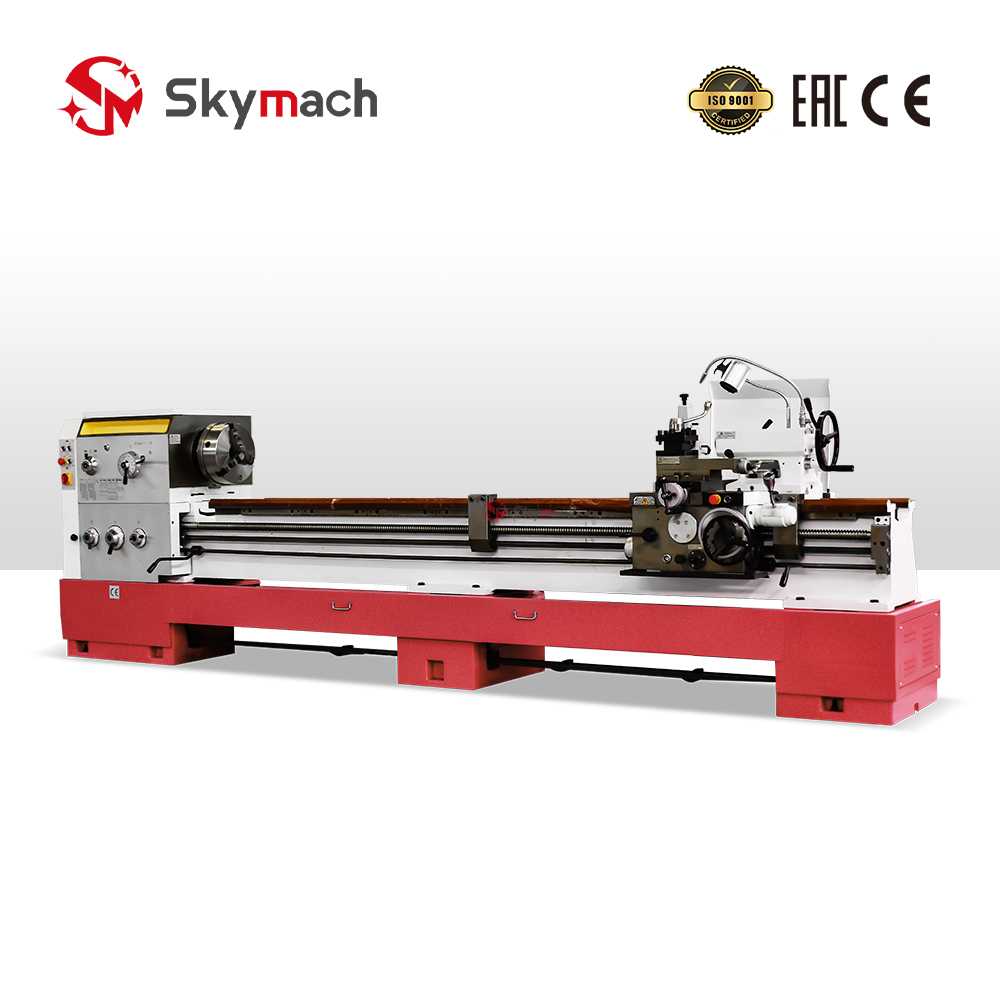

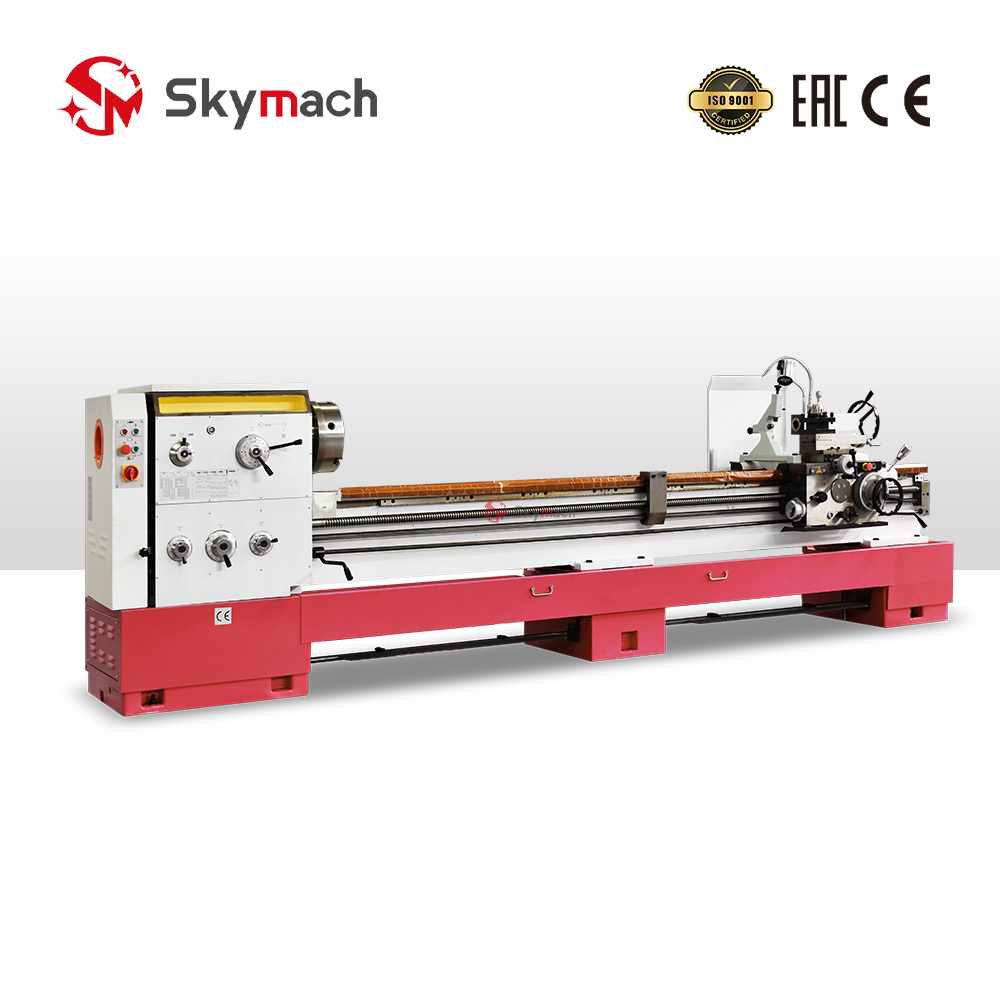

Manual Lathe CJ6250C
Model: CJ6250C
Powerful Machining Capacity: The maximum swing diameter reaches 500mm, meeting the machining needs of larger workpieces.
Sturdy and Stable Structure: The wide bed and hardened guideways ensure precision and stability under high loads.
Powerful Spindle System: The large spindle bore and smooth spindle box transmission provide ample cutting torque.
Easy Operation and Maintenance: Manual operation and a mature and reliable mechanical structure make it easy to use and reduce routine maintenance costs.
Flexible Configuration: The center distance can be adjusted according to needs to meet machining requirements for workpieces of varying lengths.
Manual Lathe CJ6250C
Model: CJ6250C
Powerful Machining Capacity: The maximum swing diameter reaches 500mm, meeting the machining needs of larger workpieces.
Sturdy and Stable Structure: The wide bed and hardened guideways ensure precision and stability under high loads.
Powerful Spindle System: The large spindle bore and smooth spindle box transmission provide ample cutting torque.
Easy Operation and Maintenance: Manual operation and a mature and reliable mechanical structure make it easy to use and reduce routine maintenance costs.
Flexible Configuration: The center distance can be adjusted according to needs to meet machining requirements for workpieces of varying lengths.
Advantages Of Manual Lathe CJ6250C
- Professional-grade spindle system configuration. The CAM A2-8 spindle head utilizes industry-standard interfaces, providing exceptional connection rigidity and precision stability.
- Precision feed and threading capabilities. A longitudinal feed range of 0.08-4.83mm/rev enables micron-level precision tool movement.
- Efficient tool management system. The four-station vertical electric/manual tool post supports rapid tool changes, significantly improving machining efficiency.
- Enhanced tailstock system. The 100mm diameter tailstock quill provides exceptional support rigidity.
Product Main Technical Parameters:
| Model | CJ6250C |
| Machine Type | Horizontal Engine Lathe |
| Automatic Grade | Manual |
| Max. Swing Over Bed | 500 mm |
| Max. Swing Over Cross Slide | ~290 mm |
| Distance Between Centers | 750mm / 1000mm / 1500mm / 2000mm (Optional) |
| Spindle Nose Type | CAM A2-8 (Common configuration) |
| Longitudinal Feed Range | 0.08 – 4.83 mm/rev |
| Cross Feed Range | 0.04 – 2.45 mm/rev |
| Metric Thread Cutting Range | 1 – 192 mm |
| Imperial Thread Cutting Range | 2 – 24 TPI |
| Module Thread Cutting Range | 0.5 – 48 mm |
| Diametral Pitch Thread Cutting Range | 1 – 96 DP |
| Tool Post Type | 4-Station Vertical Electric/Manual Tool Post |
| Tool Shank Section Size | 25mm x 25mm |
| Tailstock Barrel Diameter | 100 mm |
| Tailstock Barrel Travel | 200 mm |
| Tailstock Barrel Taper | Morse No.5 |
| Main Motor Power | 7.5 kW / 11 kW (Common configuration) |
| Coolant Pump Motor Power | 0.125 kW |
| Machine Dimensions (LxWxH) | 3000 x 1000 x 1500 mm (Depends on the distance between centers) |

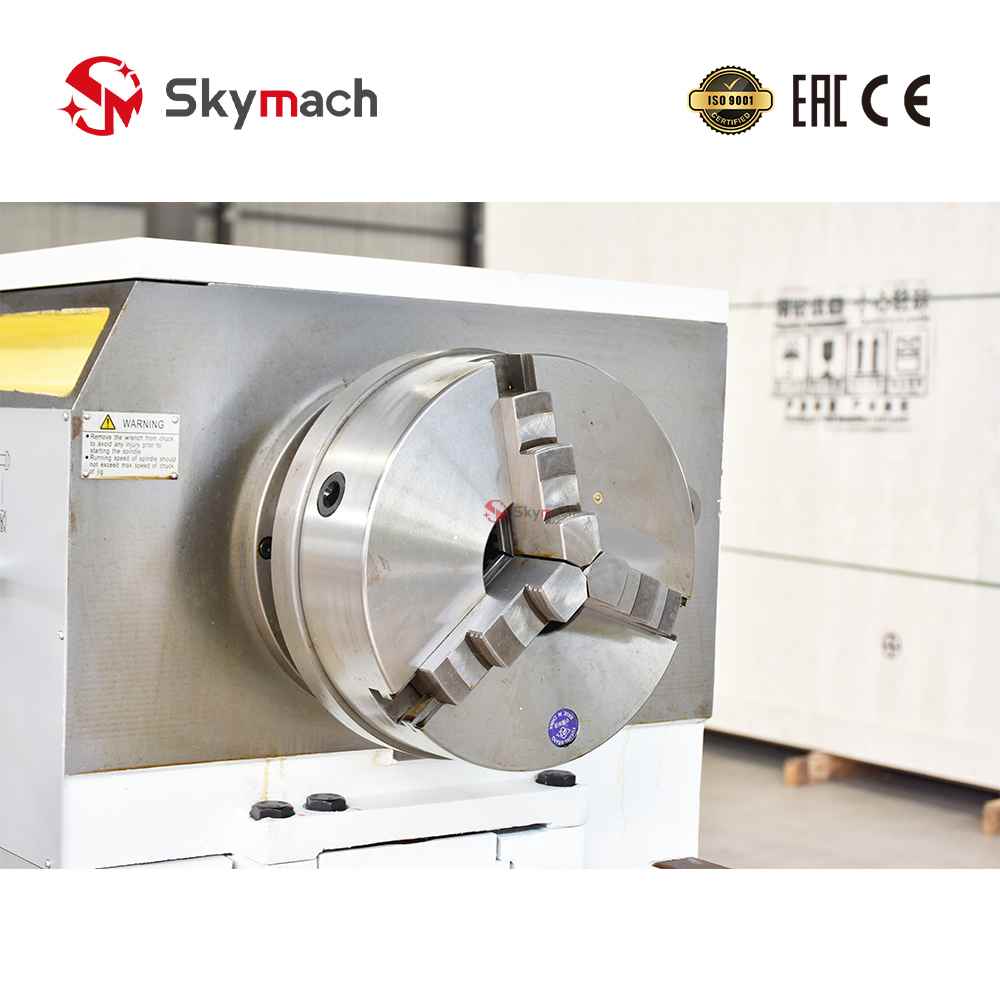

| Chuck | 3-Jaw Self-Centering Chuck |
| Steady Rest, Follow Rest, Coolant System, etc. | Usually provided as standard or optional attachments |
