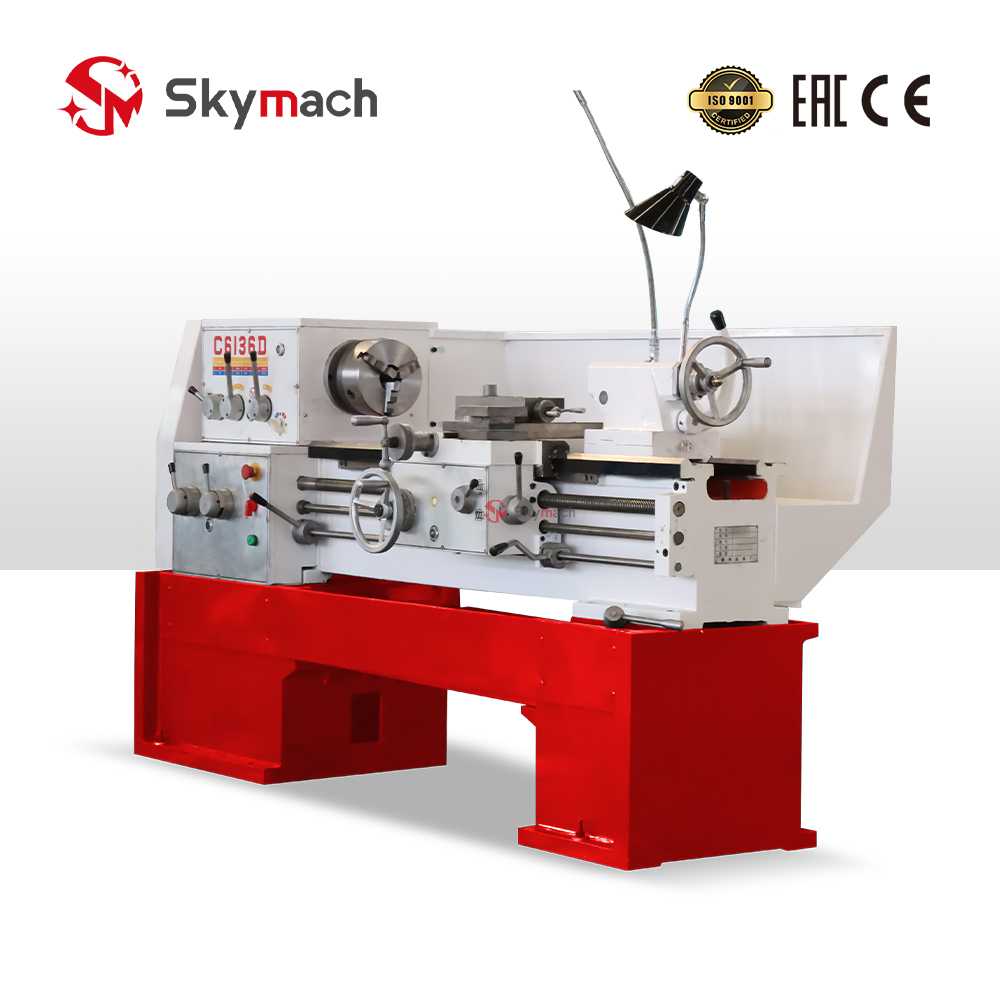

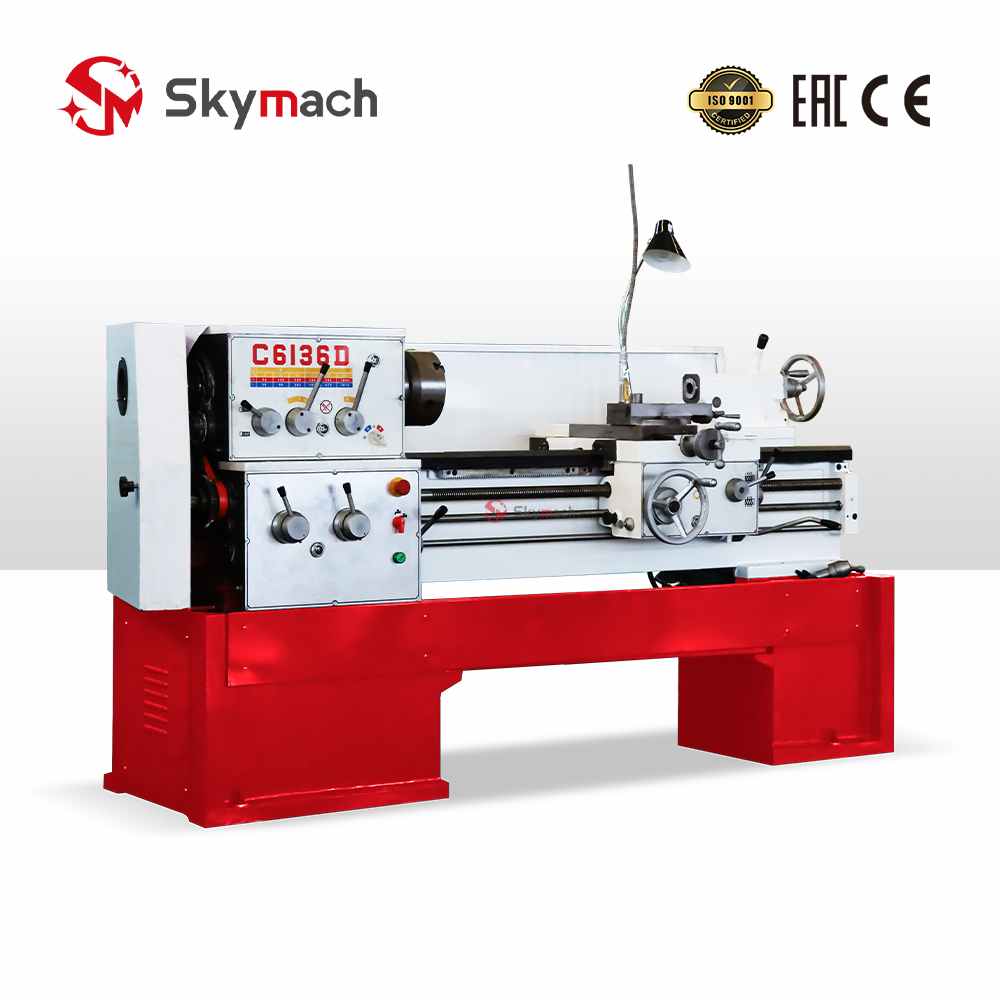

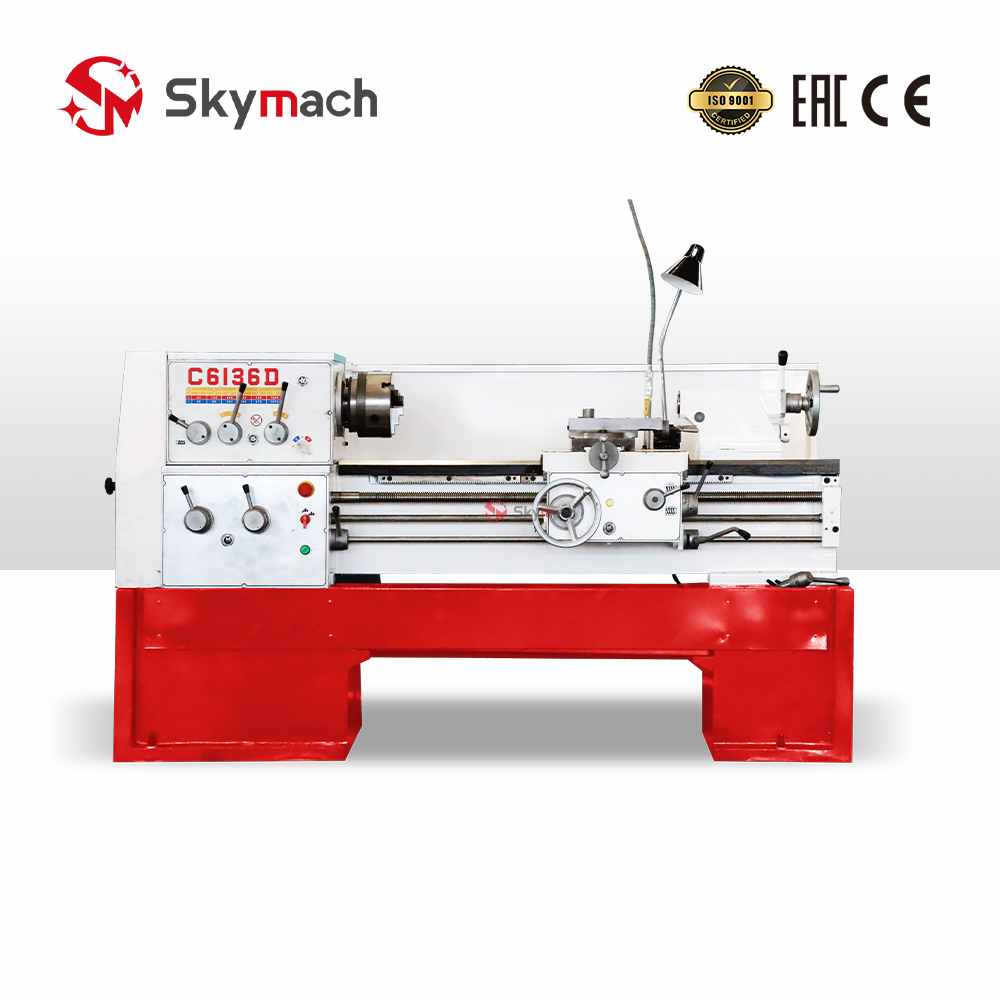

Manual Lathe C6136D
Model: C6136D
360mm swing diameter standard bed
Maximum machining length 750-3000mm
Optional spindle through-hole diameter 52mm (80mm optional)
Spindle speed 40-1400rpm (9-speed variable speed)
MT6 taper bore (metric 1:20 optional)
X/Z axis travel 160/750-3000mm
Standard 20x20mm tool
Tailstock quill diameter 65mm, 130mm travel
MT4 taper bore
Main motor power 5.5kW
Machine weight 1220-1950kg (depending on length)
External dimensions 2200-4400x1140x1550-1750mm
Manual Lathe C6136D
Model: C6136D
360mm swing diameter standard bed
Maximum machining length 750-3000mm
Optional spindle through-hole diameter 52mm (80mm optional)
Spindle speed 40-1400rpm (9-speed variable speed)
MT6 taper bore (metric 1:20 optional)
X/Z axis travel 160/750-3000mm
Standard 20x20mm tool
Tailstock quill diameter 65mm, 130mm travel
MT4 taper bore
Main motor power 5.5kW
Machine weight 1220-1950kg (depending on length)
External dimensions 2200-4400x1140x1550-1750mm
Advantages Of Manual Lathe C6136D：
- Powerful machining capabilities. The 800mm bed swing diameter and 1000mm workpiece length accommodate machining of long shafts and discs.
- Flexible speed configuration. A wide speed range of 40-1400rpm covers roughing to finishing needs, and is suitable for a variety of materials, including steel, aluminum, and copper.
- High precision and stability. The MT6 spindle taper and MT4 tailstock taper ensure precise positioning of the tool and workpiece.
- Rugged and durable construction. The cast bed and high-quality guideways provide strong vibration resistance, suitable for long-term, intensive use.
- Easy operation and maintenance. The manual control system eliminates the need for complex programming, reducing training costs and maintenance difficulties.
Product Main Technical Parameters:
Category | Specification | Unit |
Swing over carriage | 800 | mm |
Max workpiece length | 1000 | mm |
Spindle bore | 52 (80 optional) | mm |
Spindle taper | MT6 | – |
Speed range | 40-1400 | rpm |
Cross slide travel | 180 | mm |
Top tool post travel | 95 | mm |
Tool size | 20×20 | mm |
Quill diameter | 65 | mm |
Quill taper | MT4 | – |
Quill travel | 130 | mm |
Coolant pump | 0.09 | kW |
Product Main Technical Parameters:
