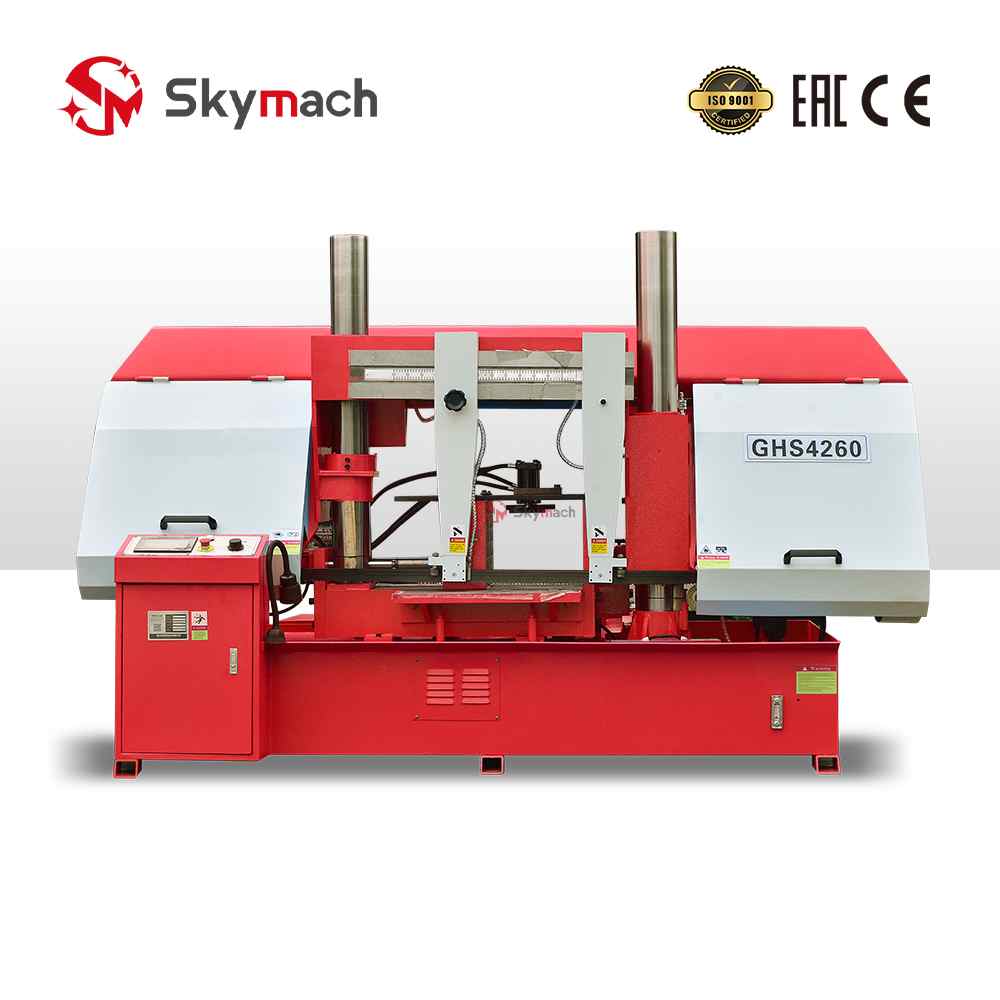

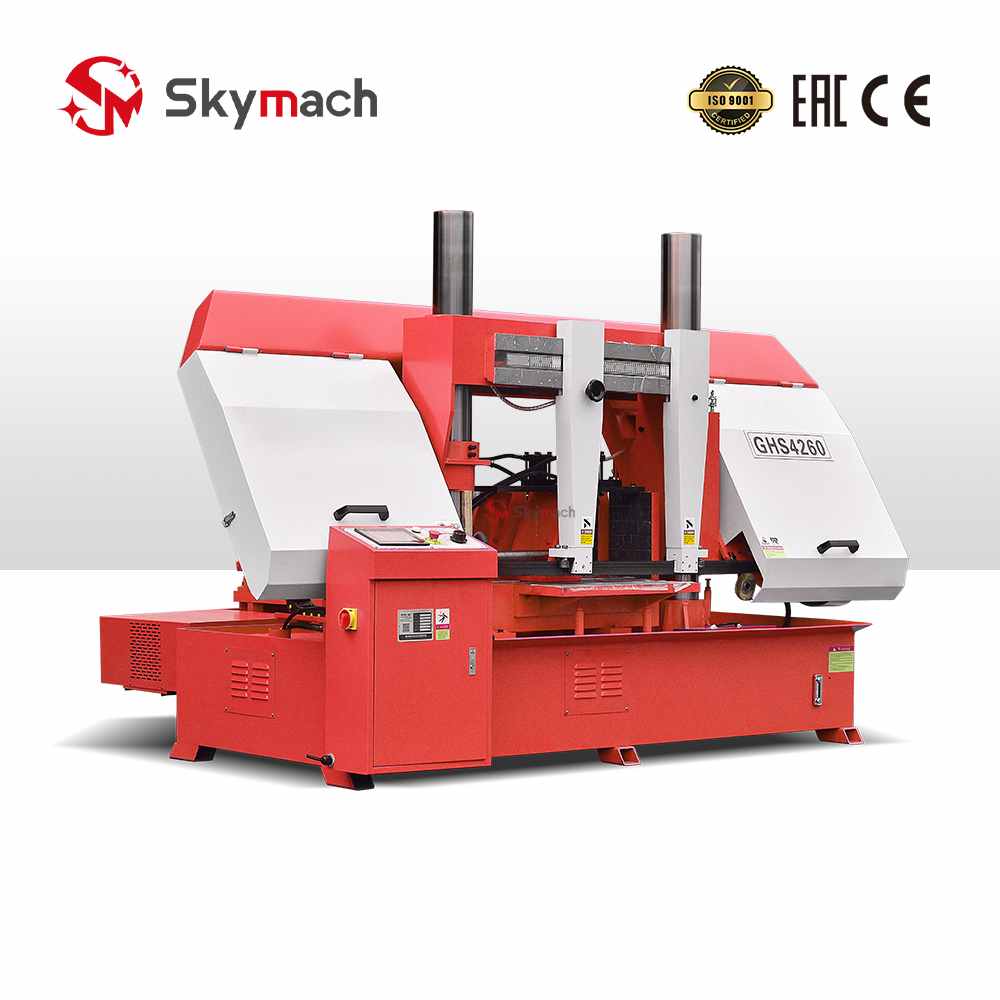

CNC Metal Band Saw GHS4260
Model: GHS4260 Band Saw
Cutting Capacity: 600 x 600 mm
Saw Blade Size: 6640 x 41 x 1.3 mm
Saw Blade Speed: 27/45/69 m/min
Main Motor Power: 5.5 kW
Hydraulic Motor Power: 1.5 kW
Weight: 3000 kg
Dimensions:
3200 x 2750 x 2200 mm
Work Clamping: Hydraulic
Main Drive: Worm Gear
Feeding: Hydraulic Automatic
CNC Metal Band Saw GHS4260
Model: GHS4260 Band Saw
Cutting Capacity: 600 x 600 mm
Saw Blade Size: 6640 x 41 x 1.3 mm
Saw Blade Speed: 27/45/69 m/min
Main Motor Power: 5.5 kW
Hydraulic Motor Power: 1.5 kW
Weight: 3000 kg
Dimensions:
3200 x 2750 x 2200 mm
Work Clamping: Hydraulic
Main Drive: Worm Gear
Feeding: Hydraulic Automatic
Advantages Of CNC Band Saw GHS4260
- Industry-leading ultra-large machining capabilities. With a cutting capacity of 600 x 600 mm, it reaches the top level of industrial-grade horizontal band saws.
- Extremely heavy-duty material handling capabilities, designed specifically for specialized industries such as shipbuilding, heavy machinery, and energy equipment.
- Single-pass cutting of extremely large cross-sections significantly improves machining efficiency for ultra-large workpieces and reduces secondary processing.
- Hydraulic workholding ensures secure and reliable positioning of ultra-large workpieces.

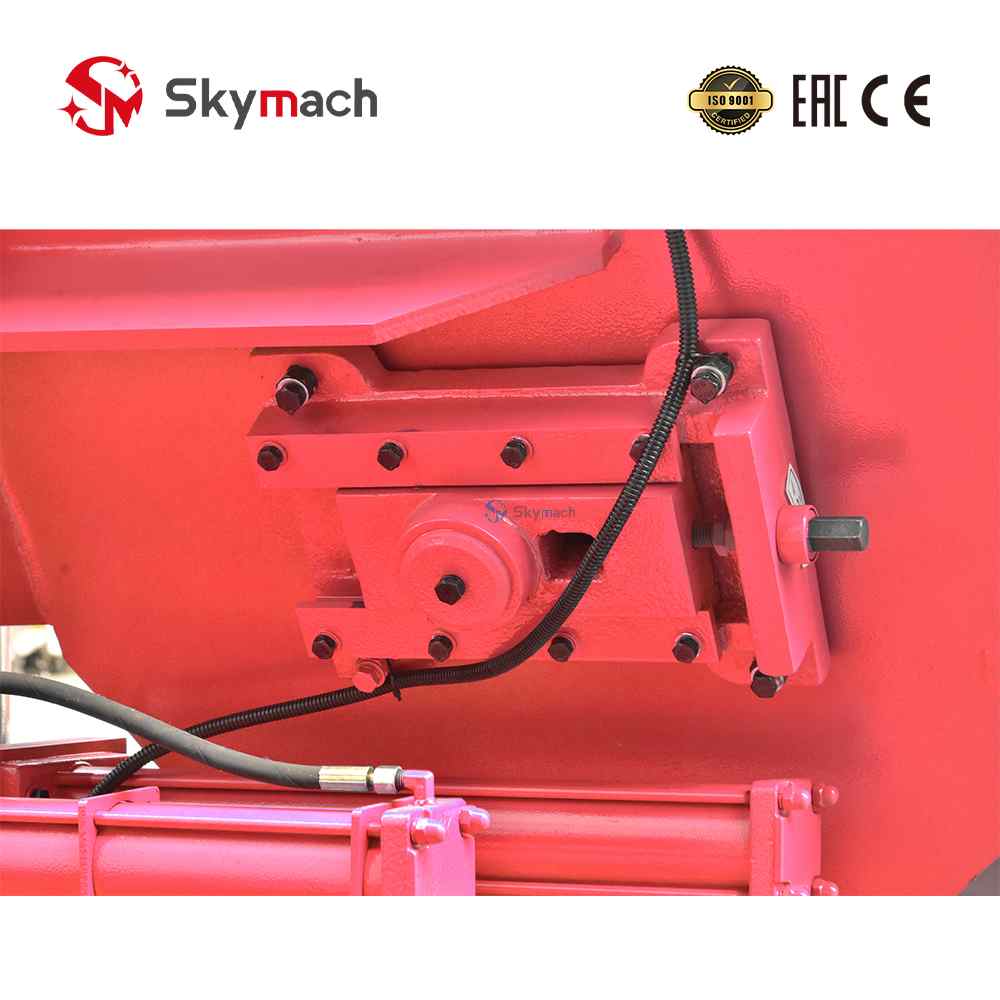

- Worm gear main drive system provides smooth and reliable transmission with a long maintenance interval.
Product Main Technical Parameters:
GHS4260 | ||
Parameter | Unit | Specification |
Cutting Capacity | mm | 600 × 600 |
Blade Speed | m/min | 27, 45, 69 (3-speed) |
Blade Size (L×W×Thk) | mm | 6640 × 41 × 1.3 |
Main Motor Power | kW | 5.5 |
Hydraulic Motor Power | kW | 1.5 |
Cooling Pump Power | kW | 0.09 |
Workpiece Clamping Type | — | Hydraulic |
Main Drive Mechanism | — | Worm Gear Transmission |
Feeding Type | — | Hydraulic Automatic |
Dimensions (L×W×H) | mm | 3200 × 2750 × 2200 |
Machine Weight | kg | 3000 |
Product Main Technical Parameters:
