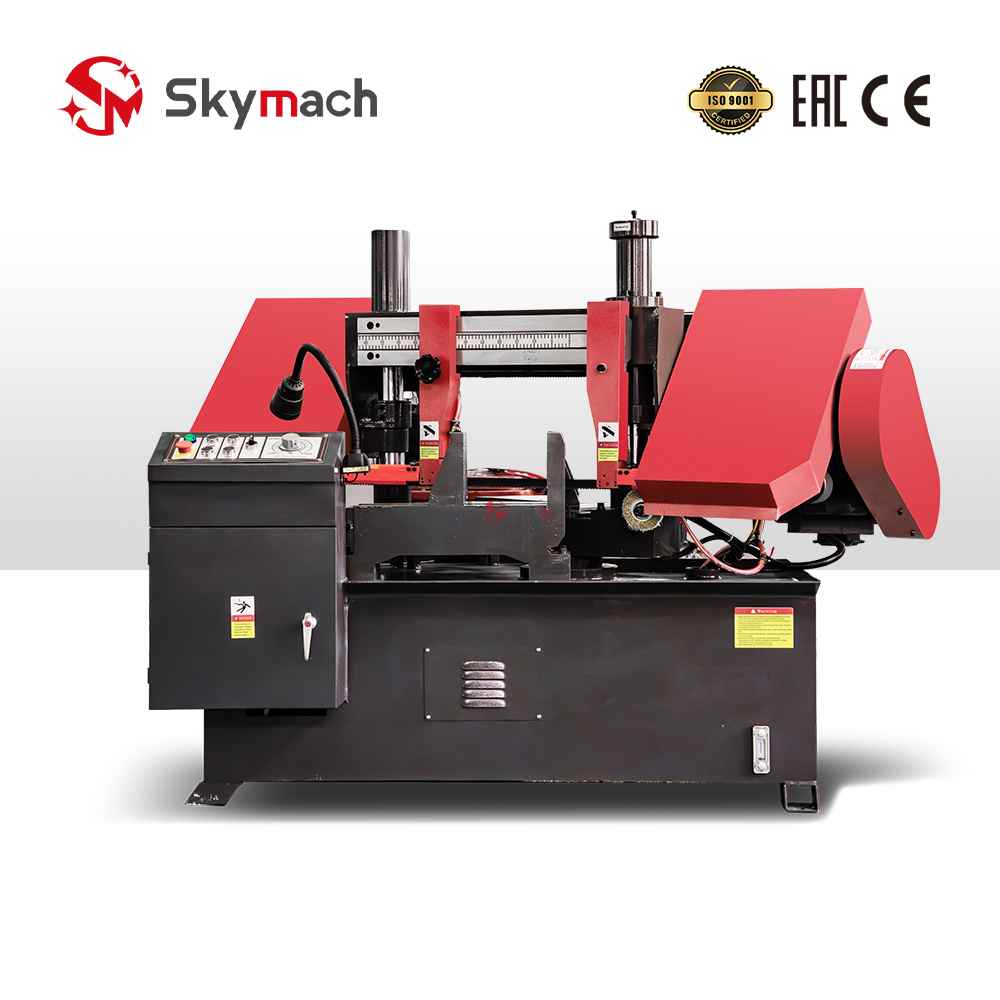

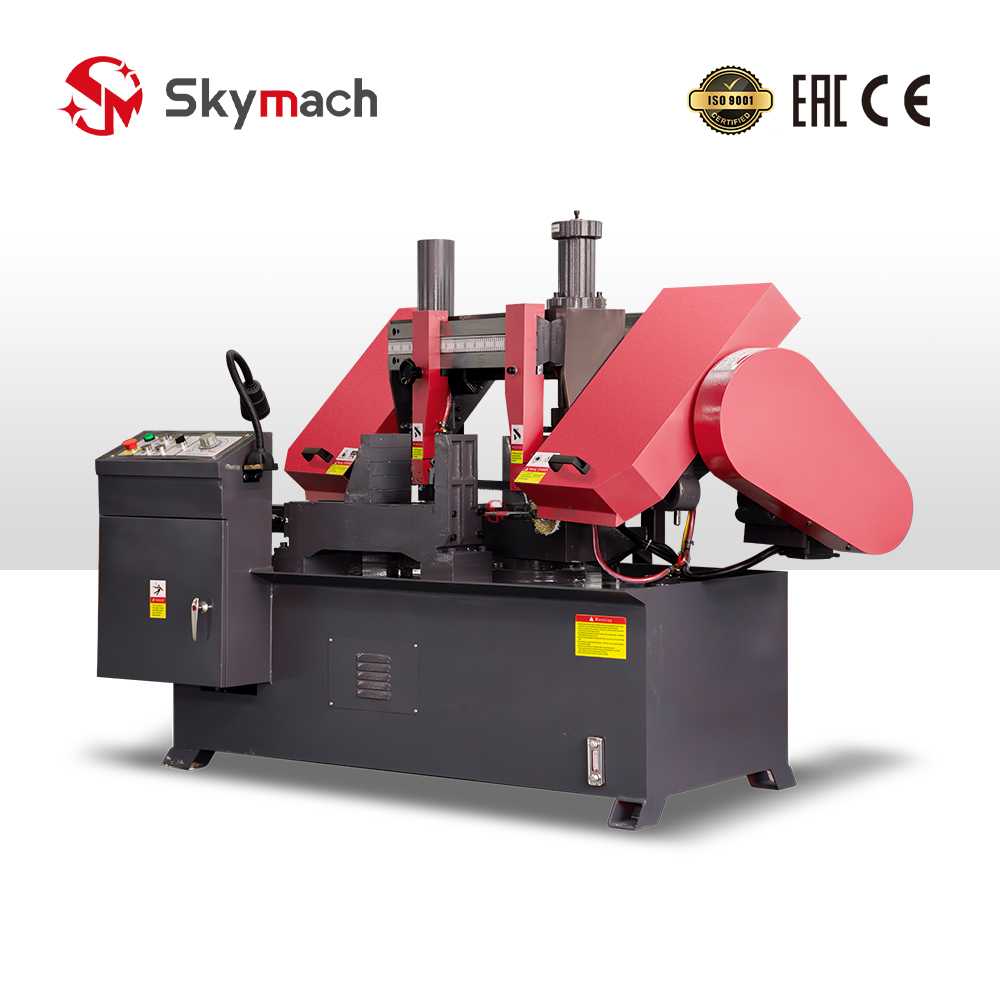

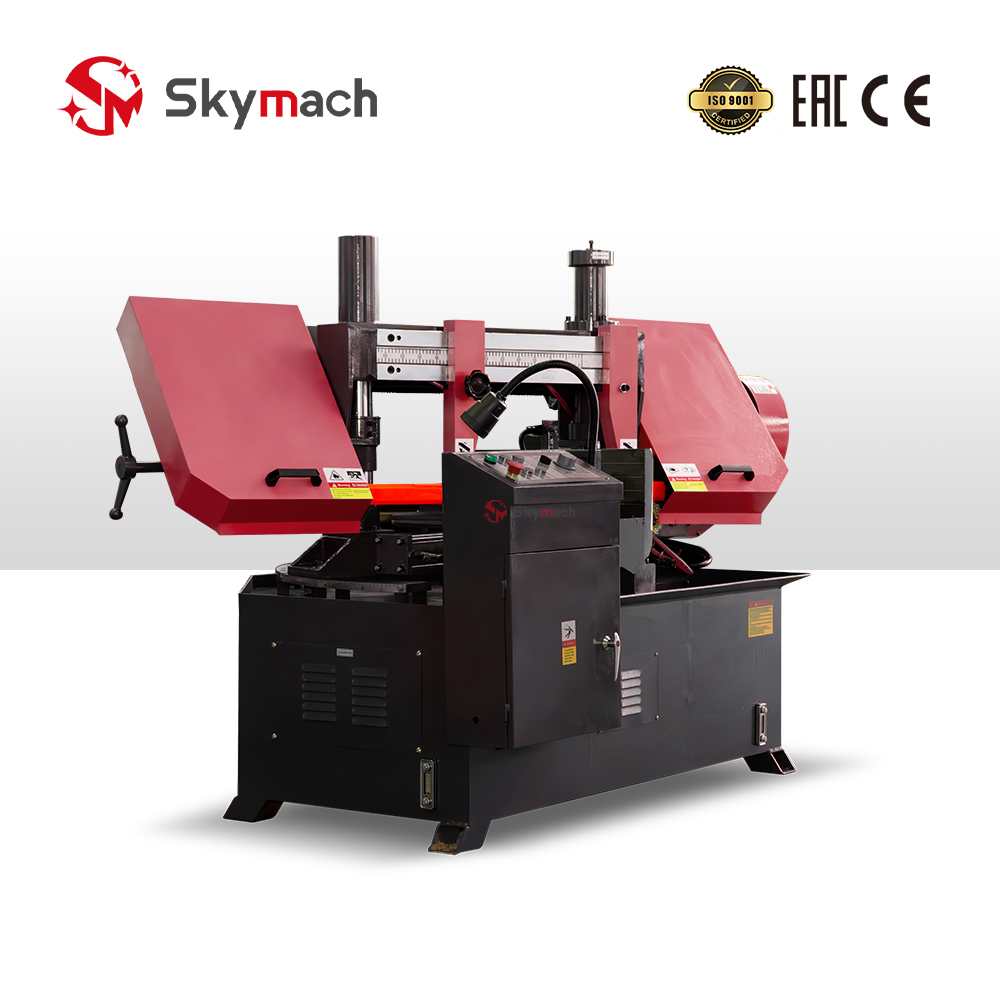

Corner Band Saw GHZ4230
Model: GHZ 4230 Band Saw
Cutting Capacity: 0° 300 x 300mm
45° 300 x 240mm
Saw Blade Size: 3900 x 27 x 0.9mm
Main Motor Power: 3kW
Hydraulic Motor Power: 0.55kW
Weight: 900kg
Dimensions:
2000 x 1350 x 1650mm
Work Clamping: Hydraulic
Main Drive: Worm Gear
Cooling Pump: 0.04kW
Feeding: Hydraulic Automatic
Corner Band Saw GHZ4230
Model: GHZ 4230 Band Saw
Cutting Capacity: 0° 300 x 300mm
45° 300 x 240mm
Saw Blade Size: 3900 x 27 x 0.9mm
Main Motor Power: 3kW
Hydraulic Motor Power: 0.55kW
Weight: 900kg
Dimensions:
2000 x 1350 x 1650mm
Work Clamping: Hydraulic
Main Drive: Worm Gear
Cooling Pump: 0.04kW
Feeding: Hydraulic Automatic
Advantages Of Corner Band Saw GHZ4230:
- Powerful cutting capabilities. Large right-angle cutting: Up to 300 x 300 mm at 0°, capable of handling a wide range of blank sizes.

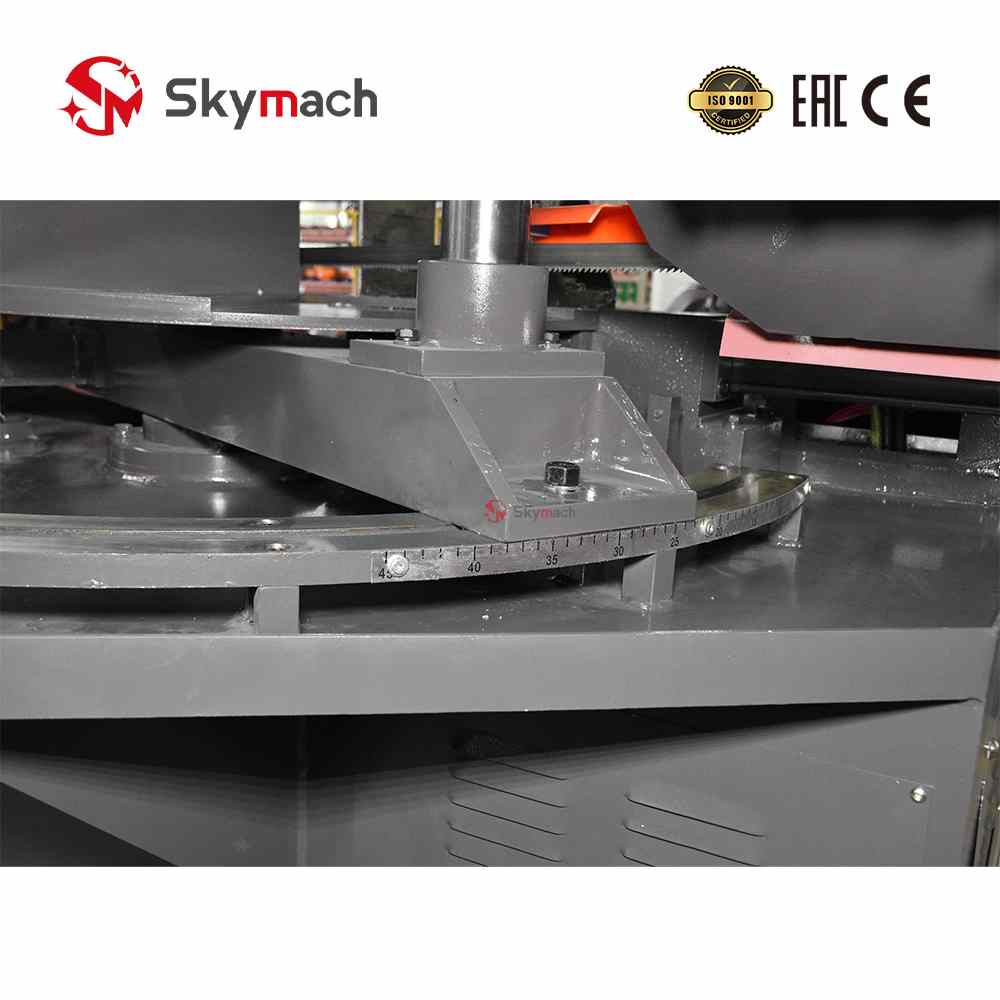

- Efficient bevel cutting: Up to 300 x 240 mm at 45°, enabling angled cutting without pre-processing, meeting complex machining needs.
- Fully automatic hydraulic feed: The hydraulic automatic feed system ensures consistent cutting without manual intervention, improving productivity and consistent cutting quality.
- Hydraulic workpiece clamping: Fast, secure, and reliable clamping significantly improves operator safety and reduces workpiece setup time.
Product Main Technical Parameters:
Parameter | Unit | Specification |
Cutting Capacity | mm | 0°： 300×300 45°：300×240 |
Blade Speed | m/min | 27, 45, 69 |
Blade Size | mm | 3900 × 27 × 0.9 |
Main Motor Power | kW | 3 |
Hydraulic Motor Power | kW | 0.55 |
Cooling Pump Power | kW | 0.04 |
Workpiece Clamping Type | — | Hydraulic |
Main Drive Mechanism | — | Worm Gear Transmission |
Feeding Type | — | Hydraulic Automatic |
Dimensions (L×W×H) | mm | 2000 × 1350 × 1650 |
Machine Weight | kg | 900 |
Product Main Technical Parameters:
Video Display
![GH4260 Metal Bandsaw with a solid metal bed, shown in a [mention color if visible, e.g., blue finish], cutting metal stock.](https://brtcmc.com/wp-content/uploads/2025/10/GH4260-1.jpg)
