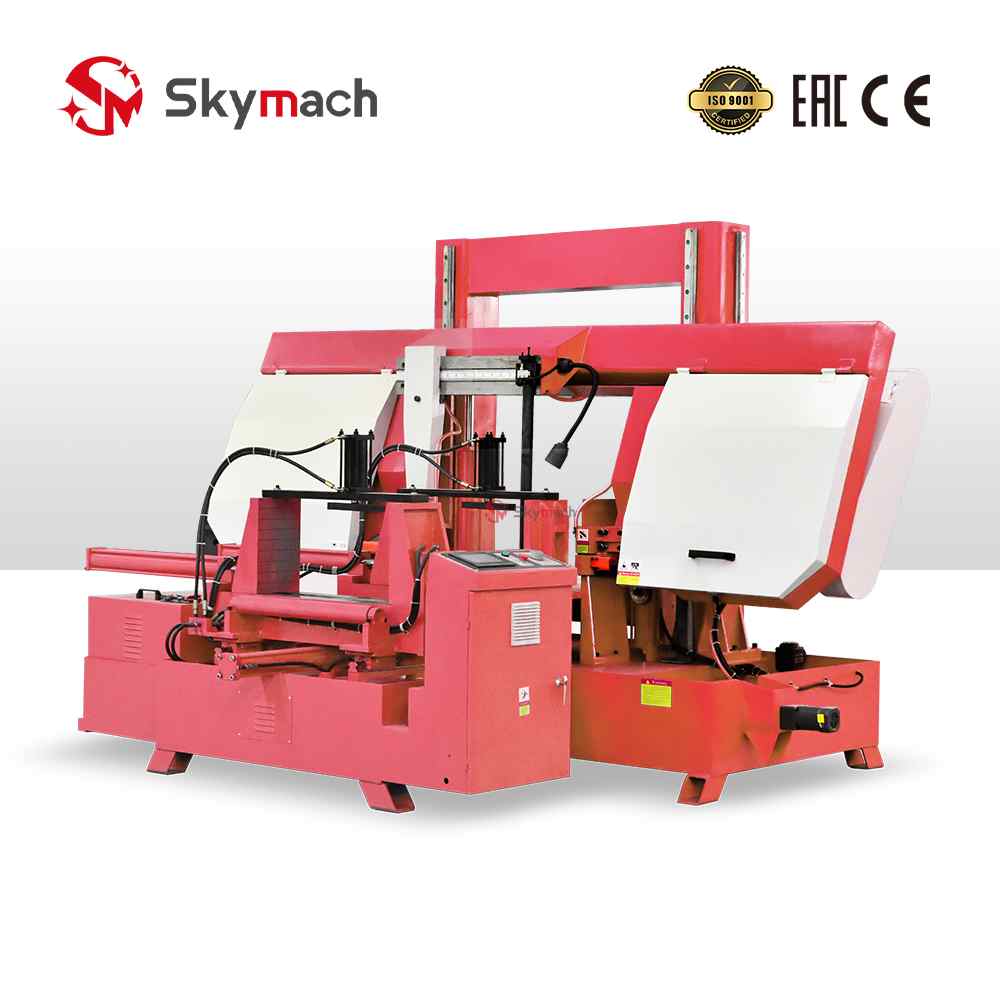

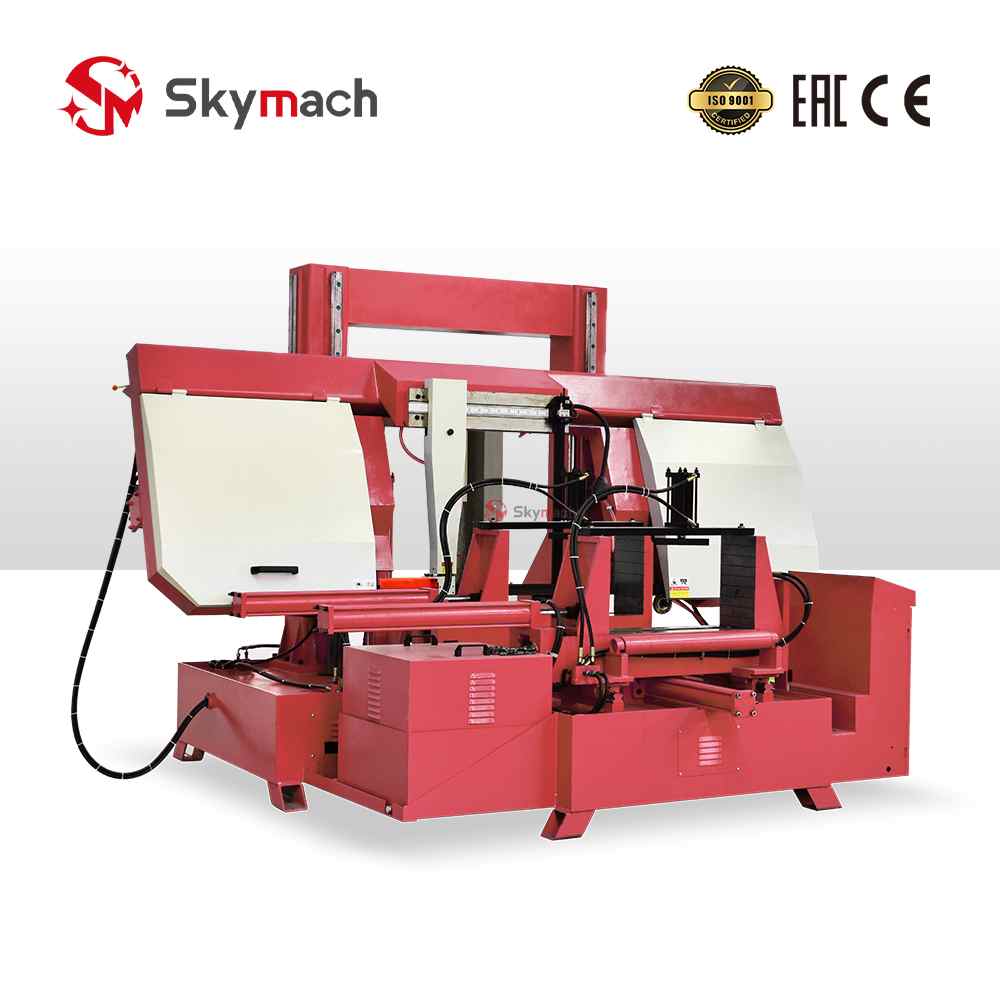

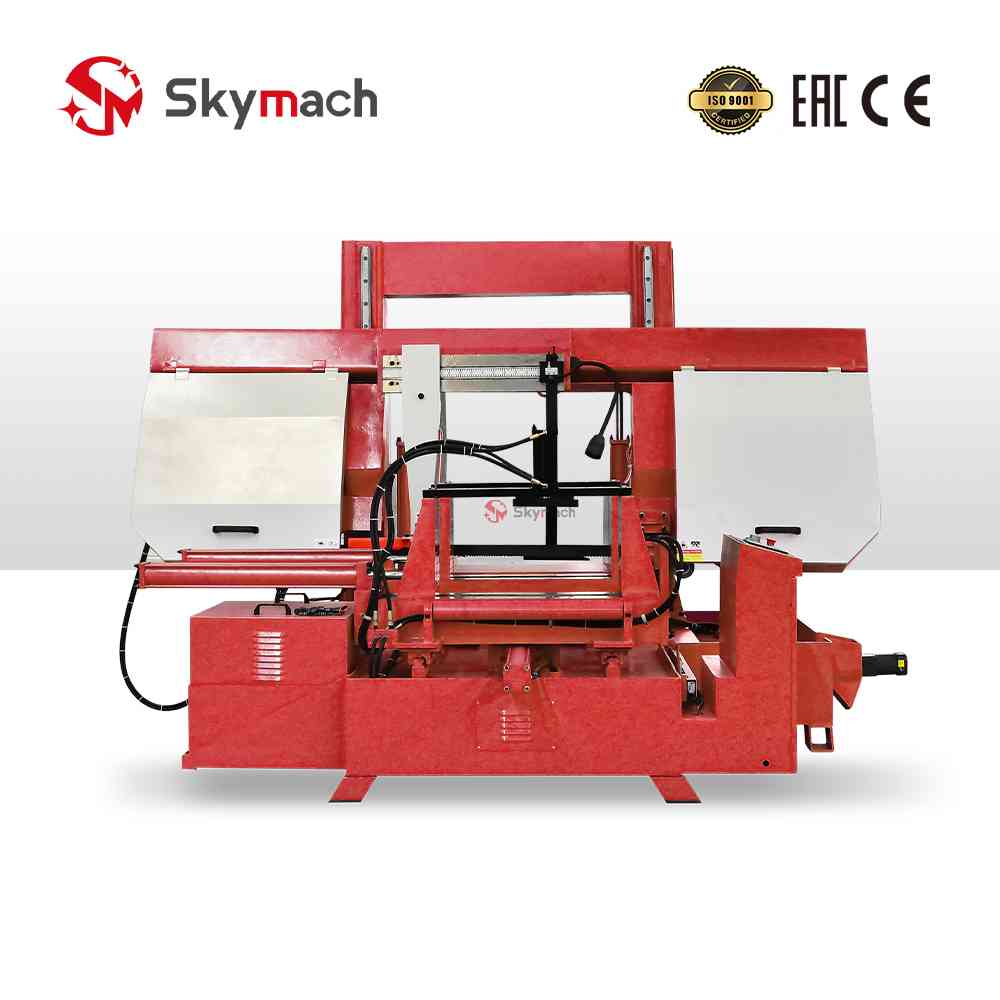

CNC Metal Band Saw GHS4270
Model: GHS4270 Band Saw
Cutting Capacity: 700 x 700 mm
Saw Blade Size: 7350 x 54 x 1.6 mm
Main Motor Power: 7.5 kW
Hydraulic Motor Power: 2.2 kW
Weight: 4300 kg
External Dimensions:
3600 x 2850 x 2400 mm
Work Clamping: Hydraulic
Saw Blade Speed: 27/45/69 m/min
Cooling Pump: 0.125 kW
Main Drive: Worm Gear
CNC Metal Band Saw GHS4270
Model: GHS4270 Band Saw
Cutting Capacity: 700 x 700 mm
Saw Blade Size: 7350 x 54 x 1.6 mm
Main Motor Power: 7.5 kW
Hydraulic Motor Power: 2.2 kW
Weight: 4300 kg
External Dimensions:
3600 x 2850 x 2400 mm
Work Clamping: Hydraulic
Saw Blade Speed: 27/45/69 m/min
Cooling Pump: 0.125 kW
Main Drive: Worm Gear
Advantages Of CNC Band Saw GHS4270 :
- High-Efficiency Main Motor: Equipped with a high-power 7.5 kW main motor, it ensures powerful sawing and smooth operation, making it suitable for high-intensity continuous work.
- Turbine Drive: The main drive utilizes a durable turbine system, delivering smooth transmission, high torque, low noise, and a long service life.

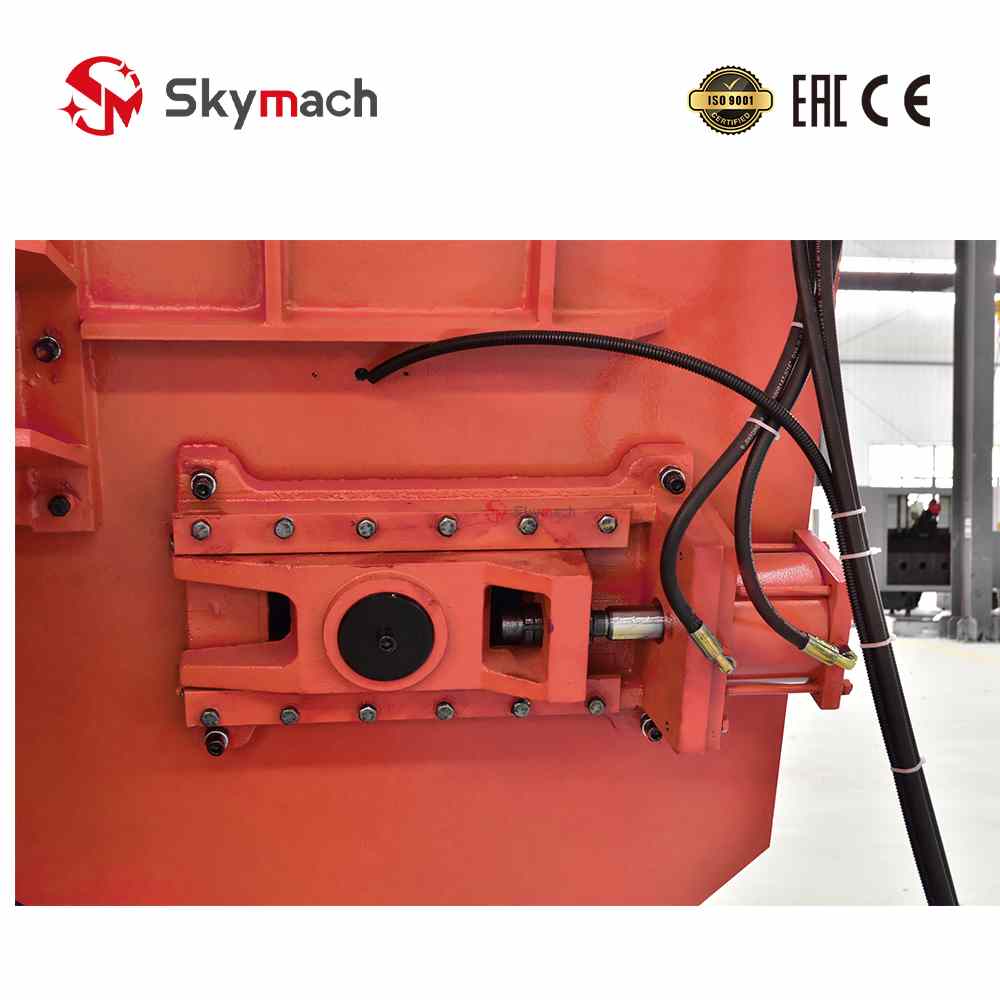

- Fully Hydraulic Clamping: The worktable utilizes hydraulic clamping for quick and secure workpiece securement, significantly improving operator safety and clamping efficiency.
- Skate Feed: The feed system operates smoothly and offers precise control, ensuring consistent cutting and excellent cross-section quality.

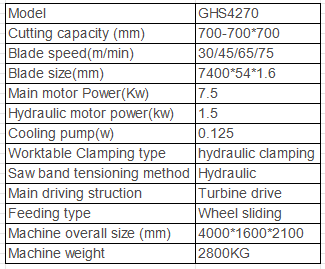

Product Main Technical Parameters:
Model | GHS4270 |
Cutting capacity (mm) | 700-700*700 |
Blade speed(m/min) | 30/45/65/75 |
Blade size(mm) | 7400*54*1.6 |
Main motor Power(Kw) | 7.5 |
Hydraulic motor power(kw) | 1.5 |
Cooling pump(w) | 0.125 |
Worktable Clamping type | hydraulic clamping |
Saw band tensioning method | Hydraulic |
Main driving struction | Turbine drive |
Feeding type | Wheel sliding |
Machine overall size (mm) | 4000*1600*2100 |
Machine weight | 2800KG |
Product Main Technical Parameters:
Video Display
![GH4260 Metal Bandsaw with a solid metal bed, shown in a [mention color if visible, e.g., blue finish], cutting metal stock.](https://brtcmc.com/wp-content/uploads/2025/10/GH4260-1.jpg)
FAQS
Do You Have Your Own Factory?
Yes. Our factory was established in Tengzhou in 2015 with advanced production technology. You are welcome to visit our factory at any time.
Do you provide technical support for the CNC equipment purchased?
Yes! We have 10 engineers available online 24/7 to provide technical support and guidance.
Where Do You Ship the Goods From?
Usually, shipments depart from the port of Qingdao, China, our port facility in Shanghai, or customers can arrange pickup directly from Shandong Province.
What Customization Options Can You Offer?
What Kind of Payment Methods Do You Accept?
The company supports bank T/T payments, PayPal, credit card payments, Western Union, and LC payments, along with other options.
What About After-Sales Service?
We have dedicated staff in Europe, Southeast Asia, Canada, South America, and other regions who can address your issues. They will respond to and resolve your after-sales service requests promptly.
