CNC Lathe Machine CK6150
Max.swing over bed: 500mm
Model: CK6150
Big torque, high precision spindle;
3-jaw manual chuck.
Four station electric tool post.

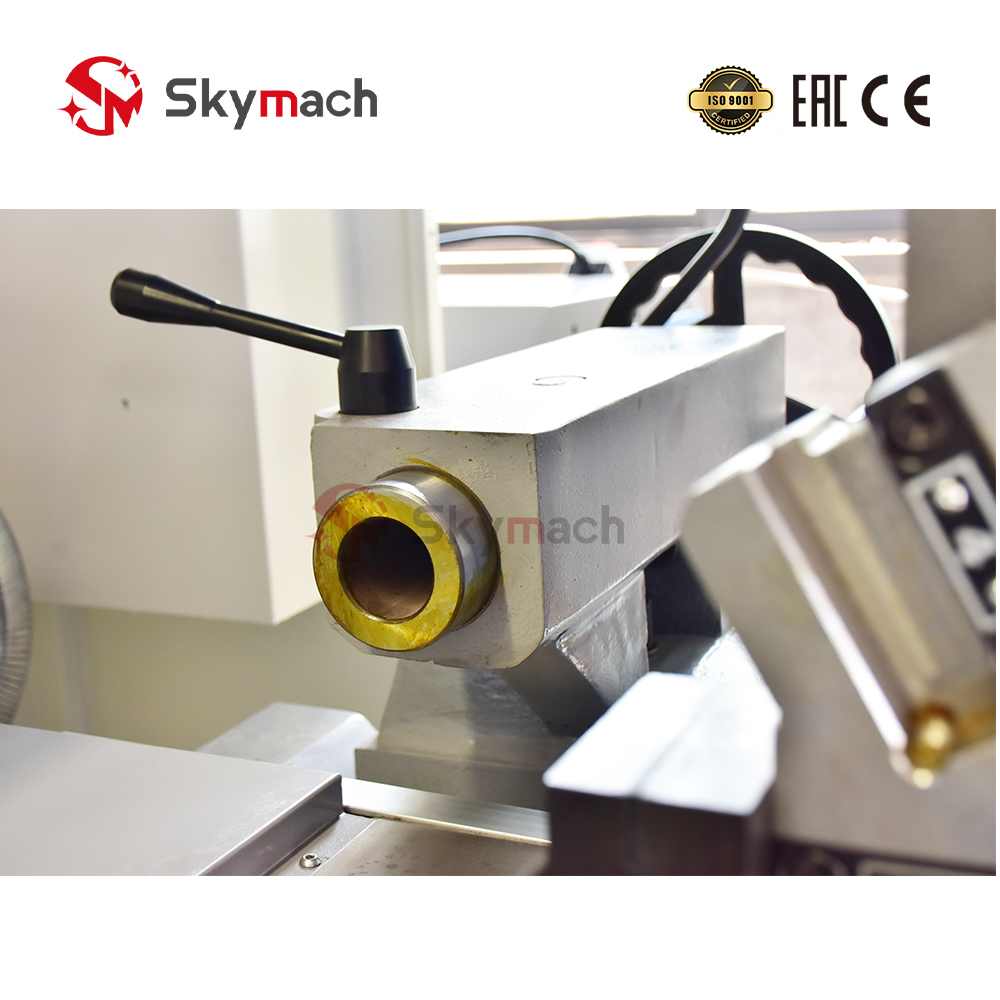

Manual tailstock.
Cooling system.
Lighten system.
Automatic lubrication system.
CNC system Standard: GSK, Optional: Siemens, Fanuc, Mitsubishi and others.
Hydraulic chuck, pneumatic chuck .
Hydraulic tailstock, pneumatic tailstock.

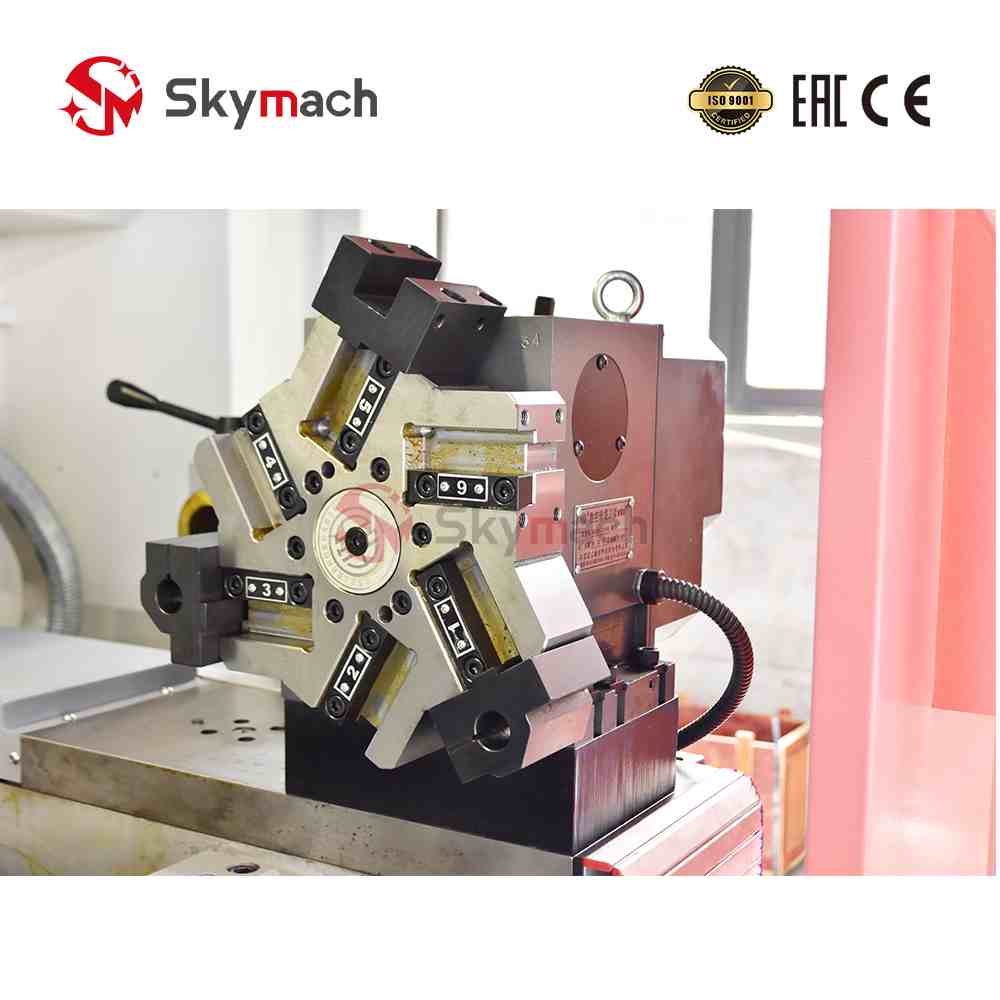

4-station electric turret, hydraulic turret.
Automatic bar feeder, chip conveyor.
Inverter control spindle motor, stepless speed.
High precision ball screws and rigid precision bearings.
Fast response of moving axis, high accuracy and long lifespan.
Max. processing length: 750/1000/1500/2000mm.
Hydraulic chuck, easy to operate.
Has high transmission accuracy and high positioning accuracy.

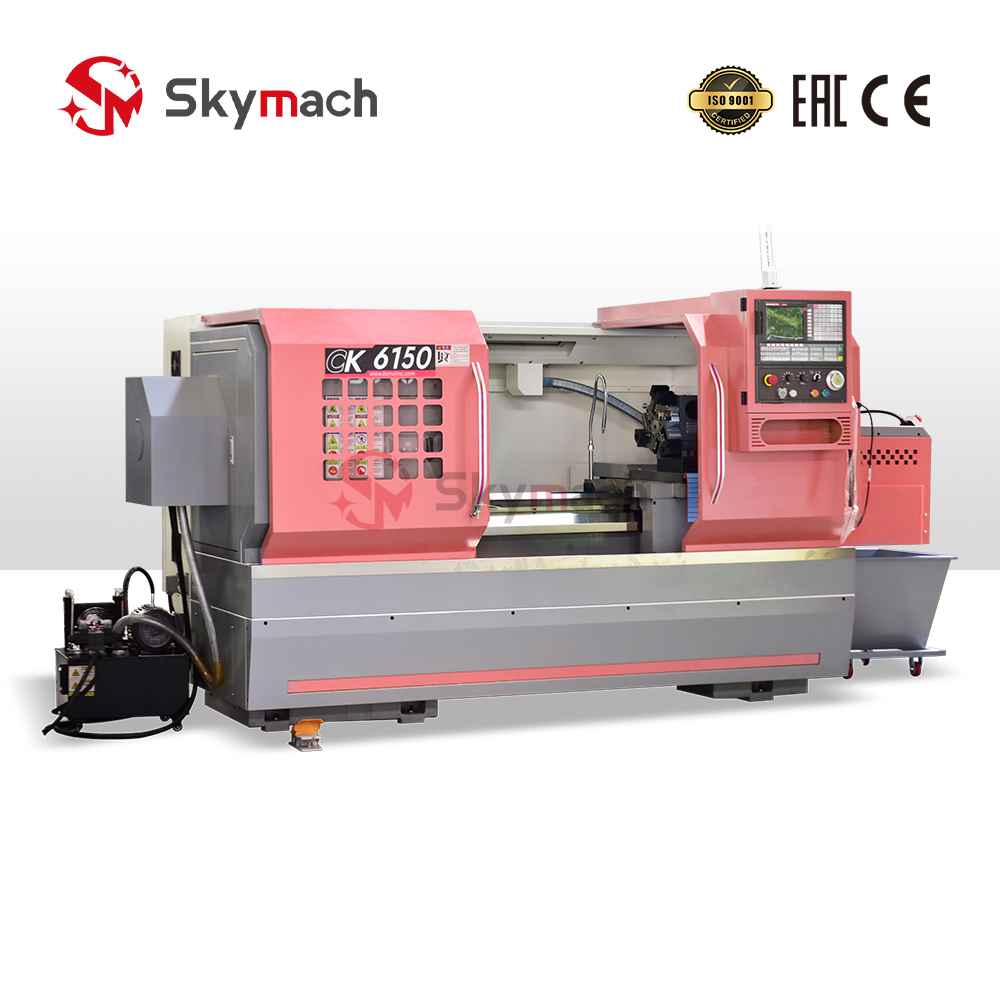

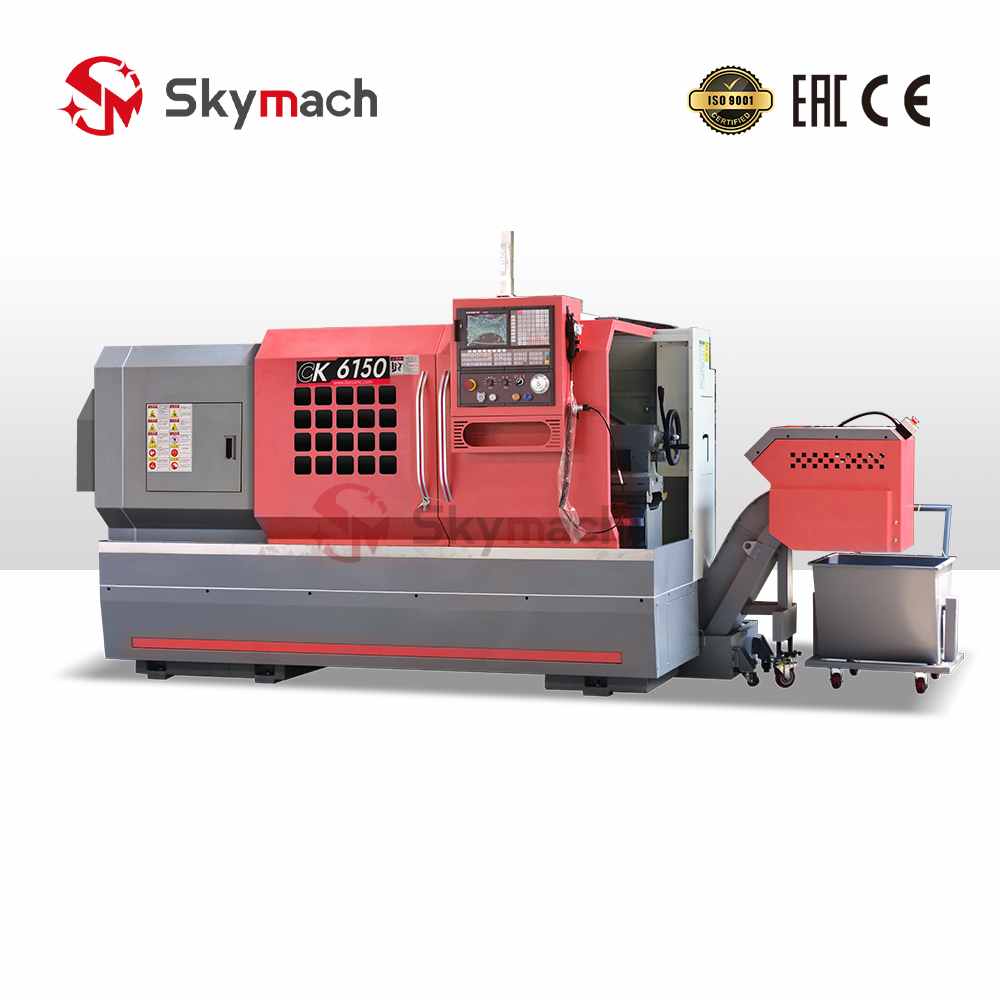

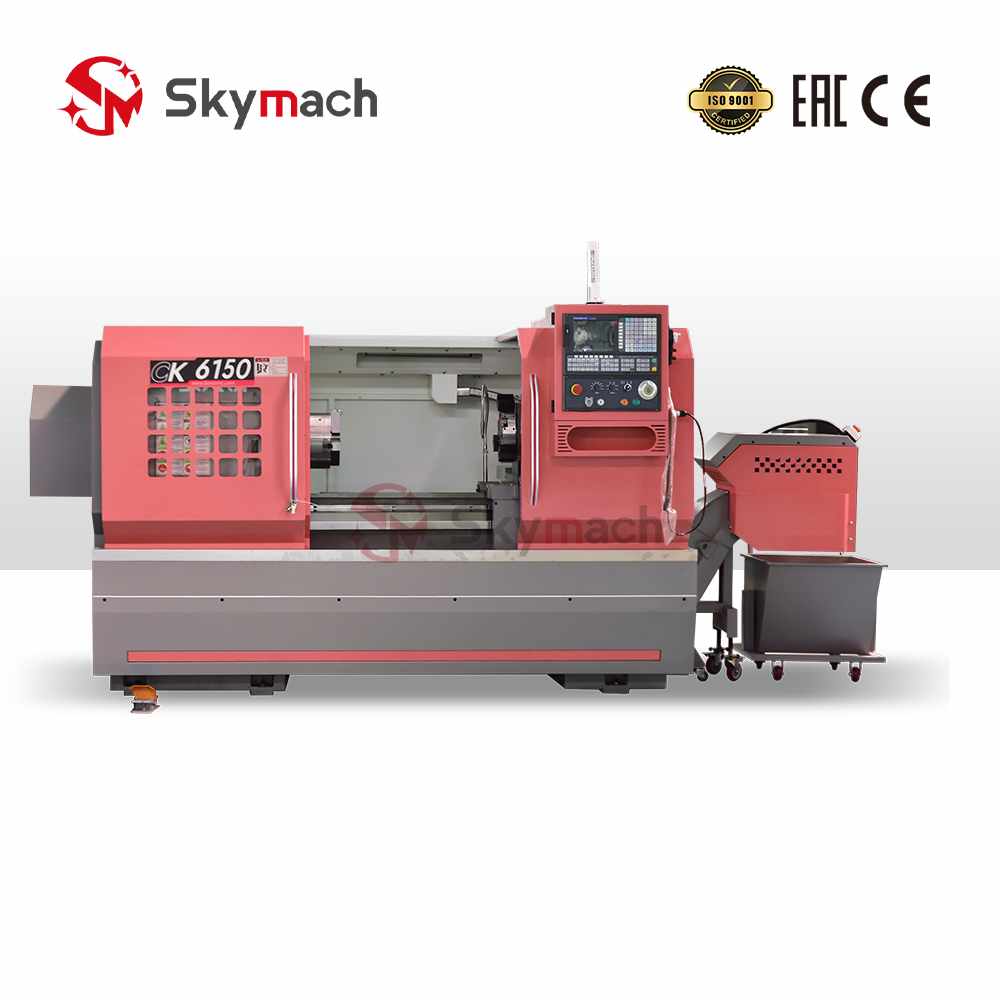

CK6150 CNC Lathe Machine
Max.swing over bed: 500mm
Model: CK6150
Big torque, high precision spindle;
3-jaw manual chuck.
Four station electric tool post.
Manual tailstock.
Cooling system.
Lighten system.
Automatic lubrication system.
CNC system Standard: GSK, Optional: Siemens, Fanuc, Mitsubishi and others.
Hydraulic chuck, pneumatic chuck .
Hydraulic tailstock, pneumatic tailstock.
4-station electric turret, hydraulic turret.
Automatic bar feeder, chip conveyor.
Inverter control spindle motor, stepless speed.
High precision ball screws and rigid precision bearings.
Fast response of moving axis, high accuracy and long lifespan.
Max. processing length: 750/1000/1500/2000mm.
Hydraulic chuck, easy to operate.
Has high transmission accuracy and high positioning accuracy.
Advantages Of CNC Flat Bed Lathe Machine：
- Machine body are made of resin sand casting with timing treatment, which guarantees stability of the machine.Spindle system rigidity, variable frequency stepless speed regulation.
- Horizontal and cross travels are driven by servo motor.
- It is suitable for all kinds of complex parts, long shaft and disk parts.
- High precision ball screws and rigid precision bearings
- It is suitable for fine and fine parts of parts.
- CK6150 usesbelt-driven stepless transmission, reducing machine noise and vibration.
- CK6150is made of high strength cast iron with special material of copper andchrome.
- With unique auto gear changing mechanism, match with inverter control spindle motor.
Product Main Technical Parameters:
| SPECIFICATIONS | Units | CK6150 |
|---|---|---|
| Swing over bed | mm | 500 |
| Swing over cross slide | mm | 260 |
| Distance between centers | mm | 750/1000/1500/2000 |
| Spindle bore | mm | 52(Opt.80) |
| Spindle bore taper | MT6 | |
| Spindle nose type | C6 | |
| Spindle speed steps | Manual 2 steps(Optional：stepless) | |
| Spindle speed range | rpm | L：100-500,H：500-1800（Optional ：90-1800) |
| Turret/tool post | Electric 4position | |
| Tool size | mm | 25*25 |
| X axis travel | mm | 280 |
| Z axis travel | mm | 750/1000/1500/2000 |
| X axis rapid traverse | mm/min | 6000 |
| Z axis rapid traverse | mm/min | 8000 |
| Tailstock quill diameter | mm | 65 |
| Tailstock quill taper | MT5 | |
| Tailstock quill travel | mm | 130 |
| Main motor power | kw | 5.5 |
| Coolant motor power | kw | 0.09 |
| Weight for 750 | kg | 1800 |
| Weight for 1000 | kg | 1900 |
| Weight for 1500 | kg | 2000 |
| Weight for 2000 | kg | 2100 |
| Dimension for 750 | mm | 2200*1700*1750 |
| Dimension for 1000 | mm | 2500*1700*1750 |
| Dimension for 1500 | mm | 3000*1700*1750 |
| Dimension for 2000 | mm | 3500*1700*1750 |

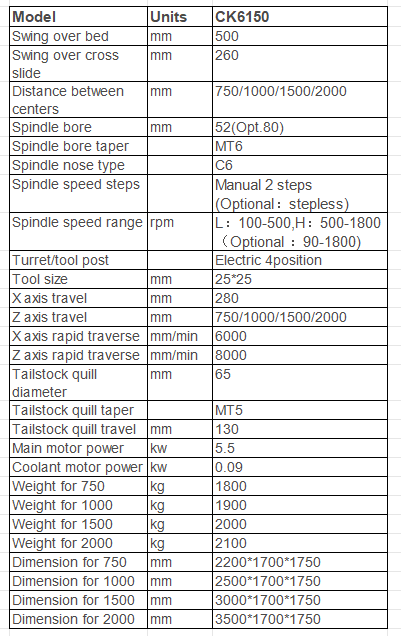

Product Main Technical Parameters:
Video Display
FAQS
Do You Have Your Own Factory?
Yes. Our factory was established in Tengzhou in 2015 with advanced production technology. You are welcome to visit our factory at any time.
Do you provide technical support for the CNC equipment purchased?
Yes! We have 10 engineers available online 24/7 to provide technical support and guidance.
Where Do You Ship the Goods From?
Usually, shipments depart from the port of Qingdao, China, our port facility in Shanghai, or customers can arrange pickup directly from Shandong Province.
What Customization Options Can You Offer?
What Kind of Payment Methods Do You Accept?
The company supports bank T/T payments, PayPal, credit card payments, Western Union, and LC payments, along with other options.
What About After-Sales Service?
We have dedicated staff in Europe, Southeast Asia, Canada, South America, and other regions who can address your issues. They will respond to and resolve your after-sales service requests promptly.
