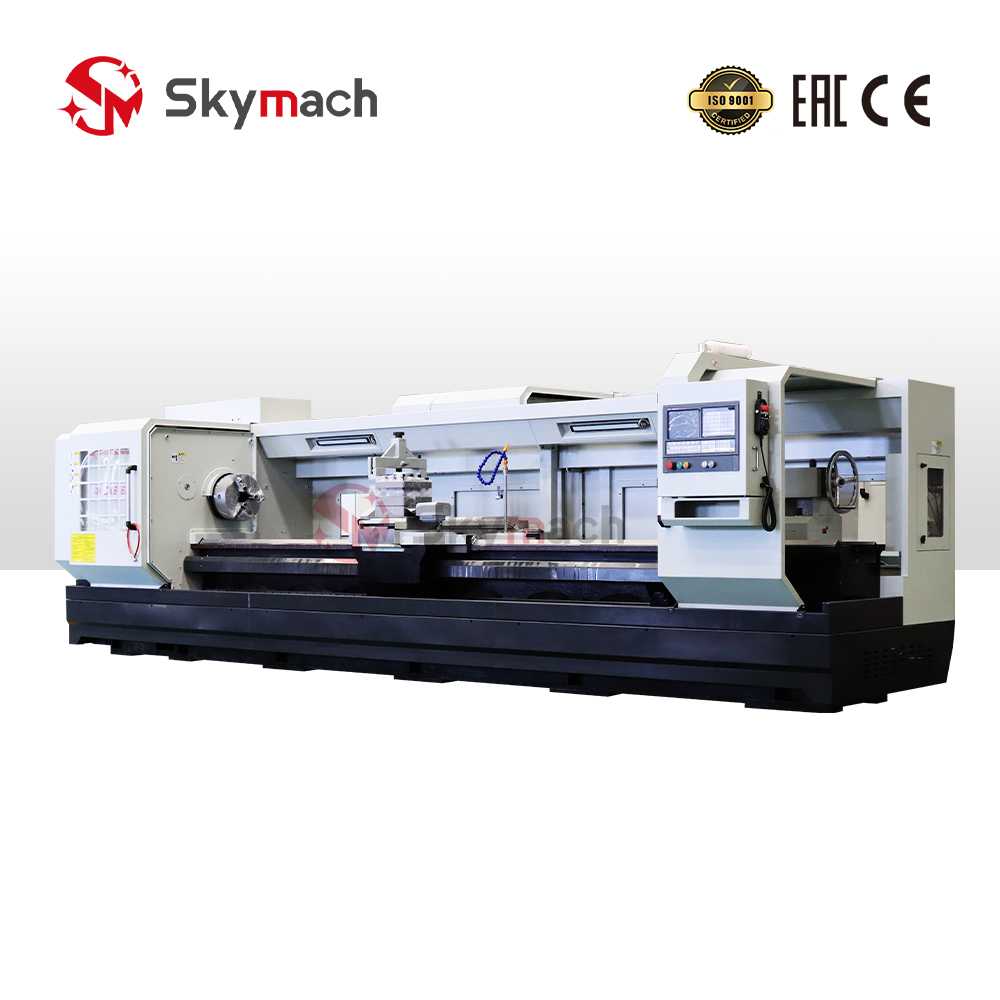

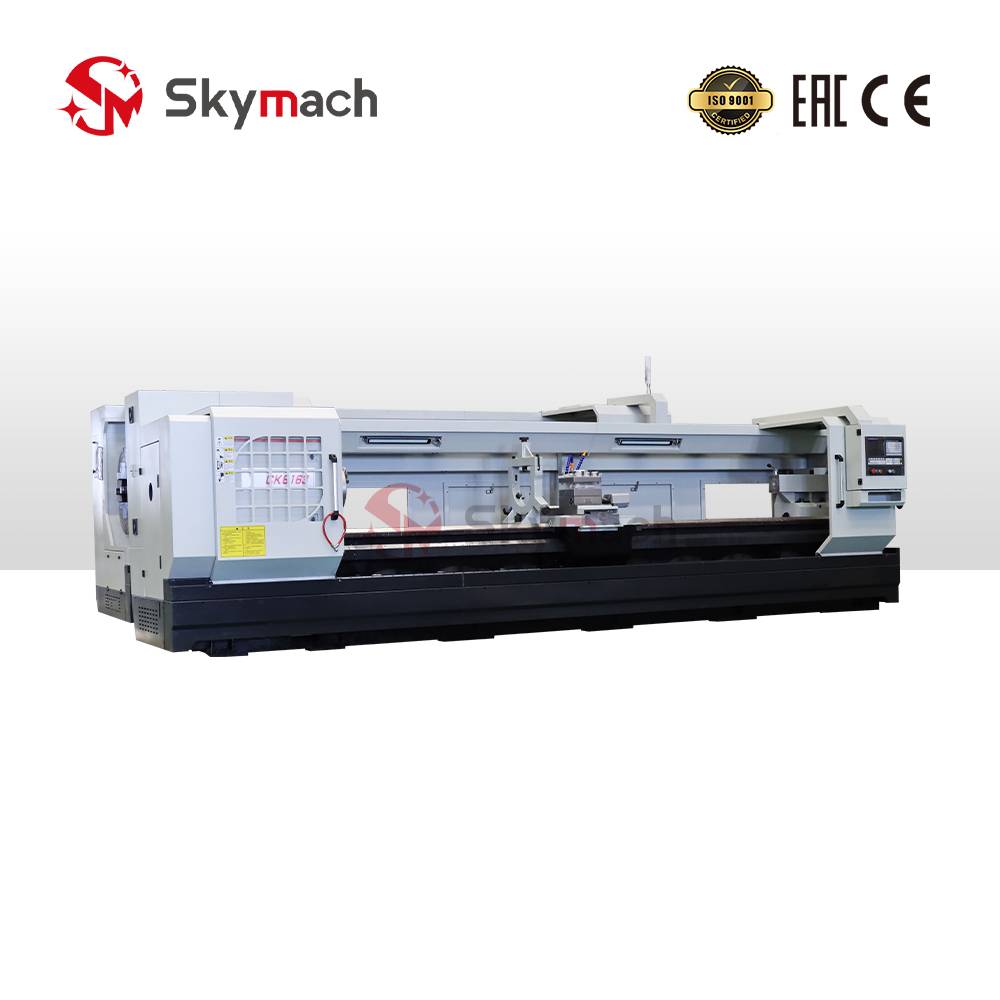

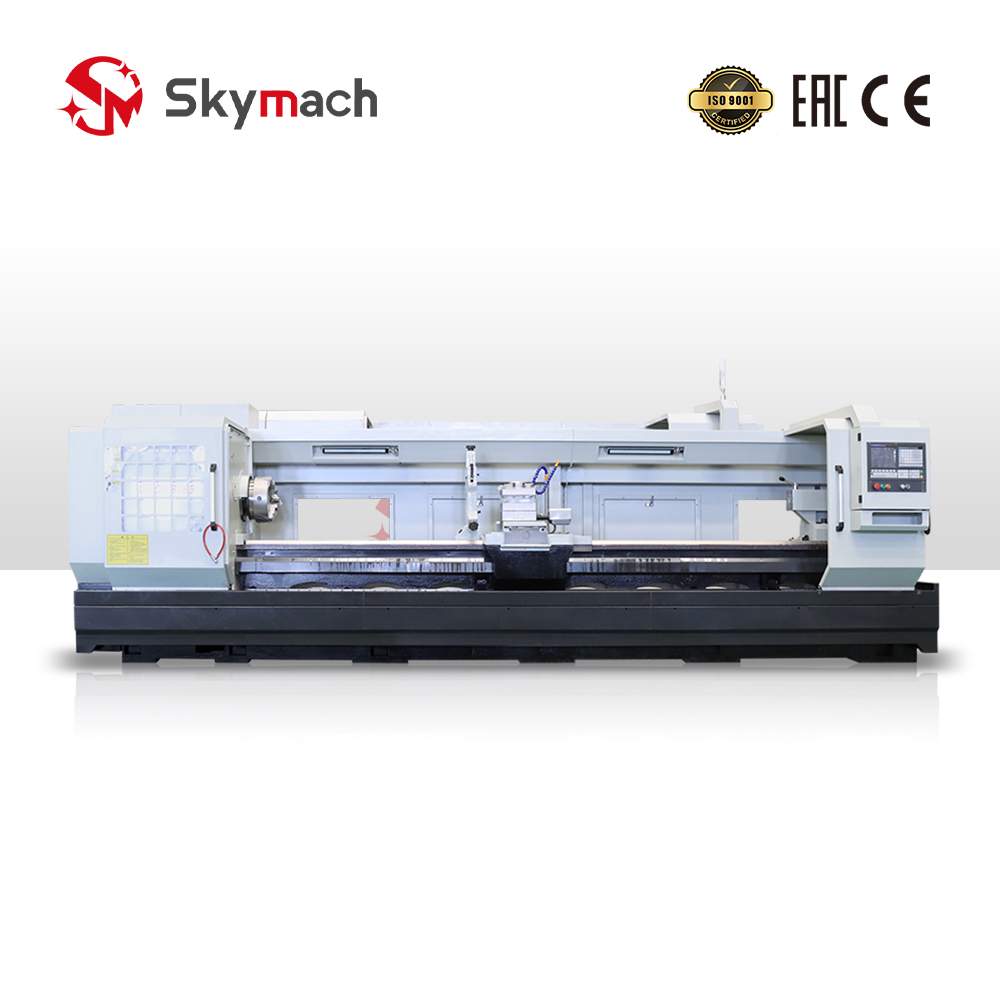

CNC Lathe Machine CK6163
Max.swing over bed: 630mm
Model: CK6163
Polished ball screw spindles
Maintenance-friendly protective housing
Safety switch on front sliding door
High-quality preloaded ball screws
Precision workmanship
Braced machine bed made from cast-iron
Complex spindle bearing and Emergency-Stop push button
CNC system Standard: GSK, Optional: Siemens, Fanuc, Mitsubishi and others
Precise machining and central lubrication
Easy operation and low maintenance cost
Servo motor for X-axis and Z-axis as standard included

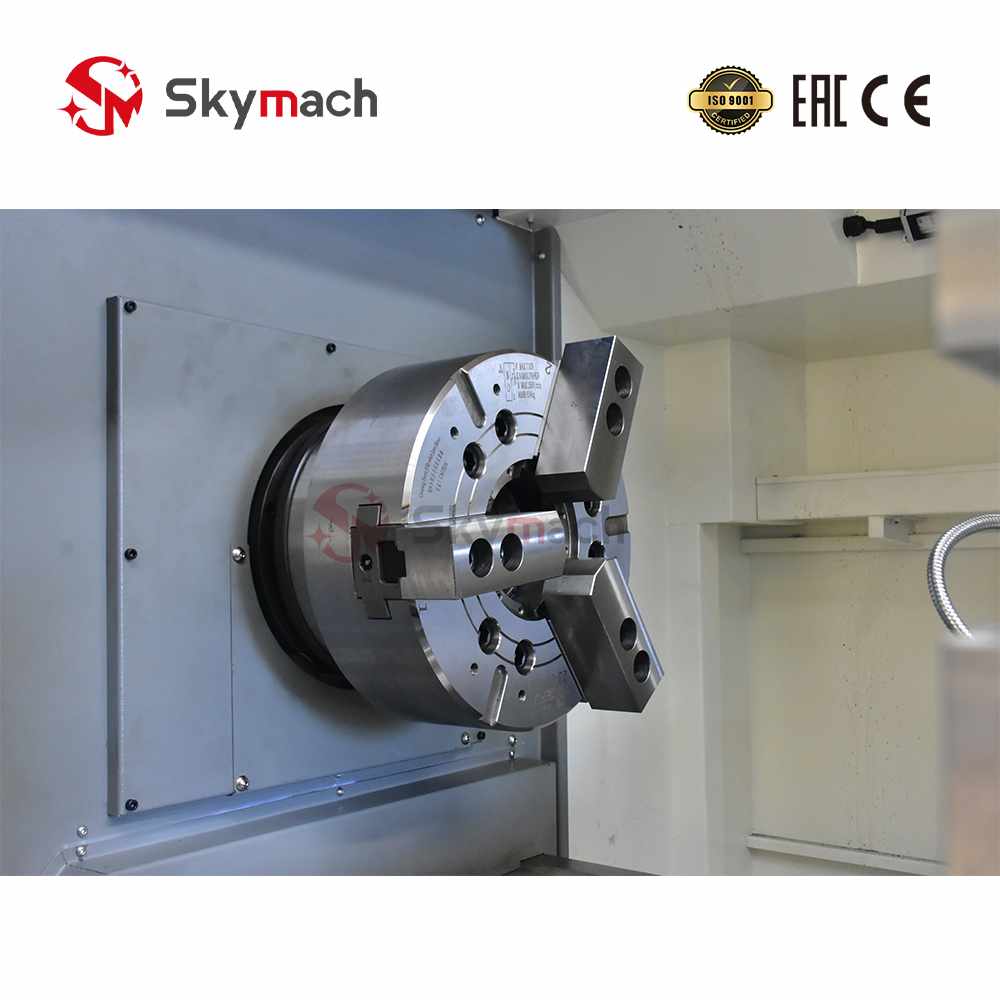

Manual 3-Jaw Chuck as standard included
Manual Tailstock as standard included

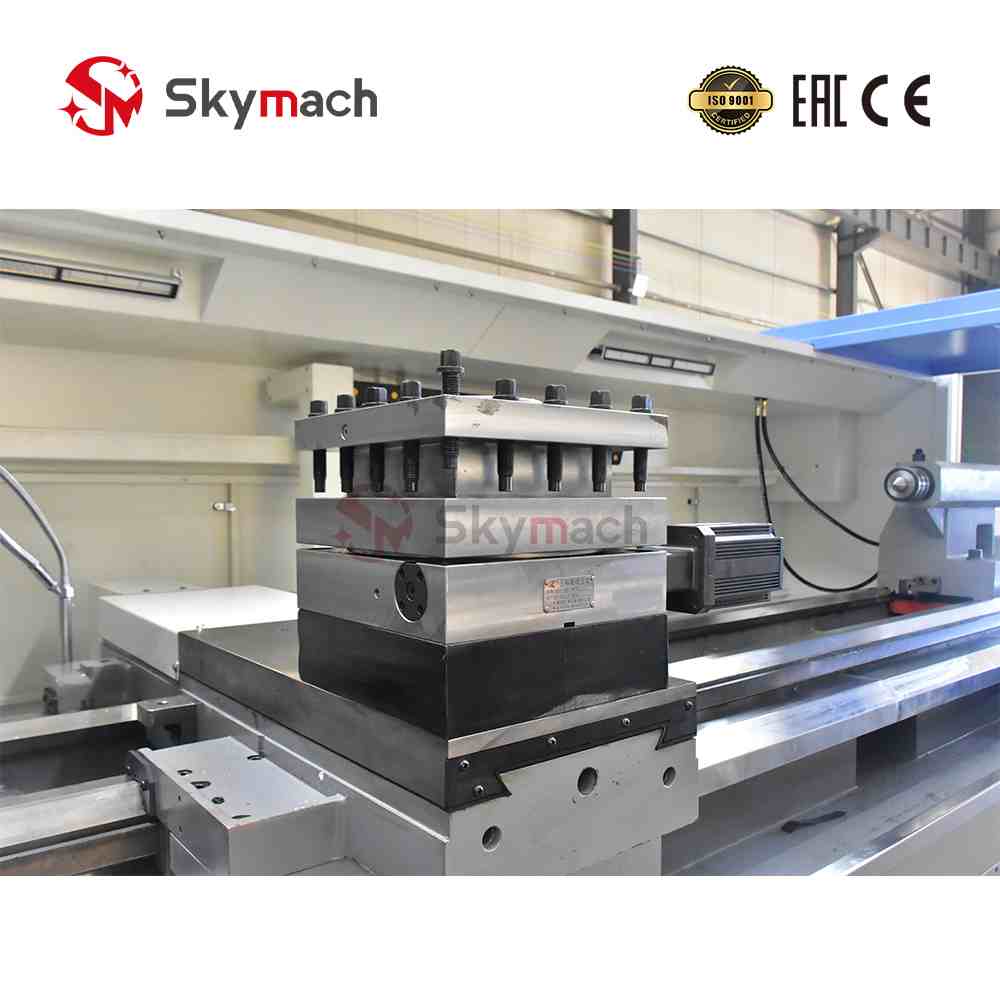

Standard 4-position electrical tool post included
Powerful frequency-conversion variable speed main motor as standard included
Stable AC Servo main motor is optional
CK6163 CNC Lathe Machine
Max.swing over bed: 630mm
Model: CK6163
Polished ball screw spindles
Maintenance-friendly protective housing
Safety switch on front sliding door
High-quality preloaded ball screws
Precision workmanship
Braced machine bed made from cast-iron
Complex spindle bearing and Emergency-Stop push button
CNC system Standard: GSK, Optional: Siemens, Fanuc, Mitsubishi and others
Precise machining and central lubrication
Easy operation and low maintenance cost
Servo motor for X-axis and Z-axis as standard included
Manual 3-Jaw Chuck as standard included
Manual Tailstock as standard included
Standard 4-position electrical tool post included
Powerful frequency-conversion variable speed main motor as standard included
Stable AC Servo main motor is optional
Advantages Of CNC Flat Bed Lathe Machine：
- CK6163 can automatically process the inside and outside cylinder surface, cone surface, circle arc surface, end face.
- CK6163 can also turn the single and multiple threads in metric , inch and other standard.
- High rigidity pedestal and wider lay board are suitable for heavy cutting .
- Spindle adopts high precision rolling bearings high precision rotary plate aspect to adopt high precision ball screw transmission, good dynamic performance,precision positioning.
- The machine tool guide with wear-resistant cast iron and after the audio quenching, can ensure the long-term stability ofprocessing accuracy.
- CK6163 delivers high productivity, accuracy and exceptional surface finish.
- CK6163 CNC lathe are designed with stability and rigidity in mind to assure optimal stability when performing heavy – duty cutting.
- This machine is widely used in parts processing and manufacturing
Product Main Technical Parameters:
Category | Specification | Unit |
Max swing over bed | 630 | mm |
Guideway width | 550 | mm |
Max swing over slide | 350 | mm |
Spindle bore | 104 | mm |
Main motor power | 7/11 | kW |
X-axis travel | 360 | mm |
Z-axis travel | 1350-1850 | mm |
X-axis rapid traverse | 4000 | mm/min |
Z-axis rapid traverse | 8000 | mm/min |
X-axis resolution | 0.001 | mm |
Quill diameter | 100 | mm |
Quill travel | 250 | mm |
Quill taper | MT5 | – |
