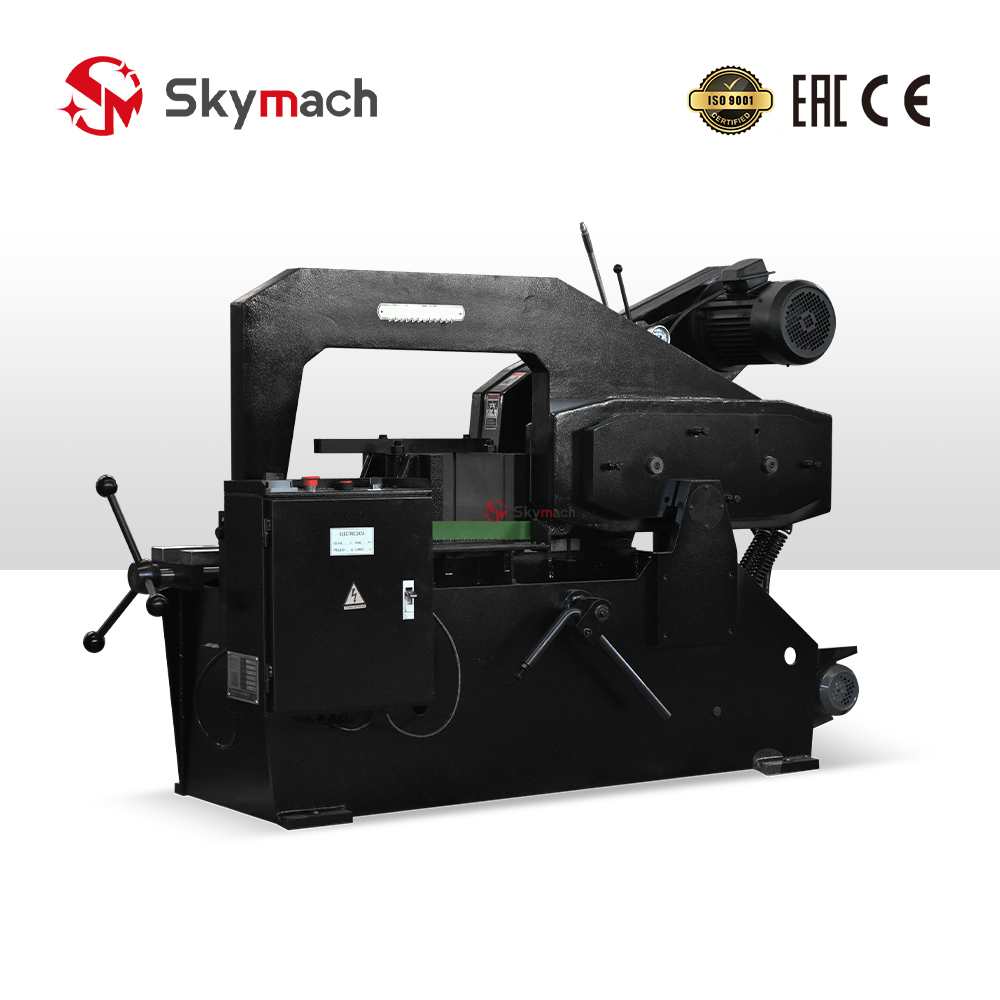

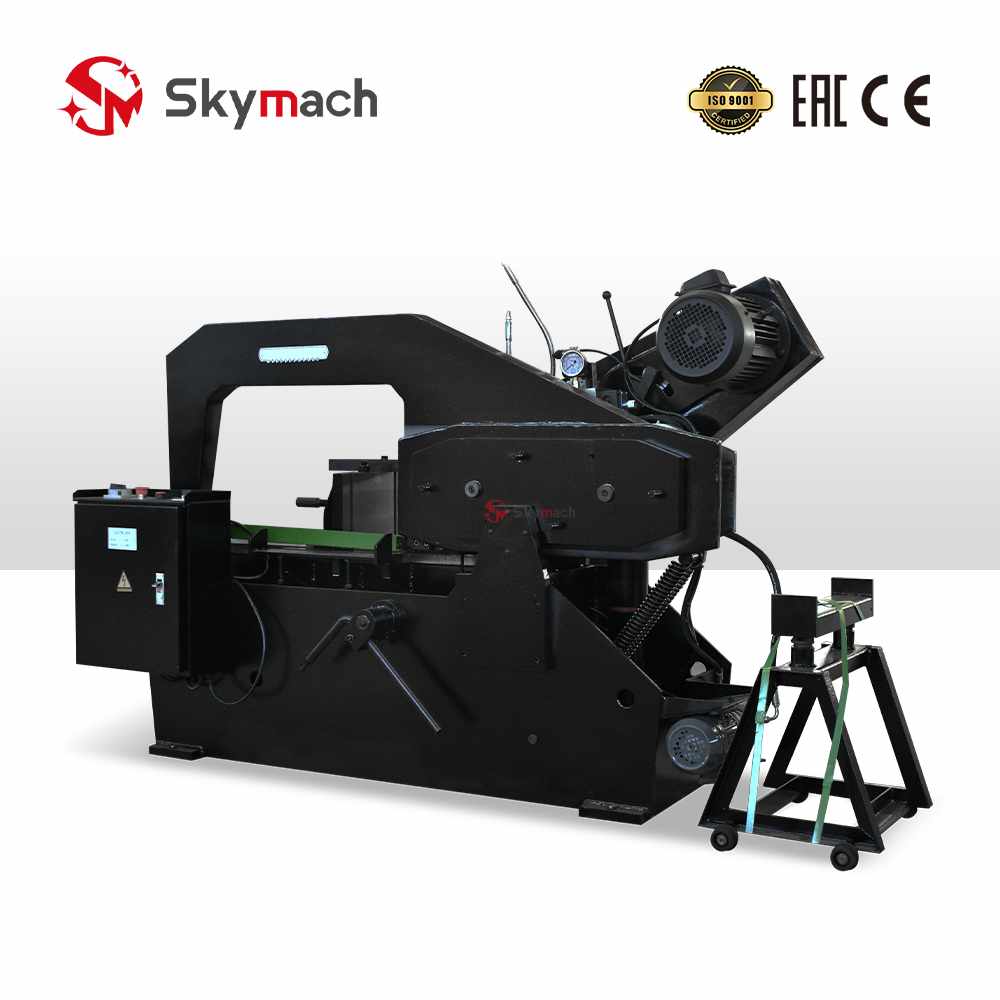

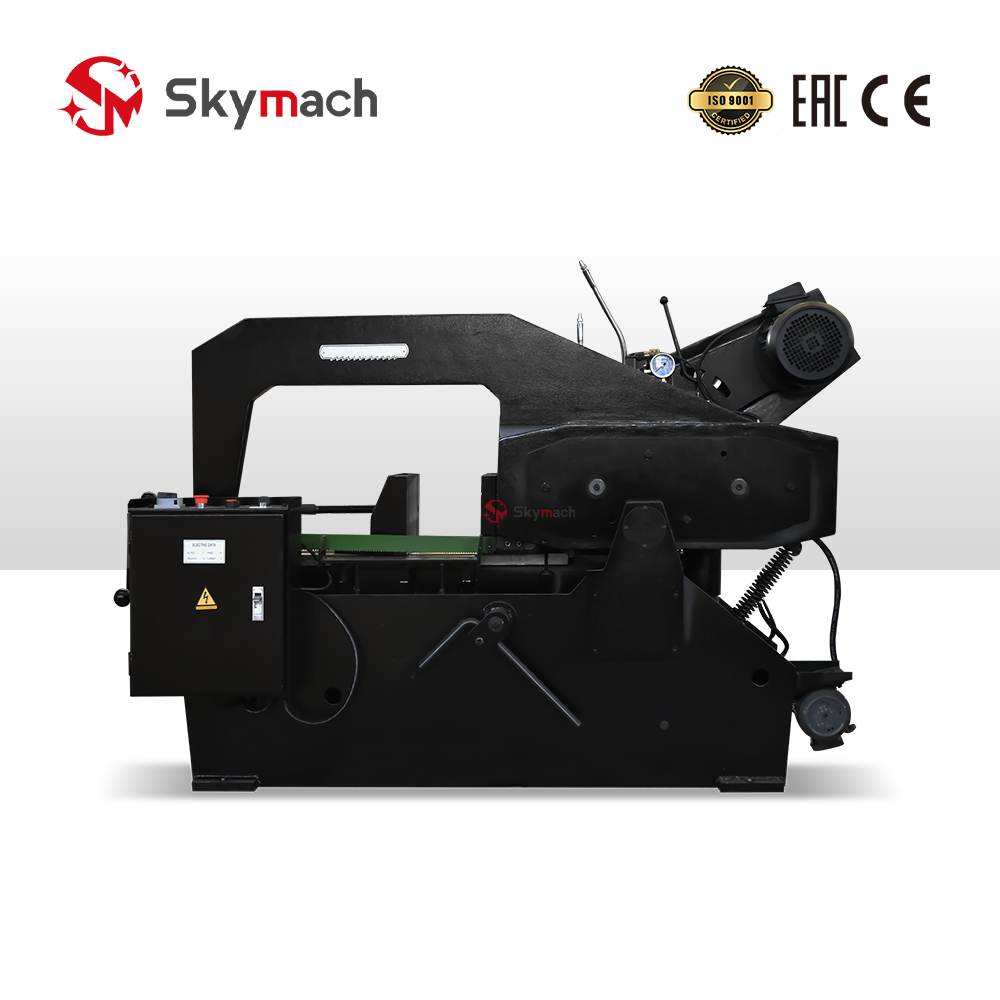

Metal Band Saw Machine HS7140
Model: HS7140 Band Saw
Maximum round bar diameter: 400 mm
Maximum square bar size: 330 x 330 mm
Bevel angle: 45°
Cutting speed: 34/60/84 m/min
Saw blade dimensions: 650 x 55 x 2.5 mm
Main motor power: 3 kW
Cooling pump motor power: 0.04 kW (2nd gear)
Saw blade rapid lowering power: 0.25 kW (4th gear)
Packaging dimensions: 2440 x 1020 x 1600 mm
Net weight/gross weight: 1200 kg/1450 kg
Saw blade tensioning method: Mechanical
Main drive structure: Gear
Metal Band Saw Machine HS7140
Model: HS7140 Band Saw
Maximum round bar diameter: 400 mm
Maximum square bar size: 330 x 330 mm
Bevel angle: 45°
Cutting speed: 34/60/84 m/min
Saw blade dimensions: 650 x 55 x 2.5 mm
Main motor power: 3 kW
Cooling pump motor power: 0.04 kW (2nd gear)
Saw blade rapid lowering power: 0.25 kW (4th gear)
Packaging dimensions: 2440 x 1020 x 1600 mm
Net weight/gross weight: 1200 kg/1450 kg
Saw blade tensioning method: Mechanical
Main drive structure: Gear
Advantages Of Metal Band Saw HS7140：
Large-Diameter Bar Cutting: Capable of cutting round billets up to 400mm in diameter, meeting the processing needs of most medium-sized materials.
Powerful Square Material Cutting: Capable of cutting square bars up to 330x330mm, covering a wide range of materials from large ingots to profiles.
Standard Bevel Function: Supports 45° bevel cutting, facilitating subsequent welding and assembly processes without the need for secondary processing.
Efficient Main Motor: Equipped with a 3kW main motor, it provides reliable power for continuous cutting of materials up to 400mm in diameter, ensuring a smooth and powerful cutting process.
Product Main Technical Parameters:
MODEL | HS7125 | HS7132 | HS7140 | HS7150 | |
Cutting capacity | Round bar | 250mm | 320mm | 400mm | 500mm |
Square bar | 220x220mm | 290x290mm | 330x330mm | 400x400mm | |
Oblique saw | 45° | 45° | 45° | 45° | |
Sawing speed | 43,50,60,86,100,120 | 34,60,84 | 34,60,84 | 34,60,84 | |
Blade size | 450x45x2.25 | 600x50x2.5 | 650x55x2.5 | 750x63x2.5 | |
Main motor | 3.22kw | 3kw | 3kw | 3kw | |
Coolant pump motor | 0.04kw 2step | 0.04kw 2step | 0.04kw 2step | 0.04kw 2step | |
Saw blade rapid down | 0.25kw 4step | 0.25kw 4step | 0.25kw 4step | 0.25kw 4step | |
Packing size | 2000x950x1300 | 2440x1020x1600 | 2440x1020x1600 | 2440x1190x1760 | |
N.W./G.W. | 600/830kg | 1100/1350kg | 1200/1450kg | 1450/1700kg | |
Product Main Technical Parameters:
