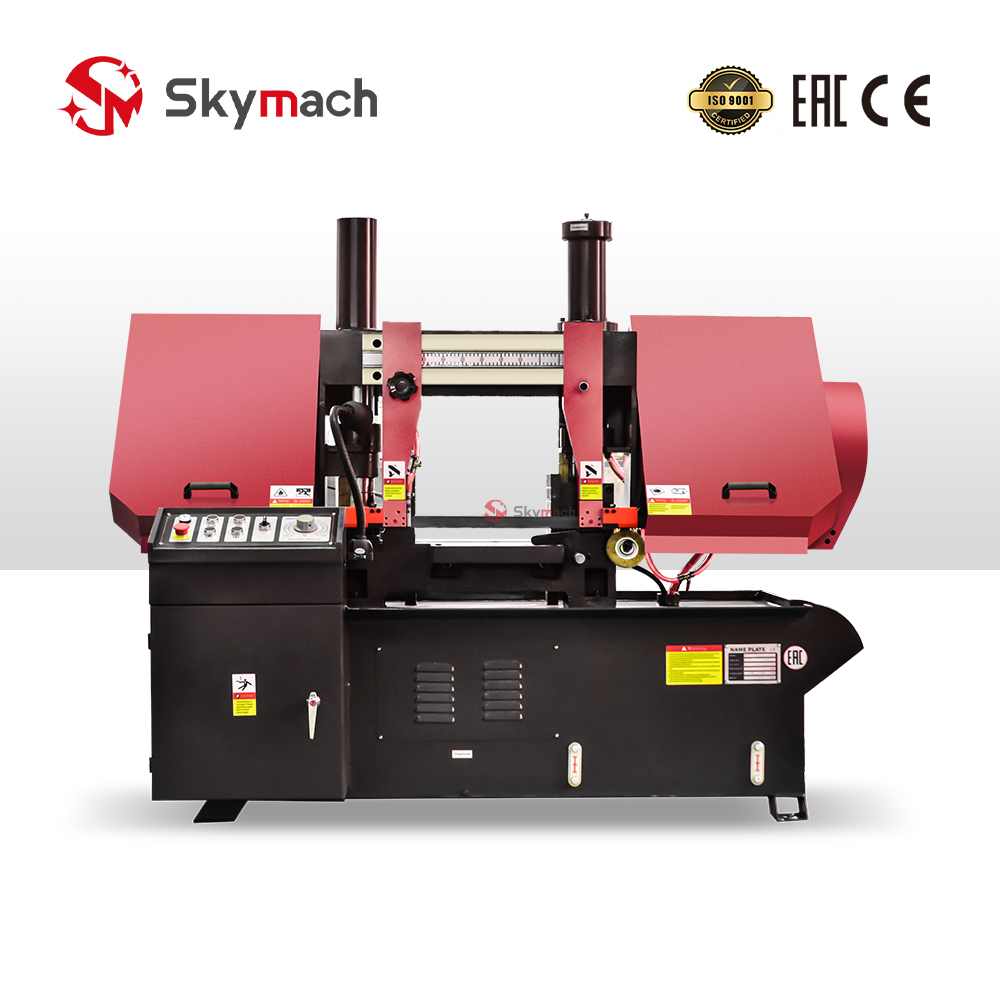

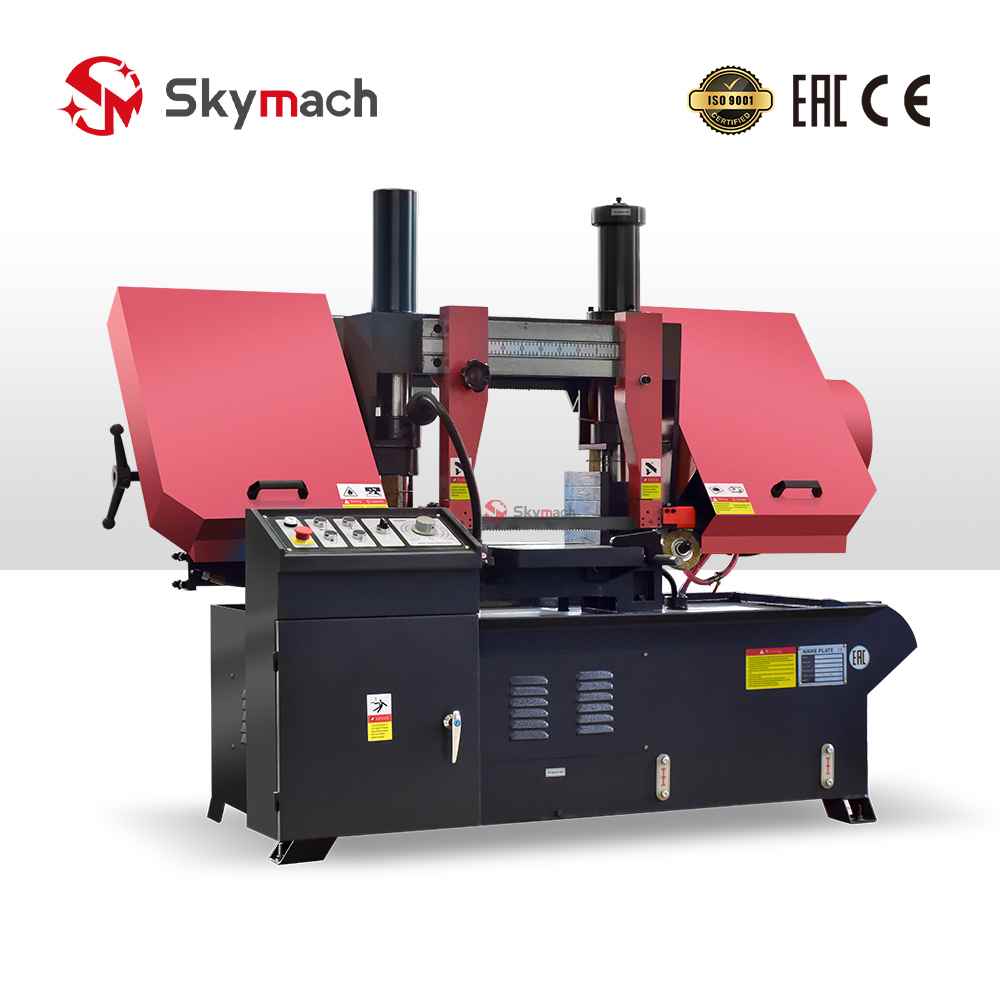

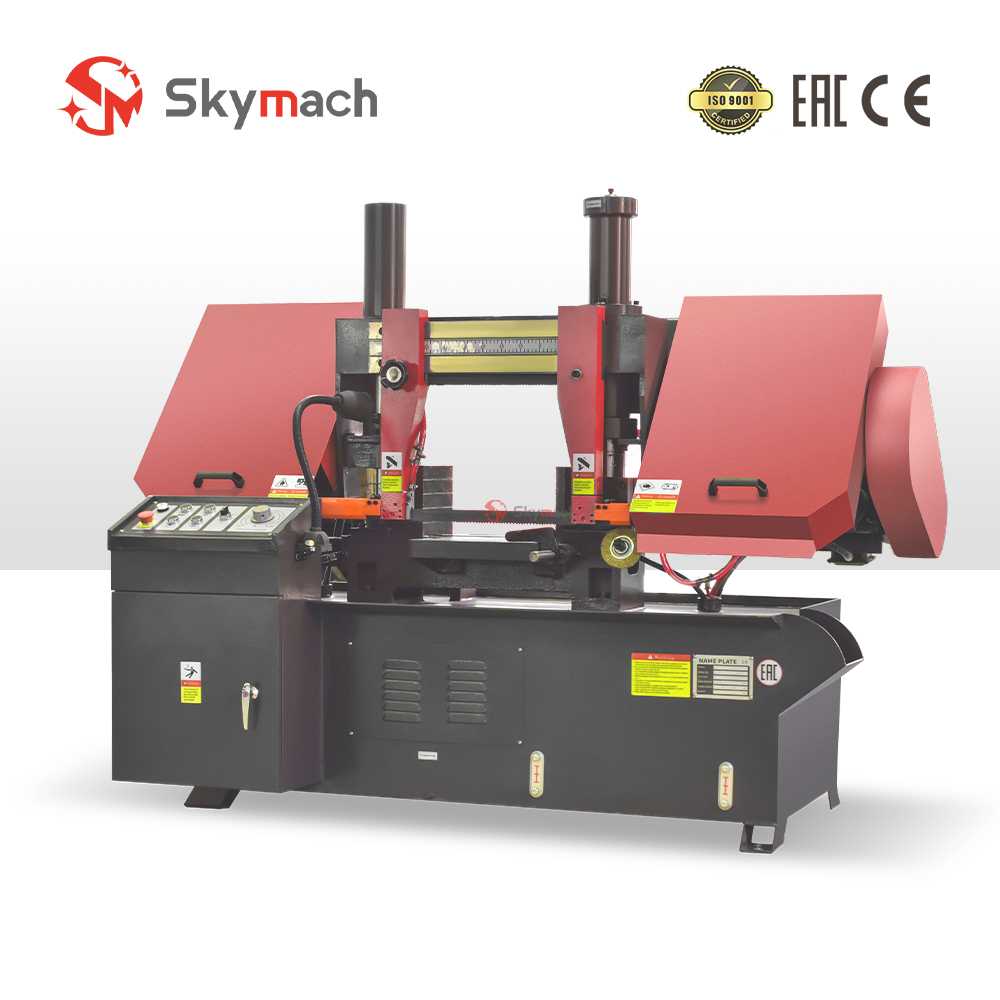

Metal Band Saw Machine GH4235
Model: GH4235 Band Saw
Cutting Capacity: 300 x 300 mm
Saw Blade Specifications:
3050 x 27 x 0.9 mm
Main Motor Power: 2.2/3 kW
Hydraulic Motor Power: 0.55 kW
Weight: 700 kg
External Dimensions: 1800 x 1800 x 1800 mm
Band Tensioning: Hydraulic
Blade Speed: 27/45/69 m/min
Hydraulic Motor: 0.75 W
Main Drive: Worm Gear Transmission
Saw Blade Dimensions: 4115 x 34 x 1.1
Metal Band Saw Machine GH4235
Model: GH4235 Band Saw
Cutting Capacity: 300 x 300 mm
Saw Blade Specifications:
3050 x 27 x 0.9 mm
Main Motor Power: 2.2/3 kW
Hydraulic Motor Power: 0.55 kW
Weight: 700 kg
External Dimensions: 1800 x 1800 x 1800 mm
Band Tensioning: Hydraulic
Blade Speed: 27/45/69 m/min
Hydraulic Motor: 0.75 W
Main Drive: Worm Gear Transmission
Saw Blade Dimensions: 4115 x 34 x 1.1
Advantages Of Metal Band Saw Machine GH4235
- Ultra-large cutting capacity, industry-leading cutting size: 350 x 350 mm cutting capacity, leading the industry.
- Strong material adaptability: Capable of handling heavy workpieces such as large billets and large-section profiles.
- High productivity: A single cut allows for cutting large materials, improving operational efficiency.
- Excellent cutting performance: Increased blade rigidity ensures stable cutting of large sections.
- Professional drive system. Worm gear main drive: Smooth transmission and strong load capacity, suitable for heavy-duty cutting.
Product Main Technical Parameters:
MODEL NO | GH4228 | GH4235 |
Cutting capacity(mm) | 280-280×280 | 350-350×350 |
Blade size(mm) | 3505×34×1.1 | 4115×34×1.1 |
Blade speed(m/min) | 27,45,69 | 27,45,69 |
Clamping type | Hydraulic | Hydraulic |
Motor main(kw) | 2.2 | 3 |
Motor hydraulic(kw) | 0.55 | 0.55 |
Coolant pump(kw) | 0.04 | 0.04 |
Overall dimension(mm) | 1860×1000×1400 | 2000×1000×1500 |
Product Main Technical Parameters:
