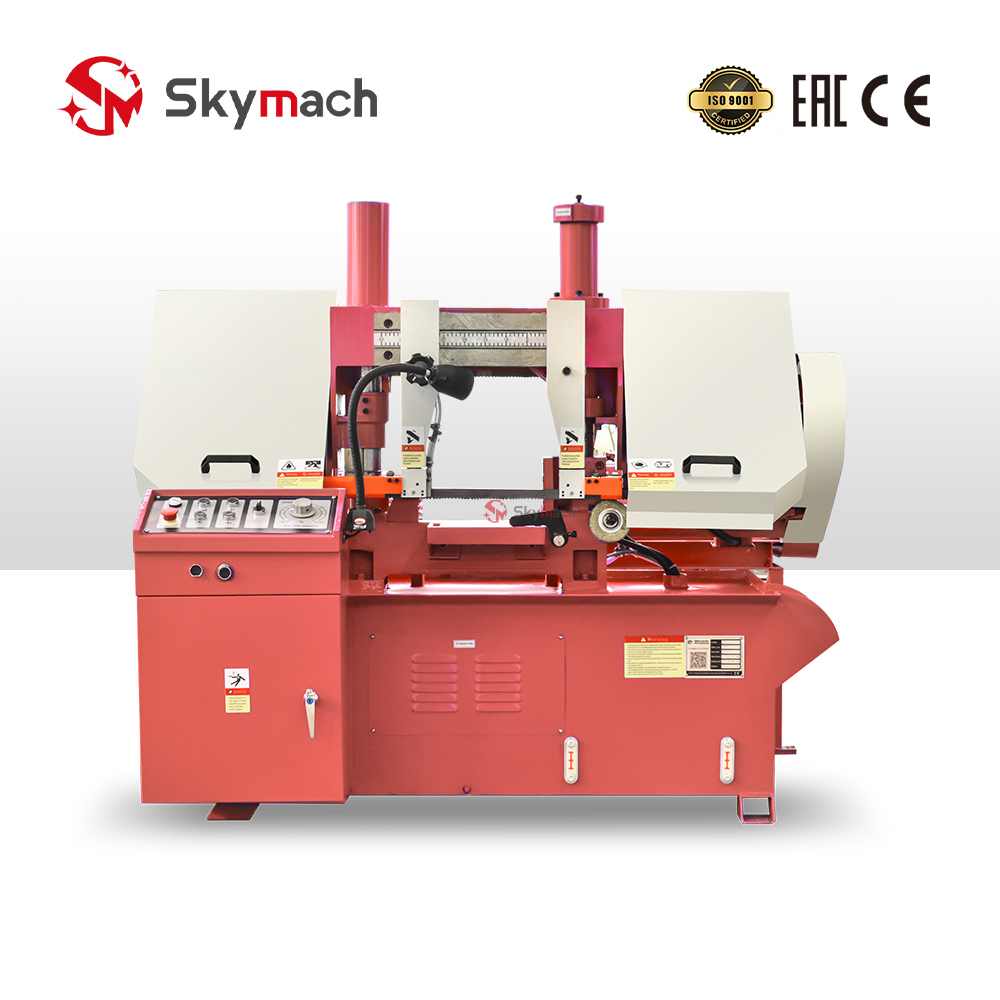

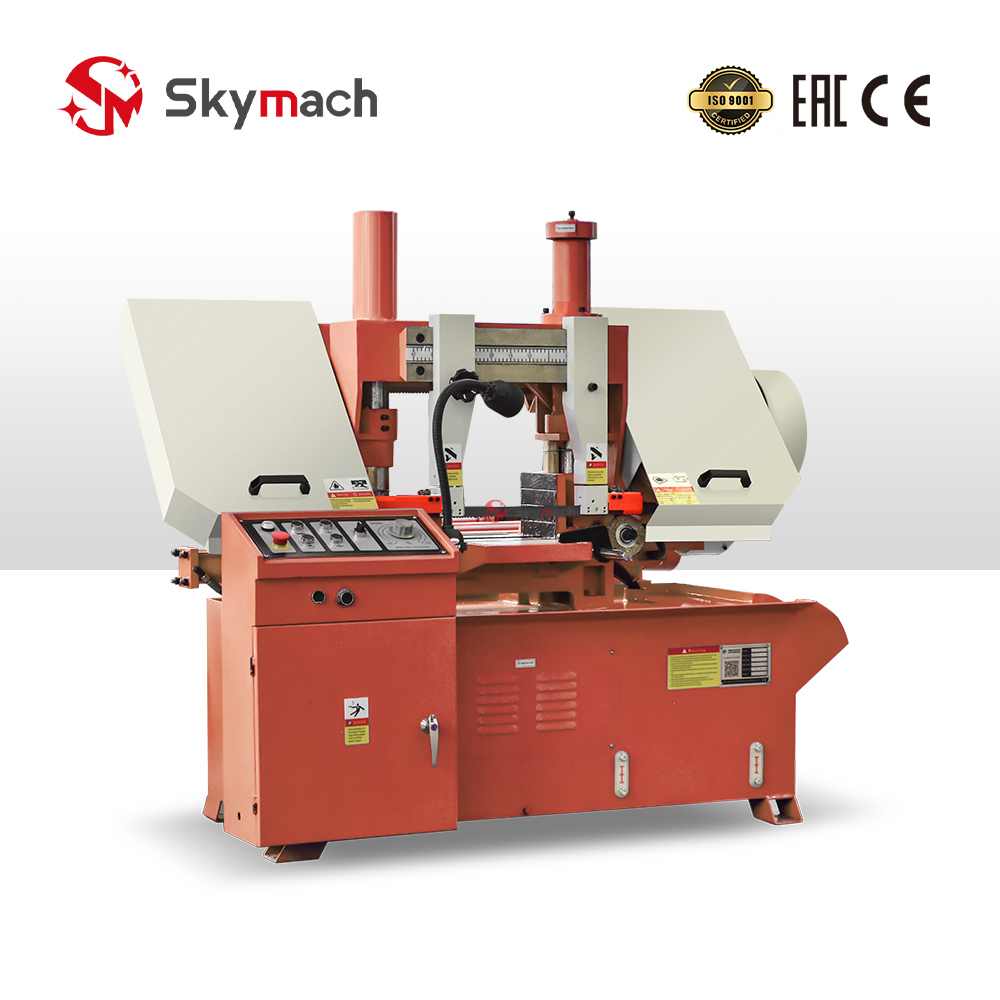

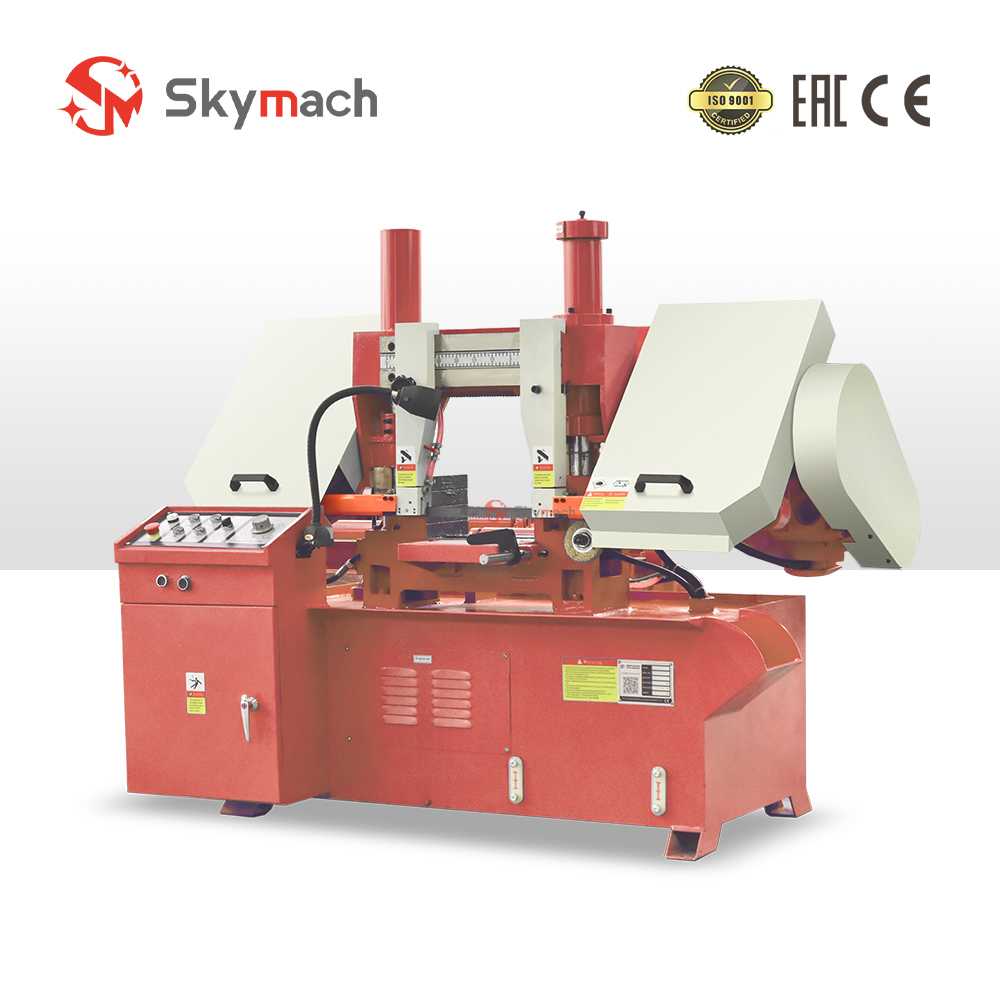

Metal Band Saw Machine GH4230
Model: GH4230 Band Saw
Cutting Capacity: 200 x 200 mm
Saw Blade Specifications:
2750 x 27 x 0.9 mm
Main Motor Power: 1.5/2.2 kW
Hydraulic Motor Power: 0.37 kW
Weight: 350 kg
External Dimensions:
1400 x 850 x 1250 mm
Saw band tensioning method:Manual
main driving struction:
Worm geartransmission
Metal Band Saw Machine GH4230
Model: GH4230 Band Saw
Cutting Capacity: 200 x 200 mm
Saw Blade Specifications:
2750 x 27 x 0.9 mm
Main Motor Power: 1.5/2.2 kW
Hydraulic Motor Power: 0.37 kW
Weight: 350 kg
External Dimensions:
1400 x 850 x 1250 mm
Saw band tensioning method:Manual
main driving struction:
Worm geartransmission
Advantages Of Metal Band Saw Machine GH4230 :
- Worm gear drive: Smooth transmission, low noise, and long life, suitable for high-intensity continuous operation.
- Hydraulic vise worktable: Stable and reliable clamping force ensures cutting precision.
- Wheel-type sliding feed: Smooth feed and excellent cut surface quality.
- Standardized design: High commonality of major components, reducing spare parts inventory.
- 40W cooling pump: Effectively reduces saw blade temperature and extends saw life.
Product Main Technical Parameters:
Model | GH4228 | GH4230 | GH4235 |
Cutting capacity (mm) | 280-280*280 | 300 – 300 * 300 | 350 – 350 * 350 |
Blade speed(m/min) | 27、45、69 | 27、45、69 | 27、45、69 |
Blade size(mm) | 3505*27*0.9 | 3505 X 27 X 0.9 | 4115 X 34 X 1.1 |
Main motor Power(Kw) | 3 | 3 | 3 |
Hydraulic motor power(kw) | 0.55 | 0.55 | 0.55 |
Cooling pump(w) | 40 | 40 | 40 |
Worktable Clamping type | hydraulic vise | hydraulic vise | hydraulic vise |
Main driving struction | Worm gear transmission | Worm gear transmission | Worm gear transmission |
Feeding type | Wheel sliding | Wheel sliding | Wheel sliding |
Machine overall size (mm) | 1860*1000*1600 | 1960 X 1050 X 1650 | 2000 X 1110 X 1750 |
Machine weight | 800KG | 850KG | 980KG |
Product Main Technical Parameters:
