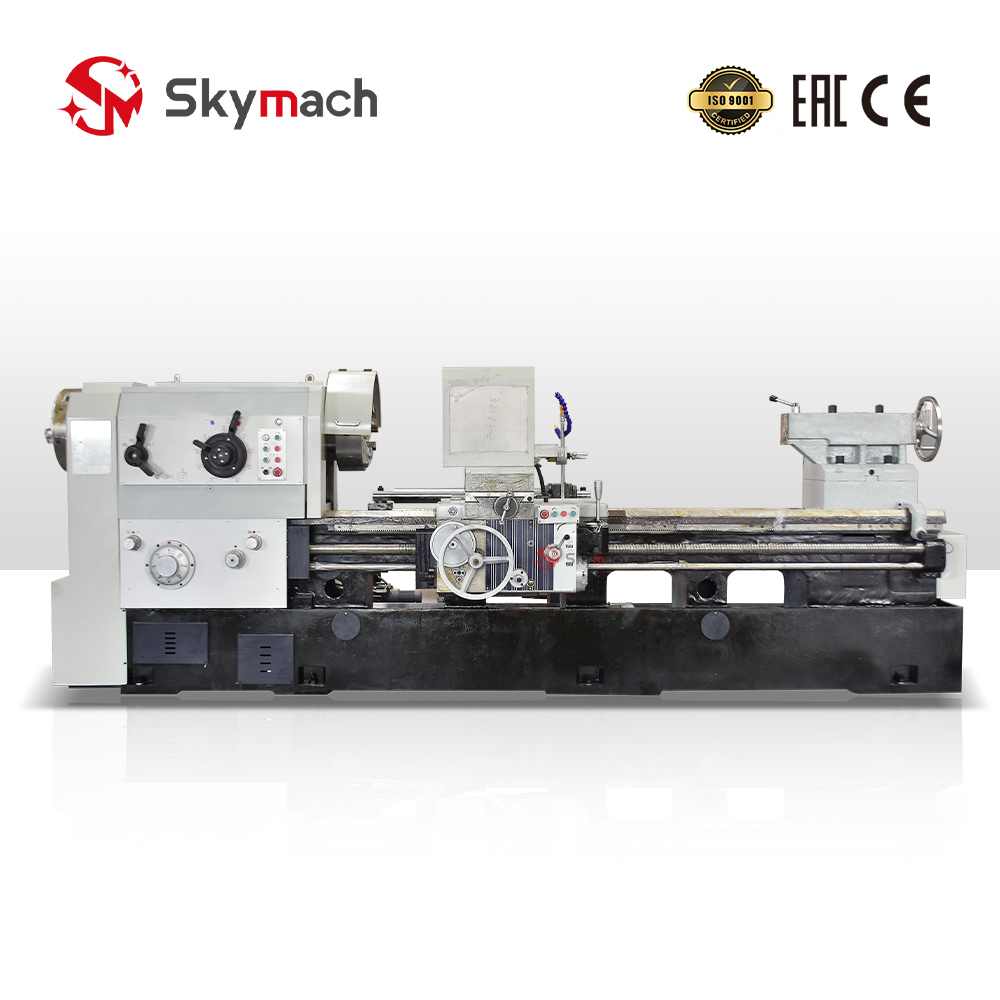

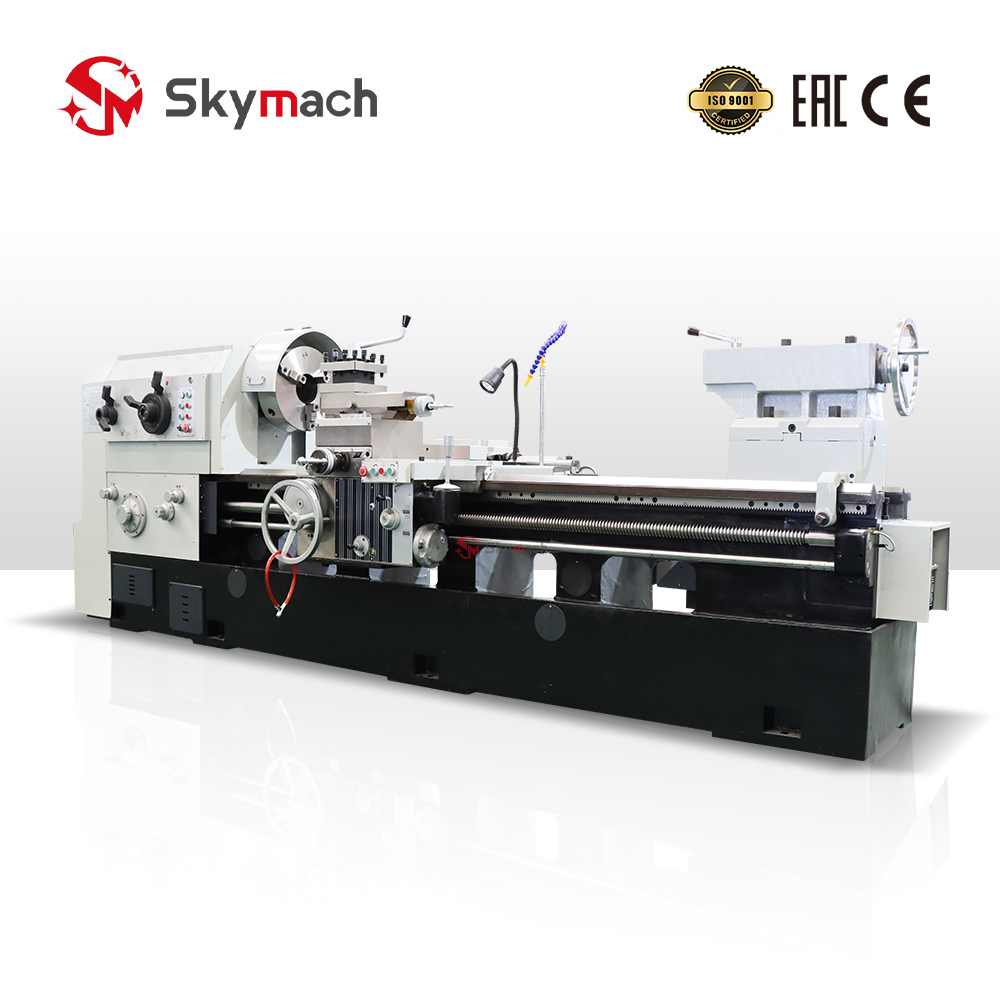

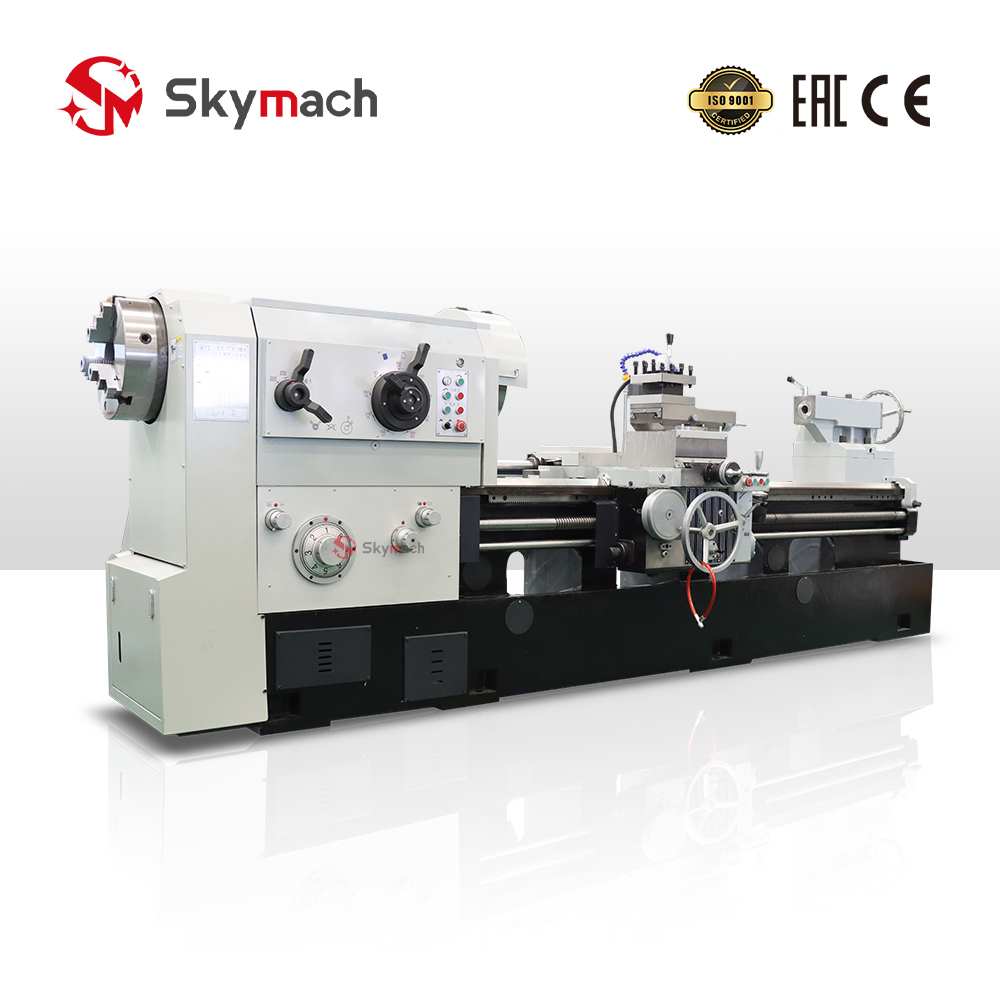

Pipe Thread Lathe Q1313
Model: Q1313
630/800mm swing diameter bed
Maximum machining length up to 3000mm
Spindle through-hole diameter 130mm
4-step variable frequency drive (VF4)
Equipped with a 3-jaw manual chuck
X-axis travel 320/420mm
Rapid traverse 2300mm/min
4-station manual toolholder with 30x30mm tooling
Tailstock quill diameter 100mm
Travel 250mm, supports MT5 taper holes
Main motor power 11kW
Machine weight 4.0/5.2 tons
External dimensions 3700/5200x1500x1500mm
Pipe Thread Lathe Q1313
Model: Q1313
630/800mm swing diameter bed
Maximum machining length up to 3000mm
Spindle through-hole diameter 130mm
4-step variable frequency drive (VF4)
Equipped with a 3-jaw manual chuck
X-axis travel 320/420mm
Rapid traverse 2300mm/min
4-station manual toolholder with 30x30mm tooling
Tailstock quill diameter 100mm
Travel 250mm, supports MT5 taper holes
Main motor power 11kW
Machine weight 4.0/5.2 tons
External dimensions 3700/5200x1500x1500mm
Advantages Of Pipe Threading Lathe Q1313 :
- Professional pipe threading capabilities. Designed specifically for pipe threads, covering standard pipe diameters from 30 to 126 mm, meeting the needs of the petroleum, chemical, and pipeline industries.
- Optimized power and transmission system. The 11kW main motor provides ample cutting power, ensuring stable machining of large-diameter pipes.
- Efficient production configuration. The four-station manual tool holder supports rapid tool changes, improving processing efficiency.
- Professional-grade tailstock system. The MT5 tailstock taper ensures precise positioning.

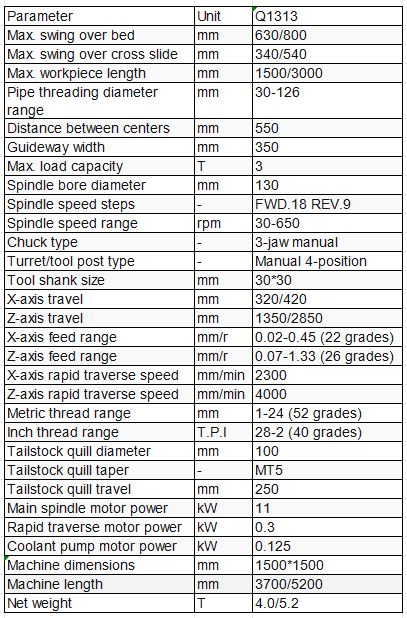

Product Main Technical Parameters:
| Parameter | Unit | Q1313 Specification |
| Max. swing over bed | mm | 630/800 |
| Max. swing over cross slide | mm | 340/540 |
| Max. workpiece length | mm | 1500/3000 |
| Pipe threading diameter range | mm | 30-126 |
| Distance between centers | mm | 550 |
| Guideway width | mm | 350 |
| Max. load capacity | T | 3 |
| Spindle bore diameter | mm | 130 |
| Spindle speed steps | - | FWD.18 REV.9 |
| Spindle speed range | rpm | 30-650 |
| Chuck type | - | 3-jaw manual |
| Turret/tool post type | - | Manual 4-position |
| Tool shank size | mm | 30×30 |
| X-axis travel | mm | 320/420 |
| Z-axis travel | mm | 1350/2850 |
| X-axis feed range | mm/r | 0.02-0.45 (22 grades) |
| Z-axis feed range | mm/r | 0.07-1.33 (26 grades) |
| X-axis rapid traverse speed | mm/min | 2300 |
| Z-axis rapid traverse speed | mm/min | 4000 |
| Metric thread range | mm | 1-24 (52 grades) |
| Inch thread range | T.P.I | 28-2 (40 grades) |
| Tailstock quill diameter | mm | 100 |
| Tailstock quill taper | - | MT5 |
| Tailstock quill travel | mm | 250 |
| Main spindle motor power | kW | 11 |
| Rapid traverse motor power | kW | 0.3 |
| Coolant pump motor power | kW | 0.125 |
| Machine dimensions (W×H) | mm | 1500×1500 |
| Machine length | mm | 3700/5200 |
| Net weight | T | 4.0/5.2 |
Product Main Technical Parameters:
