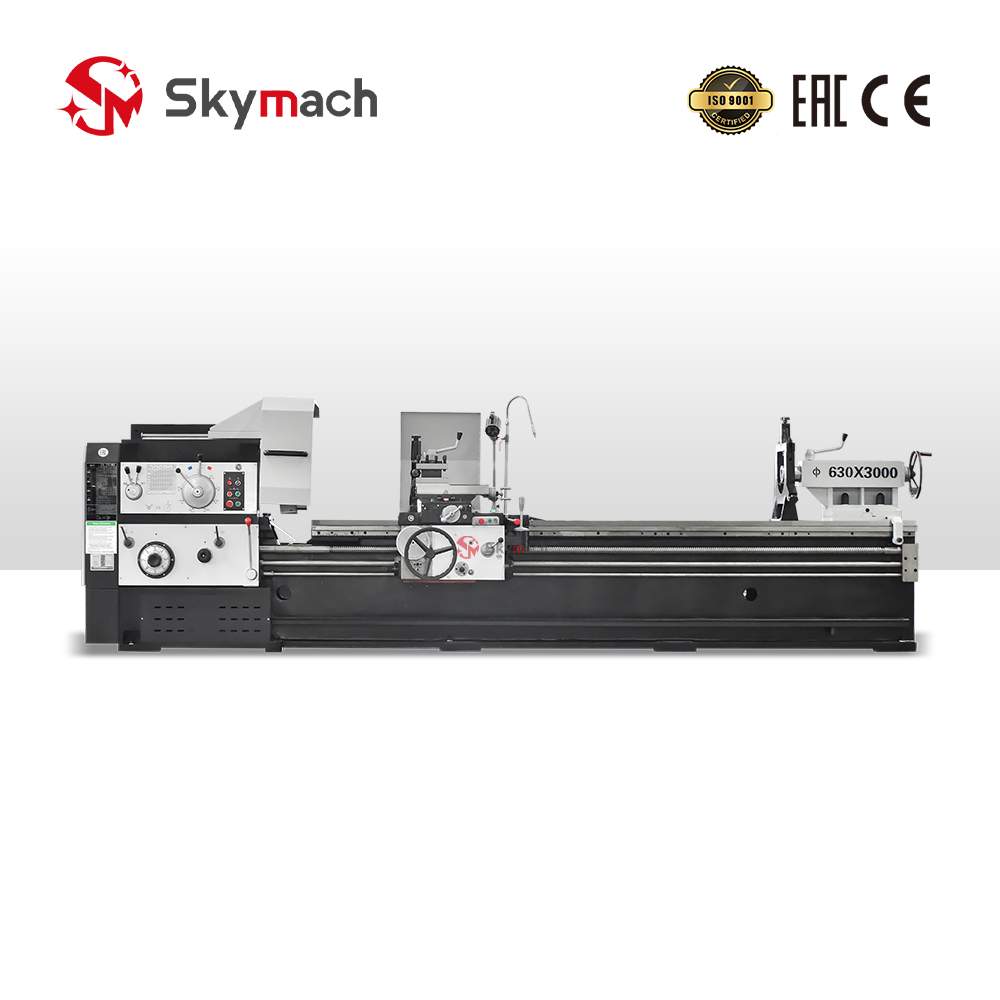

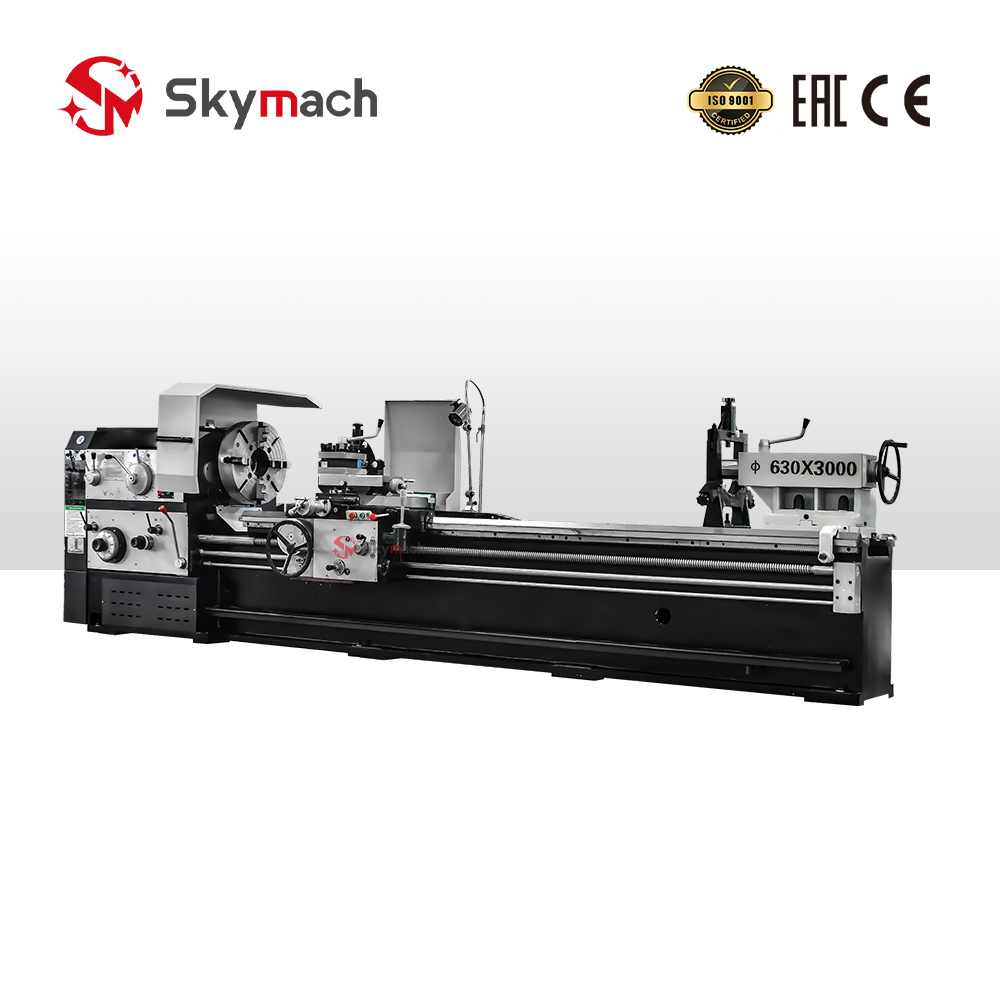

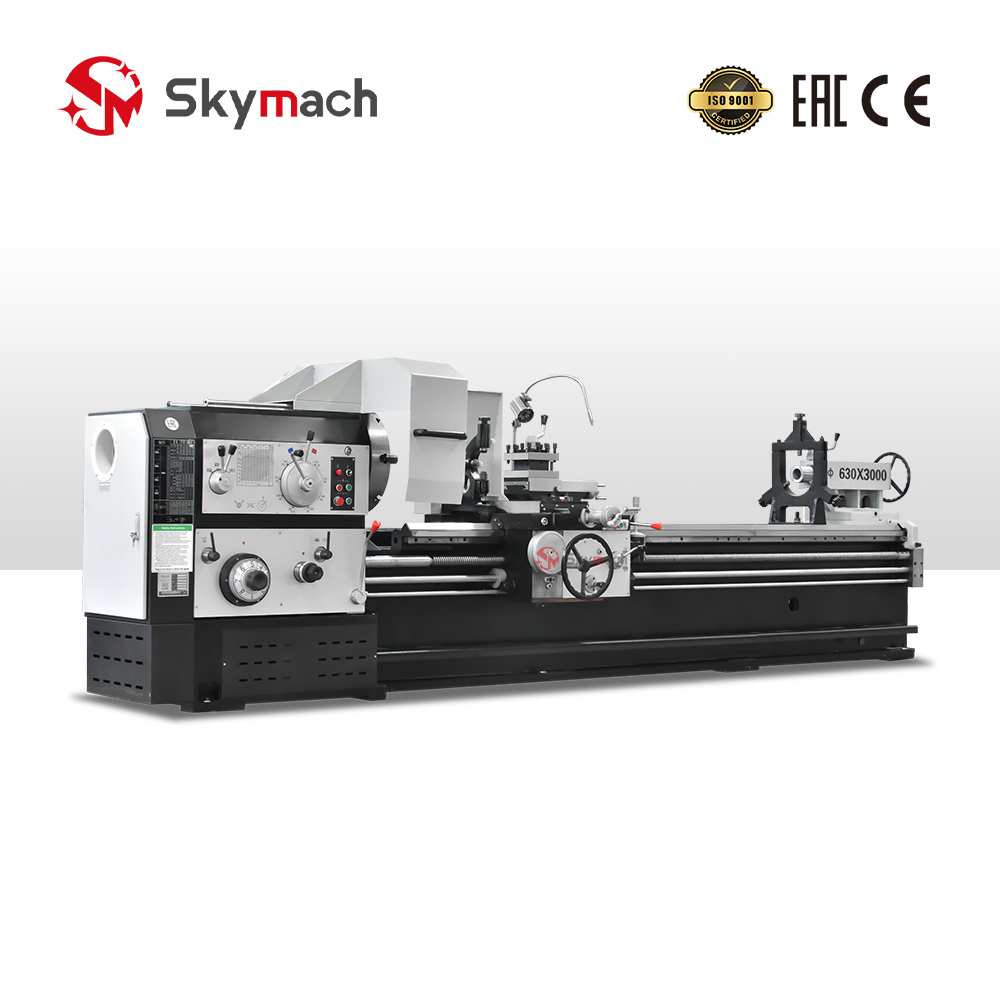

Manual Lathe CW6163
Model: CW6163
630mm standard swing diameter
Maximum machining length
1500/2000/3000/4000/5000/6000mm
Spindle through-hole diameter 104mm
Manual four-speed transmission (30-1000rpm)
X/Z-axis travel 360/1350-5850mm
Rapid traverse 4000/8000mm/min
Standard four-station tool post (six or eight stations optional)
Supports 32x32mm tools
Tailstock quill diameter 100mm
Travel 250mm, MT5 taper bore
Main motor power 7/11kW
Machine weight 11,900-16,100kg (depending on length)
External dimensions
6,250-11,250×2,500×2,400mm
Manual Lathe CW6163
Model: CW6163
630mm standard swing diameter
Maximum machining length
1500/2000/3000/4000/5000/6000mm
Spindle through-hole diameter 104mm
Manual four-speed transmission (30-1000rpm)
X/Z-axis travel 360/1350-5850mm
Rapid traverse 4000/8000mm/min
Standard four-station tool post (six or eight stations optional)
Supports 32x32mm tools
Tailstock quill diameter 100mm
Travel 250mm, MT5 taper bore
Main motor power 7/11kW
Machine weight 11,900-16,100kg (depending on length)
External dimensions
6,250-11,250×2,500×2,400mm
Advantages Of Manual Lathe CW6163 :
- Ultra-large machining capabilities. The 630mm bed swing diameter and 830mm bridge swing diameter enable processing of large rolls, shafts, and discs.

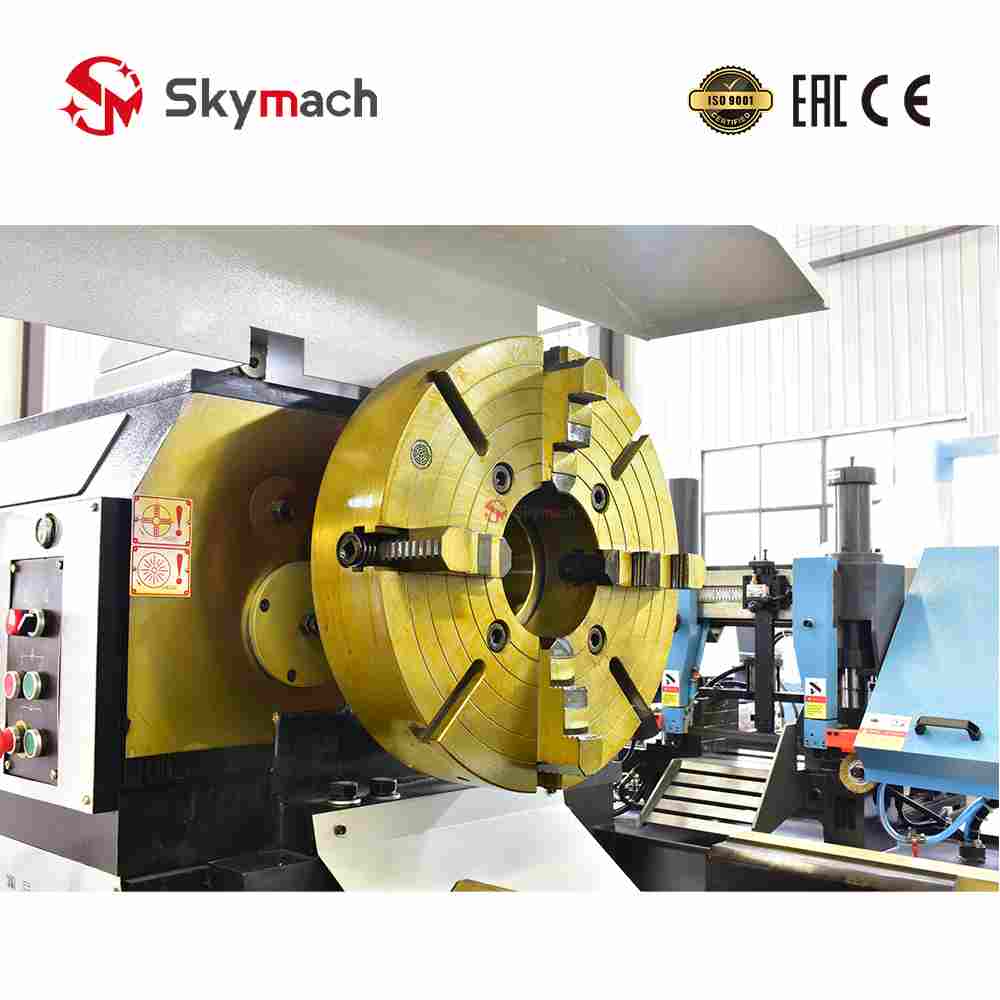

- Professional-grade spindle system. The C11 spindle head is designed for heavy-duty cutting and provides exceptional connection rigidity.
- Enhanced tailstock system. The 100mm tailstock quill diameter provides exceptional support rigidity.
- An 11kW main motor provides ample power reserve for machining large workpieces.

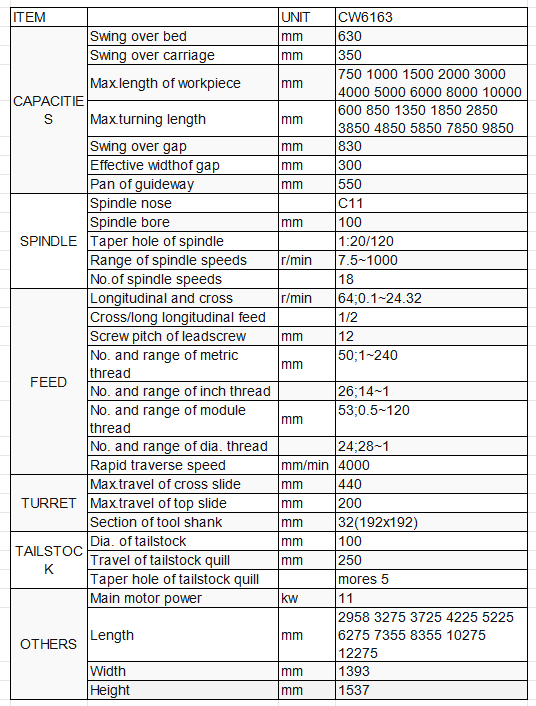

Product Main Technical Parameters:
| ITEM | UNIT | CW6163 | |
| CAPACITIES | Swing over bed | mm | 630 |
| Swing over carriage | mm | 350 | |
| Max.length of workpiece | mm | 750 1000 1500 2000 3000 4000 5000 6000 8000 10000 | |
| Max.turning length | mm | 600 850 1350 1850 2850 3850 4850 5850 7850 9850 | |
| Swing over gap | mm | 830 | |
| Effective widthof gap | mm | 300 | |
| Pan of guideway | mm | 550 | |
| SPINDLE | Spindle nose | C11 | |
| Spindle bore | mm | 100 | |
| Taper hole of spindle | 1:20/120 | ||
| Range of spindle speeds | r/min | 7.5~1000 | |
| No.of spindle speeds | 18 | ||
| FEED | Longitudinal and cross | r/min | 64;0.1~24.32 |
| Cross/long longitudinal feed | 1/2 | ||
| Screw pitch of leadscrew | mm | 12 | |
| No. and range of metric thread | mm | 50;1~240 | |
| No. and range of inch thread | 26;14~1 | ||
| No. and range of module thread | mm | 53;0.5~120 | |
| No. and range of dia. thread | 24;28~1 | ||
| Rapid traverse speed | mm/min | 4000 | |
| TURRET | Max.travel of cross slide | mm | 440 |
| Max.travel of top slide | mm | 200 | |
| Section of tool shank | mm | 32(192x192) | |
| TAILSTOCK | Dia. of tailstock | mm | 100 |
| Travel of tailstock quill | mm | 250 | |
| Taper hole of tailstock quill | mores 5 | ||
| OTHERS | Main motor power | kw | 11 |
| Length | mm | 2958 3275 3725 4225 5225 6275 7355 8355 10275 12275 | |
| Width | mm | 1393 | |
| Height | mm | 1537 |
