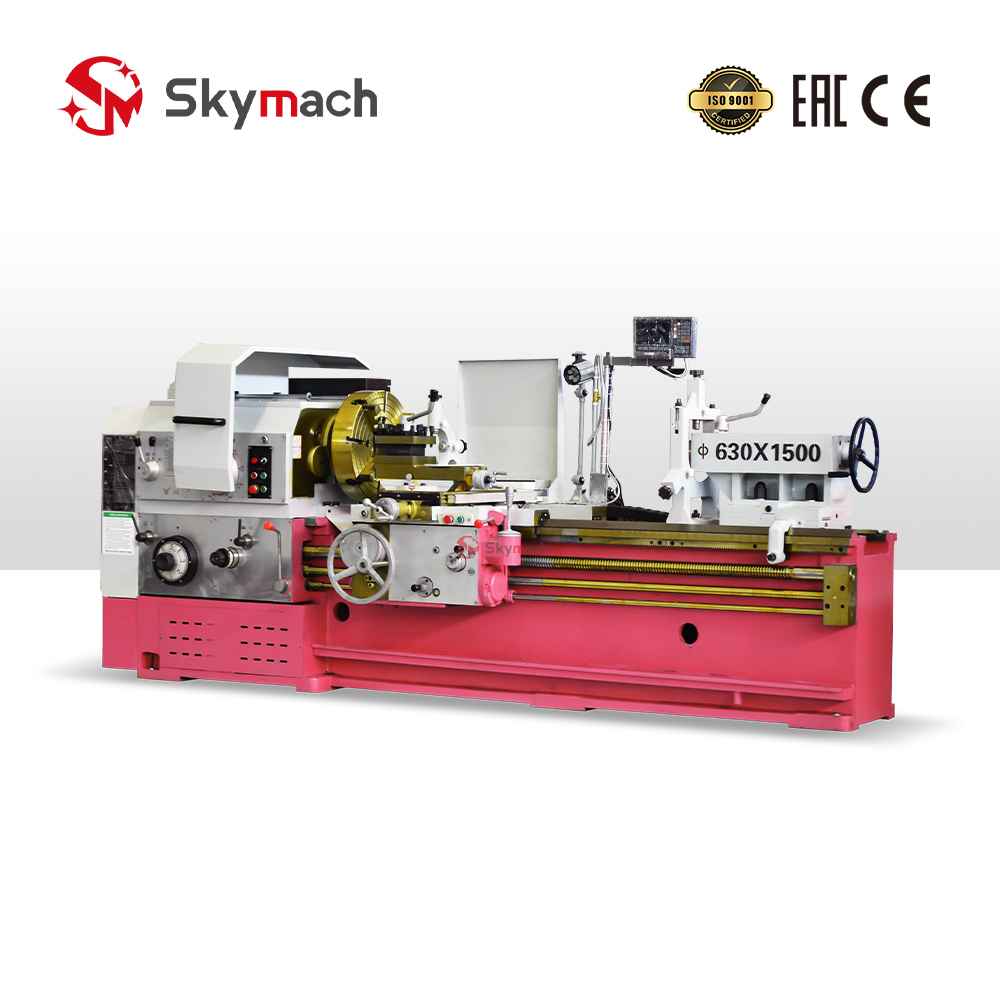

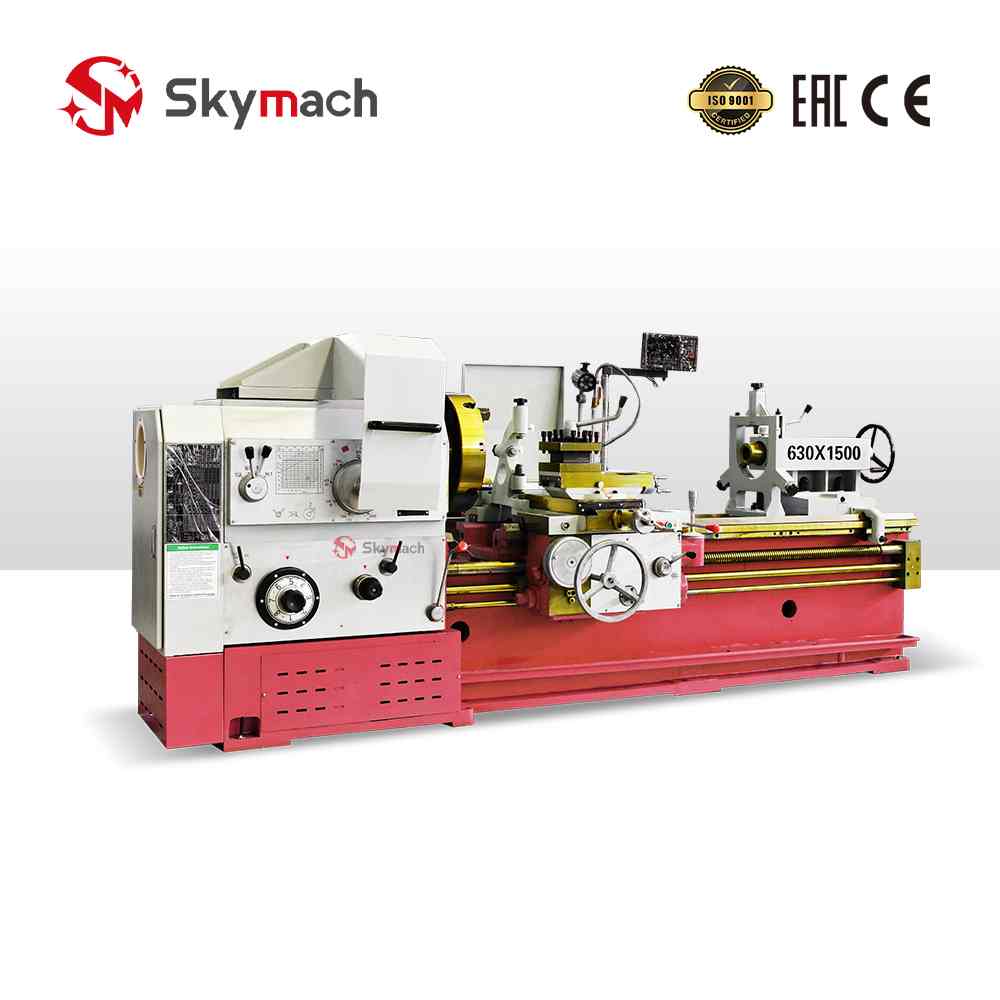

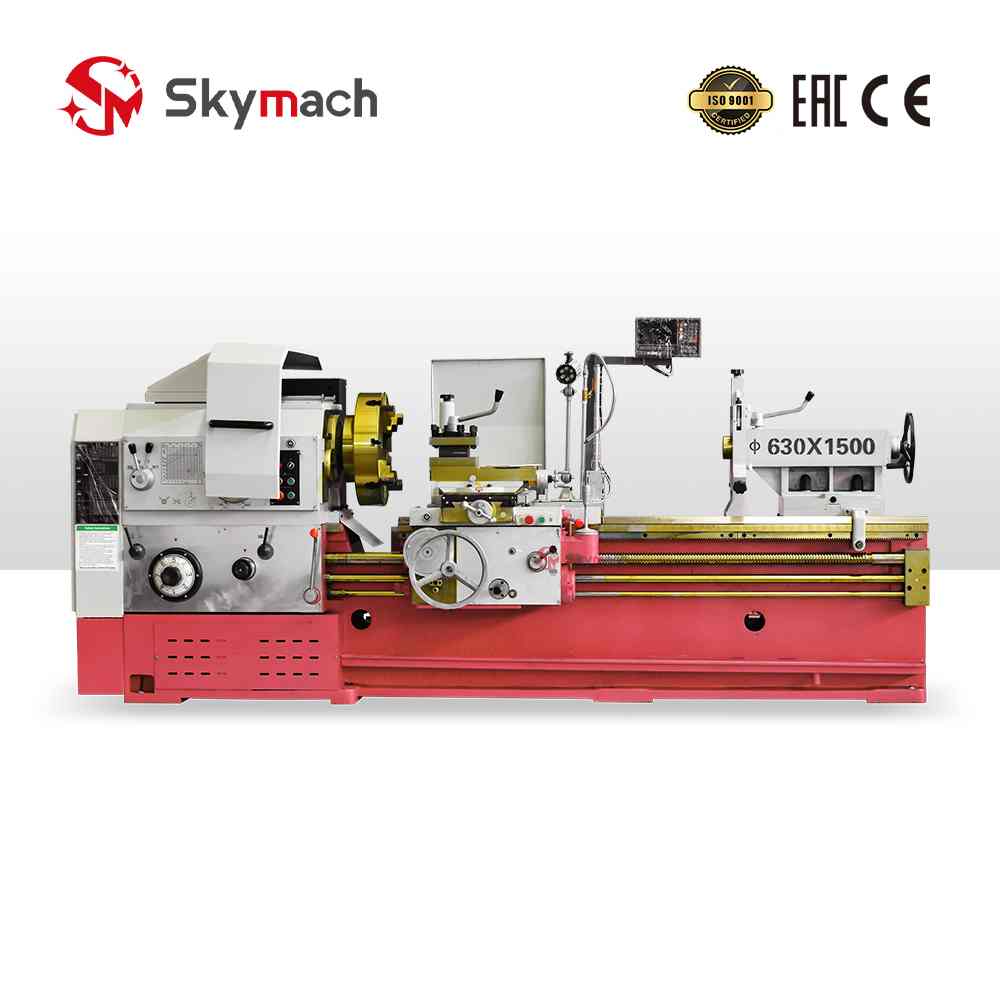

Manual Lathe CW6263
Model:CW6263
630mm standard swing diameter
Maximum machining length
1500/2000/3000/4000/5000/6000mm
Spindle through-hole diameter 130mm
Hydraulic automatic speed change (20-1000rpm)
X/Z axis travels
480/1350-5850mm
Rapid traverse speeds
4000/8000mm/min
Standard six-station tool post
Accepts 40x40mm tools
Tailstock quill diameter
125mm, 300mm travel
MT6 taper bore
Main motor power 15kW
Machine weight
15,400-18,600kg (depending on length)
External dimensions
7,250-11,250×2,800×2,600mm
Manual Lathe CW6263
Model:CW6263
630mm standard swing diameter
Maximum machining length
1500/2000/3000/4000/5000/6000mm
Spindle through-hole diameter 130mm
Hydraulic automatic speed change (20-1000rpm)
X/Z axis travels
480/1350-5850mm
Rapid traverse speeds
4000/8000mm/min
Standard six-station tool post
Accepts 40x40mm tools
Tailstock quill diameter
125mm, 300mm travel
MT6 taper bore
Main motor power 15kW
Machine weight
15,400-18,600kg (depending on length)
External dimensions
7,250-11,250×2,800×2,600mm
Advantages Of Manual Lathe CW6263 :
- Ultra-large machining capabilities. The 630mm bed swing diameter and 830mm bridge swing diameter enable processing of large rolls, shafts, and discs.

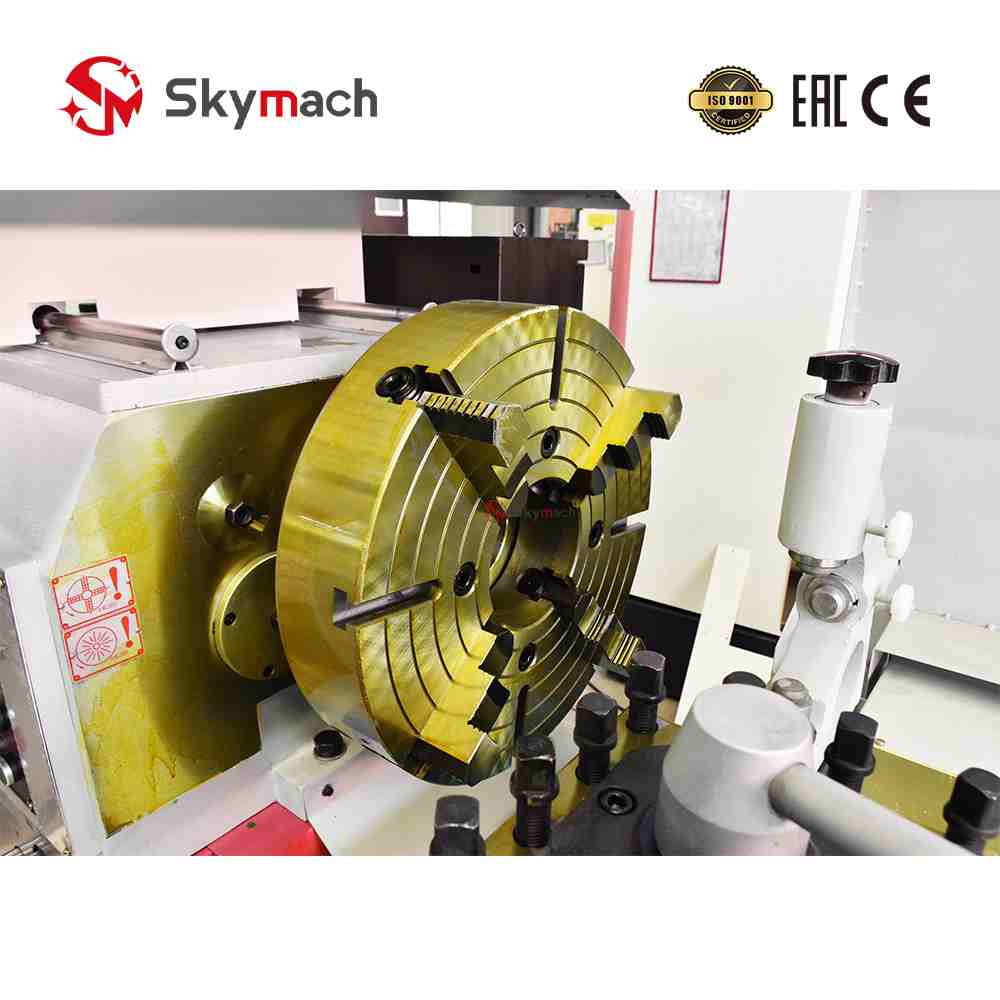

- Professional-grade spindle system. The C11 spindle head is designed for heavy-duty cutting and provides exceptional connection rigidity.
- Enhanced tailstock system. The 100mm tailstock quill diameter provides exceptional support rigidity.
- An 11kW main motor provides ample power reserve for machining large workpieces.

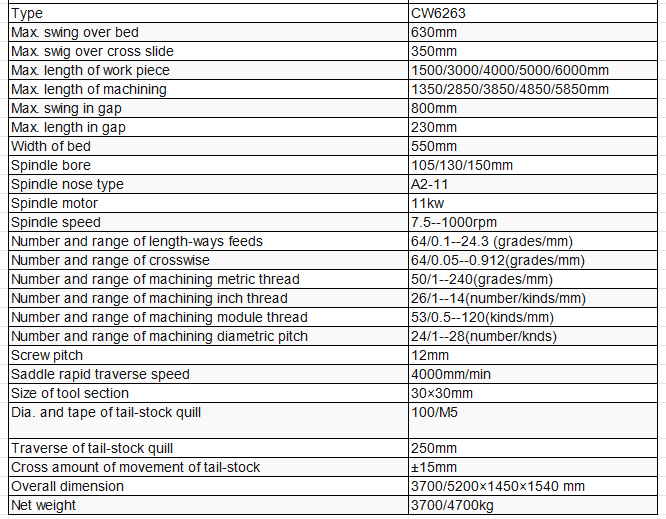

Product Main Technical Parameters:
| Type | CW6263 |
| Max. swing over bed | 630mm |
| Max. swig over cross slide | 350mm |
| Max. length of work piece | 1500/3000/4000/5000/6000mm |
| Max. length of machining | 1350/2850/3850/4850/5850mm |
| Max. swing in gap | 800mm |
| Max. length in gap | 230mm |
| Width of bed | 550mm |
| Spindle bore | 105/130/150mm |
| Spindle nose type | A2-11 |
| Spindle motor | 11kw |
| Spindle speed | 7.5--1000rpm |
| Number and range of length-ways feeds | 64/0.1--24.3 (grades/mm) |
| Number and range of crosswise | 64/0.05--0.912(grades/mm) |
| Number and range of machining metric thread | 50/1--240(grades/mm) |
| Number and range of machining inch thread | 26/1--14(number/kinds/mm) |
| Number and range of machining module thread | 53/0.5--120(kinds/mm) |
| Number and range of machining diametric pitch | 24/1--28(number/knds) |
| Screw pitch | 12mm |
| Saddle rapid traverse speed | 4000mm/min |
| Size of tool section | 30×30mm |
| Dia. and tape of tail-stock quill | 100/M5 |
| Traverse of tail-stock quill | 250mm |
| Cross amount of movement of tail-stock | ±15mm |
| Overall dimension | 3700/5200×1450×1540 mm |
| Net weight | 3700/4700kg |
Product Main Technical Parameters:
