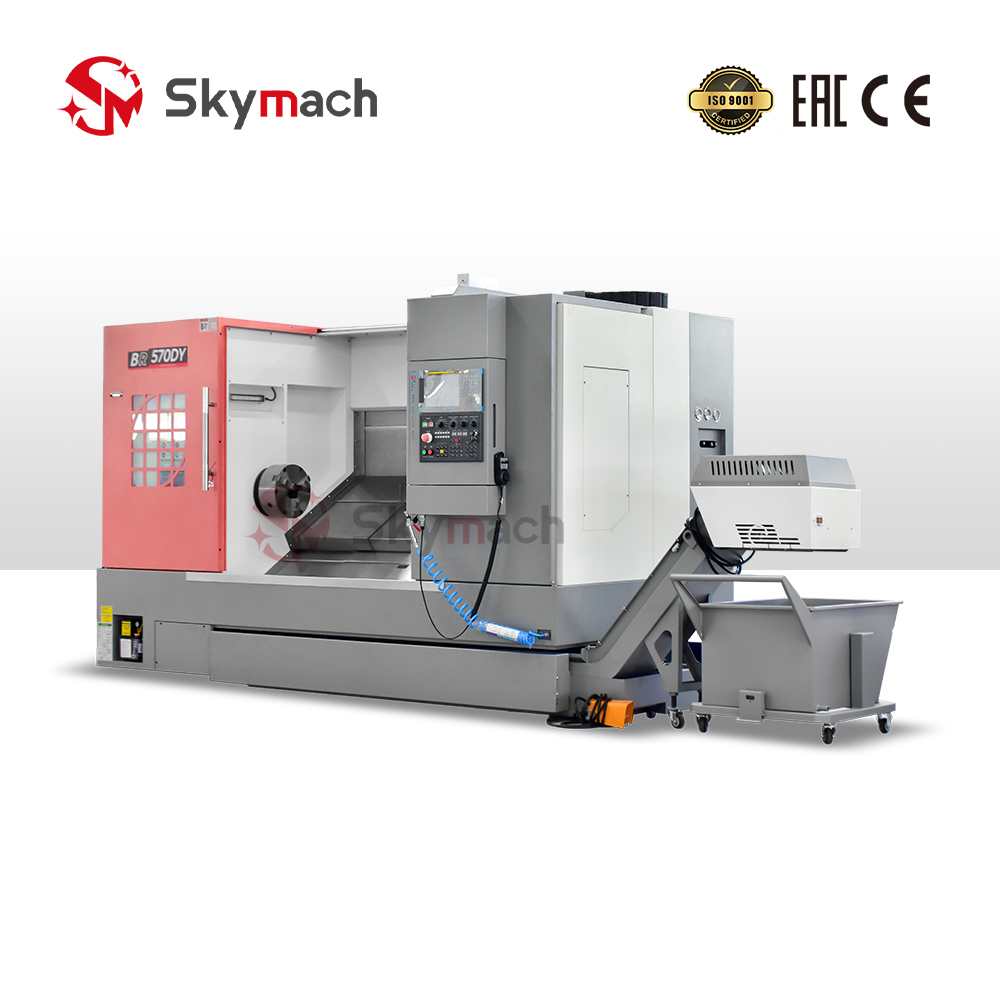

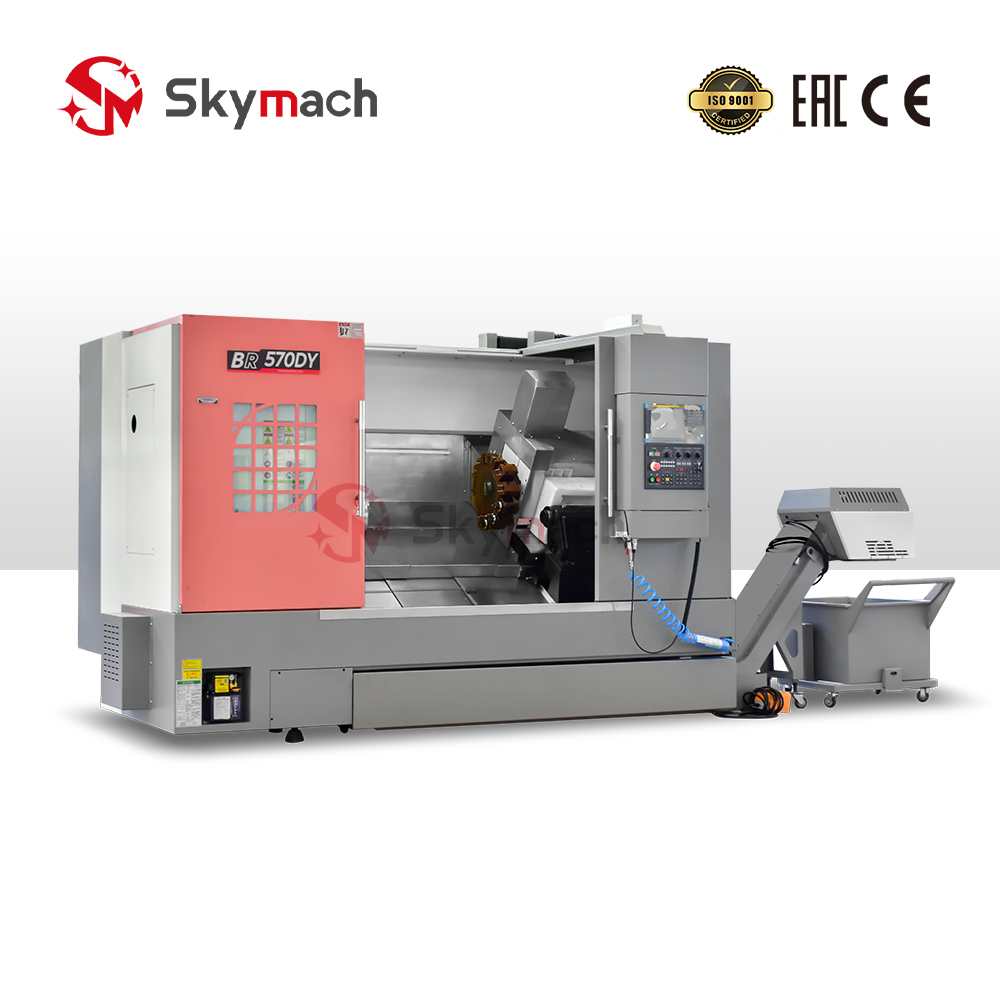

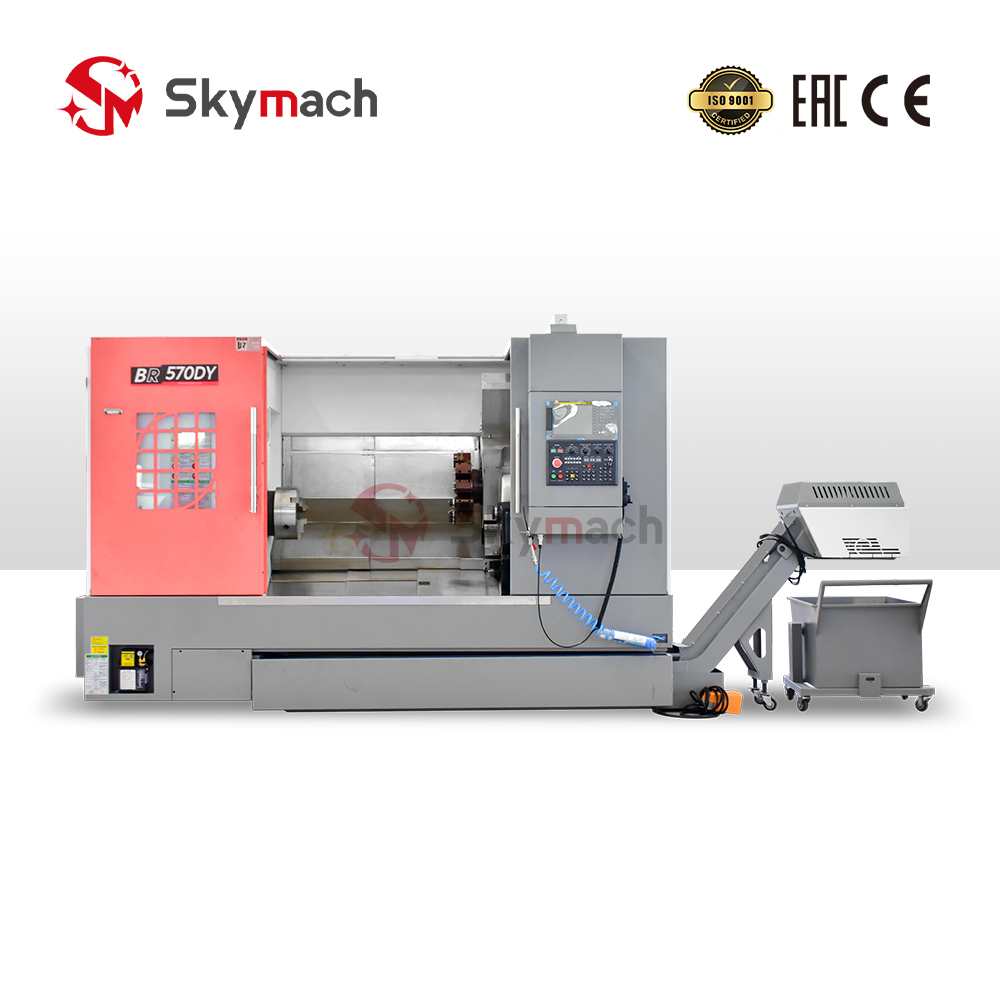

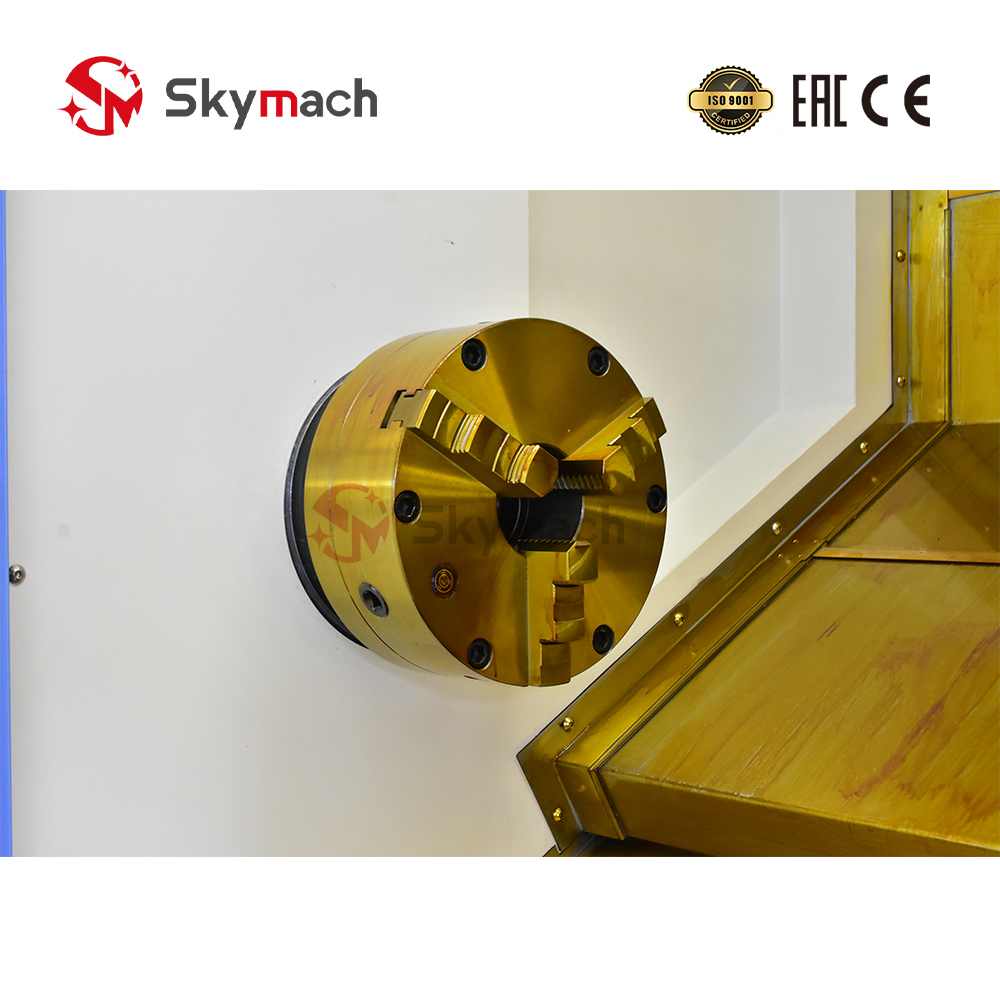

CNC Slant Bed Lathe BR570DY

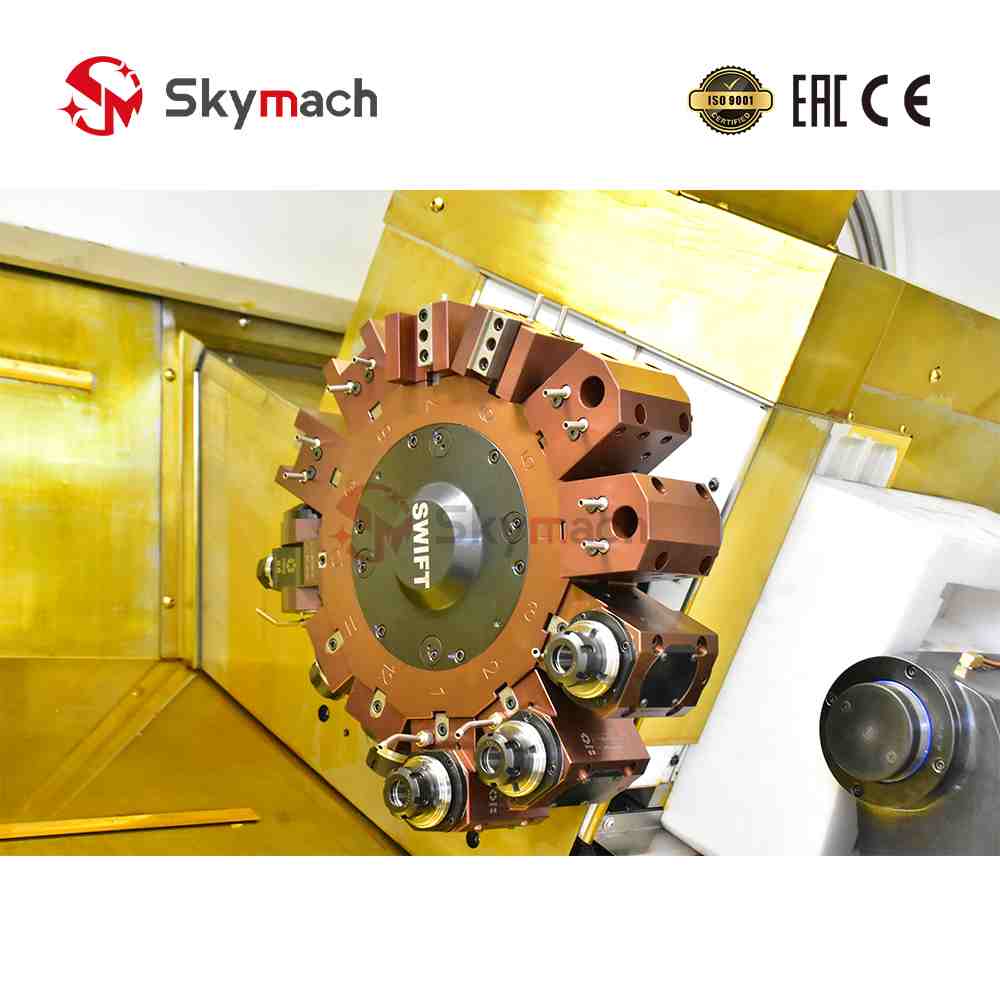

The live tool turret, the core of the mill-turn machine, features a 12-station servo drive, driven by spiral bevel gears or toothed belts, and can accommodate 6 to 12 live tool positions.
The C-axis indexing accuracy and turret indexing precision ensure angular and positional accuracy of milled features.
The live tools are driven by independent servo motors with a maximum speed range of 3,000 to 6,000 rpm.
The turret offers exceptional indexing accuracy and rapid tool changes, with tool changes between adjacent stations taking only 0.2 to 0.5 seconds.
The standard CNC system is a GSK mill-turn system, but high-end CNC systems from Siemens, FANUC, Heidenhain, or Mitsubishi are also recommended for seamless C-axis and live tool synchronization.
The machine boasts positioning accuracy of ±0.005 mm, repeatability of ±0.003 mm, and C-axis indexing accuracy down to the second level, ensuring the machine can perform high-precision mill-turn machining.
CNC Slant Bed Lathe BR570DY
The live tool turret, the core of the mill-turn machine, features a 12-station servo drive, driven by spiral bevel gears or toothed belts, and can accommodate 6 to 12 live tool positions.
The C-axis indexing accuracy and turret indexing precision ensure angular and positional accuracy of milled features.
The live tools are driven by independent servo motors with a maximum speed range of 3,000 to 6,000 rpm.
The turret offers exceptional indexing accuracy and rapid tool changes, with tool changes between adjacent stations taking only 0.2 to 0.5 seconds.
The standard CNC system is a GSK mill-turn system, but high-end CNC systems from Siemens, FANUC, Heidenhain, or Mitsubishi are also recommended for seamless C-axis and live tool synchronization.
The machine boasts positioning accuracy of ±0.005 mm, repeatability of ±0.003 mm, and C-axis indexing accuracy down to the second level, ensuring the machine can perform high-precision mill-turn machining.
Advantages Of CNC Slant Bed Lathe BR570DY
- This eliminates workpiece transfers, waiting times, and secondary clamping and positioning, improving overall machining efficiency by over 40%, making it particularly suitable for mass production.
- Complete all machining in a single setup, with all features referenced by the spindle center, ensuring critical accuracies such as perpendicularity, concentricity, and positioning.
- This reduces scratches, dents, and misalignment caused by manual secondary clamping, significantly improving product consistency and yield in mass production.
- Part machining accuracy no longer relies on the repeatability of the milling machine fixture, saving the cost of high-precision fixtures and eliminating the accuracy risks associated with fixture wear.
- The 12-station turret provides ample capacity. For the most complex parts, all required turning and milling tools can be loaded simultaneously, eliminating the need for manual tool changes during a single machining cycle and enabling continuous, automated machining.
Product Main Technical Parameters:
| Model | BR-570DYx750 |
| The maximum turning diameter on the bed | Φ650 |
| maximum machining diameter | Φ400 (SHDY16BR Cutter to edge 330) |
| Max machining diameter on the tool holder | Φ360 |
| Maximum processing length | 720 |
| Spindle head form (optional chuck) | A2-6 ( 8″) |
| Recommended spindle motor power | 11-15KW |
| Spindle speed | 4200rpm |
| Spindle hole diameter | 66 |
| Bar diameter | 52 |
| X/Z axis screw specifications | 3210/4010 |
| X/Z axis limit travel | 270/830 |
| Recommended X/Z axis motor torque | 11N.M/15N.M |
| X/Z axis rail specifications | 45/45 |
| X/Z axis connection method | Direct link |
| Turret type | Power Turret |
| Recommended turret center height dimension | 170 |
| Maximum travel of tailstock | 750 |
| Tailstock sleeve diameter | 80 |
| Tailstock sleeve travel | 80 |
| Tailstock sleeve tapered hole | MT5 |
| Bed type and inclination | 30° |
| Machine size（L * W * H) | 2077 ×1297 ×1427 |
| Weight (approx. weight) | 2800kg |
