CNC Slant Bed Lathe BR200LDY
Max swing over bed Ø650 mm; max machining diameter Ø380 mm – ideal for large, complex parts.
±50 mm Y-axis travel allows for off-center milling, drilling, and complex multi-surface machining.
Equipped with an 11 kW spindle motor and 4000 rpm speed for powerful cutting performance.
Spindle bore Ø87 mm and through-bar diameter Ø75 mm enable efficient long part and bar feeding.
X/Z/Y axes utilize high-rigidity 45 mm linear guideways for smooth, accurate positioning.
12-station BMT45/ER25 Y-axis power turret supports live tooling up to 4000 rpm, powered by a 2.5 kW motor.
Enhances stability and rigidity during heavy milling operations.
11 N·m servo motors on X and Z axes, and Y-axis torque drive for heavy-load machining.
Includes hydraulic tailstock (MT40 taper), with 100 mm sleeve diameter and 80 mm travel for long workpiece support.
30° integrated slant bed for optimized chip removal and compact structure (2850×1850×2450 mm).
CNC Slant Bed Lathe BR200LDY
Max swing over bed Ø650 mm; max machining diameter Ø380 mm – ideal for large, complex parts.
±50 mm Y-axis travel allows for off-center milling, drilling, and complex multi-surface machining.
Equipped with an 11 kW spindle motor and 4000 rpm speed for powerful cutting performance.
Spindle bore Ø87 mm and through-bar diameter Ø75 mm enable efficient long part and bar feeding.
X/Z/Y axes utilize high-rigidity 45 mm linear guideways for smooth, accurate positioning.
12-station BMT45/ER25 Y-axis power turret supports live tooling up to 4000 rpm, powered by a 2.5 kW motor.
Enhances stability and rigidity during heavy milling operations.
11 N·m servo motors on X and Z axes, and Y-axis torque drive for heavy-load machining.
Includes hydraulic tailstock (MT40 taper), with 100 mm sleeve diameter and 80 mm travel for long workpiece support.
30° integrated slant bed for optimized chip removal and compact structure (2850×1850×2450 mm).
Advantages Of CNC Slant Bed Lathe BR200LDY
- Max swing over bed Ø650 mm; max machining diameter Ø380 mm – ideal for large, complex parts.
- ±50 mm Y-axis travel allows for off-center milling, drilling, and complex multi-surface machining.
- Equipped with an 11 kW spindle motor and 4000 rpm speed for powerful cutting performance.
- Spindle bore Ø87 mm and through-bar diameter Ø75 mm enable efficient long part and bar feeding.
- X/Z/Y axes utilize high-rigidity 45 mm linear guideways for smooth, accurate positioning.
- 12-station BMT45/ER25 Y-axis power turret supports live tooling up to 4000 rpm, powered by a 2.5 kW motor.
- Enhances stability and rigidity during heavy milling operations.
- 11 N·m servo motors on X and Z axes, and Y-axis torque drive for heavy-load machining.
- Includes hydraulic tailstock (MT40 taper), with 100 mm sleeve diameter and 80 mm travel for long workpiece support.
- 30° integrated slant bed for optimized chip removal and compact structure (2850×1850×2450 mm).

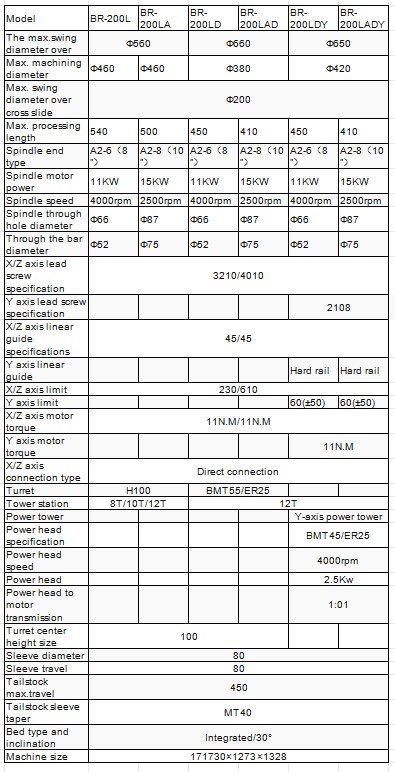

Product Main Technical Parameters:
| Model | BR-200L | BR-200LA | BR-200LD | BR-200LAD | BR-200LDY | BR-200LADY |
| The max.swing diameter over bed | Φ560 | Φ560 | Φ660 | Φ660 | Φ650 | Φ650 |
| Max. machining diameter | Φ460 | Φ460 | Φ380 | Φ380 | Φ420 | Φ420 |
| Max. swing diameter over cross slide | Φ200 | Φ200 | Φ200 | Φ200 | Φ200 | Φ200 |
| Max. processing length | 540 | 500 | 450 | 410 | 450 | 410 |
| Spindle end type | A2-6（8 ”） | A2-8（10 ”） | A2-6（8 ”） | A2-8（10 ”） | A2-6（8 ”） | A2-8（10 ”） |
| Spindle motor power | 11KW | 15KW | 11KW | 15KW | 11KW | 15KW |
| Spindle speed | 4000rpm | 2500rpm | 4000rpm | 2500rpm | 4000rpm | 2500rpm |
| Spindle through hole diameter | Φ66 | Φ87 | Φ66 | Φ87 | Φ66 | Φ87 |
| Through the bar diameter | Φ52 | Φ75 | Φ52 | Φ75 | Φ52 | Φ75 |
| X/Z axis lead screw specification | 3210/4010 | 3210/4010 | 3210/4010 | 3210/4010 | 3210/4010 | 3210/4010 |
| Y axis lead screw specification | 2108 | 2108 | ||||
| X/Z axis linear guide specifications | 45/45 | 45/45 | 45/45 | 45/45 | 45/45 | 45/45 |
| Y axis linear guide specifications | Hard rail | Hard rail | ||||
| X/Z axis limit travel | 230/610 | 230/610 | 230/610 | 230/610 | 230/610 | 230/610 |
| Y axis limit travel | 60(±50) | 60(±50) | ||||
| X/Z axis motor torque | 11N.M/11N.M | 11N.M/11N.M | 11N.M/11N.M | 11N.M/11N.M | 11N.M/11N.M | 11N.M/11N.M |
| Y axis motor torque | 11N.M | 11N.M | ||||
| X/Z axis connection type | Direct connection | Direct connection | Direct connection | Direct connection | Direct connection | Direct connection |
| Turret | H100 | H100 | BMT55/ER25 | BMT55/ER25 | ||
| Tower station | 8T/10T/12T | 8T/10T/12T | 12T | 12T | 12T | 12T |
| Power tower | Y-axis power tower | Y-axis power tower | ||||
| Power head specification | BMT45/ER25 | BMT45/ER25 | ||||
| Power head speed | 4000rpm | 4000rpm | ||||
| Power head motor | 2.5Kw | 2.5Kw | ||||
| Power head to motor transmission ratio | 1:01 | 1:01 | ||||
| Turret center height size | 100 | 100 | 100 | 100 | ||
| Sleeve diameter | 80 | 80 | 80 | 80 | 80 | 80 |
| Sleeve travel | 80 | 80 | 80 | 80 | 80 | 80 |
| Tailstock max.travel | 450 | 450 | 450 | 450 | 450 | 450 |
| Tailstock sleeve taper | MT40 | MT40 | MT40 | MT40 | MT40 | MT40 |
| Bed type and inclination | Integrated/30° | Integrated/30° | Integrated/30° | Integrated/30° | Integrated/30° | Integrated/30° |
| Machine size（L * W * H) | 171730×1273×1328 | 171730×1273×1328 | 171730×1273×1328 | 171730×1273×1328 | 171730×1273×1328 | 171730×1273×1328 |
