CNC Slant Bed Lathe BR570
The machine features a 30-degree, integrally slanted bed design, combined with a high-rigidity cast iron structure, ensuring exceptional stability under heavy cutting conditions, smooth chip evacuation, and excellent heat dissipation.
The X/Z axes are equipped with precision roller linear guides and ball screws, supplemented by pre-tensioned supports, ensuring high rigidity, low friction, and ultra-high positioning accuracy and repeatability over long periods of operation.
The standard configuration includes a 12-station hydraulic turret, enabling fast tool changes and precise positioning, significantly reducing non-machining time. An optional hydraulic tailstock perfectly supports the machining of long shaft parts, enabling automated production.
Automatic lubrication of key components and an efficient cutting fluid cooling system ensure long-term stable operation and workpiece quality.
The standard configuration includes a renowned domestic brand, GSK systems. Internationally renowned systems from Siemens, Fanuc, and Mitsubishi are also available.
CNC Slant Bed Lathe BR570 :
The machine features a 30-degree, integrally slanted bed design, combined with a high-rigidity cast iron structure, ensuring exceptional stability under heavy cutting conditions, smooth chip evacuation, and excellent heat dissipation.
The X/Z axes are equipped with precision roller linear guides and ball screws, supplemented by pre-tensioned supports, ensuring high rigidity, low friction, and ultra-high positioning accuracy and repeatability over long periods of operation.
The standard configuration includes a 12-station hydraulic turret, enabling fast tool changes and precise positioning, significantly reducing non-machining time. An optional hydraulic tailstock perfectly supports the machining of long shaft parts, enabling automated production.
Automatic lubrication of key components and an efficient cutting fluid cooling system ensure long-term stable operation and workpiece quality.
The standard configuration includes a renowned domestic brand, GSK systems. Internationally renowned systems from Siemens, Fanuc, and Mitsubishi are also available.
Advantages Of CNC Slant Bed Lathe BR570
- The slant bed lathe adopts the turret method, which has fast tool changing speed and high positioning accuracy.
- Servo motor is used for feeding in X and Z directions，so as to ensure the positioning accuracy and repeated positioning accuracy.
- The CNC lathe adopts advanced centralized automatic lubricating device, regular quantitative automatic intermittent lubricating, stable and reliable work.
- CNC lathe adopts hydraulic chuck.
- The hydraulic tailstock is manually adjusted and locked, and the hydraulic piston pushes the workpiece for processing.
- The BR-570 series is ideal for various industrial applications.
- To ensure precision and thermal stability, the head-stock, tailstock, and saddle all are mounted on the same plane at a 45˚ degree angle.
Product Main Technical Parameters:

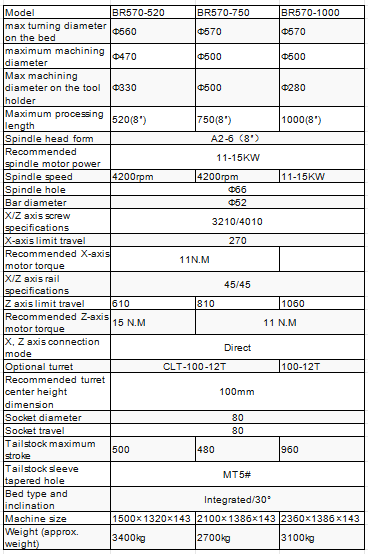

| Model | BR570-520 | BR570-750 | BR570-1000 |
| max turning diameter on the bed | Φ560 | Φ570 | Φ570 |
| maximum machining diameter | Φ470 | Φ500 | Φ500 |
| Max machining diameter on the tool holder | Φ330 | Φ500 | Φ280 |
| Maximum processing length | 520(8″) | 750(8″) | 1000(8″) |
| Spindle head form | A2-6（8″） | A2-6（8″） | A2-6（8″） |
| Recommended spindle motor power | 11-15KW | 11-15KW | 11-15KW |
| Spindle speed | 4200rpm | 4200rpm | 11-15KW |
| Spindle hole diameter | Φ66 | Φ66 | Φ66 |
| Bar diameter | Φ52 | Φ52 | Φ52 |
| X/Z axis screw specifications | 3210/4010 | 3210/4010 | 3210/4010 |
| X-axis limit travel | 270 | 270 | 270 |
| Recommended X-axis motor torque | 11N.M | 11N.M | Φ52 |
| X/Z axis rail specifications | 45/45 | 45/45 | 45/45 |
| Z axis limit travel | 610 | 810 | 1060 |
| Recommended Z-axis motor torque | 15 N.M | 11 N.M | 11 N.M |
| X, Z axis connection mode | Direct | Direct | Direct |
| Optional turret | CLT-100-12T | CLT-100-12T | 100-12T |
| Recommended turret center height dimension | 100mm | 100mm | 100mm |
| Socket diameter | 80 | 80 | 80 |
| Socket travel | 80 | 80 | 80 |
| Tailstock maximum stroke | 500 | 480 | 960 |
| Tailstock sleeve tapered hole | MT5# | MT5# | MT5# |
| Bed type and inclination | Integrated/30° | Integrated/30° | Integrated/30° |
| Machine size（L * W * H) | 1500×1320×1438 | 2100×1386×1435 | 2360×1386×1435 |
| Weight (approx. weight) | 3400kg | 2700kg | 3100kg |
