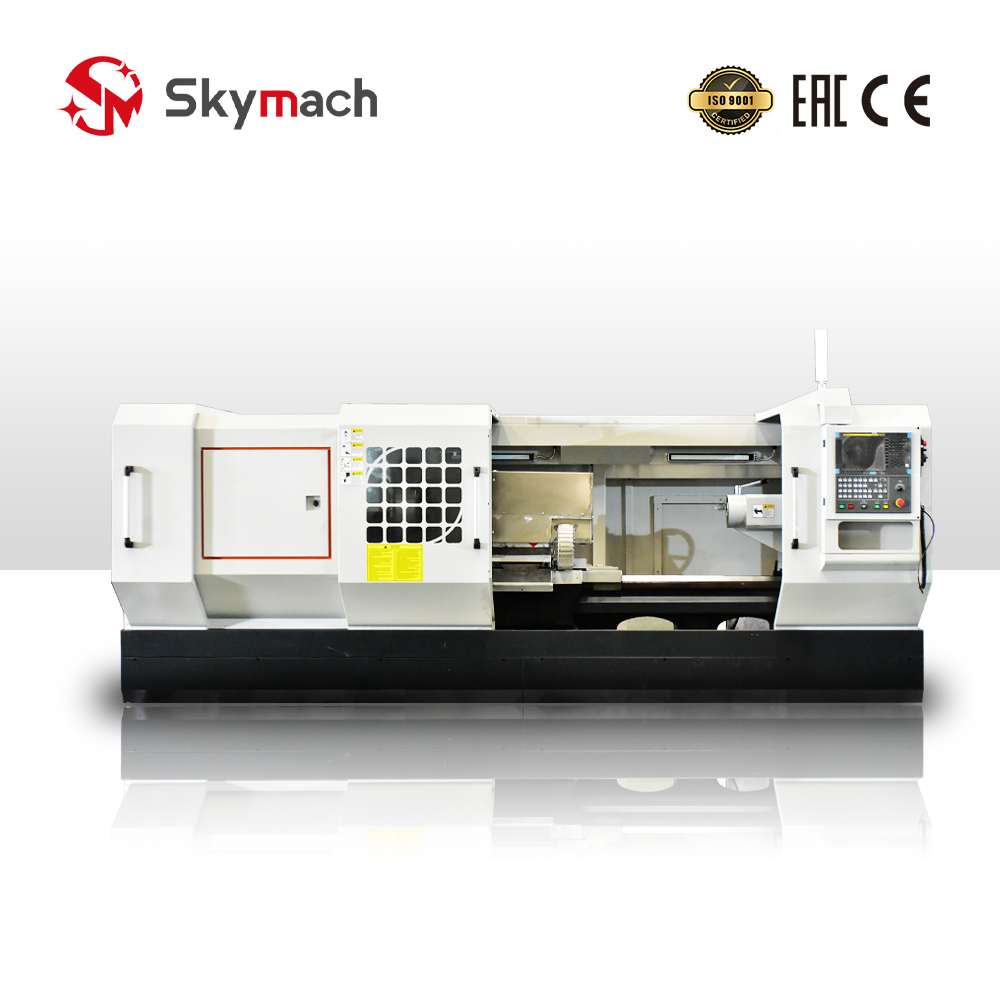

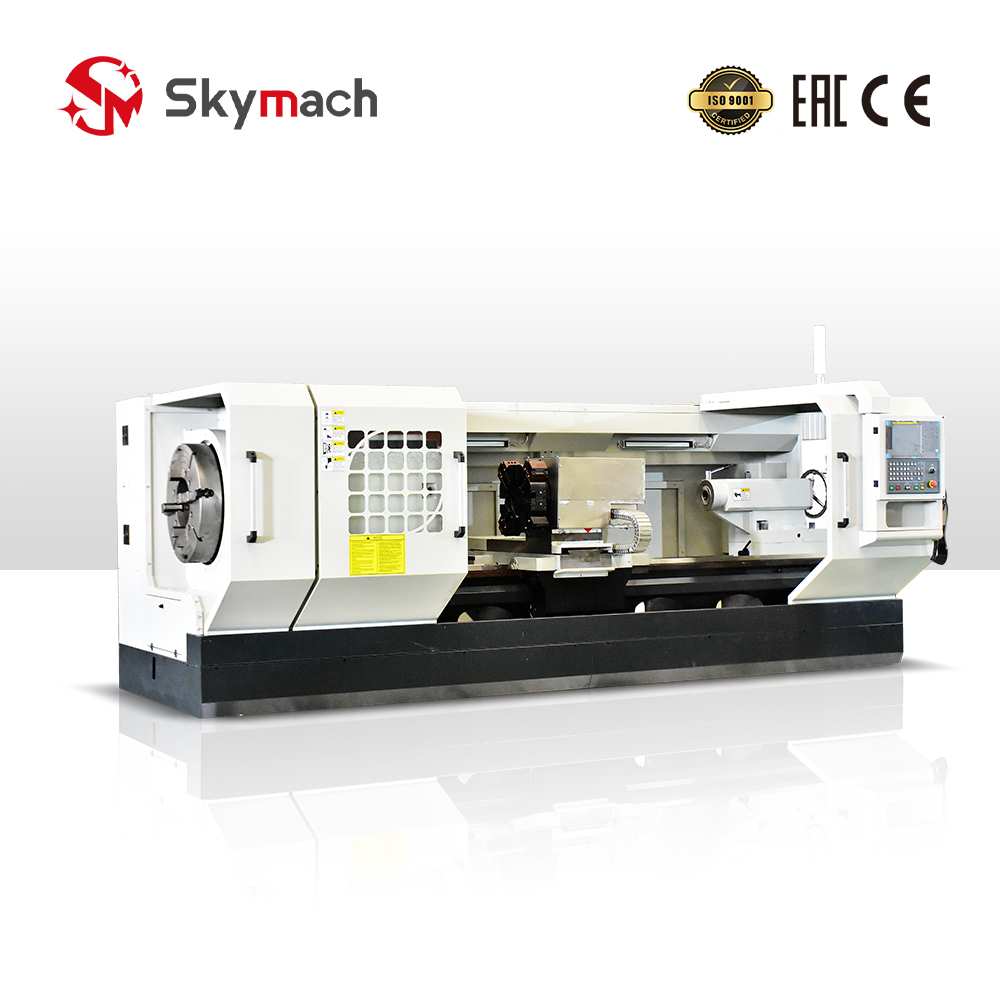

Pipe Thread Lathe QK1313
Pipe Thread Lathe QK1313
Advantages Of CNC Flat Bed Lathe Machine：
- Big spindle bore and double chuck allows clamp and process big diameter pipes;
- Integral machine bed adopts high strength iron to realize high rigidity and precision;
- Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;
- Set up self lubrication system, and easy to maintain.
- Carriage and guide way contact surface pasted with Turcite B to maintain long-term accuracy.
- With high power, capable of heavy-duty powerful cutting.
- The ground center frame can be moved freely according to the user’s needs, and the center frame is equipped with a long tube clamping and adjusting mechanism, thus greatly reducing the labor intensity.

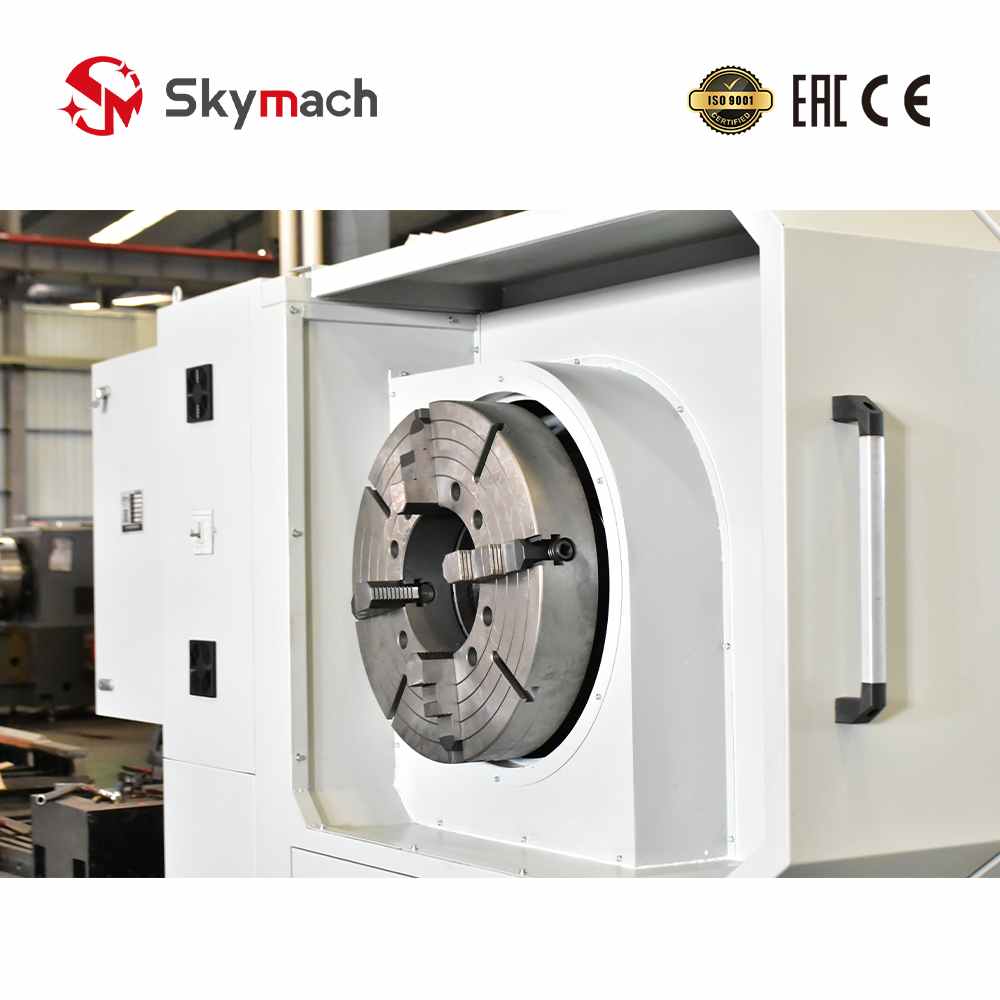

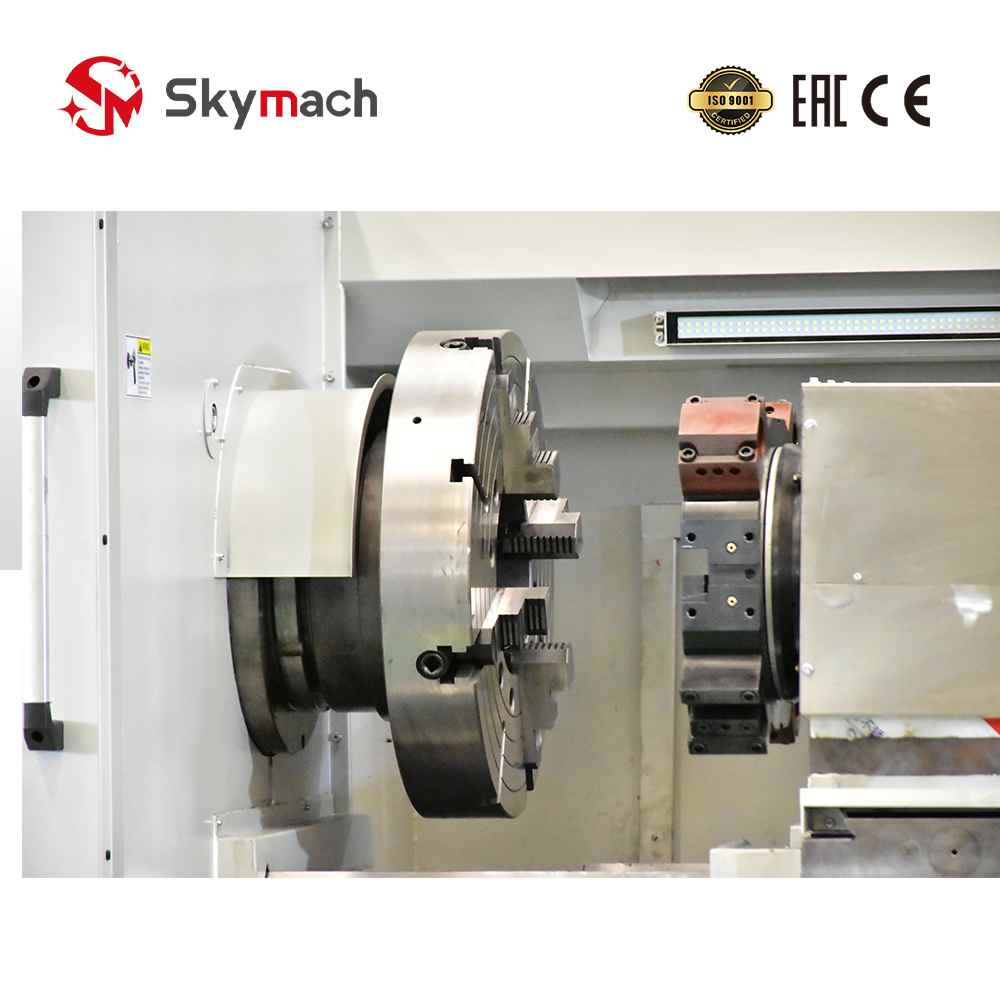

- There are chucks at the front and back of the head box, which are suitable for the desired clamping of long and short pipes.

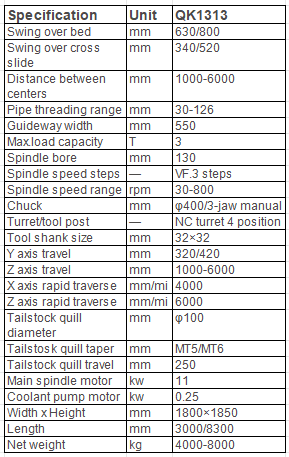

Product Main Technical Parameters:
| Specification | QK1313 | |
|---|---|---|
| Swing over bed | mm | 630/800 |
| Swing over cross slide | mm | 340/520 |
| Distance between centers | mm | 1000-6000 |
| Pipe threading range | mm | 30-126 |
| Guideway width | mm | 550 |
| Max.load capacity | T | 3 |
| Spindle bore | mm | 130 |
| Spindle speed steps | — | VF.3 steps |
| Spindle speed range | rpm | 30-800 |
| Chuck | mm | φ400/3-jaw manual |
| Turret/tool post | — | NC turret 4 position |
| Tool shank size | mm | 32×32 |
| Y axis travel | mm | 320/420 |
| Z axis travel | mm | 1000-6000 |
| X axis rapid traverse | mm/min | 4000 |
| Z axis rapid traverse | mm/min | 6000 |

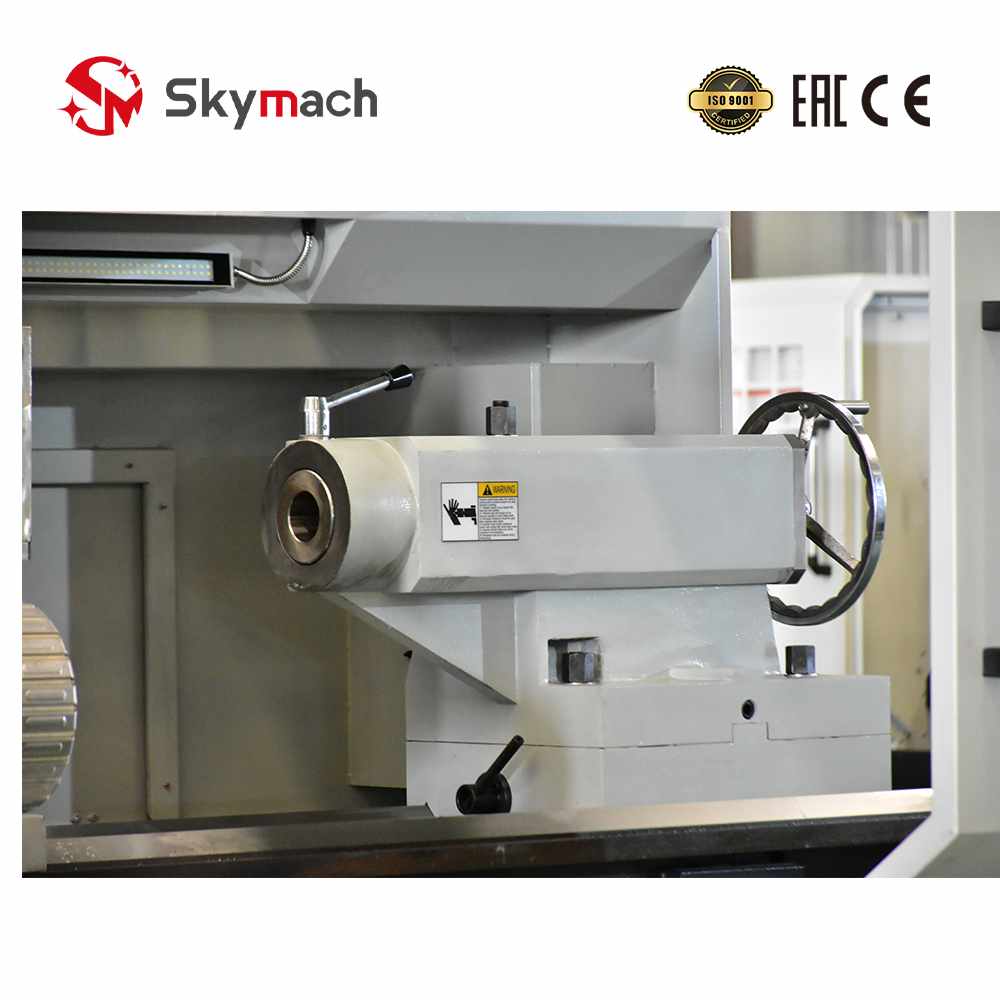

| Tailstock quill diameter | mm | φ100 |
| Tailstosk quill taper | mm | MT5/MT6 |
| Tailstock quill travel | mm | 250 |
| Main spindle motor | kw | 11 |
| Coolant pump motor | kw | 0.25 |
| Width x Height | mm | 1800×1850 |
| Length | mm | 3000/8300 |
| Net weight | kg | 4000-8000 |
Product Main Technical Parameters:
Video Display
FAQS
Do You Have Your Own Factory?
Yes. Our factory was established in Tengzhou in 2015 with advanced production technology. You are welcome to visit our factory at any time.
Do you provide technical support for the CNC equipment purchased?
Yes! We have 10 engineers available online 24/7 to provide technical support and guidance.
Where Do You Ship the Goods From?
Usually, shipments depart from the port of Qingdao, China, our port facility in Shanghai, or customers can arrange pickup directly from Shandong Province.
What Customization Options Can You Offer?
What Kind of Payment Methods Do You Accept?
The company supports bank T/T payments, PayPal, credit card payments, Western Union, and LC payments, along with other options.
What About After-Sales Service?
We have dedicated staff in Europe, Southeast Asia, Canada, South America, and other regions who can address your issues. They will respond to and resolve your after-sales service requests promptly.
