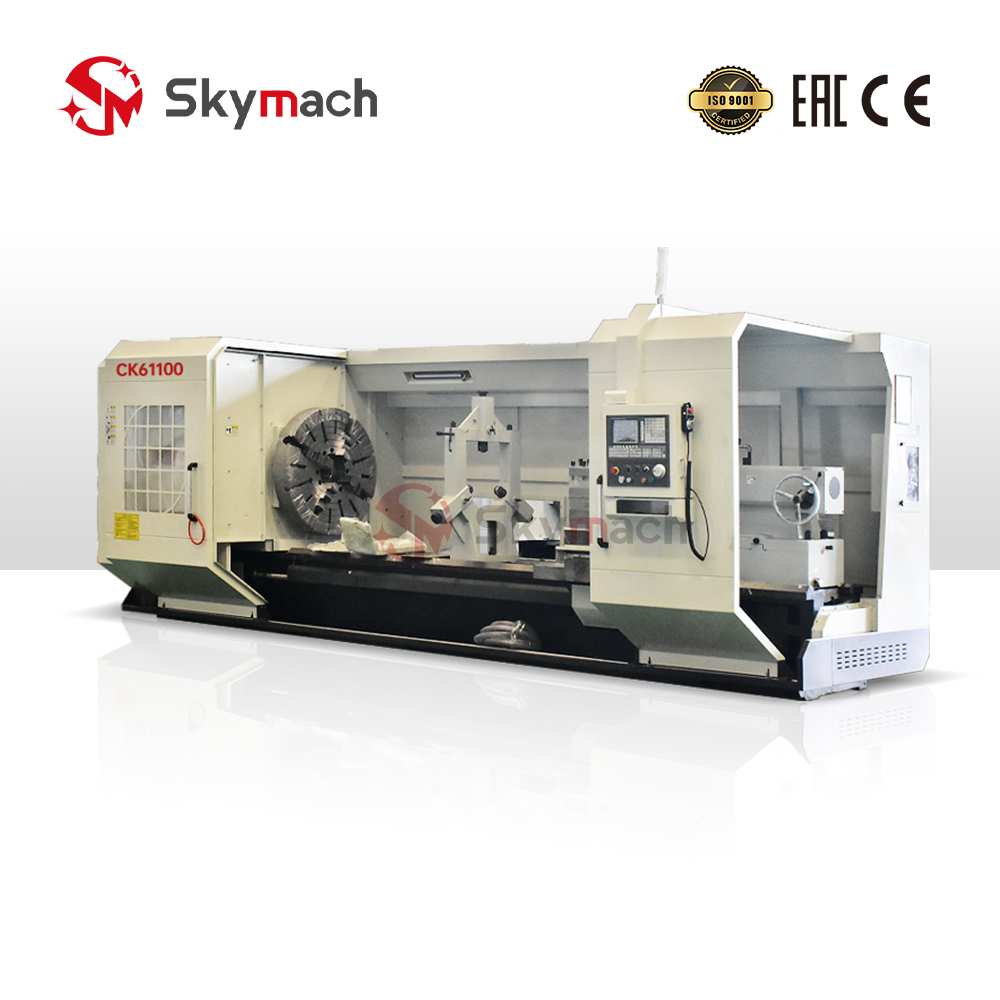

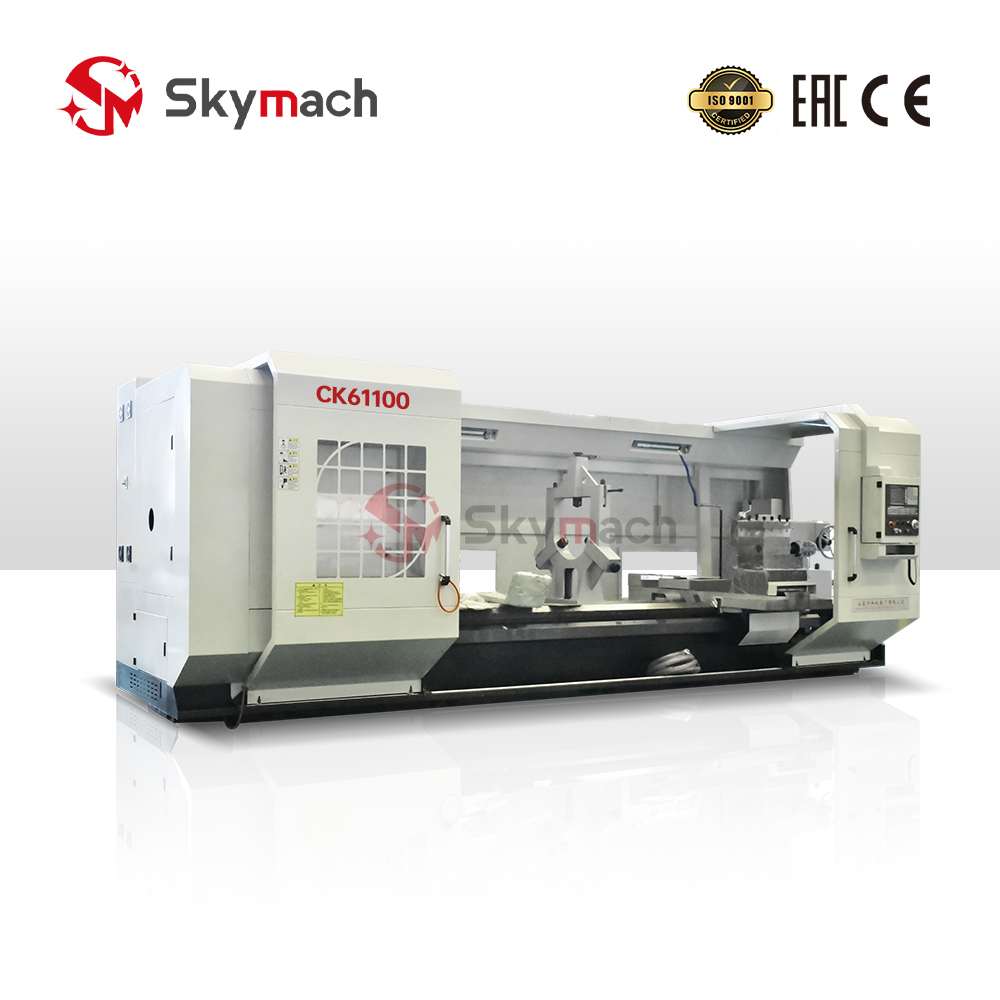

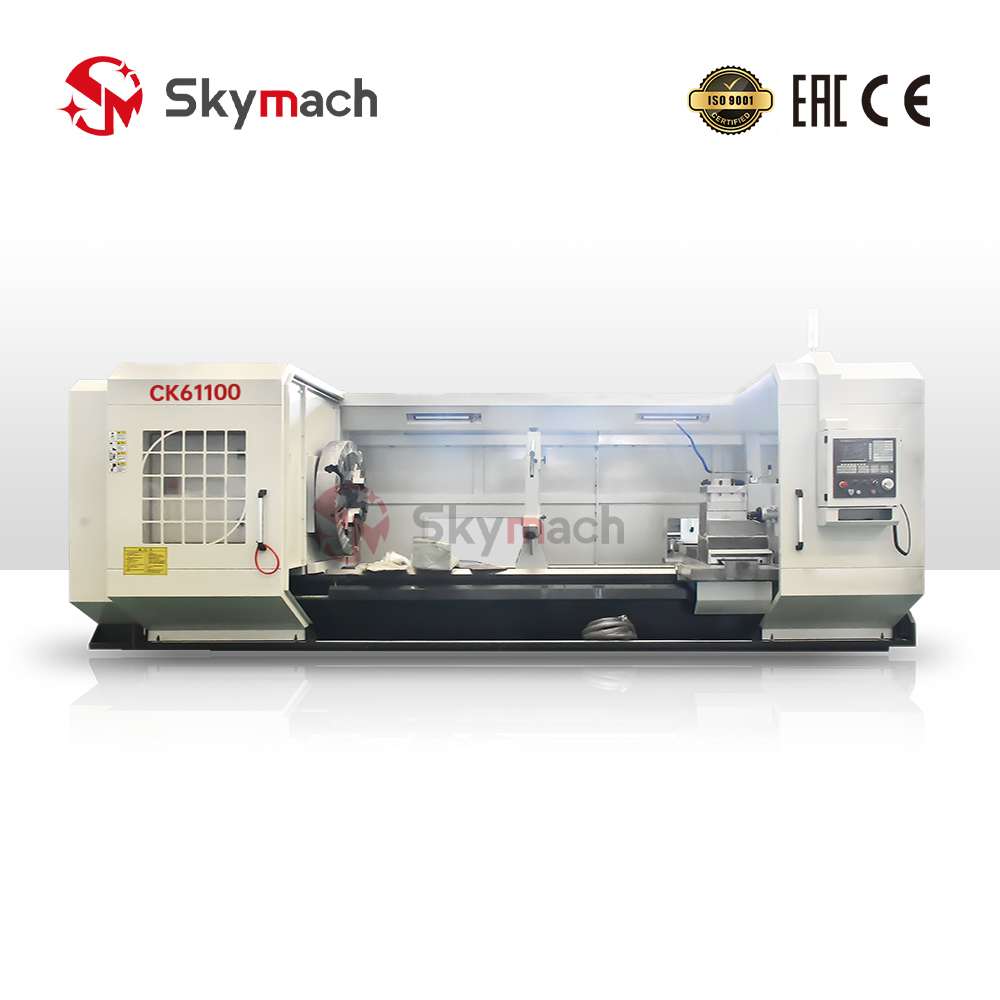

CNC Lathe Machine CK61100
Max.swing over bed: 1000mm
Model: CK61100
Polished ball screw spindles
Maintenance-friendly protective housing
Safety switch on front sliding door
High-quality preloaded ball screws
Precision workmanship
Braced machine bed made from cast-iron
Complex spindle bearing and Emergency-Stop push button
CNC system Standard: GSK, Optional: Siemens, Fanuc, Mitsubishi and others
Precise machining and central lubrication
Easy operation and low maintenance cost
Servo motor for X-axis and Z-axis as standard included

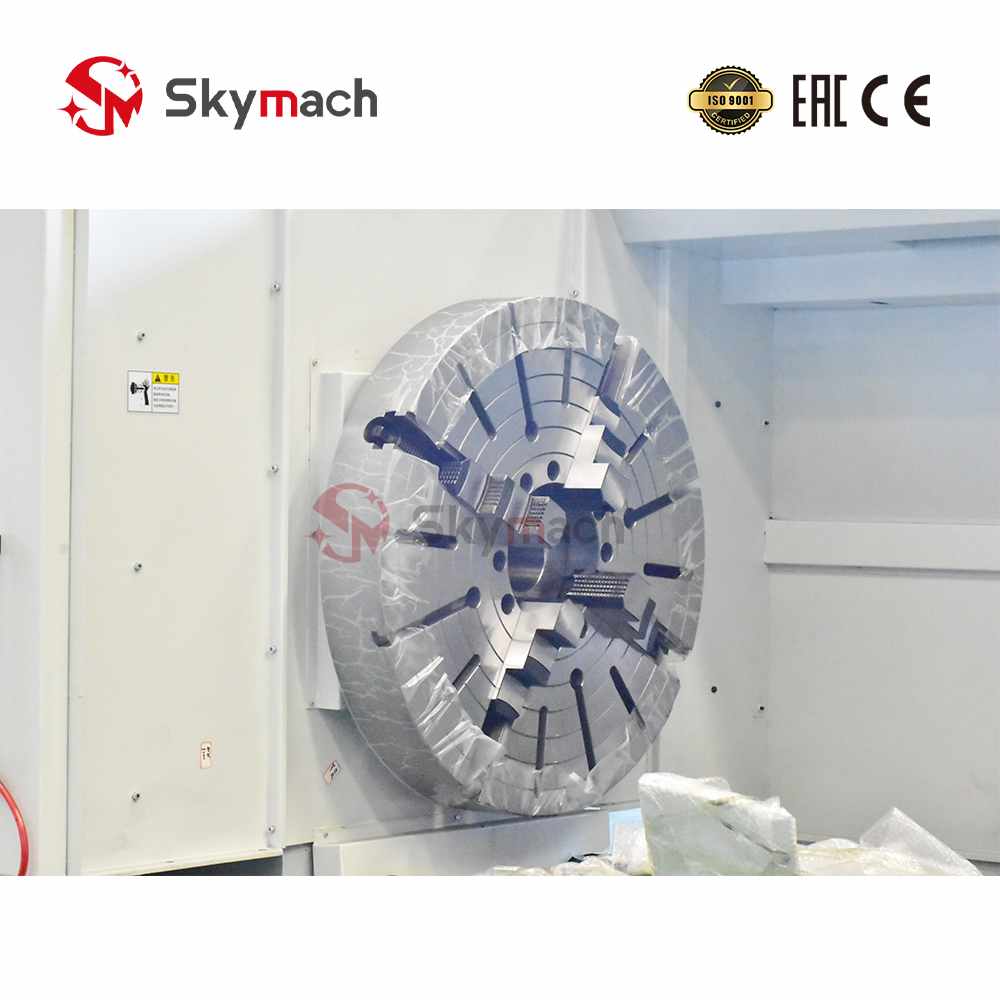

Manual 3-Jaw Chuck as standard included
Manual Tailstock as standard included
Standard 4-position electrical tool post included
Powerful frequency-conversion variable speed main motor as standard included
Stable AC Servo main motor is optional
CNC Lathe Machine CK61100
Max.swing over bed: 1000mm
Model: CK6163
Polished ball screw spindles
Maintenance-friendly protective housing
Safety switch on front sliding door
High-quality preloaded ball screws
Precision workmanship
Braced machine bed made from cast-iron
Complex spindle bearing and Emergency-Stop push button
CNC system Standard: GSK, Optional: Siemens, Fanuc, Mitsubishi and others
Precise machining and central lubrication
Easy operation and low maintenance cost
Servo motor for X-axis and Z-axis as standard included
Manual 3-Jaw Chuck as standard included
Manual Tailstock as standard included

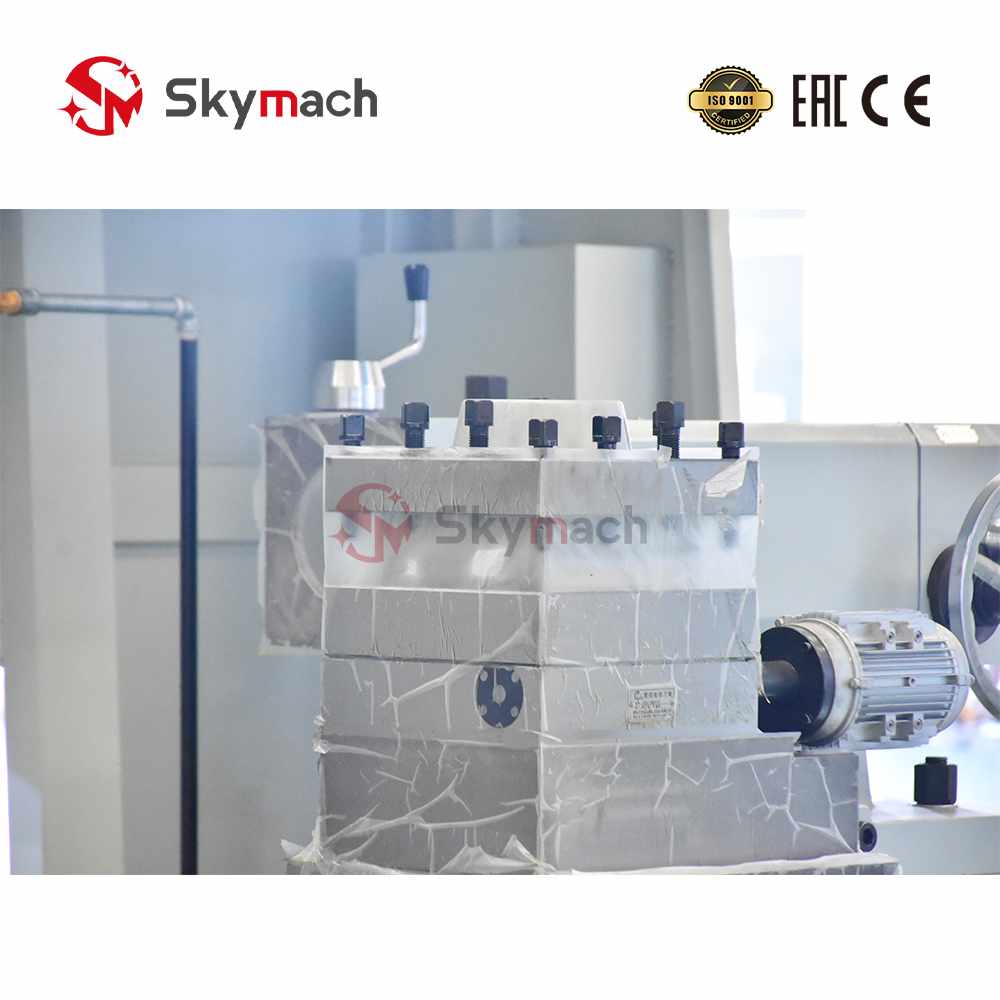

Standard 4-position electrical tool post included
Powerful frequency-conversion variable speed main motor as standard included
Stable AC Servo main motor is optional
Advantages Of CNC Flat Bed Lathe Machine CK61100：
- CK61100can automatically process the inside and outside cylinder surface, cone surface, circle arc surface, end face.
- CK61100can also turn the single and multiple threads in metric , inch and other standard.
- High rigidity pedestal and wider lay board are suitable for heavy cutting .
- Spindle adopts high precision rolling bearings high precision rotary plate aspect to adopt high precision ball screw transmission, good dynamic performance,precision positioning.
- The machine tool guide with wear-resistant cast iron and after the audio quenching, can ensure the long-term stability ofprocessing accuracy.
- CK61100 delivers high productivity, accuracy and exceptional surface finish.
- CK61100 CNC lathe are designed with stability and rigidity in mind to assure optimal stability when performing heavy – duty cutting.
- This machine is widely used in parts processing and manufacturing

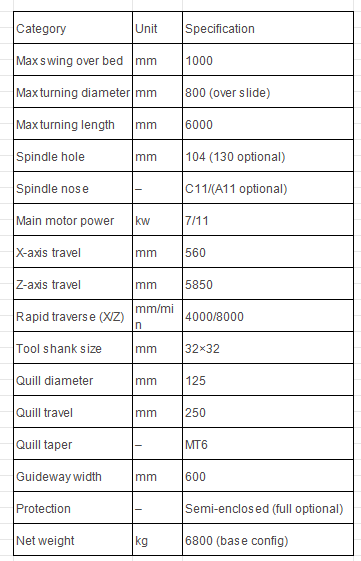

Product Main Technical Parameters:
Category | Specification | Unit |
Max swing over bed | 1000 | mm |
Max turning diameter | 800 (over slide) | mm |
Max turning length | 6000 | mm |
Spindle hole | 104 (130 optional) | mm |
Spindle nose | C11/(A11 optional) | – |
Main motor power | 7/11 | kw |
X-axis travel | 560 | mm |
Z-axis travel | 5850 | mm |
Rapid traverse (X/Z) | 4000/8000 | mm/min |
Tool shank size | 32×32 | mm |
Quill diameter | 125 | mm |
Quill travel | 250 | mm |
Quill taper | MT6 | – |
Guideway width | 600 | mm |
Protection | Semi-enclosed (full optional) | – |
Net weight | 6800 (base config) | kg |
Product Main Technical Parameters:
FAQS
Do You Have Your Own Factory?
Yes. Our factory was established in Tengzhou in 2015 with advanced production technology. You are welcome to visit our factory at any time.
Do you provide technical support for the CNC equipment purchased?
Yes! We have 10 engineers available online 24/7 to provide technical support and guidance.
Where Do You Ship the Goods From?
Usually, shipments depart from the port of Qingdao, China, our port facility in Shanghai, or customers can arrange pickup directly from Shandong Province.
What Customization Options Can You Offer?
What Kind of Payment Methods Do You Accept?
The company supports bank T/T payments, PayPal, credit card payments, Western Union, and LC payments, along with other options.
What About After-Sales Service?
We have dedicated staff in Europe, Southeast Asia, Canada, South America, and other regions who can address your issues. They will respond to and resolve your after-sales service requests promptly.
