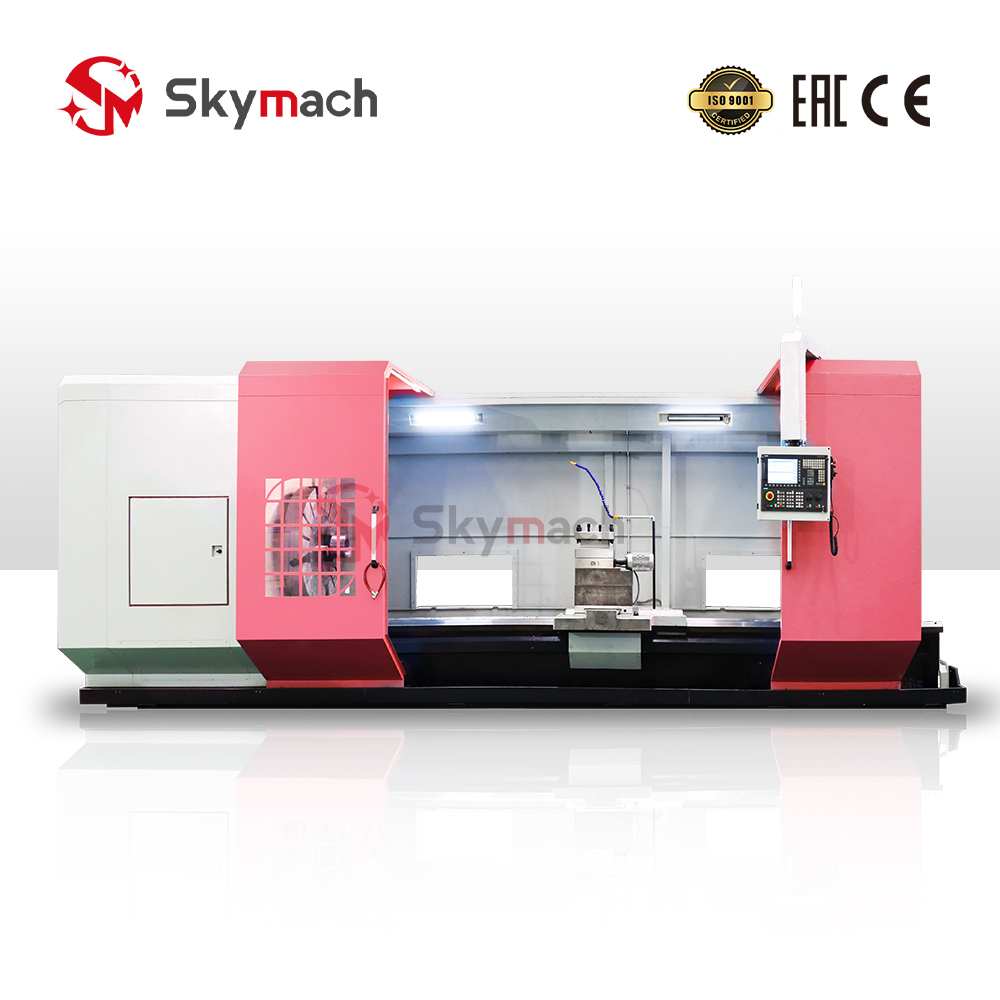

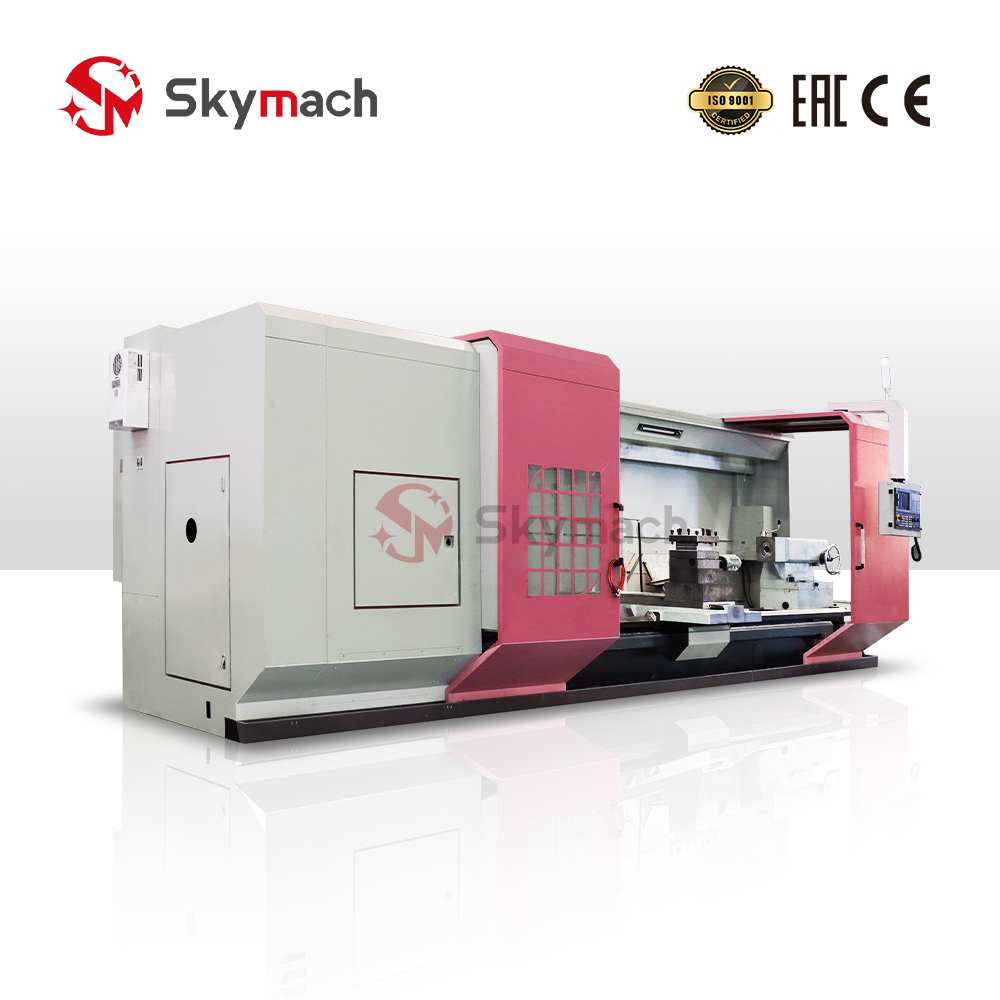

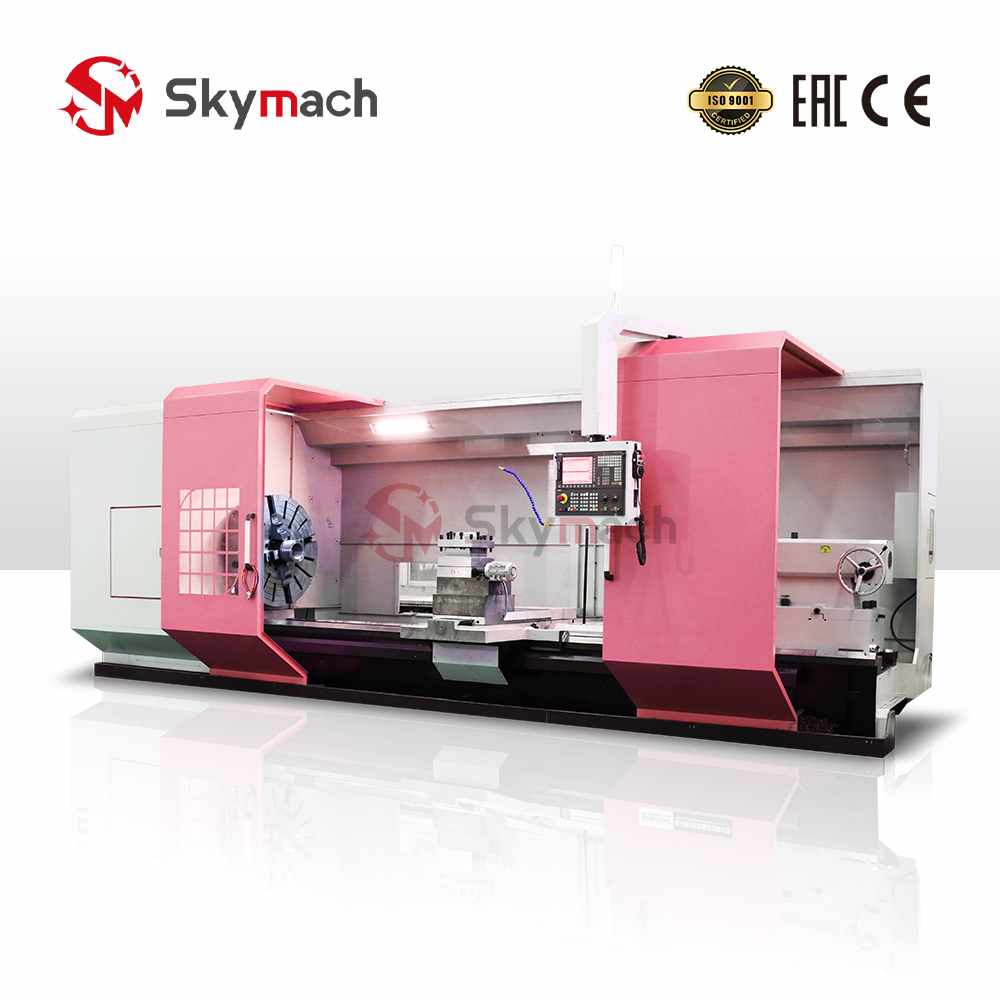

CNC Lathe Machine CK61125
X/Z Axis travel:620/1500-10000
Model: CK61125
Polished ball screw spindles
Maintenance-friendly protective housing
Safety switch on front sliding door
High-quality preloaded ball screws
Precision workmanship
Braced machine bed made from cast-iron
Complex spindle bearing and Emergency-Stop push button
CNC system Standard: GSK, Optional: Siemens, Fanuc, Mitsubishi and others
Precise machining and central lubrication
Easy operation and low maintenance cost
Servo motor for X-axis and Z-axis as standard included
Manual 3-Jaw Chuck as standard included
Manual Tailstock as standard included
Standard 4-position electrical tool post included
Powerful frequency-conversion variable speed main motor as standard included
Stable AC Servo main motor is optional
CK61125 CNC Lathe Machine
X/Z Axis travel:620/1500-10000
Model: CK61125
Polished ball screw spindles
Maintenance-friendly protective housing
Safety switch on front sliding door
High-quality preloaded ball screws
Precision workmanship
Braced machine bed made from cast-iron
Complex spindle bearing and Emergency-Stop push button
CNC system Standard: GSK, Optional: Siemens, Fanuc, Mitsubishi and others
Precise machining and central lubrication
Easy operation and low maintenance cost
Servo motor for X-axis and Z-axis as standard included
Manual 3-Jaw Chuck as standard included
Manual Tailstock as standard included
Standard 4-position electrical tool post included
Powerful frequency-conversion variable speed main motor as standard included
Stable AC Servo main motor is optional
Advantages Of CNC Flat Bed Lathe Machine：
- CK61125can automatically process the inside and outside cylinder surface, cone surface, circle arc surface, end face.
- CK61125can also turn the single and multiple threads in metric , inch and other standard.
- Spindle adopts high precision rolling bearings high precision rotary plate aspect to adopt high precision ball screw transmission, good dynamic performance,precision positioning.
- The machine tool guide with wear-resistant cast iron and after the audio quenching, can ensure the long-term stability ofprocessing accuracy.
- CK61125 delivers high productivity, accuracy and exceptional surface finish.
- CK61125 CNC lathe are designed with stability and rigidity in mind to assure optimal stability when performing heavy – duty cutting.
- This machine is widely used in parts processing and manufacturing

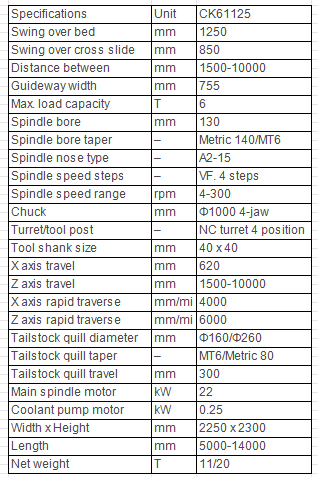

Product Main Technical Parameters:
SPECIFICATION | UNIT | CK61125 |
Swing over bed | mm | 1250 |
Swing over cross slide | mm | 850 |
Distance between centers | mm | 1500-10000 |
Guideway width | mm | 755 |
Max. load capacity | T | 6 |
Spindle bore | mm | 130 |
Spindle bore taper | – | Metric 140/MT6 |
Spindle nose type | – | A2-15 |
Spindle speed steps | – | VF. 4 steps |
Spindle speed range | rpm | 4-300 |

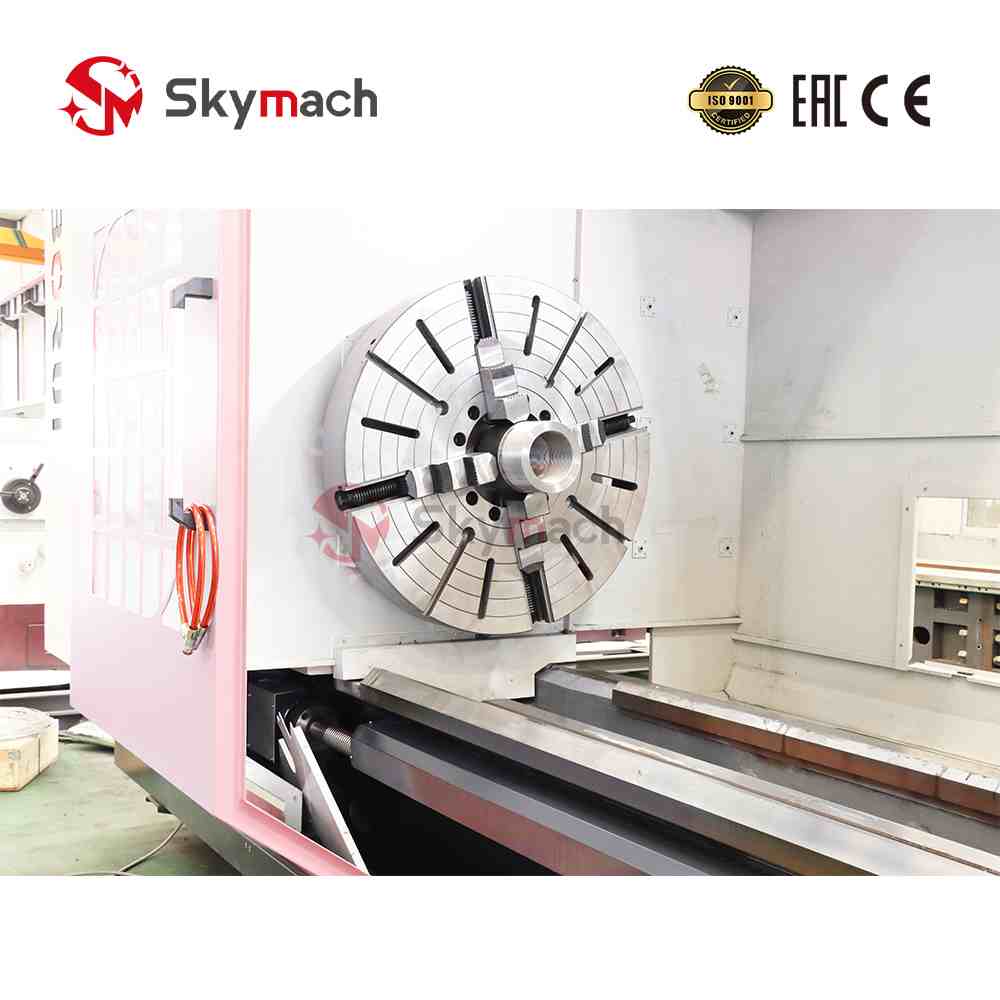

Chuck | mm | Φ1000 4-jaw manual |
Turret/tool post | – | NC turret 4 position |
Tool shank size | mm | 40 x 40 |
X axis travel | mm | 620 |
Z axis travel | mm | 1500-10000 |
X axis rapid traverse | mm/min | 4000 |
Z axis rapid traverse | mm/min | 6000 |
Tailstock quill diameter | mm | Φ160/Φ260 |
Tailstock quill taper | – | MT6/Metric 80 |
Tailstock quill travel | mm | 300 |
Main spindle motor | kW | 22 |
Coolant pump motor | kW | 0.25 |
Width x Height | mm | 2250 x 2300 |
Length | mm | 5000-14000 |
Net weight | T | 11-20 |
Product Main Technical Parameters:
