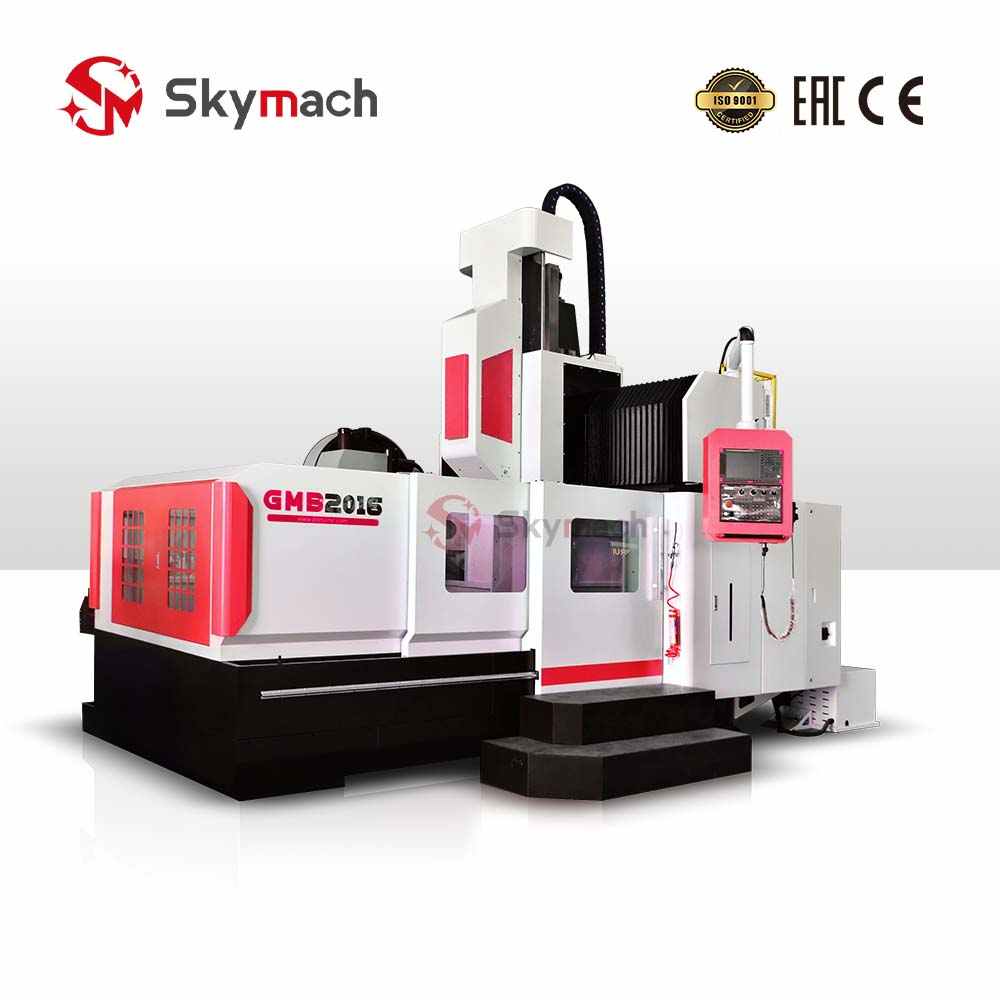

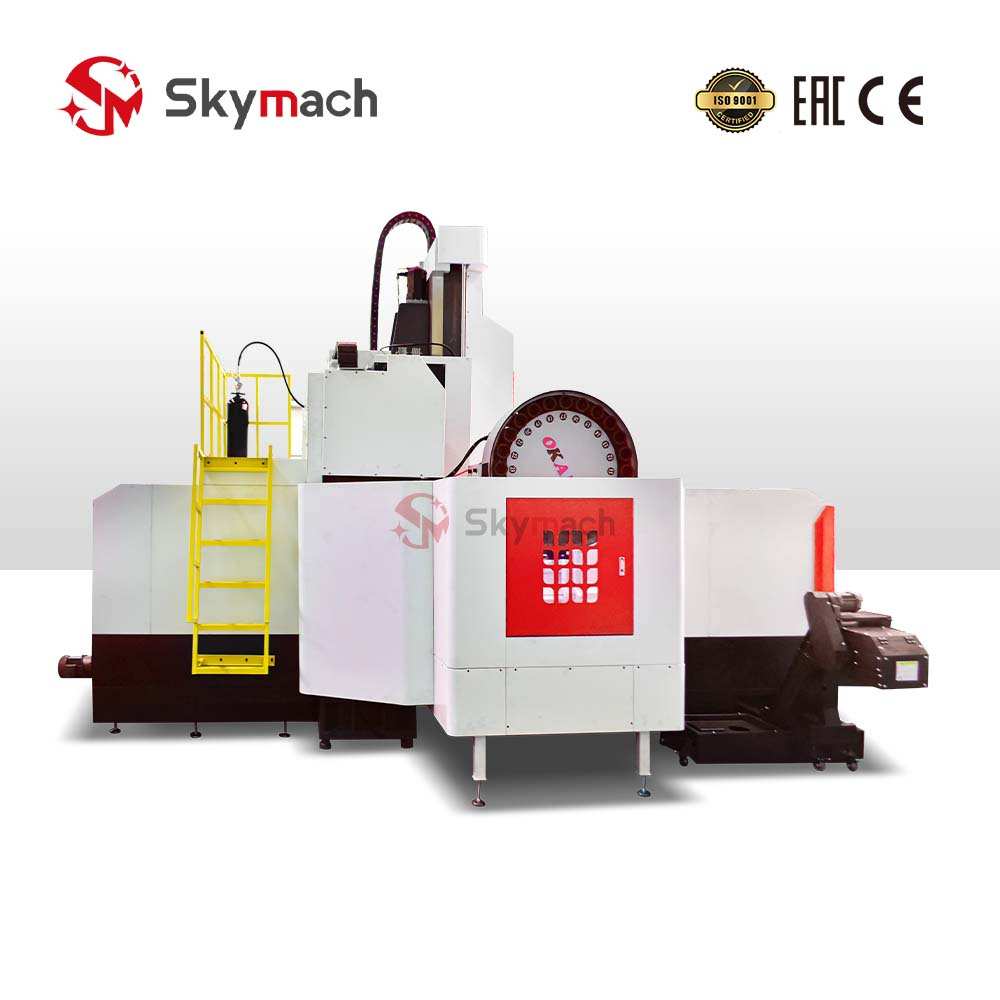

CNC Gantry Machining Center GMB2016
System：GSK/KND/SIEMENS /FANUC /MITSUBISHI
Tool change：OKADA (Taiwan)/DETA /HDW

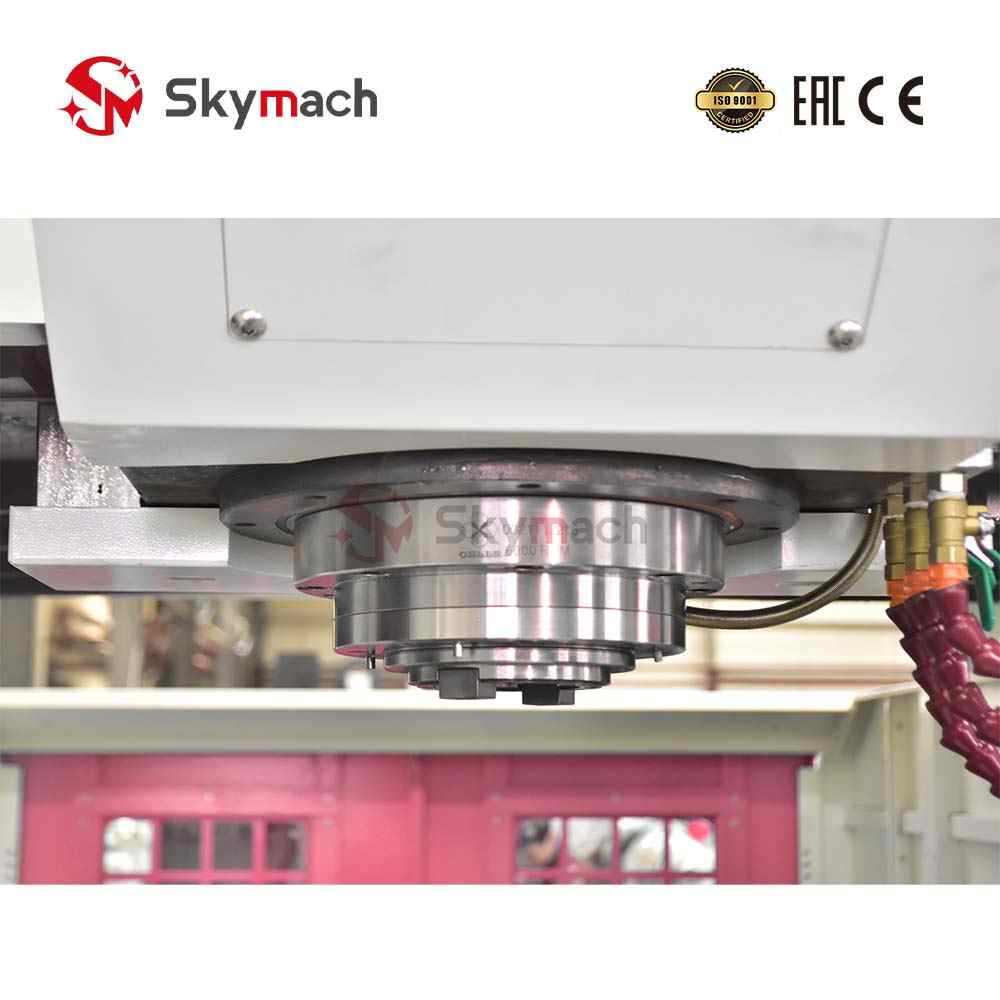

Spindle UNIT ：TaiWan Posa/ Taiwan VOLIS / Roral
X/Y/Z BALL SCREW：Hiwin/PMI
Pneumatic element：AirTAC(Taiwan)
Unclamping cylinder：Hao cheng (Taiwan)
Auto oil lubricator：Hu run (Taiwan)/Japanese HERG
Screw Bearing：TPI (Taiwan brand)/NSK/SKF
Three axis motor：Unit with the cnc controller
Cooling the pump：PMY-25-5
Lubrication system：Single wire damping
Optional accessories:
Dividing Head Automatic chip conveyor
Clamping kits Flat vice
Spindle speed above 12000rpm (Spindle directly contact)
Centering 65mm +seperate needle
Z axis Indictor Spindle 10000rpm
The spindle out the water itself +oil-water separator
CNC Gantry Machining Center GMB2016
System：GSK/KND/SIEMENS /FANUC /MITSUBISHI
Tool change：OKADA (Taiwan)/DETA /HDW
Spindle UNIT ：TaiWan Posa/ Taiwan VOLIS / Roral
X/Y/Z BALL SCREW：Hiwin/PMI
Pneumatic element：AirTAC(Taiwan)
Unclamping cylinder：Hao cheng (Taiwan)
Auto oil lubricator：Hu run (Taiwan)/Japanese HERG
Screw Bearing：TPI (Taiwan brand)/NSK/SKF
Three axis motor：Unit with the cnc controller
Cooling the pump：PMY-25-5
Lubrication system：Single wire damping
Optional accessories:
Dividing Head Automatic chip conveyor
Clamping kits Flat vice
Spindle speed above 12000rpm (Spindle directly contact)
Centering 65mm +seperate needle
Z axis Indictor Spindle 10000rpm
The spindle out the water itself +oil-water separator
Advantages Of CNC Gantry Machining Center GMB2016
- The machine tool is high-quality cast iron. An aging treatment eliminates stress. It suppresses deformation and vibration from cutting forces. The layout is reasonable.
- The machine tool has a moving column gantry structure. It has a large stroke but a small footprint. This saves workshop space for customers.
- The processing of key parts of the machine tool is processed by advanced equipment. First-class equipment ensures precise machining of machine tool parts. It is vital to the machine tools’ performance.
- The machine tool has high machining accuracy and long-term precision. Its workpieces are consistent. This is due to its advanced design and perfect processes.

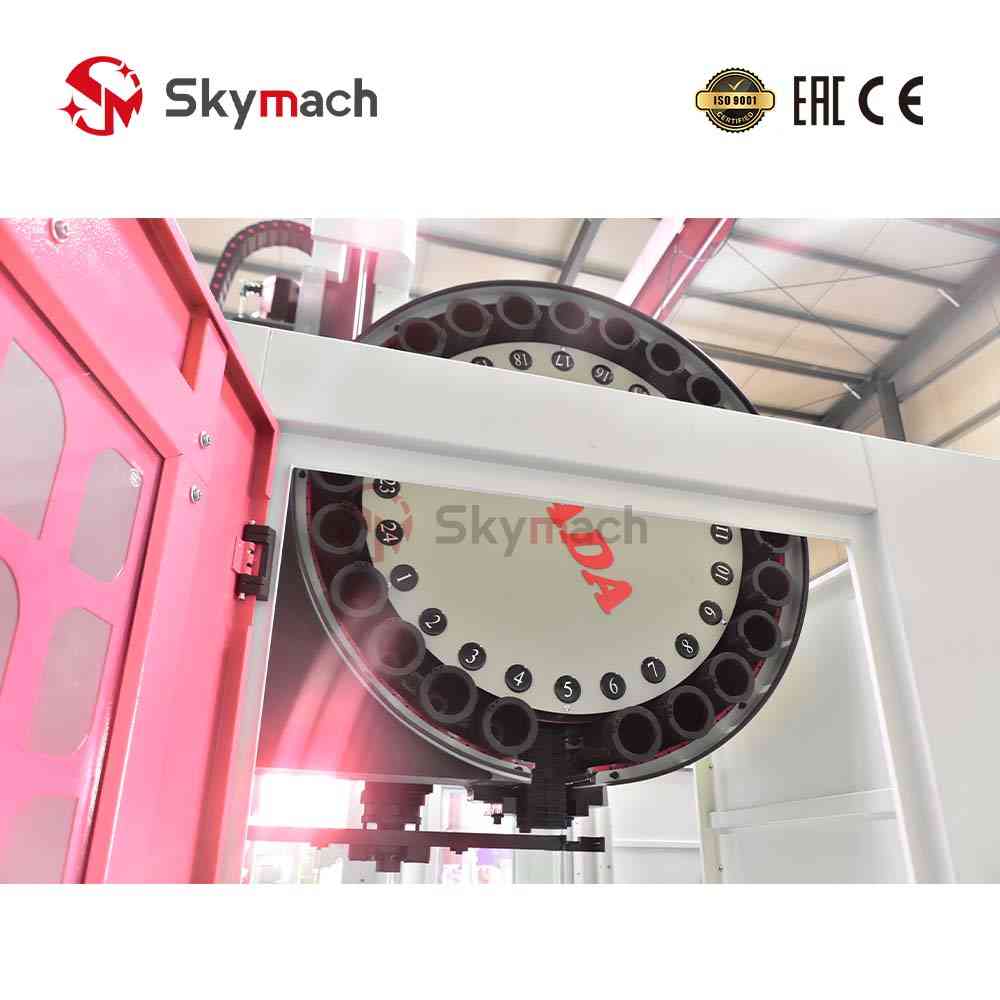

- Using Taiwan famous brand tool magazine, tool change is stable and durable.
- Optional SIEMENS, KND, FANUC, MITSUBISHI, GSK and other domestic and foreign operating systems.
- The bed worktable and other large parts, including the columns, beams, saddles, and spindle boxes, are all cast with high-strength iron and resin sand technology. These large pieces are designed with 3D software. The rib plate design improves their rigidity.
- The machine tool uses a mechatronics design. Its layout is compact and reasonable. It operates cheaply. The centralized control panel is easy to maintain.

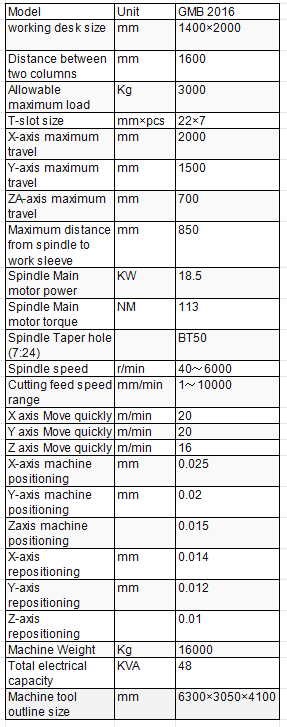

Product Main Technical Parameters:
| Model | Unit | GMB 2016 |
| working desk size | mm | 1400×2000 |
| Distance between two columns | mm | 1600 |
| Allowable maximum load | Kg | 3000 |
| T-slot size | mm×pcs | 22×7 |
| X-axis maximum travel | mm | 2000 |
| Y-axis maximum travel | mm | 1500 |
| ZA-axis maximum travel | mm | 700 |
| Maximum distance from spindle to work sleeve | mm | 850 |
| Spindle Main motor power | KW | 18.5 |
| Spindle Main motor torque | NM | 113 |
| Spindle Taper hole (7:24) | BT50 | |
| Spindle speed range | r/min | 40～6000 |
| Cutting feed speed range | mm/min | 1～10000 |
| X axis Move quickly | m/min | 20 |
| Y axis Move quickly | m/min | 20 |
| Z axis Move quickly | m/min | 16 |
| X-axis machine positioning | mm | 0.025 |
| Y-axis machine positioning | mm | 0.02 |
| Zaxis machine positioning | 0.015 | |
| X-axis repositioning accuracy | mm | 0.014 |
| Y-axis repositioning accuracy | mm | 0.012 |
| Z-axis repositioning accuracy | 0.01 | |
| Machine Weight | Kg | 16000 |
| Total electrical capacity | KVA | 48 |
| Machine tool outline size | mm | 6300×3050×4100 |
Product Main Technical Parameters:
