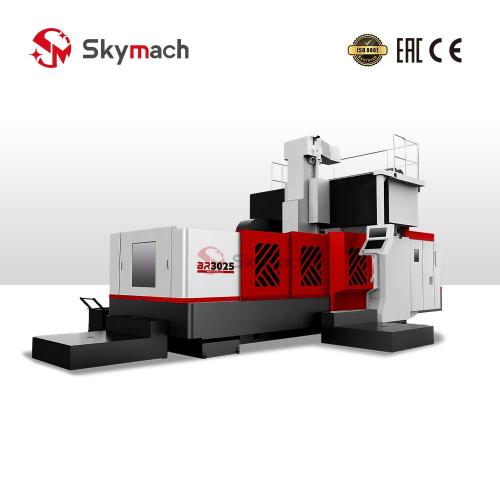

CNC Gantry Machining Center BR3025
High-strength resin sand casting structure for stability
BT50/φ190 heavy-duty spindle with high cutting torque
Optional belt drive, gear head, or ZF gearbox (6000 rpm)
Z-axis box way design, X/Y linear guideways (linear way 55)
Servo motor direct drive on all three axes
Precision-grade ball screws with large pitch
Fanuc, Siemens, Mitsubishi, GSK, KND optional CNC systems
Centralized automatic lubrication system
Spindle cone air cleaning system
LED work light and external air gun
Manual or optional automatic hydraulic balancing
Electric cabinet cooling system
Complete documentation and foundation accessories included
Heavy-duty structure for metal, mold, and tooling applications
CNC Gantry Machining Center BR3025
High-strength resin sand casting structure for stability
BT50/φ190 heavy-duty spindle with high cutting torque
Optional belt drive, gear head, or ZF gearbox (6000 rpm)
Z-axis box way design, X/Y linear guideways (linear way 55)
Servo motor direct drive on all three axes
Precision-grade ball screws with large pitch
Fanuc, Siemens, Mitsubishi, GSK, KND optional CNC systems
Centralized automatic lubrication system
Spindle cone air cleaning system
LED work light and external air gun
Manual or optional automatic hydraulic balancing
Electric cabinet cooling system
Chip storage tank included
Complete documentation and foundation accessories included
Heavy-duty structure for metal, mold, and tooling applications
Advantages Of CNC Gantry Machining Center BR3025 :
- The BR3025 is a high-precision CNC gantry machining center designed for heavy-duty and large-part metalworking. It features a large working area of 1600×3200 mm, combined with 3-axis travel of 3200 mm (X), 2000 mm (Y), and 800 mm (Z), making it ideal for mold processing, mechanical part machining, and complex structural components.
- Equipped with a BT50 spindle and optional ZF gear or belt spindle drive, it reaches speeds up to 6000 rpm. Its robust structure and powerful 24 kW spindle motor allow stable cutting performance.
- The machine utilizes a direct-drive servo system on all three axes and combines linear guideways on X/Y and box way on the Z-axis for high dynamic stability and rigidity.
- This gantry-type machine supports various control systems (Fanuc, Siemens, Mitsubishi, etc.) and offers an optional automatic hydraulic balance system, centralized lubrication, and multiple user-friendly features to improve precision, ease of use, and operational efficiency.
Product Main Technical Parameters:
| Model | BR3025 |
| Worktable size (width x length) (mm) | 2300x3000 |
| Worktable moving direction travel (X axis mm) | 3000 |
| Ram seat moving direction stroke (Y axis mm) | 2700 |
| Spindle up and down travel (Z axis mm) | 1000 |
| Gantry width(mm) | 2700 |
| Distance from spindle end to worktable surface (mm) | 280-1280 |
| Workbench T-slots (number-size x spacing) | 11-28x200 |
| Spindle specifications (model/installation diameter) | BT50/200mm |
| Belt Spindle drive mode | 6000r/min Transmission Ratio 1.5:1 (Optional 1:1) |
| ZF speed reducer + belt (optional) | 6000r/min Transmission Ratio 4:1 |
| Gear head Spindle drive mode(Weimass) | 6000r/min Transmission Ratio 4.4:1 |
| Rapid feed speed (m/min) | 10 |
| Cutting feed speed (m/min) | 16 |
| X;Y;Z axis ball screw specifications/pitch | X:8020, Y:6316, Z:5010 |
| X-axis: roller linear guide | 55/10; |
| Y-axis: roller linear guide | 55/4; |
| Z-axis: rectangular guide | |
| X-axis planetary gear transmission | 4:1, |
| Y-axis direct transmission | 1:1 |
| Z-axis direct transmission | 1:1 |
| Spindle motor | 22kw |
| X;Y;Z three-phase servo motor (N·m) | X:50;Y:40;Z:30(brake) |
| Optical machine dimensions (length x width x height) (mm) | 6550x5130x4130 |
| Workbench load-bearing capacity(t) | 10 |
| Optical machine weight (t) | 33 |
Product Main Technical Parameters:
