CNC Gantry Machining Center BR4022
Heavy-duty cast-iron construction with resin sand casting for rigidity and vibration resistance
Spindle options: Belt drive or ZF gearbox (optional ratio 4:1 or 5:1)
High-speed spindle: 6000 rpm BT50/φ200, suitable for large-part machining
Precision guideways: X/Y use wide linear ways; Z-axis uses box ways
Direct-drive servo motors on X, Y, and Z axes
Large travel capacity: Ideal for molds, plates, dies, and heavy steel parts
CNC control system options: FANUC, Siemens, Mitsubishi, GSK, etc.
Automatic centralized lubrication system
Cooling and chip removal: Electric cabinet heat exchanger, chip tank, and air gun
Standard equipment: LED work light, technical documentation, pad irons and bolts
Optional features: Automatic hydraulic balance system
CNC Gantry Machining Center BR4022
Heavy-duty cast-iron construction with resin sand casting for rigidity and vibration resistance
Spindle options: Belt drive or ZF gearbox (optional ratio 4:1 or 5:1)
High-speed spindle: 6000 rpm BT50/φ200, suitable for large-part machining
Precision guideways: X/Y use wide linear ways; Z-axis uses box ways
Direct-drive servo motors on X, Y, and Z axes
Large travel capacity: Ideal for molds, plates, dies, and heavy steel parts
CNC control system options: FANUC, Siemens, Mitsubishi, GSK, etc.
Automatic centralized lubrication system
Cooling and chip removal: Electric cabinet heat exchanger, chip tank, and air gun
Standard equipment: LED work light, technical documentation, pad irons and bolts
Optional features: Automatic hydraulic balance system
Advantages Of CNC Gantry Machining Center BR4022 :
- The BR4022 CNC Gantry Machining Center is a high-precision, heavy-duty machining solution engineered for large and complex metal components. Featuring a working table size of 2000×4000 mm and a generous XYZ travel of 4000×2200×1250 mm, it is suitable for industries requiring high rigidity and accuracy such as mold manufacturing, aerospace, and heavy machinery.
- It comes equipped with a BT50 spindle (φ200 mm) and a spindle speed of up to 6000 rpm, with optional belt or ZF gearbox drive. The machine adopts a box way structure on the Z-axis and linear rails on the X and Y axes, ensuring long-term precision and load-bearing stability. Its servo motors directly drive the XYZ axes for smooth and responsive performance.
- This machine supports a variety of CNC systems like Fanuc, Siemens, or Mitsubishi and offers extensive features for reliable and efficient metal cutting operations.
Product Main Technical Parameters:

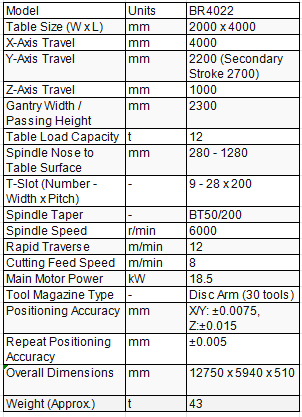

| Technical Specifications | Units | BR4022 |
| Table Size (W x L) | mm | 2000 x 4000 |
| X-Axis Travel | mm | 4000 |
| Y-Axis Travel | mm | 2200 (Secondary Stroke 2700) |
| Z-Axis Travel | mm | 1000 |
| Gantry Width / Passing Height | mm | 2300 |
| Table Load Capacity | t | 12 |
| Spindle Nose to Table Surface | mm | 280 - 1280 |
| T-Slot (Number - Width x Pitch) | - | 9 - 28 x 200 |
| Spindle Taper | - | BT50/200 |
| Spindle Speed | r/min | 6000 |
| Rapid Traverse Speed | m/min | 12 |
| Cutting Feed Speed | m/min | 8 |
| Main Motor Power | kW | 18.5 |
| Tool Magazine Type | - | Disc Arm (30 tools) |
| Positioning Accuracy | mm | X/Y: ±0.0075, Z: ±0.015 |
| Repeat Positioning Accuracy | mm | ±0.005 |
| Overall Dimensions (L x W x H) | mm | 12750 x 5940 x 510 |
| Weight (Approx.) | t | 43 |
