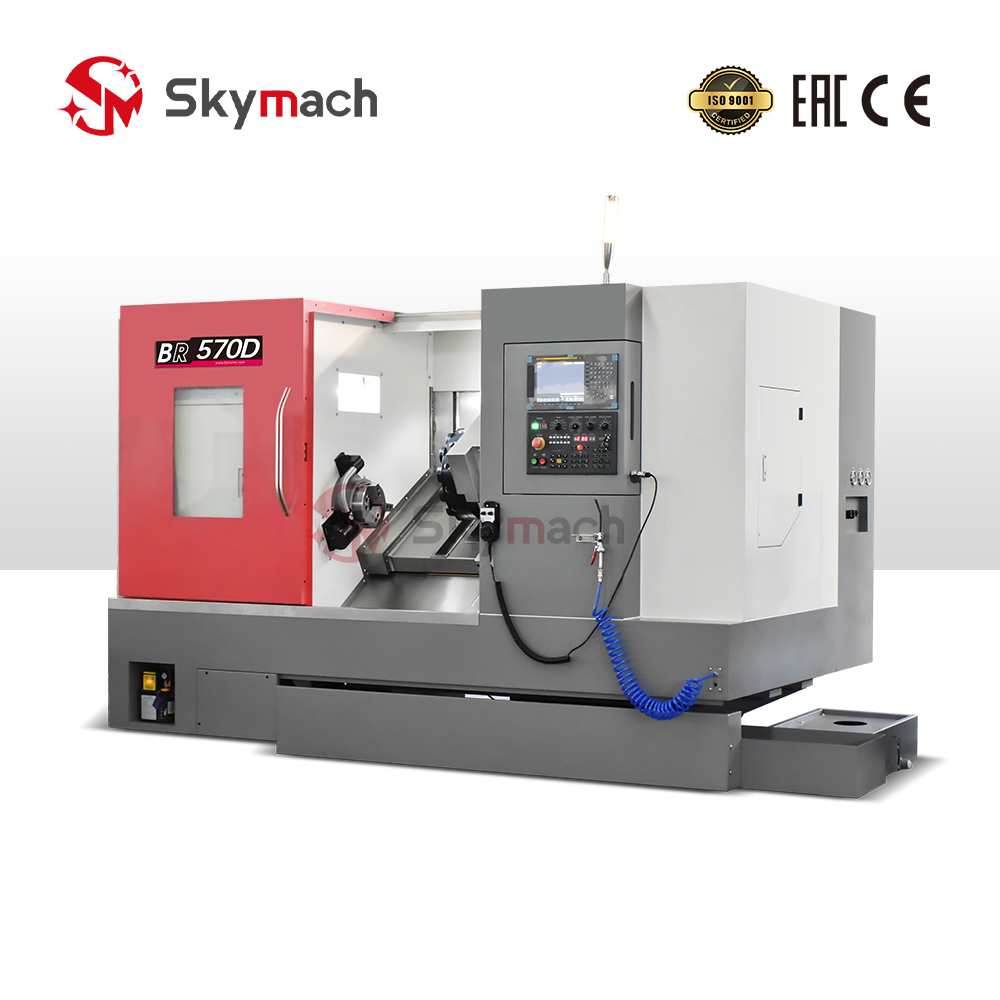

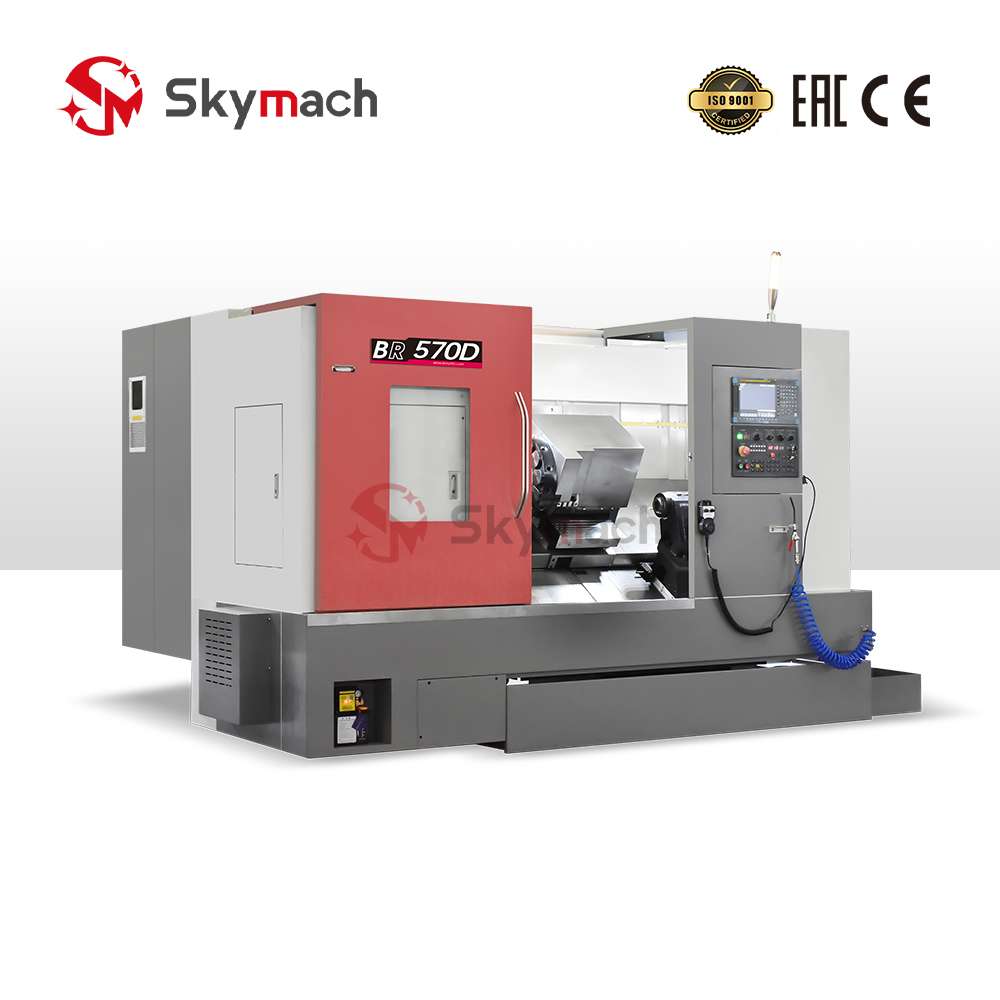

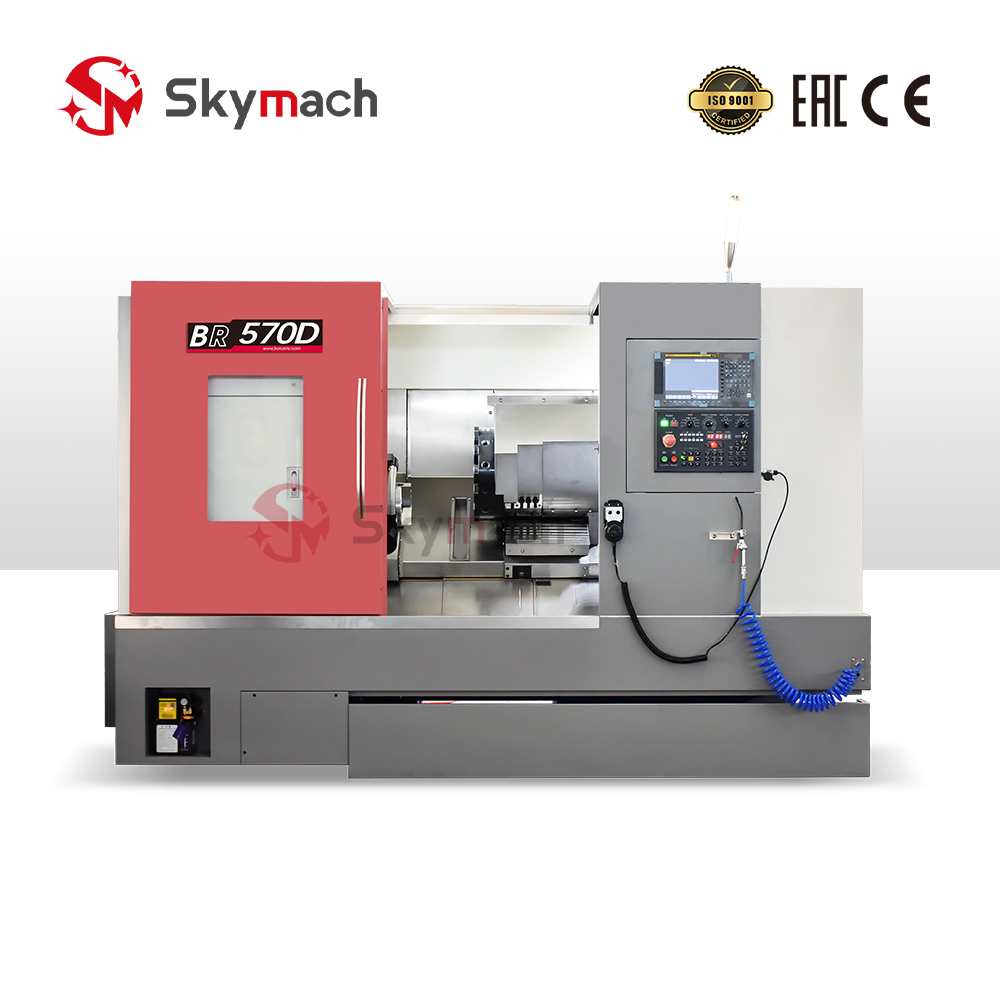

CNC Slant Bed Lathe BR570D
The machine weighs 5000 kg and has a compact and sturdy structure, ensuring stability during high-speed machining.
Supports three control axes (X, Z, C), provides advanced contour machining capabilities, and is suitable for high-precision operations.
The maximum turning diameter is 380 mm and the machining length is 750 mm, which meets the needs of medium and heavy machining.
Equipped with an A2-6 spindle, the speed reaches 4200 rpm, driven by an 11/15 kW main motor, and has strong power.

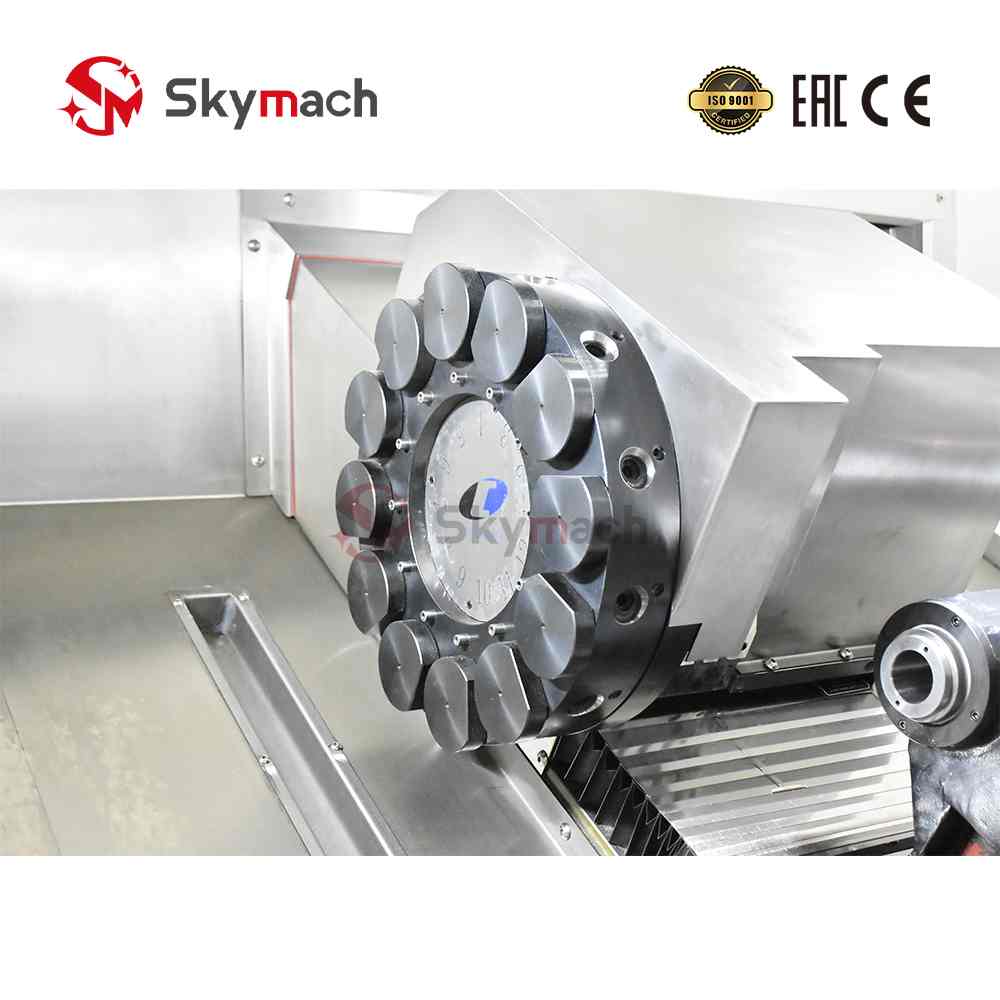

12-station BMT55 turret, all stations are equipped with powered tools, with a speed of up to 5000 rpm, which improves machining flexibility.

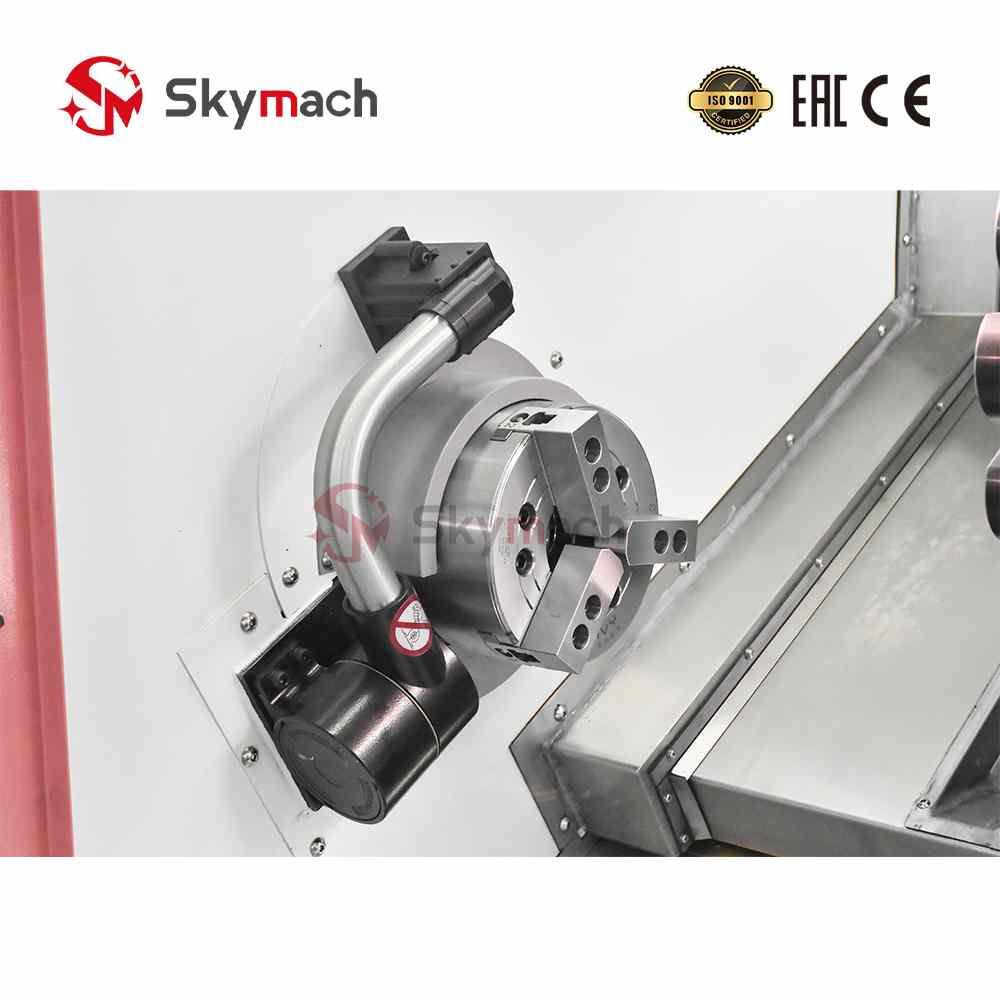

Equipped with an 8-inch hydraulic three-jaw chuck and a programmable tailstock with MT5 taper, further enhancing flexibility.
Adopts FANUC 0i TF CNC system, supports USB interface and MPG handwheel, and is easy to operate.
Equipped with automatic lubrication device, chip conveyor, tool cooling system, tool presetter and safety protection device to improve productivity.
The compact appearance is suitable for complex and demanding processing tasks to meet the needs of the modern metal processing industry.
CNC Slant Bed Lathe BR570D
The machine weighs 5000 kg and has a compact and sturdy structure, ensuring stability during high-speed machining.
Supports three control axes (X, Z, C), provides advanced contour machining capabilities, and is suitable for high-precision operations.
The maximum turning diameter is 380 mm and the machining length is 750 mm, which meets the needs of medium and heavy machining.
Equipped with an A2-6 spindle, the speed reaches 4200 rpm, driven by an 11/15 kW main motor, and has strong power.
12-station BMT55 turret, all stations are equipped with powered tools, with a speed of up to 5000 rpm, which improves machining flexibility.
Equipped with an 8-inch hydraulic three-jaw chuck and a programmable tailstock with MT5 taper, further enhancing flexibility.
Adopts FANUC 0i TF CNC system, supports USB interface and MPG handwheel, and is easy to operate.
Equipped with automatic lubrication device, chip conveyor, tool cooling system, tool presetter and safety protection device to improve productivity.
The compact appearance is suitable for complex and demanding processing tasks to meet the needs of the modern metal processing industry.
Advantages Of CNC Slant Bed Lathe BR570D
- The slant bed structure lowers the machine’s center of gravity and widens its base, significantly improving its resistance to vibration and shock, ensuring smooth operation even under heavy cutting conditions.
- Roller linear guides offer a larger contact area, higher rigidity, and greater load-bearing capacity than traditional ball guides, effectively suppressing vibration and tool deflection during machining.
- Combined with a hydraulic chuck and tailstock, it enables automatic workpiece clamping and tensioning, easily integrating automated cells (such as robots) and paving the way for unmanned or reduced-manpower production.
- Users can choose the most suitable CNC system based on their operating habits, budget, and functional requirements, from cost-effective domestic GSK systems to powerful international brands like Siemens and FANUC, offering maximum flexibility.
- The slant bed CNC lathe ensures continuous lubrication of key components such as guideways and lead screws, reducing wear. The cooling system maintains temperature control of the spindle and work area, ensuring long-term stable operation.
Product Main Technical Parameters:
| Model | BR-570Dx750 |
| The maximum turning diameter on the bed | Φ650 |
| maximum machining diameter | Φ400 (SHDY16BR Cutter to edge 330) |
| Maximum machining diameter on the tool holder | Φ360 |
| Maximum processing length | 720 |
| Spindle head form (optional chuck) | A2-6 ( 8″) |
| Recommended spindle motor power | 11-15KW |
| Spindle speed | 4200rpm |
| Spindle hole diameter | 66 |
| Bar diameter | 52 |
| X/Z axis screw specifications | 3210/4010 |
| X/Z axis limit travel | 270/830 |
| Recommended X/Z axis motor torque | 11N.M/15N.M |
| X/Z axis rail specifications | 45/45 |
| X/Z axis connection method | Direct link |
| Turret type | Power Turret |
| Recommended turret center height dimension | 170 |
| Maximum travel of tailstock | 750 |
| Tailstock sleeve diameter | 80 |
| Tailstock sleeve travel | 80 |
| Tailstock sleeve tapered hole | MT5 |
| Bed type and inclination | 30° |
| Machine size（L * W * H) | 2077 ×1297 ×1427 |
| Weight (approx. weight) | 2800kg |
