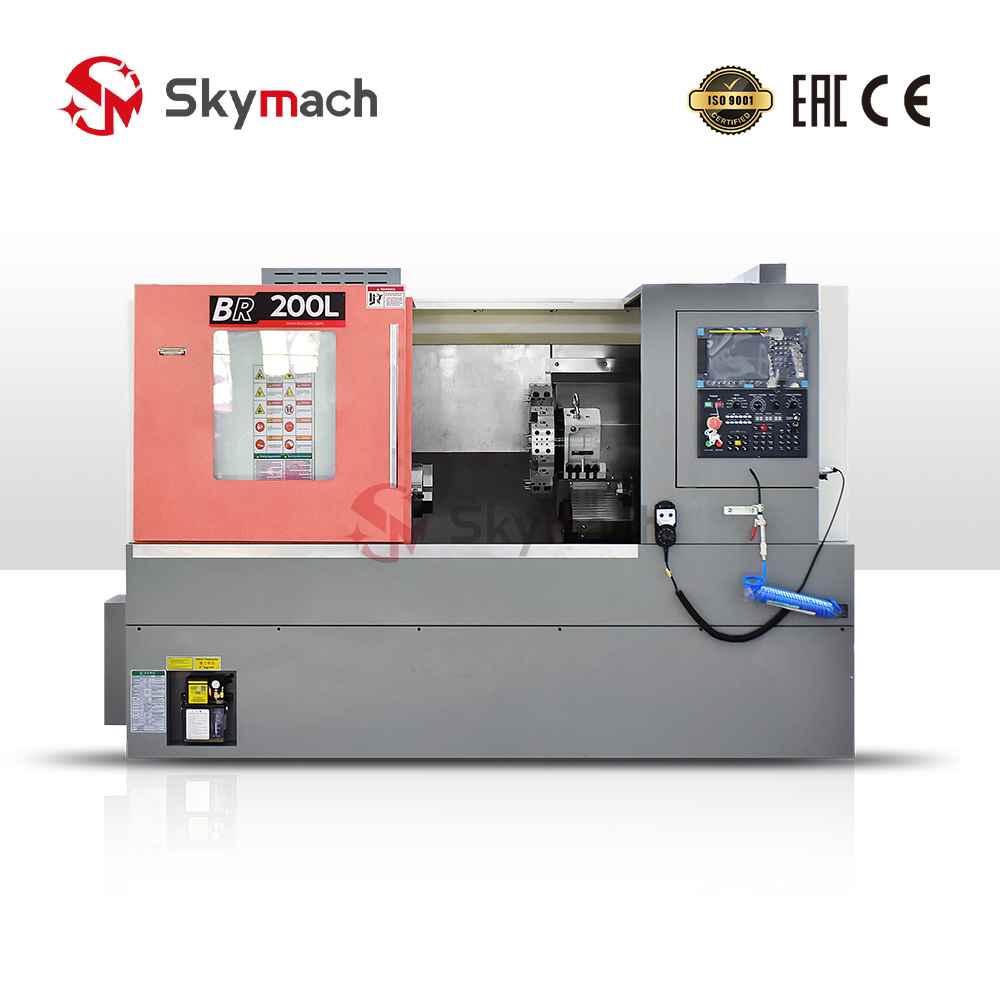

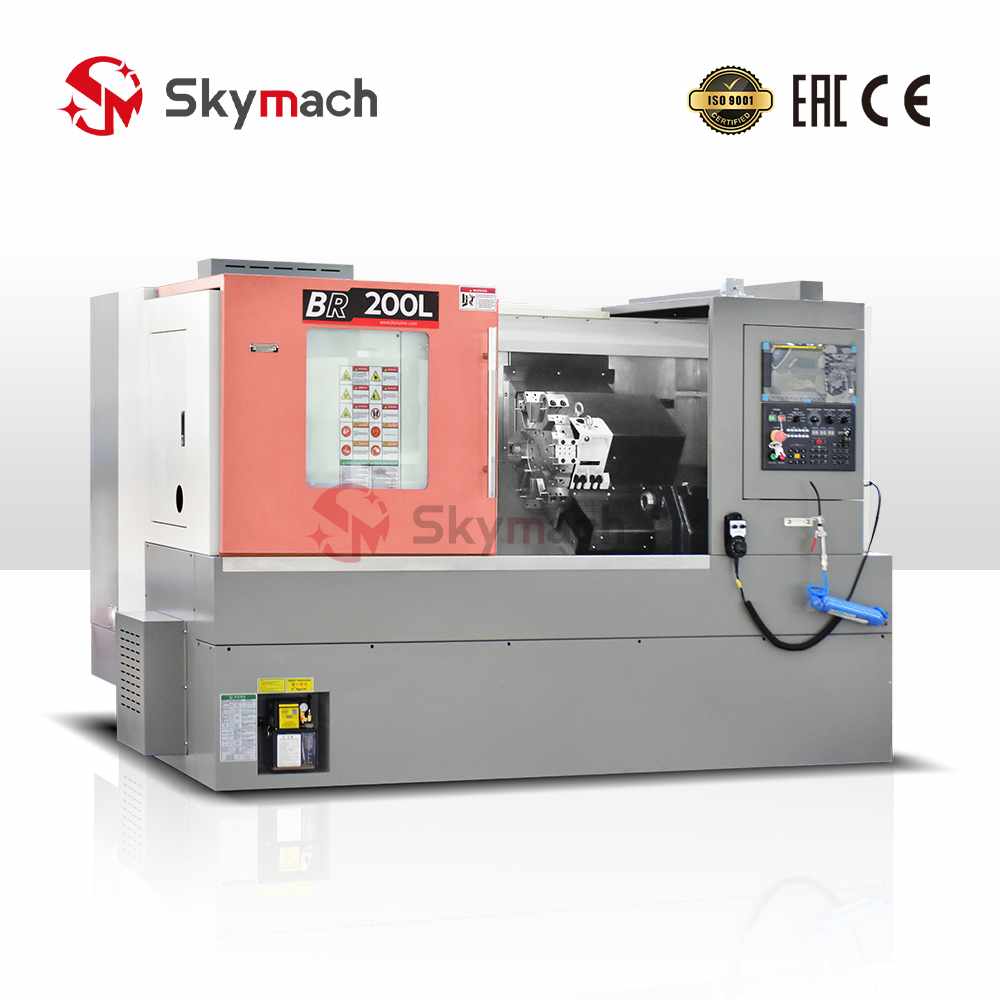

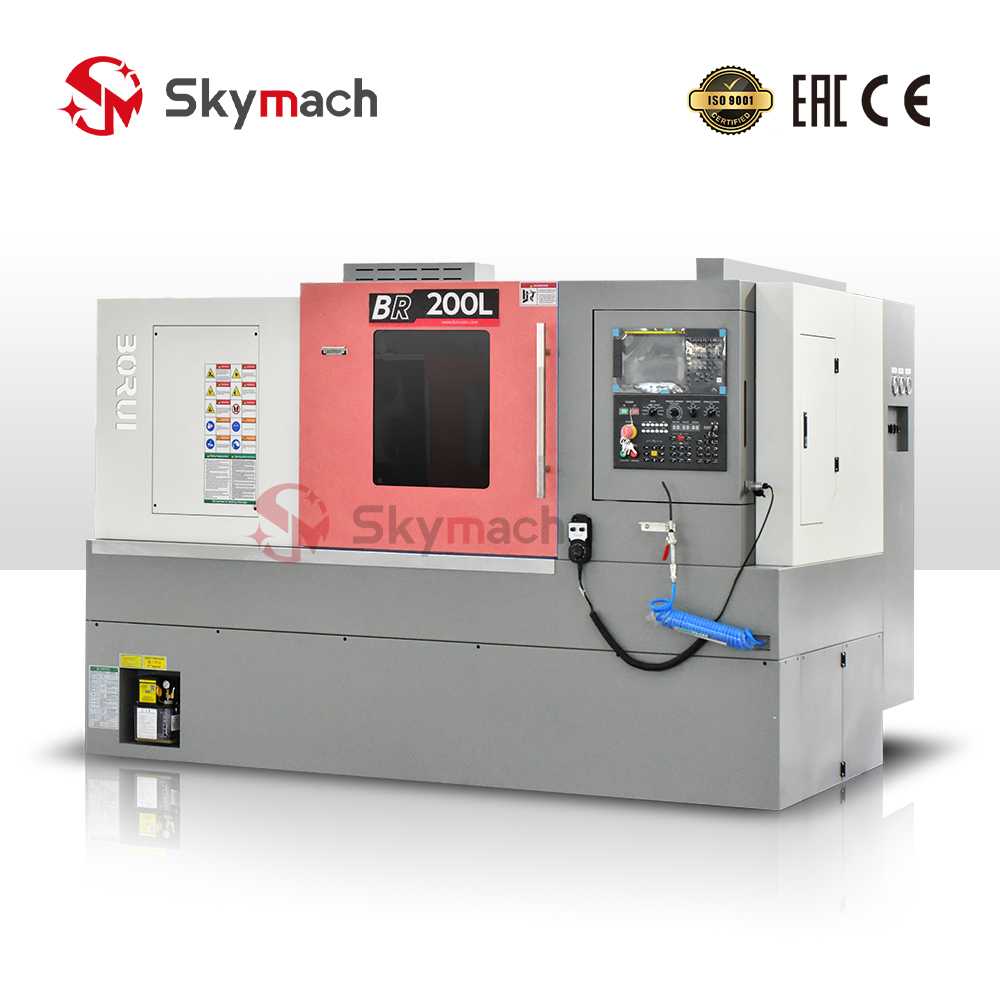

CNC Slant Bed Lathe BR200L
Max. swing diameter over bed Ø560 mm; max. machining diameter Ø460 mm, suitable for large workpieces.
Maximum machining length up to 540 mm, allowing longer part processing.
11 kW spindle motor with 4000 rpm speed delivers stable, high-performance cutting.
Spindle bore Ø76 mm and through-bar capacity Ø65 mm, compatible with automatic bar feeders.
High-precision ball screws (X: 3210 / Z: 4010) ensure accurate axis movement.
X/Z axes equipped with wide 45 mm linear guideways for rigidity and precision.
X and Z axes powered by 11 N·m servo motors, providing high feed torque for heavy-duty machining.
8T, 10T, or 12T turret available for versatile tool configurations.
100 mm turret center height to accommodate a wide range of tooling.
Overall machine dimensions: 2850 × 1850 × 2050 mm, optimized for space-saving installation.
CNC Slant Bed Lathe BR200L
Max. swing diameter over bed Ø560 mm; max. machining diameter Ø460 mm, suitable for large workpieces.
Maximum machining length up to 540 mm, allowing longer part processing.
11 kW spindle motor with 4000 rpm speed delivers stable, high-performance cutting.
Spindle bore Ø76 mm and through-bar capacity Ø65 mm, compatible with automatic bar feeders.
High-precision ball screws (X: 3210 / Z: 4010) ensure accurate axis movement.
X/Z axes equipped with wide 45 mm linear guideways for rigidity and precision.
X and Z axes powered by 11 N·m servo motors, providing high feed torque for heavy-duty machining.
8T, 10T, or 12T turret available for versatile tool configurations.
100 mm turret center height to accommodate a wide range of tooling.
Overall machine dimensions: 2850 × 1850 × 2050 mm, optimized for space-saving installation.
Advantages Of CNC Slant Bed Lathe BR200L
- The BR-200L is a heavy-duty CNC turning center designed for machining large-diameter, high-precision components. With a maximum swing over bed of Ø560 mm and a machining diameter of up to Ø460 mm, this model is well-suited for demanding applications across industries such as aerospace, energy, and heavy equipment manufacturing.

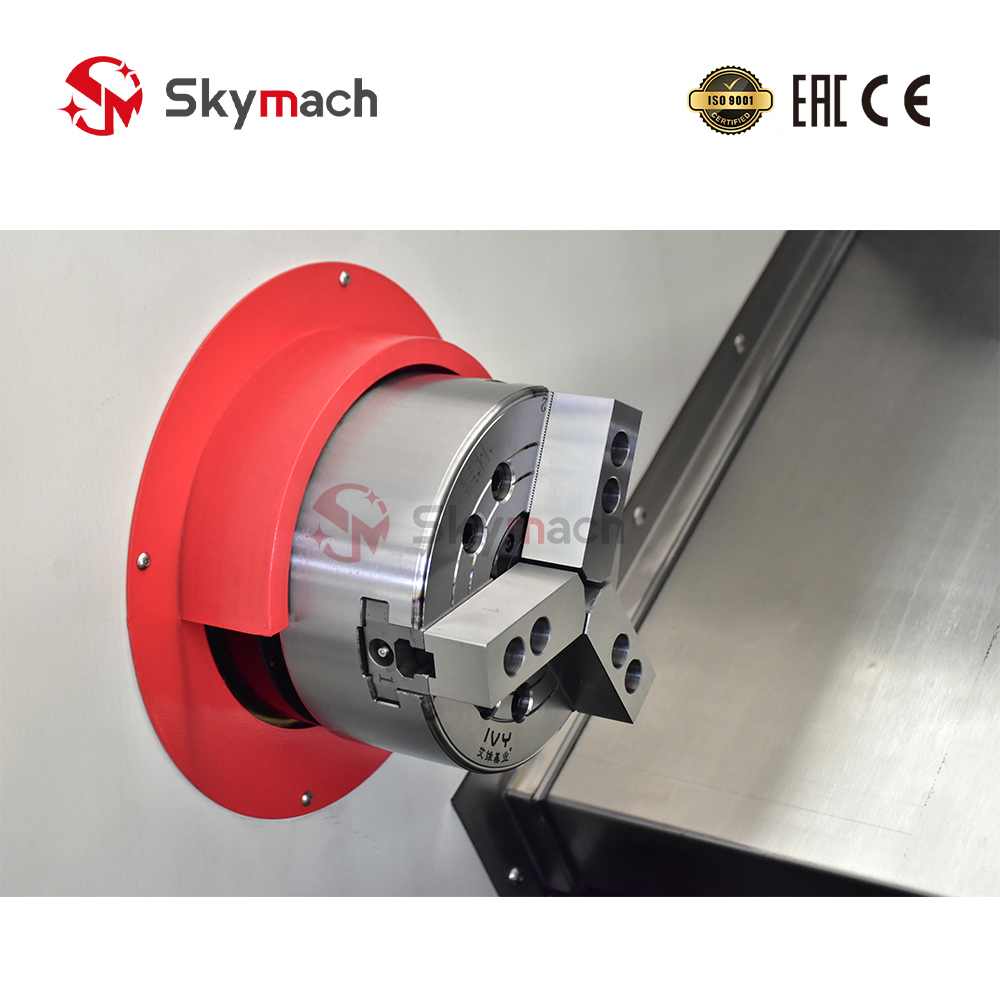

- Equipped with an 11 kW high-torque spindle motor and a spindle speed of 4000 rpm, the BR-200L delivers reliable cutting performance on tough materials. Its large spindle bore (Ø76 mm) and through-bar capacity (Ø65 mm) allow efficient bar feeding for long-part machining.
- The BR-200L features robust X and Z axes supported by precision ball screws and wide 45 mm linear guideways, ensuring smooth motion and high positioning accuracy. With axis travel of 230 mm (X) and 610 mm (Z), and torque of 11 N·m on both axes, it is built for stability and power.

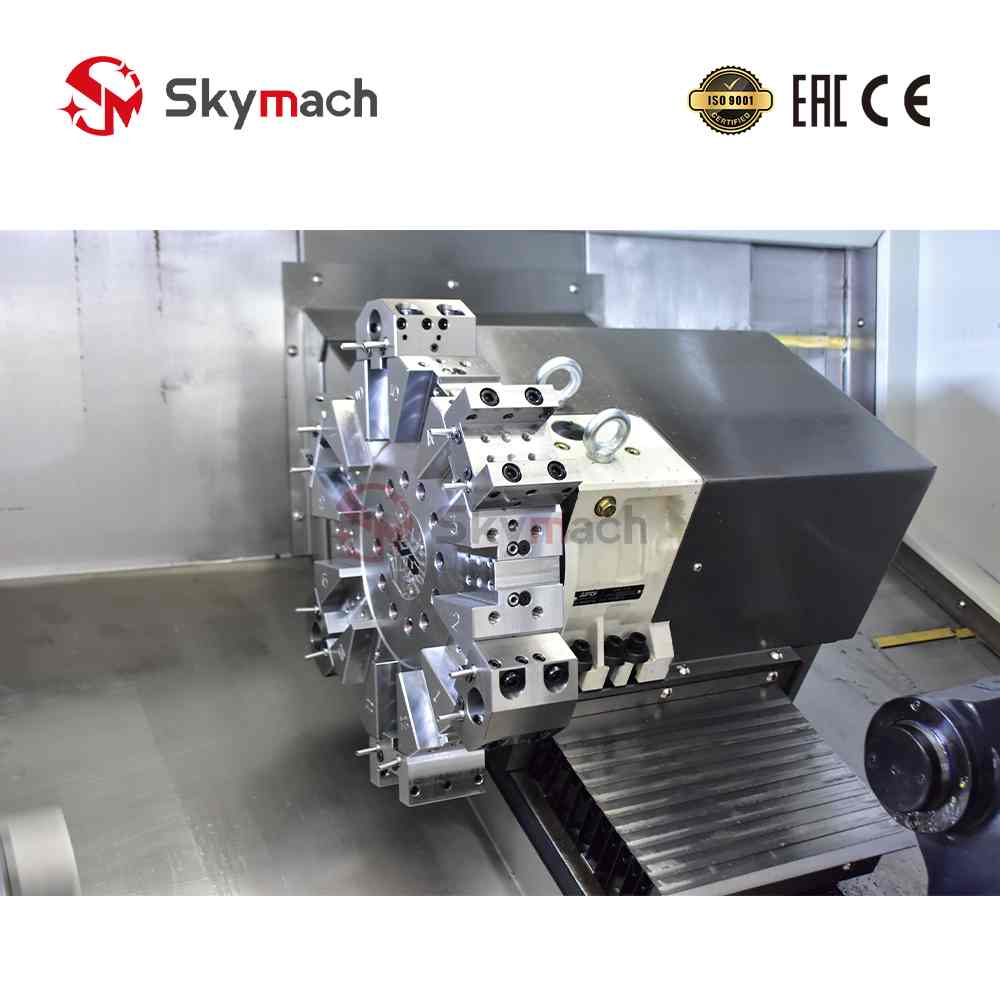

- The turret supports 8, 10, or 12 tool positions, providing flexibility for various machining tasks. The machine also includes a turret center height of 100 mm, suitable for a wide range of tooling setups.
- Compact in design (2850 × 1850 × 2050 mm), the BR-200L offers a space-efficient footprint without compromising on machining capacity and performance
Product Main Technical Parameters:
| Model | BR-200L | BR-200LA | BR-200LD | BR-200LAD | BR-200LDY | BR-200LADY |
| The max.swing diameter over bed | Φ560 | Φ560 | Φ660 | Φ660 | Φ650 | Φ650 |
| Max. machining diameter | Φ460 | Φ460 | Φ380 | Φ380 | Φ420 | Φ420 |
| Max. swing diameter over cross slide | Φ200 | Φ200 | Φ200 | Φ200 | Φ200 | Φ200 |
| Max. processing length | 540 | 500 | 450 | 410 | 450 | 410 |
| Spindle end type | A2-6（8 ”） | A2-8（10 ”） | A2-6（8 ”） | A2-8（10 ”） | A2-6（8 ”） | A2-8（10 ”） |
| Spindle motor power | 11KW | 15KW | 11KW | 15KW | 11KW | 15KW |
| Spindle speed | 4000rpm | 2500rpm | 4000rpm | 2500rpm | 4000rpm | 2500rpm |
| Spindle through hole diameter | Φ66 | Φ87 | Φ66 | Φ87 | Φ66 | Φ87 |
| Through the bar diameter | Φ52 | Φ75 | Φ52 | Φ75 | Φ52 | Φ75 |
| X/Z axis lead screw specification | 3210/4010 | 3210/4010 | 3210/4010 | 3210/4010 | 3210/4010 | 3210/4010 |
| Y axis lead screw specification | 2108 | 2108 | ||||
| X/Z axis linear guide specifications | 45/45 | 45/45 | 45/45 | 45/45 | 45/45 | 45/45 |
| Y axis linear guide specifications | Hard rail | Hard rail | ||||
| X/Z axis limit travel | 230/610 | 230/610 | 230/610 | 230/610 | 230/610 | 230/610 |
| Y axis limit travel | 60(±50) | 60(±50) | ||||
| X/Z axis motor torque | 11N.M/11N.M | 11N.M/11N.M | 11N.M/11N.M | 11N.M/11N.M | 11N.M/11N.M | 11N.M/11N.M |
| Y axis motor torque | 11N.M | 11N.M | ||||
| X/Z axis connection type | Direct connection | Direct connection | Direct connection | Direct connection | Direct connection | Direct connection |
| Turret | H100 | H100 | BMT55/ER25 | BMT55/ER25 | ||
| Tower station | 8T/10T/12T | 8T/10T/12T | 12T | 12T | 12T | 12T |
| Power tower | Y-axis power tower | Y-axis power tower | ||||
| Power head specification | BMT45/ER25 | BMT45/ER25 | ||||
| Power head speed | 4000rpm | 4000rpm | ||||
| Power head motor | 2.5Kw | 2.5Kw | ||||
| Power head to motor transmission ratio | 1:01 | 1:01 | ||||
| Turret center height size | 100 | 100 | 100 | 100 | ||
| Sleeve diameter | 80 | 80 | 80 | 80 | 80 | 80 |
| Sleeve travel | 80 | 80 | 80 | 80 | 80 | 80 |
| Tailstock max.travel | 450 | 450 | 450 | 450 | 450 | 450 |
| Tailstock sleeve taper | MT40 | MT40 | MT40 | MT40 | MT40 | MT40 |
| Bed type and inclination | Integrated/30° | Integrated/30° | Integrated/30° | Integrated/30° | Integrated/30° | Integrated/30° |
| Machine size（L * W * H) | 171730×1273×1328 | 171730×1273×1328 | 171730×1273×1328 | 171730×1273×1328 | 171730×1273×1328 | 171730×1273×1328 |
Product Main Technical Parameters:
