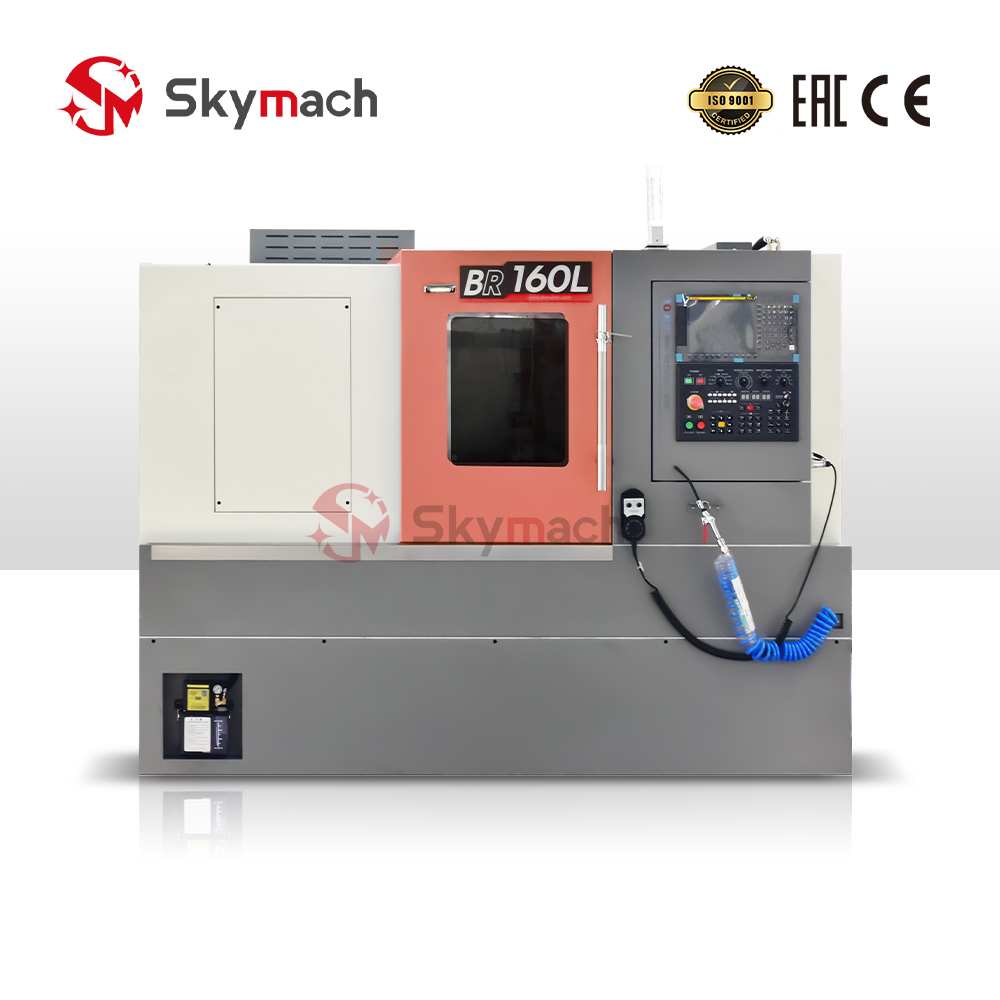

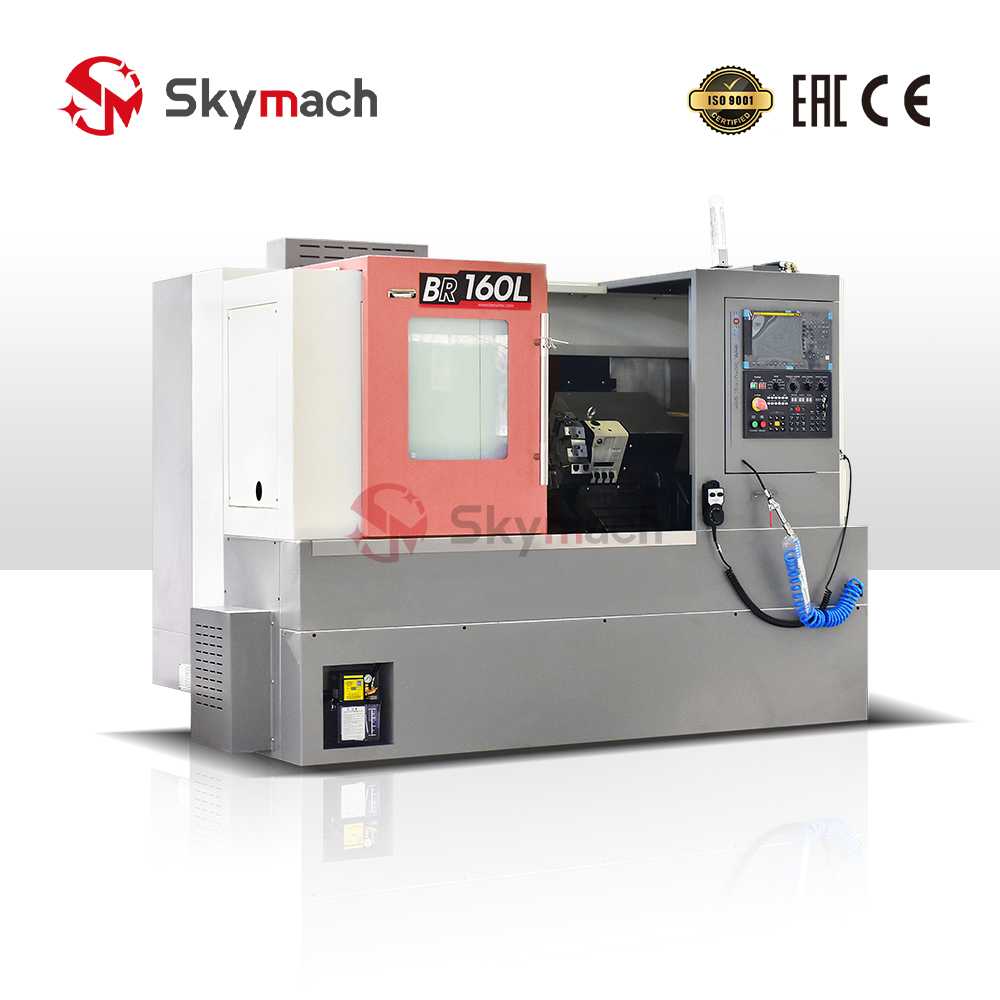

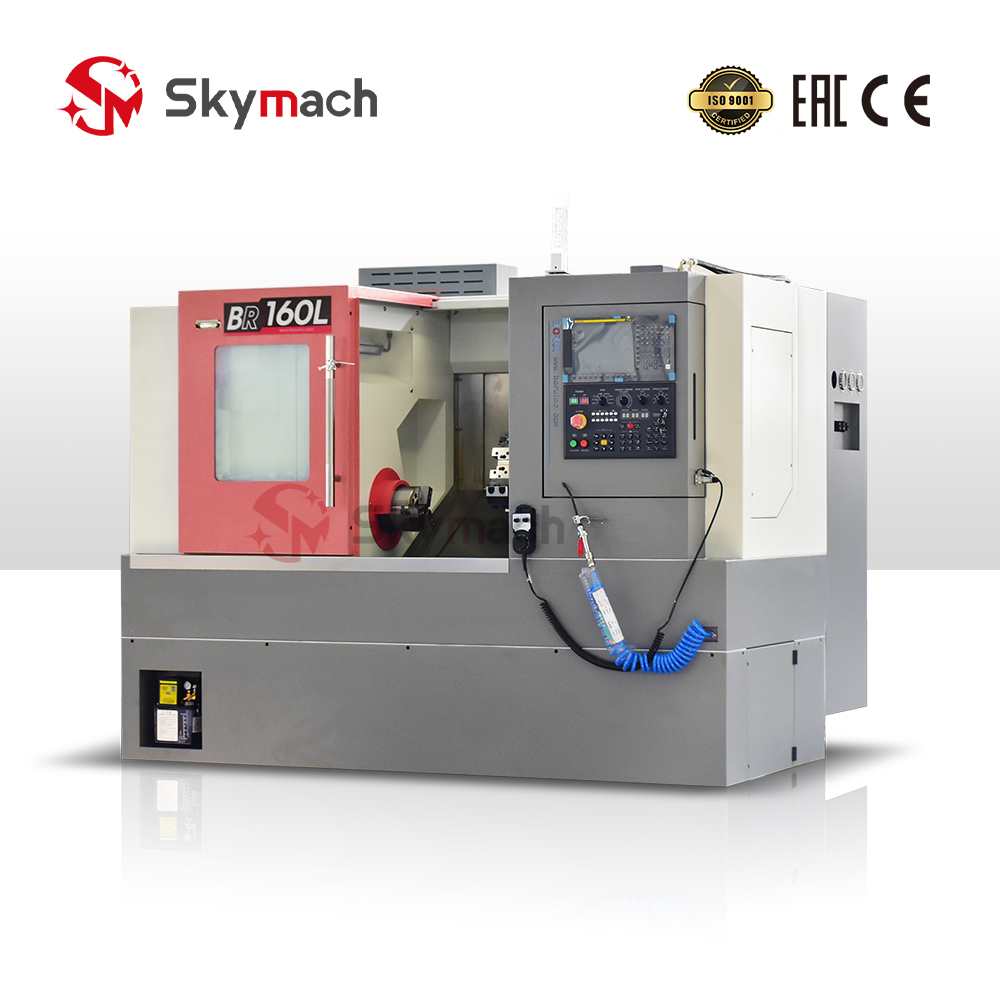

CNC Slant Bed Lathe BR160L
Max. swing diameter over bed Ø460 mm, and max. machining diameter Ø200 mm – suitable for medium-sized parts.
Max. machining length up to 410 mm for extended part handling.
Equipped with a 7.5 kW main spindle motor and a spindle speed of 4500 rpm, offering stable performance for a wide range of materials.
Spindle bore Ø56 mm and through-bar capacity Ø45 mm, ideal for automated bar feeding.
X/Z axes use 3210/3210 precision ball screws with 35 mm linear guideways for high positioning accuracy and durability.
X/Z axes driven by 11 N·m torque motors, ensuring consistent feed force during cutting.

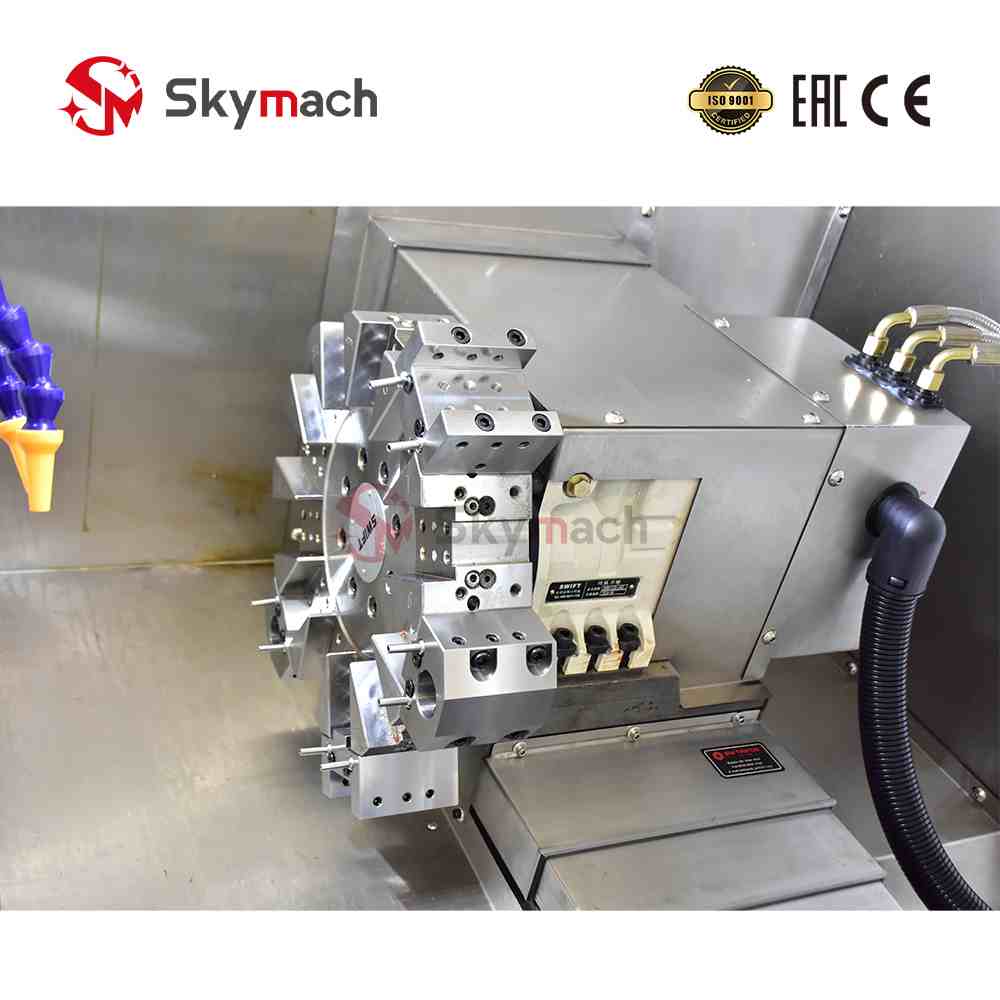

8T/10T/12T turret with direct drive, providing flexibility and reliability for tool changes.
Integrated 30° slant bed design for improved chip evacuation and machine rigidity.
Machine dimensions of 2300×1650×2250 mm, ideal for space-conscious workshops.
CNC Slant Bed Lathe BR160L
Max. swing diameter over bed Ø460 mm, and max. machining diameter Ø200 mm – suitable for medium-sized parts.
Max. machining length up to 410 mm for extended part handling.
Equipped with a 7.5 kW main spindle motor and a spindle speed of 4500 rpm, offering stable performance for a wide range of materials.
Spindle bore Ø56 mm and through-bar capacity Ø45 mm, ideal for automated bar feeding.
X/Z axes use 3210/3210 precision ball screws with 35 mm linear guideways for high positioning accuracy and durability.
X/Z axes driven by 11 N·m torque motors, ensuring consistent feed force during cutting.
8T/10T/12T turret with direct drive, providing flexibility and reliability for tool changes.
Integrated 30° slant bed design for improved chip evacuation and machine rigidity.
Machine dimensions of 2300×1650×2250 mm, ideal for space-conscious workshops.
Advantages Of CNC Slsnt Bed BR160L
- The BR-160L is a high-efficiency CNC turning center designed for precision machining of small to medium-sized components. With a maximum swing diameter of Ø460 mm and a machining diameter of Ø200 mm, it offers excellent versatility for a wide range of turning applications.
- The machine is equipped with a powerful 7.5 kW spindle motor, delivering speeds up to 4500 rpm, and supports bar feeding through a Ø56 mm spindle bore (Ø45 mm through-bar capacity). It is ideal for both single-piece and batch production environments.
- The BR-160L features precision ball screws (3210) and linear guideways (35 mm) on both X and Z axes, ensuring smooth motion and consistent accuracy. With a maximum machining length of 410 mm and axis torque of 11 N·m, the machine delivers stable and reliable performance even during heavy-duty cutting.
- A direct-drive turret with 8, 10, or 12 stations offers fast and flexible tool changes. The integrated 30° slant bed design enhances chip removal and machine stability, making the BR-160L a compact yet powerful solution for turning tasks in automotive, aerospace, and general manufacturing sectors.
Product Main Technical Parameters:
| TERM | BR160L | BR160LA |
| MAX.swing over bed | Φ500mm | Φ500mm |
| MAX.swing over carriage | Φ200mm | Φ200mm |
| MAX.turning diameter | Φ350mm | Φ350mm |
| MAX.Cutting legth | 380mm | 360mm |
| Spindle nose | A2-5 | A2-6 |
| Spindle bore | Φ56mm | Φ67mm |
| Bar capacity | Φ45mm | Φ52mm |

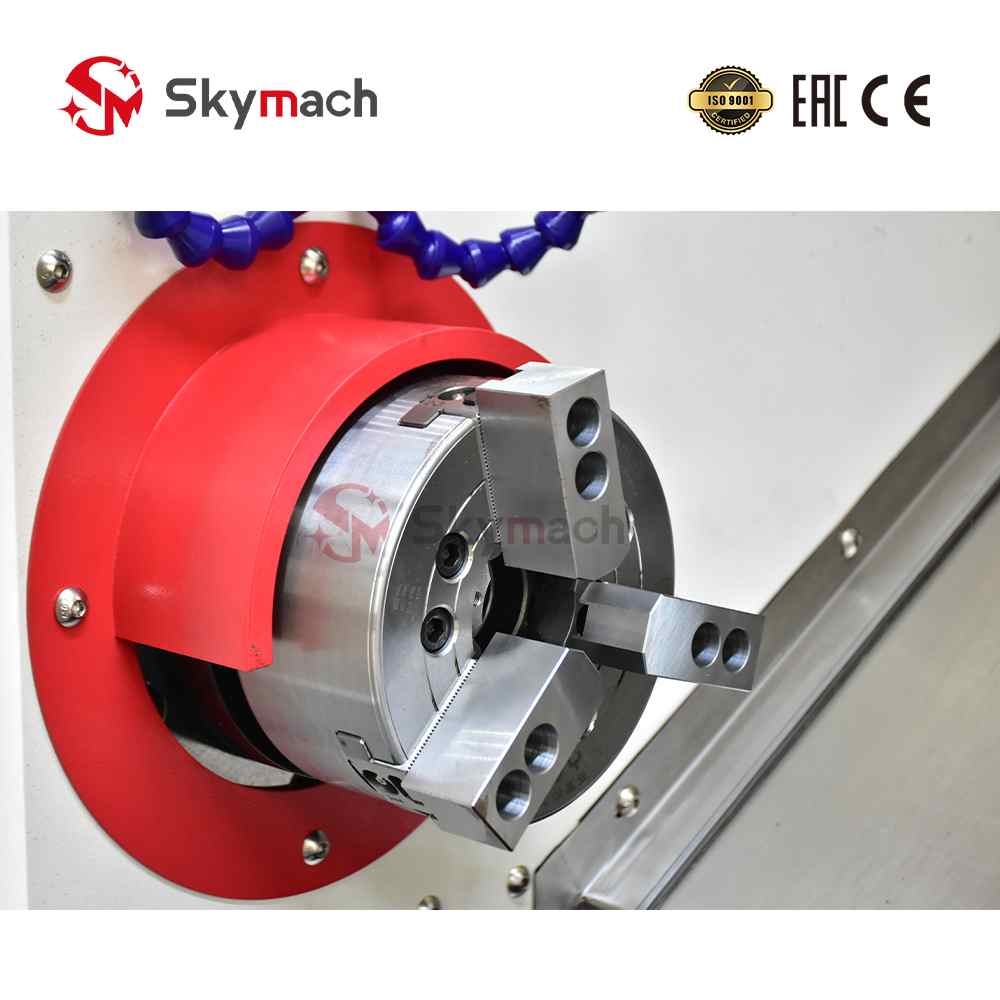

| Chuck | 6 inch | 8 inch |
| Range of spindle speed | 6000rpm | 4200rpm |
| X axis travel | 250mm | 250mm |
| Z axis travel | 420mm | 420mm |
| X/Z Rapid speed | 30m/min | 30m/min |
| X/Z Linear Guide | 35mm Roller | 35mm Roller |
| X/Z Lead screw specifications | 3210 | 3210 |
| X/Z REPOSITION ACCURACY | φ006mm | φ006mm |
| Station of tool carrier | 8/12 station | 8/12 station |
| Max. section of tool | 25mmφ25mm(φ40mm) | 25mmφ25mm(φ40mm) |
| MAX.travel of tailstockr | 300mm | 300mm |
| Tailstock sleeve diameter/taper/stroke | φ65/MT4/80 | φ65/MT4/80 |
| Main motor power | 7.5KW | 11KW |
| Spindle torque | 72NM | 105NM |
| Coolant pump power | 90W | 90W |
| Z-axis motor torque | 15N.M | 15N.M |
| X-axis motor torque | 10N.M | 10N.M |
| Overall dimensions L/W/h | 2300mmφ1650mmφ2250mm | 2300mmφ1650mmφ2250mm |
| Net weight | 2600KG | 2600KG |
Product Main Technical Parameters:
