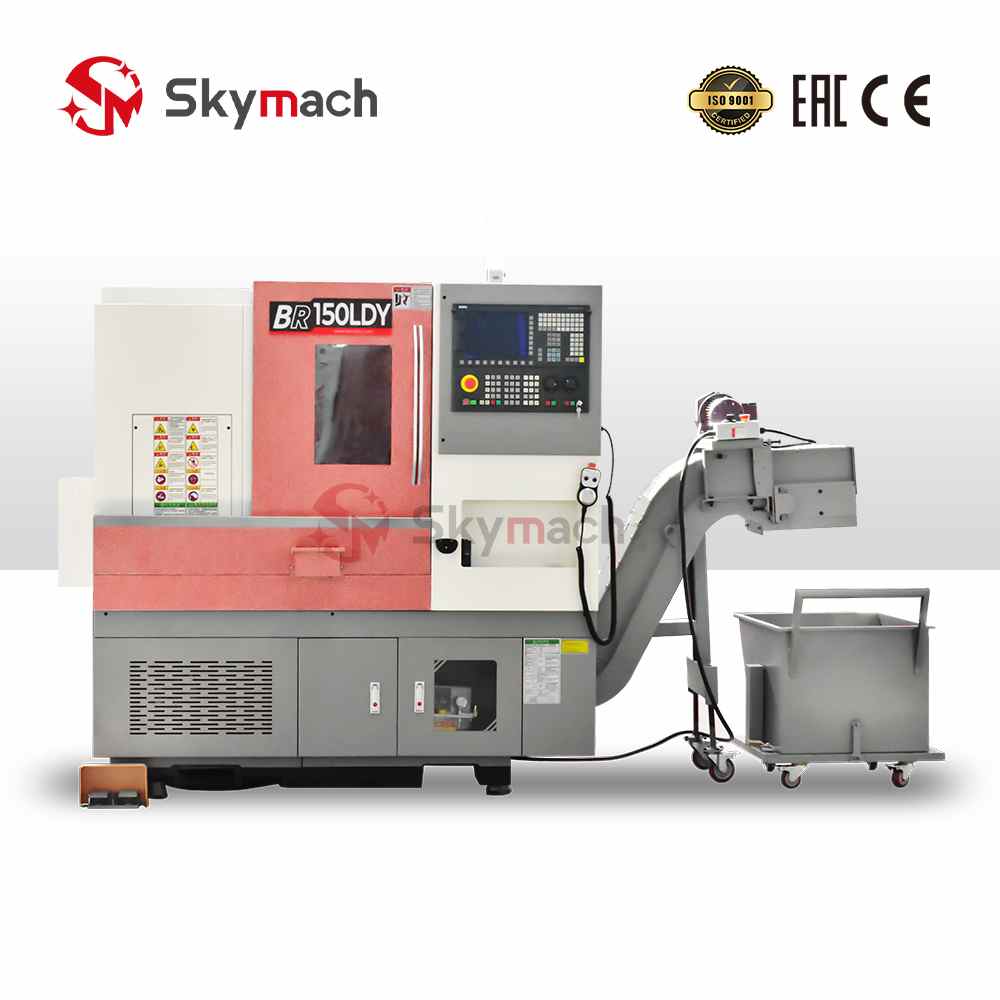

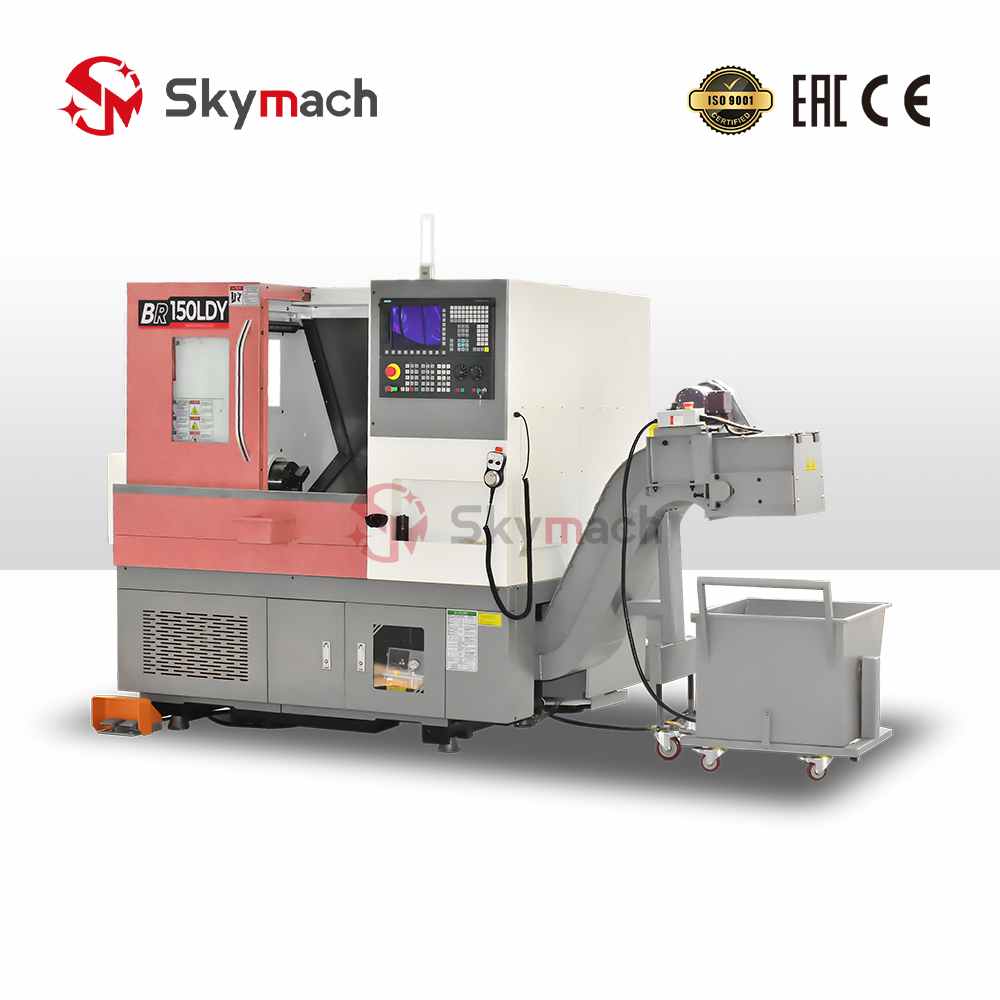

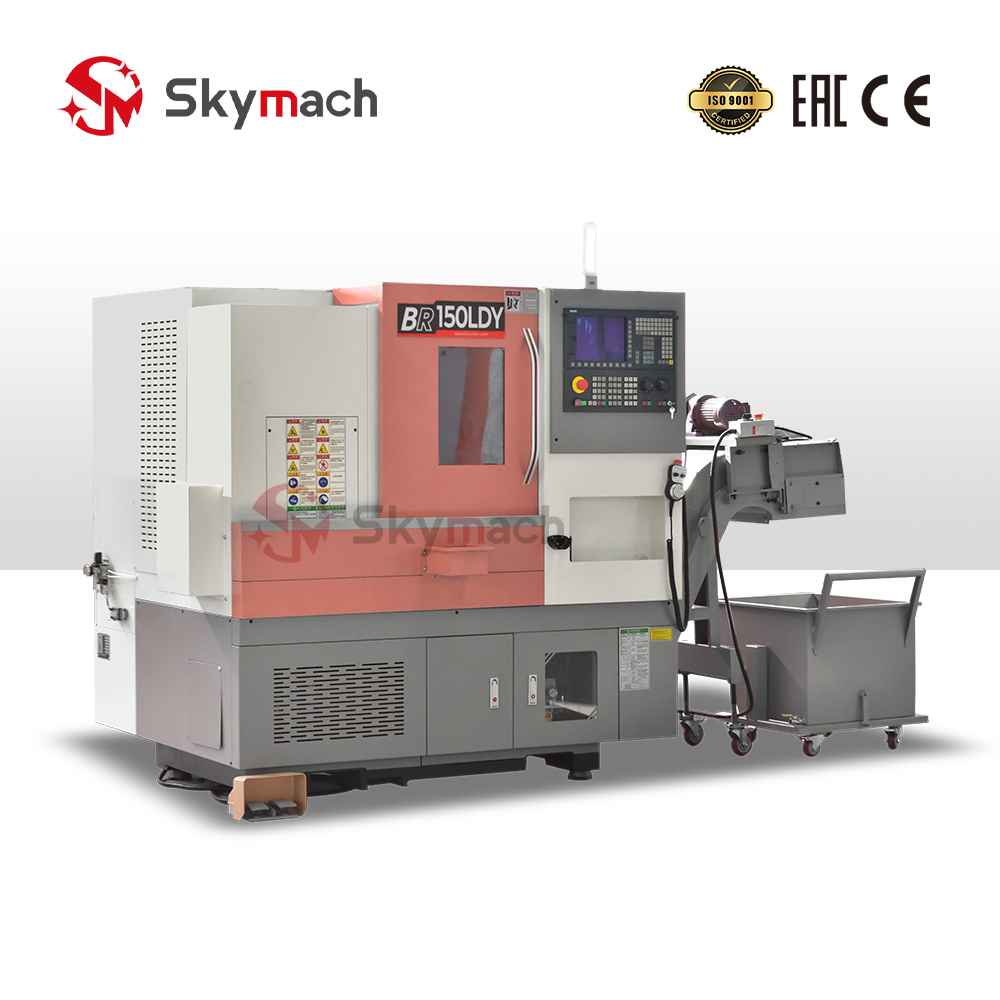

CNC Slant Bed Lathe BR150LDY
The compact precision slant bed CNC lathe is a high-speed, high-precision, compact CNC lathe with precise positioning. All its parameter designs are centered around the core goals of small size, precision and high efficiency.
Ø510 mm swing over bed and Ø250 mm max machining diameter
±30 mm Y-axis travel and C-axis for multi-function turning and milling
5.5–7.5 kW spindle motor, up to 4500 rpm
Ø56 mm spindle bore for bar feeding
12-station BMT40/ER20 Y-axis power turret
Live tooling speed up to 4000 rpm, 2.5 kW motor
Linear guideways: X/Z – 35 mm, Y – 25 mm
Compact footprint: 2300×1850×2550 mm
High-torque servo motors: X/Z – 11 N·m, Y – 7 N·m
Ideal for complex, high-precision parts in aerospace, auto, and medical industries
CNC Slant Bed Lathe BR150LDY
The compact precision slant bed CNC lathe is a high-speed, high-precision, compact CNC lathe with precise positioning. All its parameter designs are centered around the core goals of small size, precision and high efficiency.
Ø510 mm swing over bed and Ø250 mm max machining diameter
±30 mm Y-axis travel and C-axis for multi-function turning and milling
5.5–7.5 kW spindle motor, up to 4500 rpm
Ø56 mm spindle bore for bar feeding
12-station BMT40/ER20 Y-axis power turret
Live tooling speed up to 4000 rpm, 2.5 kW motor
Linear guideways: X/Z – 35 mm, Y – 25 mm
Compact footprint: 2300×1850×2550 mm
High-torque servo motors: X/Z – 11 N·m, Y – 7 N·m
Ideal for complex, high-precision parts in aerospace, auto, and medical industries
Advantages Of CNC Slant Bed Lathe BR150LDY
- The BR-150LDY is a high-performance CNC turning and milling center designed for precision machining of complex parts in a single setup. Featuring integrated Y-axis and C-axis control, it enables simultaneous turning, milling, drilling, and tapping operations.

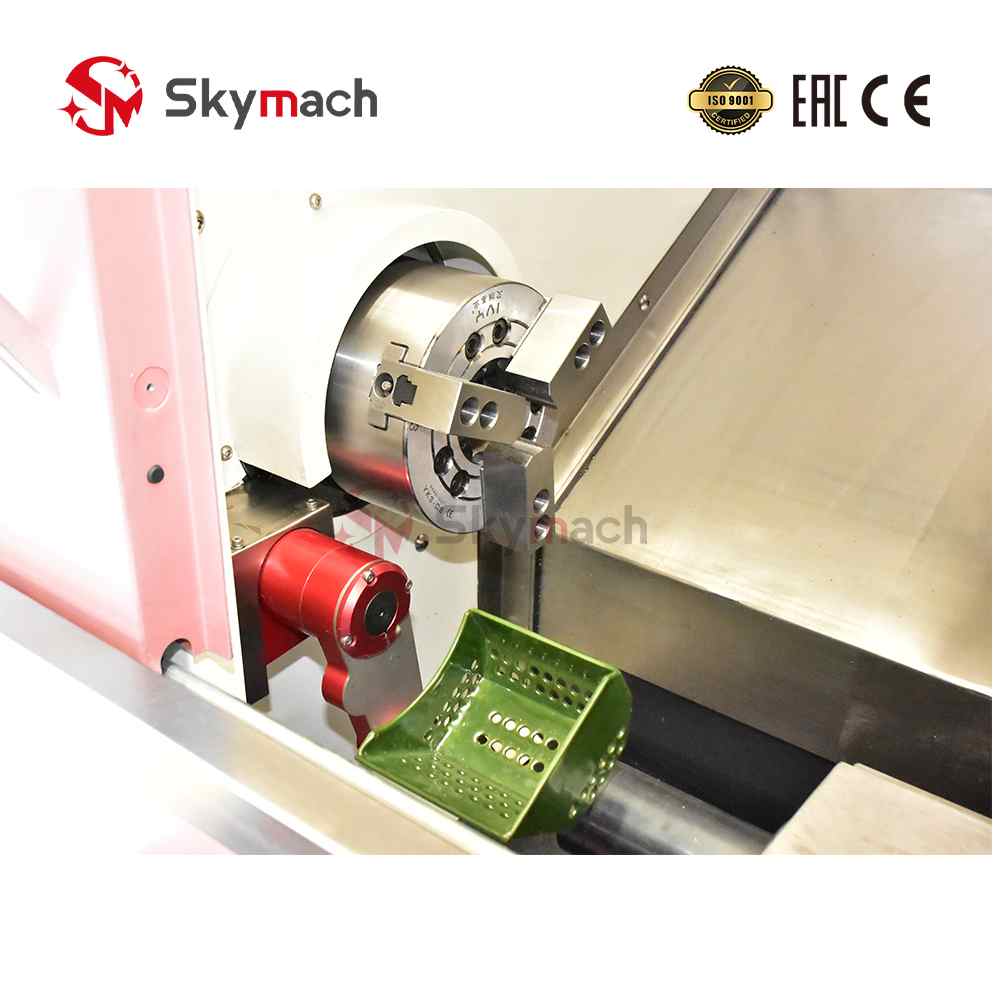

- With a maximum swing diameter of Ø510 mm and a machining diameter of Ø250 mm, the BR-150LDY is ideal for processing medium to large-sized workpieces. Its powerful spindle motor (5.5–7.5 kW) delivers speeds up to 4500 rpm, while the Ø56 mm spindle bore allows efficient bar feeding for long parts.

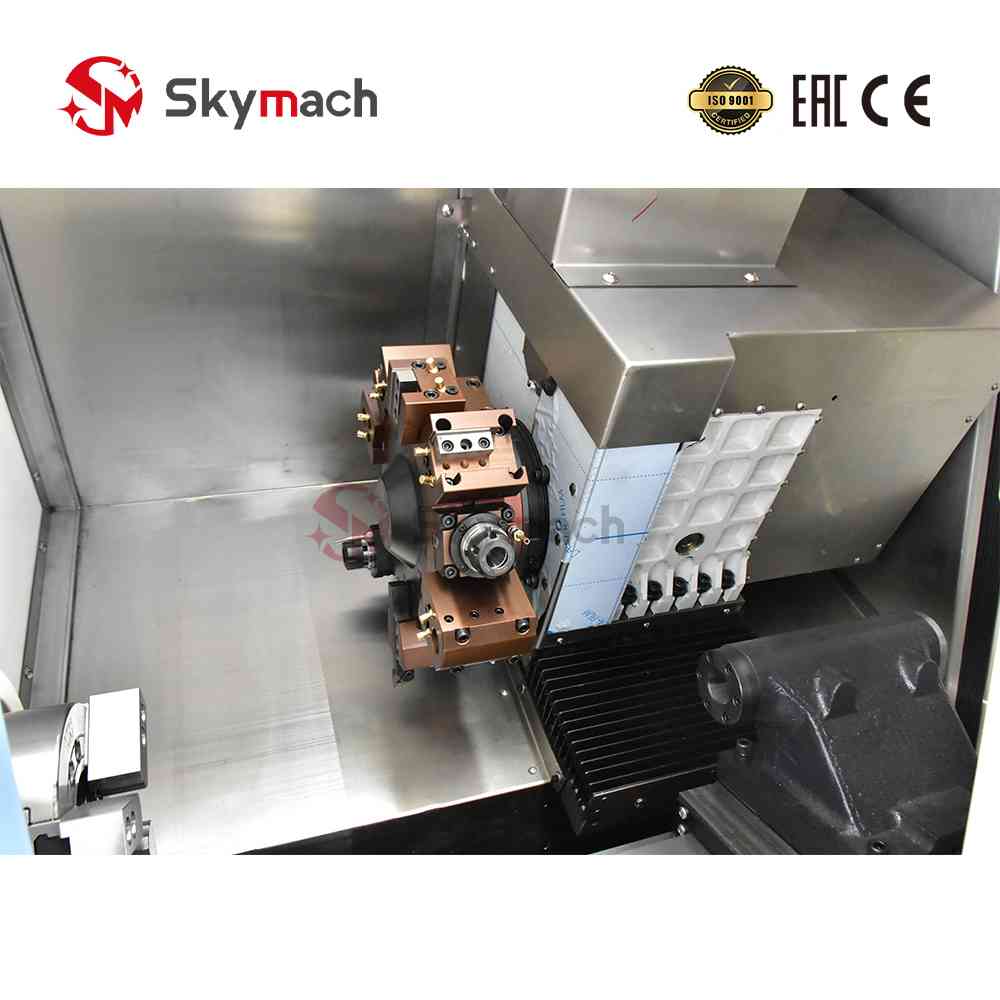

- Equipped with a 12-station Y-axis power turret (BMT40/ER20) and live tooling speeds up to 4000 rpm, the BR-150LDY offers exceptional flexibility for contouring and side-face machining. Precision linear guideways on all axes and high-torque servo motors ensure accuracy, stability, and rapid positioning.
- Compact in design (2300×1850×2550 mm), this machine is perfectly suited for industries such as aerospace, automotive, and medical manufacturing, where productivity and part complexity go hand in hand.
Product Main Technical Parameters:
| Machine Model | BR-150L | BR-150LA | BR-150DY | BR-150LADY(A2-6) |
| The max.swing diameter over bed | Φ510 | Φ510 | Φ510 | Φ510 |
| Max. machining diameter | Φ250 | Φ250 | Φ250 | Φ250 |
| Max. swing diameter over cross slide | Φ150 | Φ150 | Φ150 | Φ150 |
| Max. processing length | 260 | 245 | 235 | 225 |
| Spindle end type | A2-5（6 ″） | A2-6（8 ″） | A2-5（6 ″） | A2-6（8 ″） |
| Spindle motor power | 5.5～7.5KW | 7.5～11KW | 5.5～7.5KW | 5.5～7.5KW |
| Spindle speed | 4500rpm | 3500rpm | 4500rpm | 3500rpm |
| Spindle through hole diameter | Φ56 | Φ66 | Φ56 | Φ66 |
| Through the bar diameter | Φ45 | Φ52 | Φ45 | Φ52 |
| X/Z axis lead screw specification | 3208/3210 | 3208/3210 | 3208/3210 | 3208/3210 |
| Y axis lead screw specification | 2508 | 2508 | ||
| X/Z axis linear guide specifications | 35/35 | 35/35 | 35/35 | 35/35 |
| Y axis linear guide specifications | 25 | 25 | ||
| X/Z axis limit travel | 135/370 | 135/370 | 135/370 | 135/370 |
| Y axis limit travel | 60(±30) | 60(±30) | ||
| X/Z axis motor torque | 11N.M/11N.M | 11N.M/11N.M | 11N.M/11N.M | 11N.M/11N.M |
| Y axis motor torque | 7 N.M | 7 N.M | ||
| X/Z axis connection type | Direct connection | Direct connection | Direct connection | Direct connection |
| Turret | SH80-825-280 | SH80-825-280 | ||
| Tower station | 12T | 12T | 12T | 12T |
| Power tower | Y-axis power tower | Y-axis power tower | ||
| Power head specification | BMT40/ER20 | BMT40/ER20 | ||
| Power head speed | 4000rpm | 4000rpm | ||
| Power head motor | 2.5Kw | 2.5Kw | ||
| Power head to motor transmission ratio | 1∶1 | 1∶1 | ||
| Turret center height size | 80mm | 80mm | ||
| Bed type and inclination | Integrated/30° | Integrated/30° | Integrated/30° | Integrated/30° |
| Machine size（L * W * H) | 1430×1025×1380 | 1430×1025×1380 | 1430×1025×1470 | 1430×1025×1470 |
