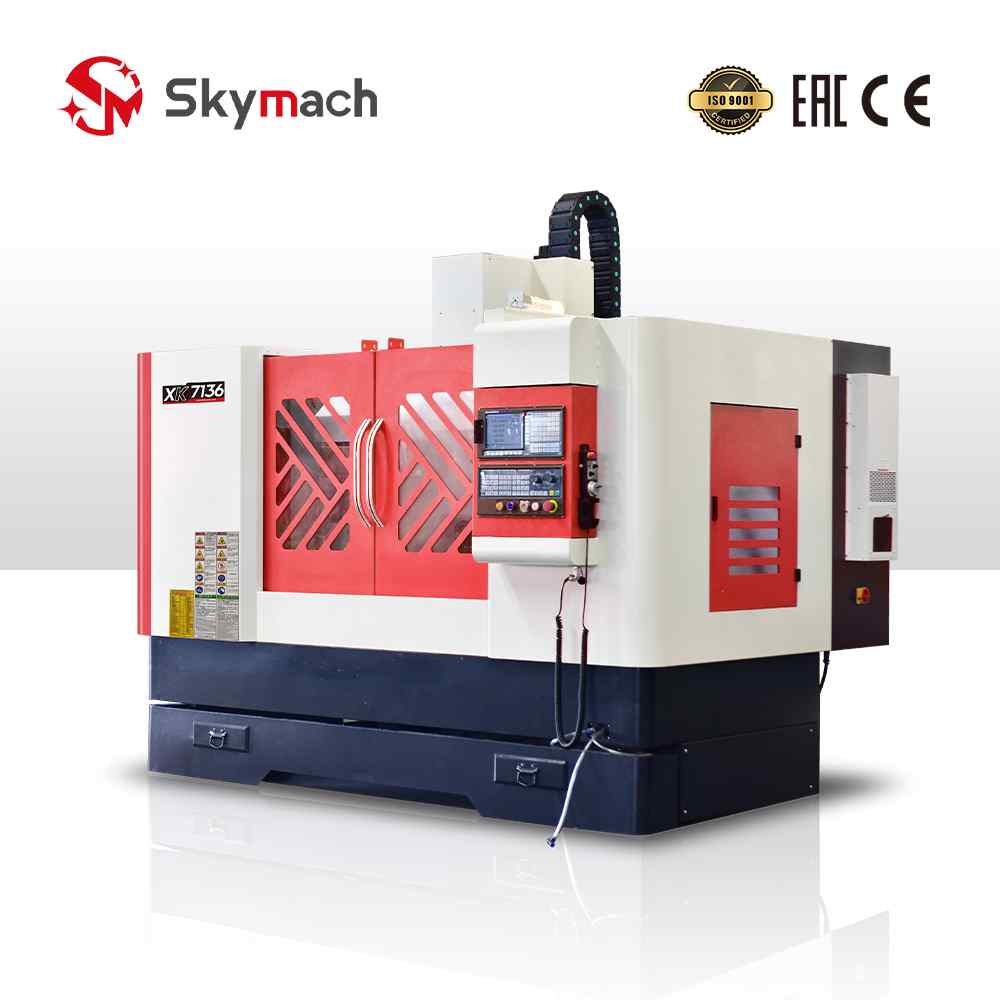

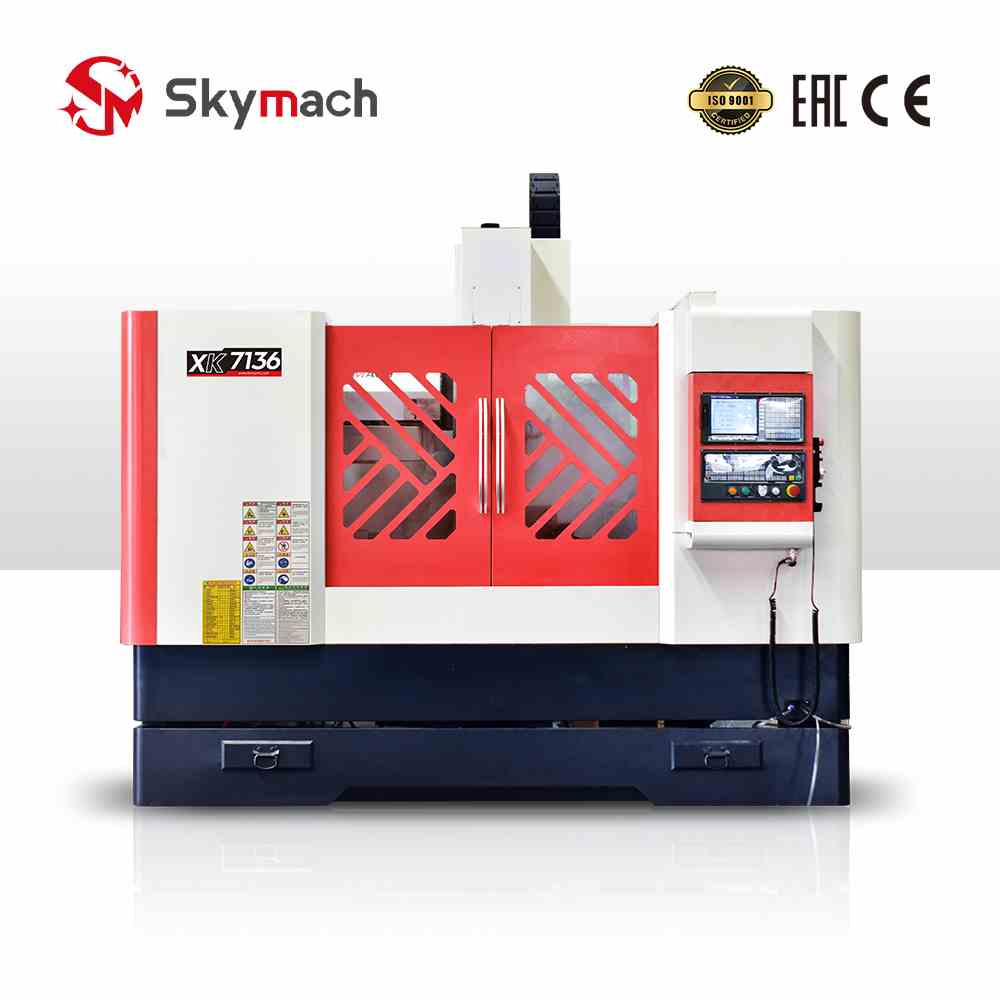

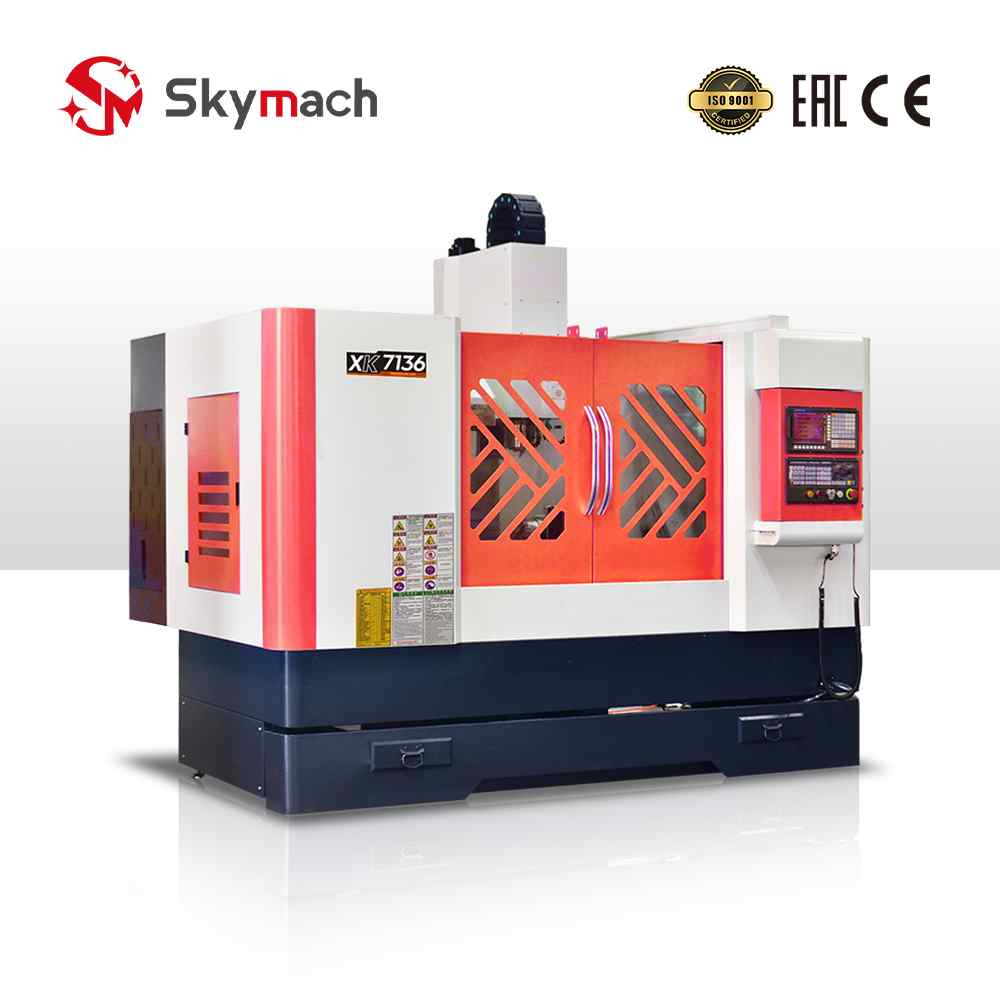

CNC Milling Machine XH7136
A high-quality casting body ensures the machine’s rigidity

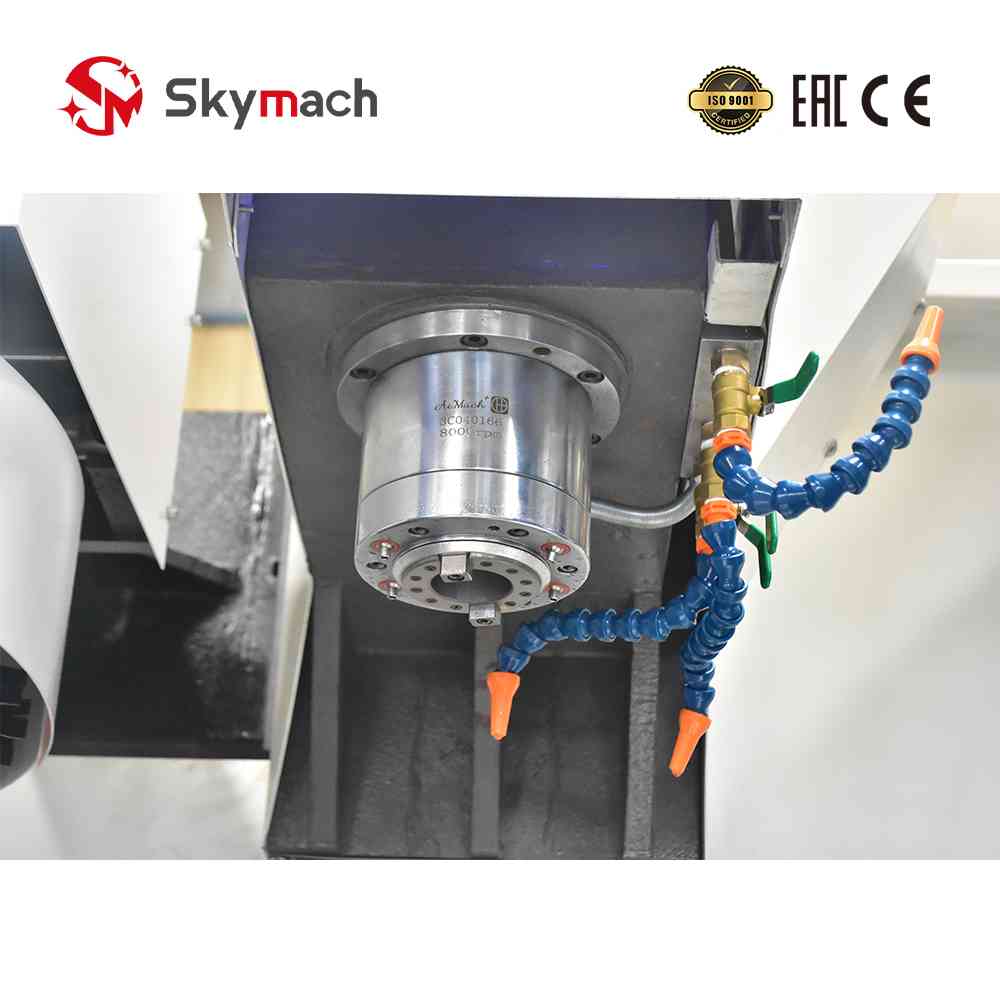

Taiwan’s famous high-speed spindle, 8000, 10000rpm speed available.
Taiwan OKADA umbrella type 10T/12T ATC can be chosen.
Reliable control system: Fanuc, Siemens, Mitsubishi, GSK.
Systems can be selected according to customer requirement
Automatic central lubrication system.
Full protection
Umbrella type 12T magazine tool Taiwan VOLIS spindle
Three-axis lubricating system
Separate hand-wheel
Machine tool lighting work light
Random technology document
Spindle cone Hole cleaning air
Electric cabinet cooling and heat exchanger
Cleaning air gun Chip storage tank
Servo transformer
Foundation pad iron and adjusting bolt
CNC Milling Machine XH7136
A high-quality casting body ensures the machine’s rigidity
Taiwan’s famous high-speed spindle, 8000, 10000rpm speed available.
Taiwan OKADA umbrella type 10T/12T ATC can be chosen.
Reliable control system: Fanuc, Siemens, Mitsubishi, GSK.
Systems can be selected according to customer requirement
Automatic central lubrication system.
Full protection
Umbrella type 12T magazine tool Taiwan VOLIS spindle
Three-axis lubricating system
Separate hand-wheel
Machine tool lighting work light
Random technology document
Spindle cone Hole cleaning air
Electric cabinet cooling and heat exchanger
Cleaning air gun Servo transformer
Foundation pad iron and adjusting bolt
Advantages Of CNC Milling Machine XH7136 :
- The fuselage and main components are high-strength cast iron and microstructure stability. It can ensure the stability of the machine tool for long use.
- The column at the bottom of A type bridge type structure, combined with the big box base. It greatly reduces the vibration of the machine on heavy cutting.
- Pre-tension precision ball screw drive.
- The VMC machining center has high speed, high precision, high rigidity spindle unit
- Design of oil-water separation.
- The intermittent automatic lubrication
- Automatic scraping knife system
- Taiwan’s famous principal axis, axial, and radial bearing capacity is strong. The speed can reach up to 8000 rpm.
- Guideway, screw of the sealed protection, guarantee the screw and guide rail. It can ensure the machine tool’s clean, transmission, and movement precision.
- Electromagnetic valve group by PLC program control. It can ensure the spindle loose tools, spindle center blowing, spindle folder tools, air cooling spindle, etc.
Product Main Technical Parameters:
| CNC milling machine | XH7136 |
| Table size | 1250x360 |
| Max. table load | 400kg |
| T slot qty-width*distance | 3-14x80 |
| spindle speed | 60-8000RPM |
| spindle nose to table surface | 120-580 |
| Spindle center to Column surface | 460 |
| Spindle taper | BT40 |
| Main motor power | 3.7kw (servo) |
| X axis travel | 900mm |
| Y axis travel | 360mm |
| Z axis travel | 460mm |
| X/Y/Z axis rapid feed | 5/5/4m/min |
| Positioning accuracy | ±0.01mm |
| Repeatabeility accuracy | ±0.005mm |
| Net Weight | 2650kg |
| Overall Dimension | 2220x1850x2250 |
