CNC Lathe Machine CK6140
Max.swing over bed: 400mm
Model: CK6140
Polished ball screw spindles
Maintenance-friendly protective housing
Safety switch on front sliding door
High-quality preloaded ball screws
Precision workmanship
Braced machine bed made from cast-iron
Complex spindle bearing and Emergency-Stop push button
CNC system Standard: GSK, Optional: Siemens, Fanuc, Mitsubishi and others
Precise machining and central lubrication
Easy operation and low maintenance cost
Servo motor for X-axis and Z-axis as standard included

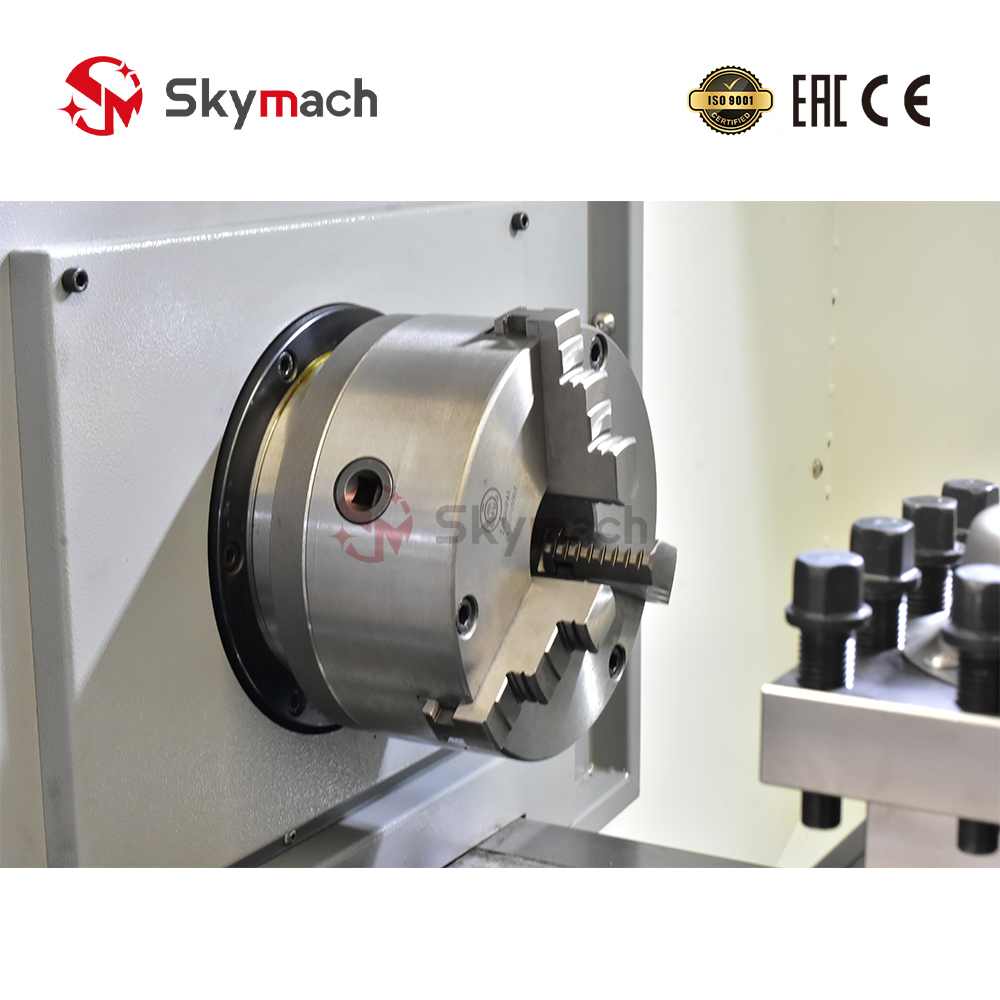

Manual 3-Jaw Chuck as standard included
Manual Tailstock as standard included

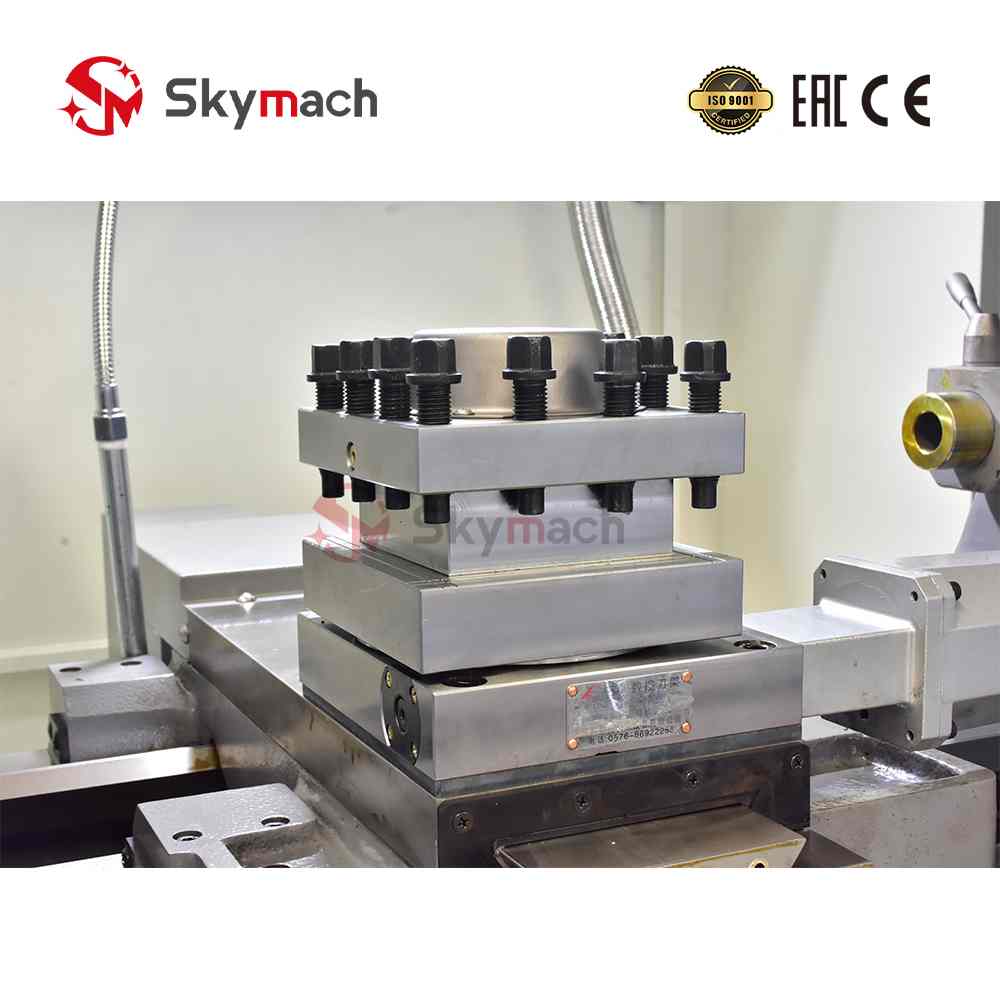

Standard 4-position electrical tool post included
Powerful frequency-conversion variable speed main motor as standard included
Stable AC Servo main motor is optional

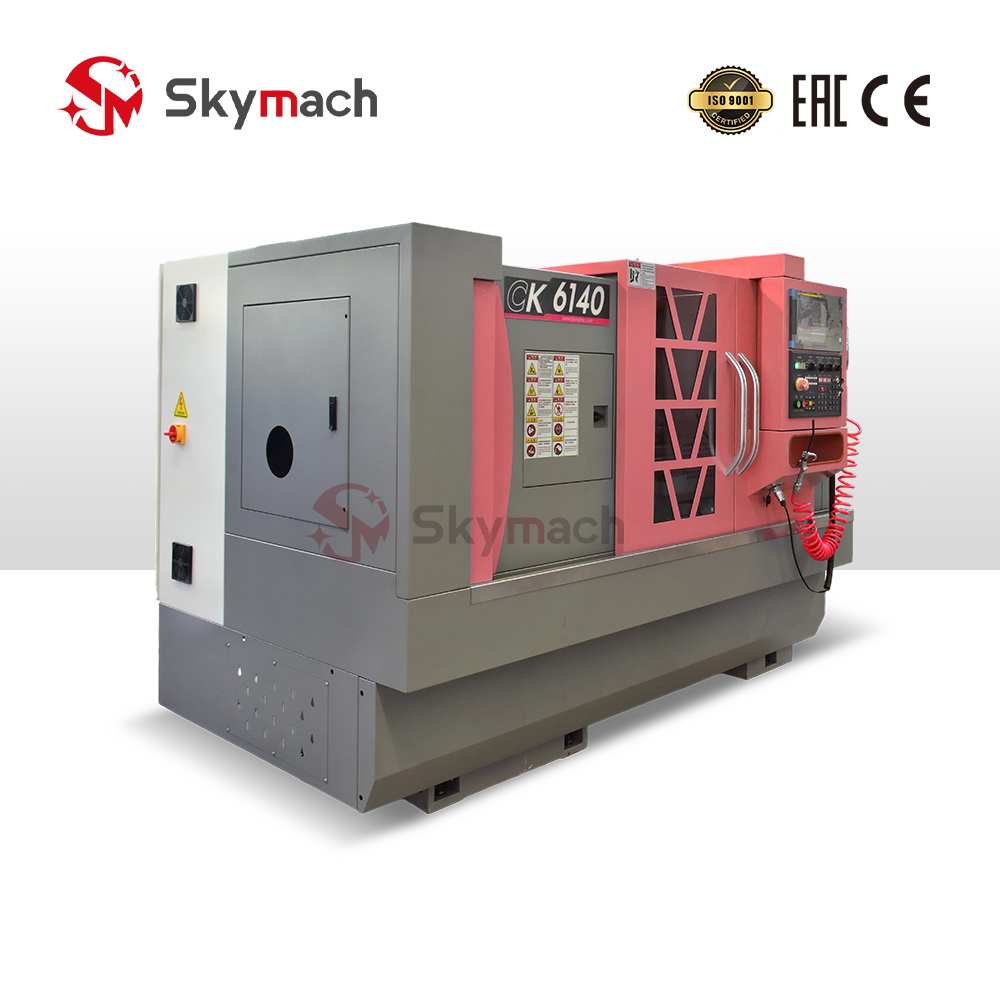

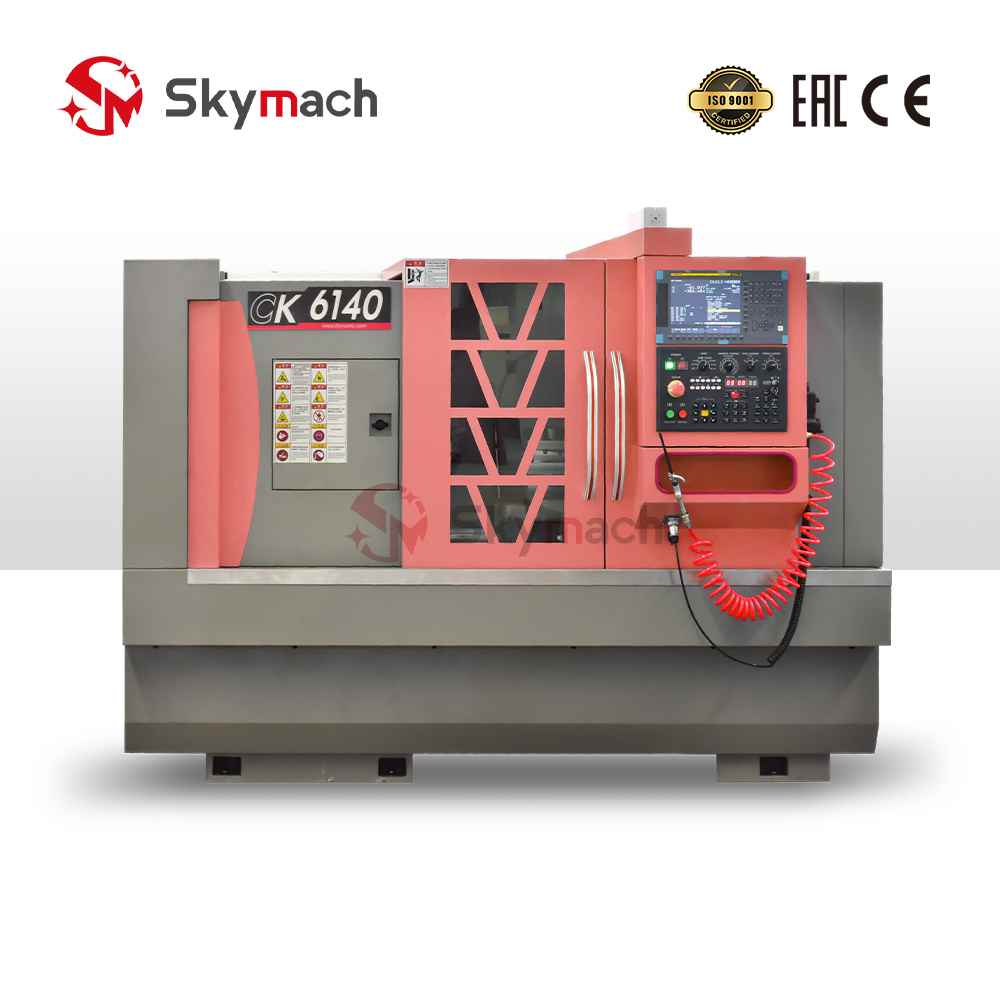

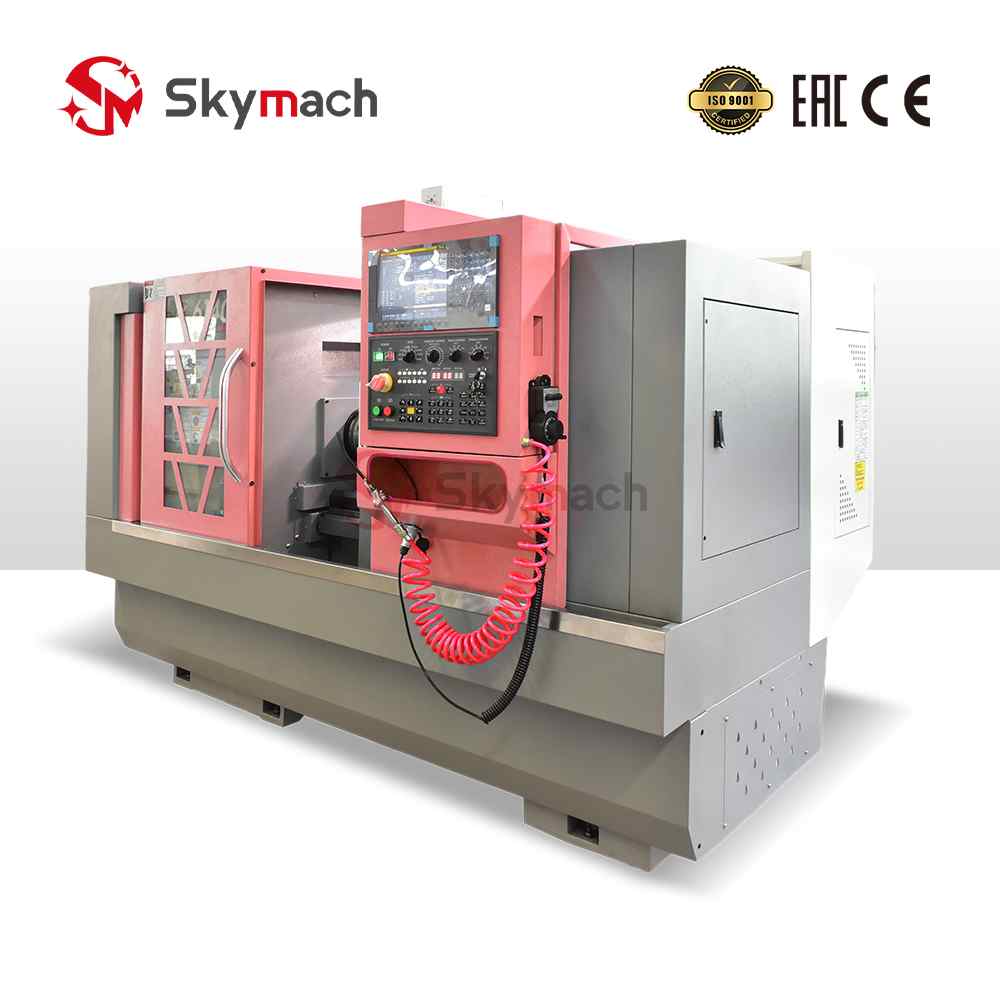

CK6140 CNC Lathe Machine
Max.swing over bed: 400mm
Model: CK6140
Polished ball screw spindles
Maintenance-friendly protective housing
Safety switch on front sliding door
High-quality preloaded ball screws
Precision workmanship
Braced machine bed made from cast-iron
Complex spindle bearing and Emergency-Stop push button
CNC system Standard: GSK, Optional: Siemens, Fanuc, Mitsubishi and others
Precise machining and central lubrication
Easy operation and low maintenance cost
Servo motor for X-axis and Z-axis as standard included
Manual 3-Jaw Chuck as standard included
Manual Tailstock as standard included
Standard 4-position electrical tool post included
Powerful frequency-conversion variable speed main motor as standard included
Stable AC Servo main motor is optional
Advantages Of CNC Flat Bed Lathe Machine：
- CK6140can automatically process the inside and outside cylinder surface, cone surface, circle arc surface, end face.
- CK6140can also turn the single and multiple threads in metric inch and other standard.
- High rigidity pedestal and wider lay board are suitable for heavy cutting.
- Spindle adopts high precision rolling bearings high precision rotary plate aspect to adopt high precision ball screw transmission, good dynamic performance,precision positioning.
- The machine tool guide with wear-resistant cast iron and after the audio quenching, can ensure the long-term stability ofprocessing accuracy.
- CK6140 delivers high productivity, accuracy and exceptional surface finish.
- CK6140 CNC lathe are designed with stability and rigidity in mind to assure optimal stability when performing heavy – duty cutting.
- This machine is widely used in parts processing and manufacturing
Product Main Technical Parameters:
| SPECIFICATIONS | CK6140 | |
|---|---|---|
| Swing over bed | mm | 400 |
| Swing over cross slide | mm | 210 |
| Distance between centers | mm | 750/1000/1500/2000 |
| Spindle bore | mm | 52(Opt.80) |
| Spindle bore taper | MT6 | |
| Spindle nose type | C6 | |
| Spindle speed steps | Manual 2 steps(Optional stepless) | |
| Spindle speed range | rpm | L：100-500H：500-1800（Optional 90-1800) |
| Turret/tool post | Electric 4 position | |
| Tool size | mm | 25*25 |
| X axis travel | mm | 230 |
| Z axis travel | mm | 750/1000/1500/2000 |
| X axis rapid traverse | mm/min | 6000 |
| Z axis rapid traverse | mm/min | 8000 |
| Tailstock quill diameter | mm | 65 |
| Tailstock quill taper | MT4 | |
| Tailstock quill travel | mm | 130 |
| Main motor power | kw | 4 |
| Coolant motor power | kw | 0.09 |
| Weight for 750 | kg | 1700 |
| Weight for 1000 | kg | 1800 |
| Weight for 1500 | kg | 1900 |
| Weight for 2000 | kg | 2000 |
| Dimension for 750 | mm | 2200*1650*1700 |
| Dimension for 1000 | mm | 2500*1650*1700 |
| Dimension for 1500 | mm | 3000*1650*1700 |
| Dimension for 2000 | mm | 3500*1650*1700 |
