Vertical Machining Center VMC1160H
Resin sand casting bed for high rigidity and vibration resistance
24-arm type automatic tool changer (ATC) for efficient tool switching
Taiwan VOLIS high-speed BT40 spindle (max 8000 rpm)
Taiwan HIWIN precision linear guideways on X/Y/Z axes
CNC control system options: FANUC, SIEMENS, KND, MITSUBISHI, GSK (optional by customer)
Full machine enclosure for operational safety and chip containment
Three-axis centralized automatic lubrication system
Detachable MPG handwheel for manual fine-tuning
Built-in LED work light for improved visibility
Includes technical documentation and user manuals
Air blast for spindle taper cleaning to ensure toolholding precision
Electrical cabinet heat exchanger for thermal stability
Air gun for machine and part cleaning
Servo transformer for stable power supply
Vertical Machining Center VMC1160H
Resin sand casting bed for high rigidity and vibration resistance
24-arm type automatic tool changer (ATC) for efficient tool switching
Taiwan VOLIS high-speed BT40 spindle (max 8000 rpm)
Taiwan HIWIN precision linear guideways on X/Y/Z axes
CNC control system options: FANUC, SIEMENS, KND, MITSUBISHI, GSK (optional by customer)
Full machine enclosure for operational safety and chip containment
Three-axis centralized automatic lubrication system
Detachable MPG handwheel for manual fine-tuning
Built-in LED work light for improved visibility
Includes technical documentation and user manuals
Air blast for spindle taper cleaning to ensure toolholding precision
Electrical cabinet heat exchanger for thermal stability
Air gun for machine and part cleaning
Servo transformer for stable power supply
Advantages Of Vertical Machining Center VMC1160H:
- The VMC1160H is a high-performance 3-axis CNC vertical machining center designed for precision and versatility. In its standard configuration, it features three feed axes—X, Y, and Z—controlled with three-axis linkage, providing high-speed, high-efficiency machining capabilities.
- It is suitable for machining various complex parts in a single clamping, including discs, plates, shells, cams, and molds. The VMC1160H can perform operations such as drilling, milling, boring, expanding, and reaming. With the option to equip a fourth-axis CNC rotary table, it can handle more advanced tasks like machining spiral grooves and other complex geometries on rotating bodies.
- Equipped with a spacious 1200×600 mm table, a robust BT40 spindle capable of reaching up to 8000 rpm, and a powerful 11 kW spindle motor, the machine ensures high cutting efficiency. The X/Y/Z travel spans 1100×600×600 mm, with rapid feed speeds up to 24/24/20 m/min. It utilizes linear guideways for smooth and precise axis movement, and an arm-type 24-tool automatic tool changer for continuous operation.
- With a sturdy machine structure weighing 7800 kg and overall dimensions of 3300×2800×2700 mm, the VMC1160H offers excellent rigidity, stability, and performance for a wide range of machining applications

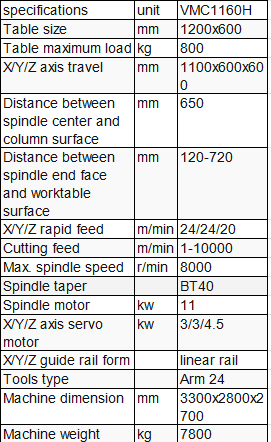

Product Main Technical Parameters:
| specifications | unit | VMC1160H |
| Table size | mm | 1200x600 |
| Table maximum load | kg | 800 |
| X/Y/Z axis travel | mm | 1100x600x600 |
| Distance between spindle center and column surface | mm | 650 |
| Distance between spindle end face and worktable surface | mm | 120-720 |
| X/Y/Z rapid feed | m/min | 24/24/20 |
| Cutting feed | m/min | 1-10000 |
| Max. spindle speed | r/min | 8000 |
| Spindle taper | BT40 | |
| Spindle motor | kw | 11 |
| X/Y/Z axis servo motor | kw | 3/3/4.5 |
| X/Y/Z guide rail form | linear rail | |
| Tools type | Arm 24 | |
| Machine dimension | mm | 3300x2800x2700 |
| Machine weight | kg | 7800 |
Product Main Technical Parameters:
Video Display
FAQS
Do You Have Your Own Factory?
Yes. Our factory was established in Tengzhou in 2015 with advanced production technology. You are welcome to visit our factory at any time.
Do you provide technical support for the CNC equipment purchased?
Yes! We have 10 engineers available online 24/7 to provide technical support and guidance.
Where Do You Ship the Goods From?
Usually, shipments depart from the port of Qingdao, China, our port facility in Shanghai, or customers can arrange pickup directly from Shandong Province.
What Customization Options Can You Offer?
What Kind of Payment Methods Do You Accept?
The company supports bank T/T payments, PayPal, credit card payments, Western Union, and LC payments, along with other options.
What About After-Sales Service?
We have dedicated staff in Europe, Southeast Asia, Canada, South America, and other regions who can address your issues. They will respond to and resolve your after-sales service requests promptly.
