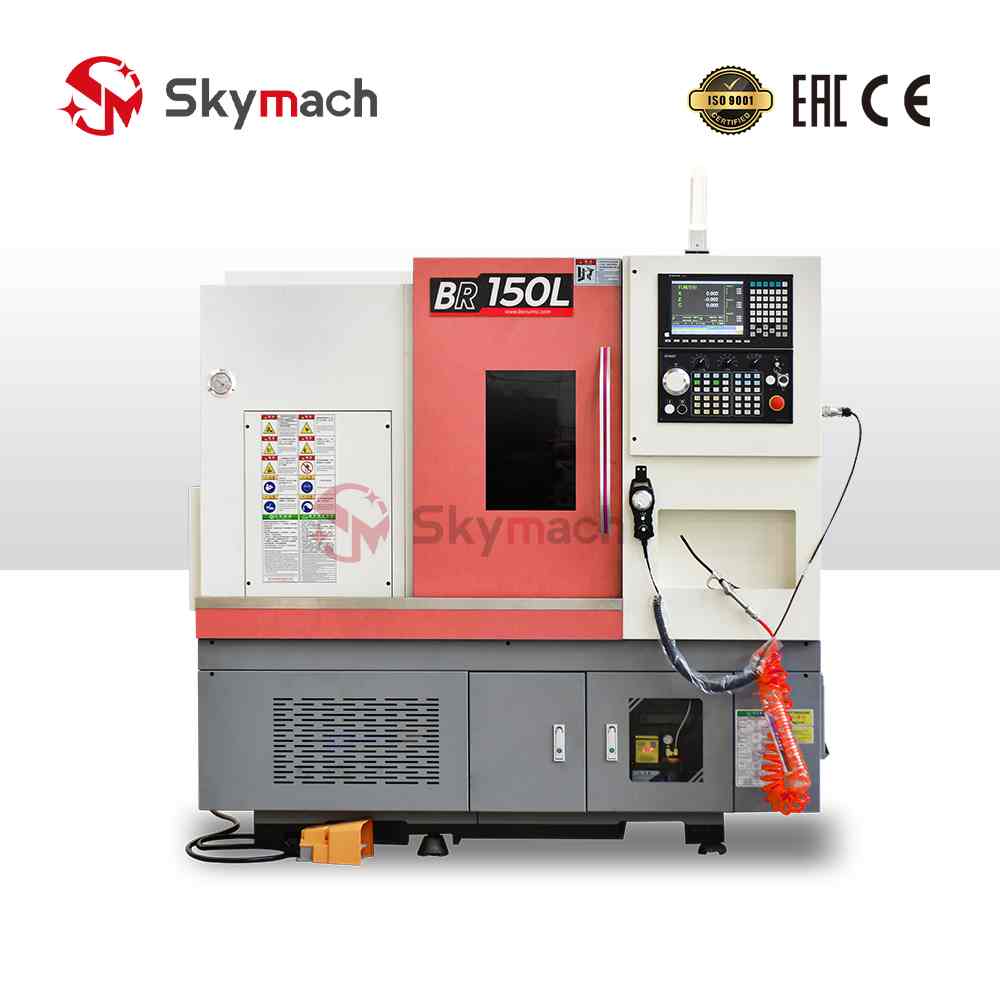

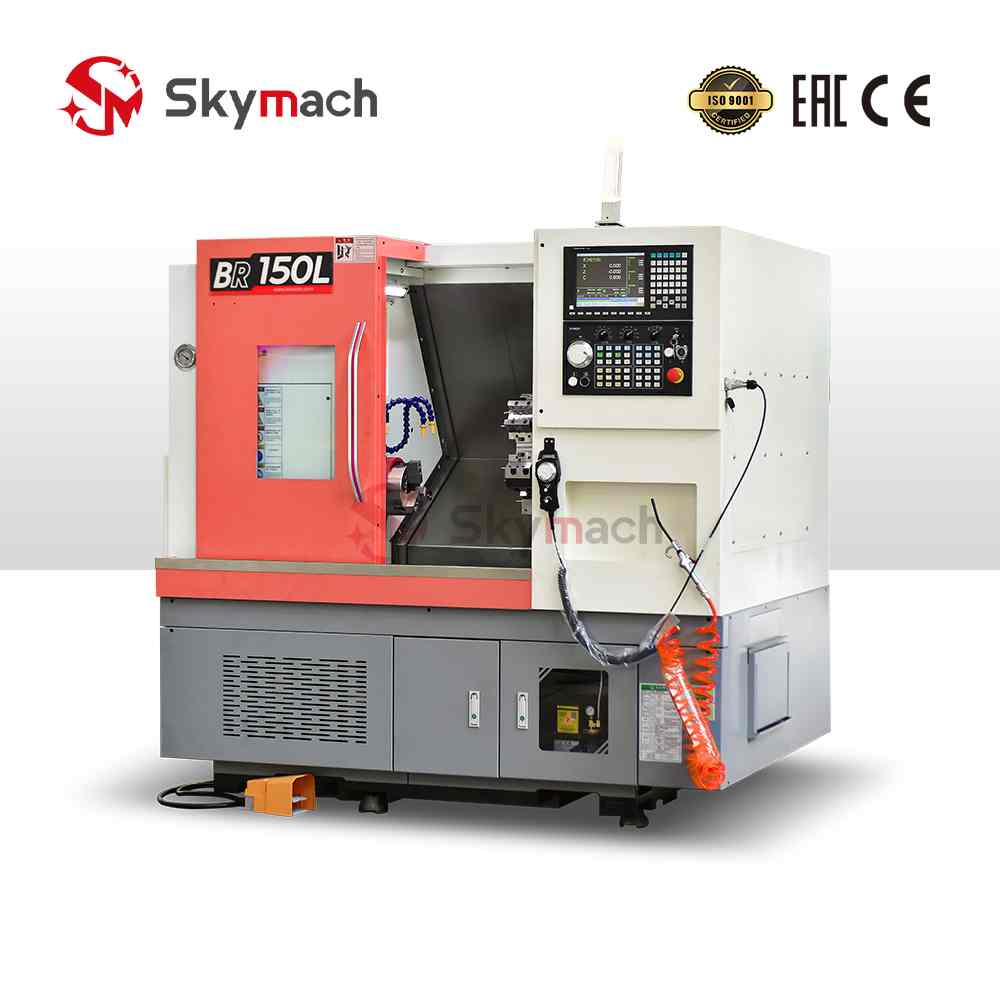

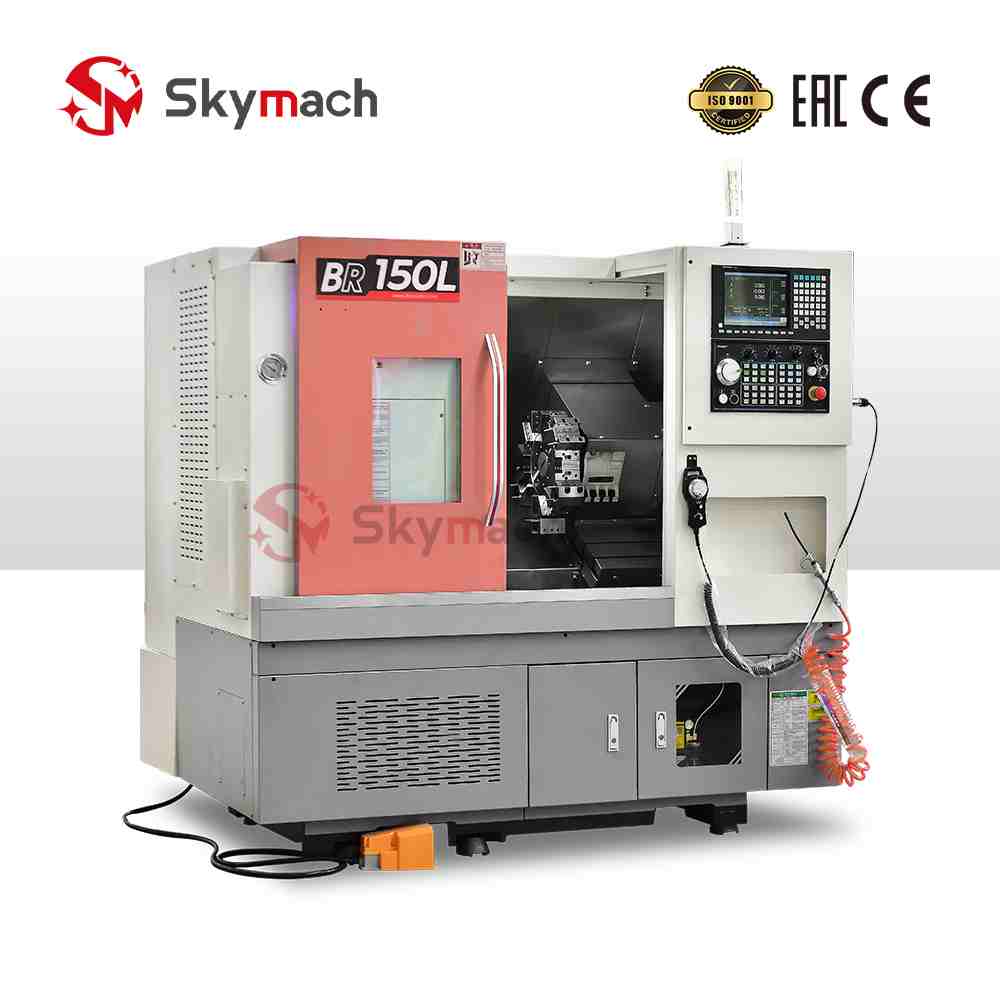

CNC Slant Bed Lathe BR150L
30 degree integral bed
8〞hydraulic hollow chuck
Spindle infinitely variable speed
12 station tool
4500rpm Spindle speeds
5.5kw Main motor power
With the full cover
Hydraulic tailstock
Ball Screw Bearing
Roller line rail
lubrication, coolant system
380v 50hz 3phases
High rigidity structure
High precision and high stability
CNC system Standard: GSK, Optional: Siemens, Fanuc, Mitsubishi and others
CNC Slant Bed Lathe BR150L
30 degree integral bed

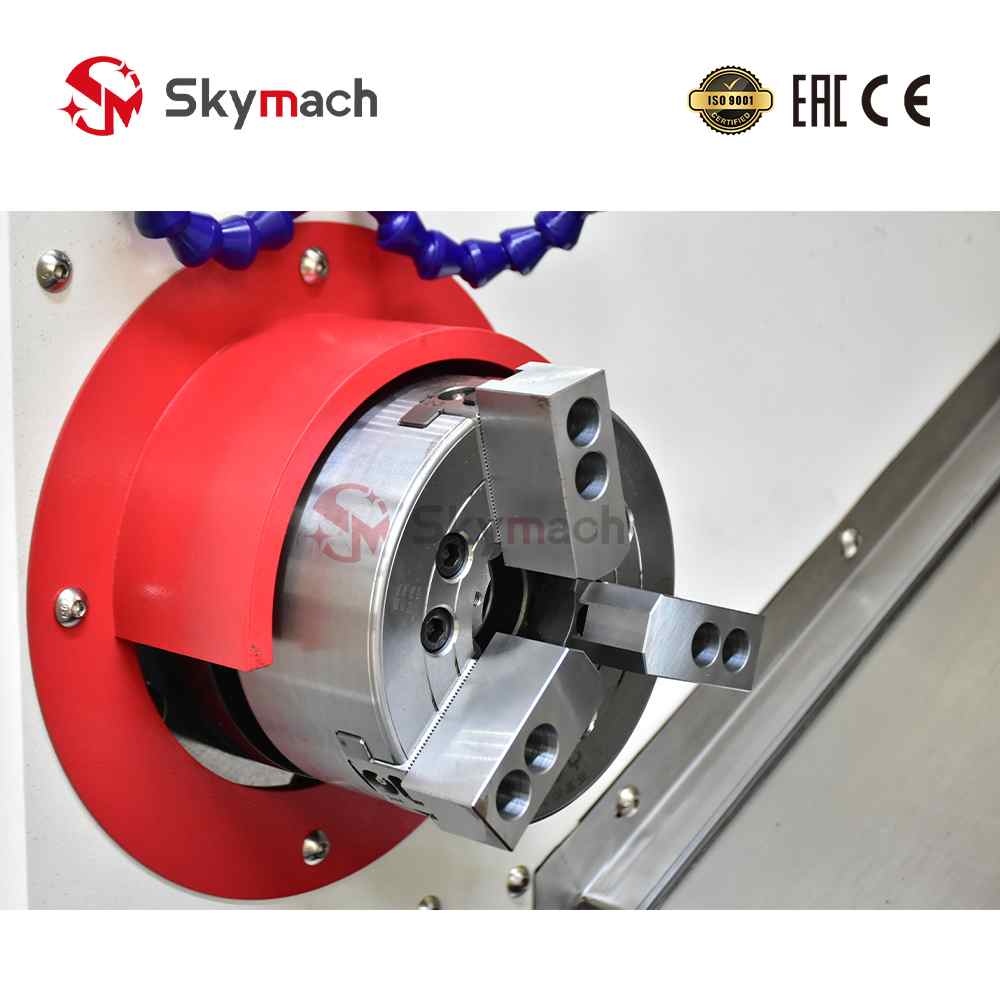

8〞hydraulic hollow chuck
Spindle infinitely variable speed

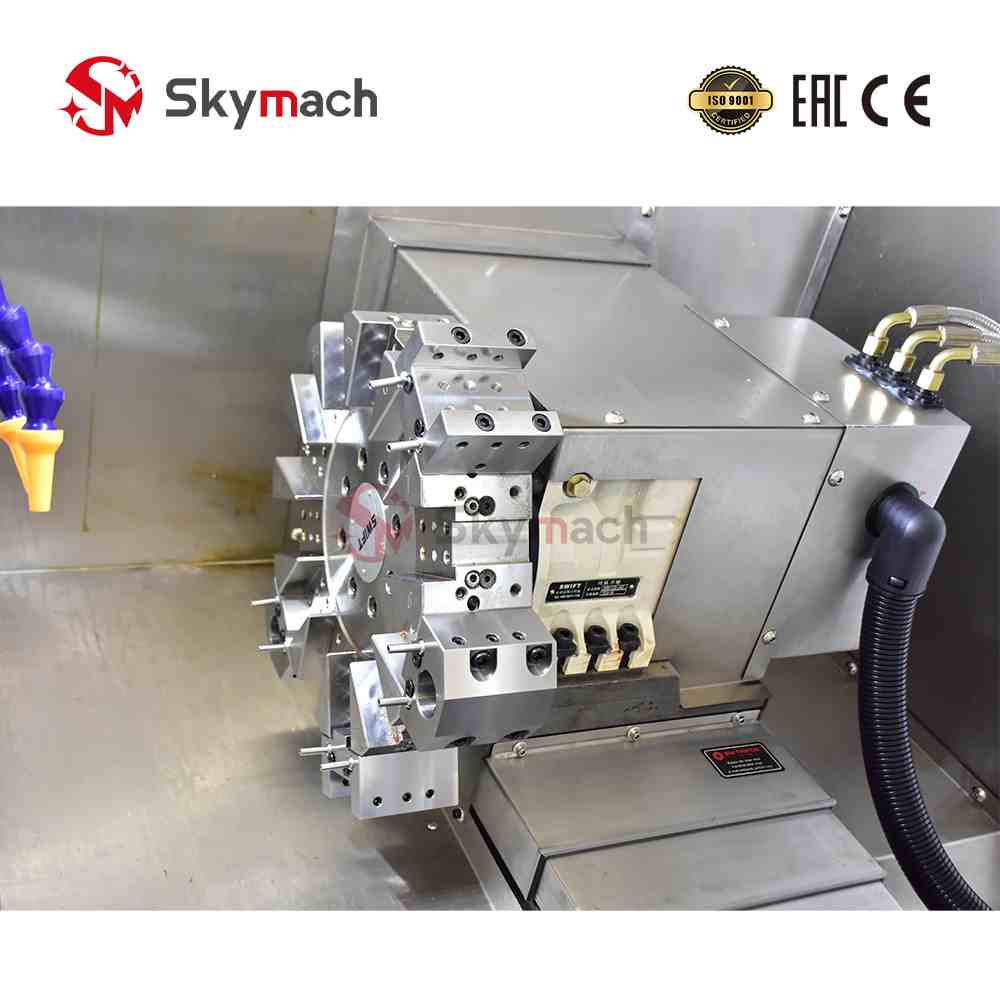

12 station tool
4500rpm Spindle speeds
5.5kw Main motor power
With the full cover
Hydraulic tailstock
Ball Screw Bearing
Roller line rail
lubrication, coolant system
380v 50hz 3phases
High rigidity structure
High precision and high stability
CNC system Standard: GSK, Optional: Siemens, Fanuc, Mitsubishi and others
Advantages Of CNC Slant Bed Lathe BR150L
- Advantages Of Linear Guide CNC Slant Bed Lathe Machine：
- High precision, high efficiency, easy to operate. It uses a steel insert guideway, and the machine rigidity is good.
- The machine can improve machining accuracy. It can ensure the long-term stability of machining accuracy.
- CNC lathe with inclined bed adopts domestic or imported rigid horizontal turret tool rest. It has high positioning accuracy.
- Fully enclosed protection, better protection of guide rail, screw, and bearing.
- The spindle is made of high-strength and high-rigidity material. It is made of multi-channel processing.
- High machining precision and stable machining quality.
- Machine tools have a high degree of automation. It can reduce labor intensity.
- The mass production of complex parts has had a good economic effect.
Product Main Technical Parameters:
| Machine Model | BR-150L | BR-150LA | BR-150DY | BR-150LADY(A2-6) |
| The max.swing diameter over bed | Φ510 | Φ510 | Φ510 | Φ510 |
| Max. machining diameter | Φ250 | Φ250 | Φ250 | Φ250 |
| Max. swing diameter over cross slide | Φ150 | Φ150 | Φ150 | Φ150 |
| Max. processing length | 260 | 245 | 235 | 225 |
| Spindle end type | A2-5（6 ″） | A2-6（8 ″） | A2-5（6 ″） | A2-6（8 ″） |
| Spindle motor power | 5.5～7.5KW | 7.5～11KW | 5.5～7.5KW | 5.5～7.5KW |
| Spindle speed | 4500rpm | 3500rpm | 4500rpm | 3500rpm |
| Spindle through hole diameter | Φ56 | Φ66 | Φ56 | Φ66 |
| Through the bar diameter | Φ45 | Φ52 | Φ45 | Φ52 |
| X/Z axis lead screw specification | 3208/3210 | 3208/3210 | 3208/3210 | 3208/3210 |
| Y axis lead screw specification | 2508 | 2508 | ||
| X/Z axis linear guide specifications | 35/35 | 35/35 | 35/35 | 35/35 |
| Y axis linear guide specifications | 25 | 25 | ||
| X/Z axis limit travel | 135/370 | 135/370 | 135/370 | 135/370 |
| Y axis limit travel | 60(±30) | 60(±30) | ||
| X/Z axis motor torque | 11N.M/11N.M | 11N.M/11N.M | 11N.M/11N.M | 11N.M/11N.M |
| Y axis motor torque | 7 N.M | 7 N.M | ||
| X/Z axis connection type | Direct connection | Direct connection | Direct connection | Direct connection |
| Turret | SH80-825-280 | SH80-825-280 | ||
| Tower station | 12T | 12T | 12T | 12T |
| Power tower | Y-axis power tower | Y-axis power tower | ||
| Power head specification | BMT40/ER20 | BMT40/ER20 | ||
| Power head speed | 4000rpm | 4000rpm | ||
| Power head motor | 2.5Kw | 2.5Kw | ||
| Power head to motor transmission ratio | 1∶1 | 1∶1 | ||
| Turret center height size | 80mm | 80mm | ||
| Bed type and inclination | Integrated/30° | Integrated/30° | Integrated/30° | Integrated/30° |
| Machine size（L * W * H) | 1430×1025×1380 | 1430×1025×1380 | 1430×1025×1470 | 1430×1025×1470 |
